Hot Sale Lab Textile Medium-Batch Dyeing Machine ACCDYER-12L/23L

Supplier: Hefei Fanyuan Instrument Co., Ltd.
Region: Anhui, China
Contact: Ms MIN LIU
Price: $6000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Delivery Detail:	4 weeks max.;	Dimension(LWH):	68x67x109cm;
Brand Name:	FYI;	Cooling method:	Air-cooling;
Automatic Grade:	Automatic;	Supply Ability:	1000 Set/Sets per Month;
Temperature control range:	RT~135 oC;	Certification:	CE. ISO;
Heat method:	Electromagnetic heating;	Lowest liquor ratio:	1:4;
Temperature accuracy:	±0.5 oC;	After-sales Service Provided:	Engineers available to service machinery overseas;
Model Number:	ACCDYER-12L/23L;	Warranty:	1 year;
Port:	By negotiation;	Place of Origin:	China;
Voltage:	AC220V/380V;	Product name:	Textile Medium-Batch Dyeing Machine;
Weight:	115kg;	Payment Terms:	L/C,T/T,Western Union;
Condition:	New;	Warranty:	1 Year;
Packaging Detail:	wooden package;

Product Description

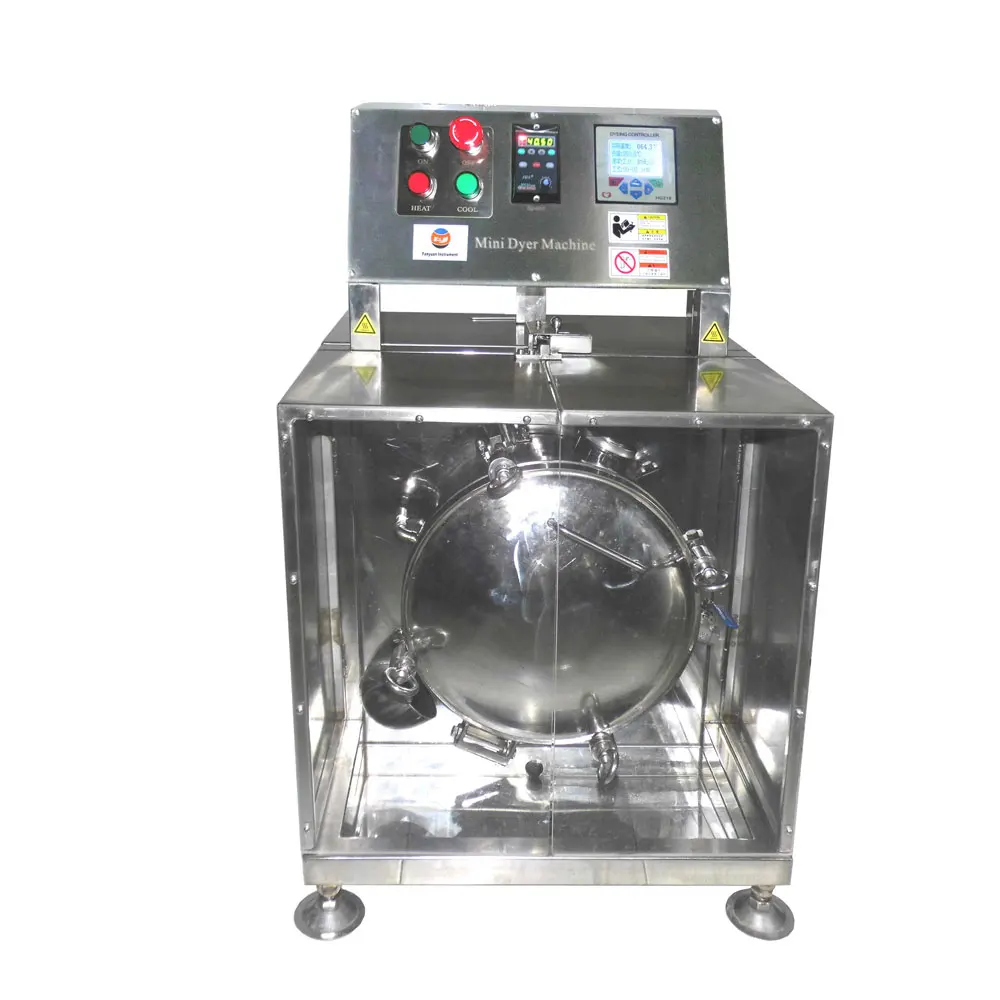

ACCDYER-12L/23L Textile Medium-batch Dyeing Machine

Product Application

ACCDYER-12L/23L Textile Medium-batch Dyeing Machine, also called mini dyeing machine, is an electromagnetic heating dyeing machine. Its unique design of simultaneously moving fabric and dye liquor realizes sufficient permeability of dye liquor to fabrics and achieves uniform coloring in the tension-free environment.
Owing to the characteristics of simple operation, electricity saving, no requirement of steam, precise temperature control and ultra low liquor ratio, this textile medium-batch dyeing machine can improve the color accuracy of dyeing, save dyeing cost for dyeing factories and material cost for garment factories and can check dyeing ability of gray fabrics for fabric manufacturing factories.

Main Features

1) Fabric and dye liquor move simultaneously in the pressure-resistant cylindrical dye vat to achieve uniform coloring in the tension-free environment;
2) Encircling rod to position fabric, ensure un-clotting of fabric and dyeing uniformity;
3) The liquor ratio of textile medium-batch dyeing machine can be as low as 1:4;
4) Electromagnetic heating and self-heating of the dye vat realize high heating efficiency;
5) Independent of steam, suitable to widely environment;
6) Dyeing controller directly controls the temperature of dye liquor to ensure the temperature accuracy;
7) Editable and storable process programs up to 100pieces, 100steps for each; latest 10 pieces of process programs can be inquired;

Detailed Images

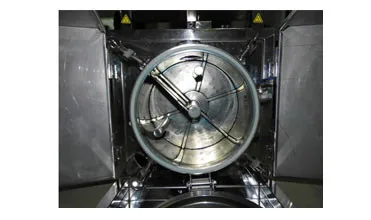

Pressure-resistant cylindrical dye vat

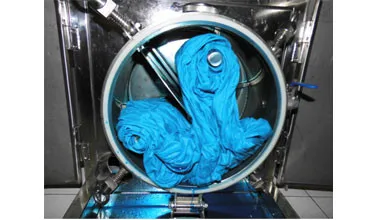

Dye vat loaded with fabric

Certifications

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	680x670x1090 mm
Weight	115 kg
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
