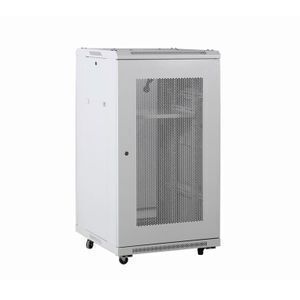

OEM Service Hot New Products 19 Inch Network Data Cabinet 8U 10U 18U 20U 22U Server Rack
-
Supplier: Beijing Sifang Bosco Technology Co., Ltd. -
Region: Beijing, China -
Contact: Ms. Laura Xu -
Price: $26.00 /set -
Min. Order: 1 set
| Product Name: | 19 Inch Network Data Cabinet 8U 10U 18U 20U 22U Server Rack; | Port: | Tianjin Port; |
| Usage: | Network and Server; | Model Number: | SFBY--A; |
| Customization: | Accept Enclosure Customized; | Cabinet Standard: | Internetional Standard; |
| Degree of protection: | IP20; | Color: | Black/Light Grey/OEM; |
| Size: | 6U, 9U,12U; | Place of Origin: | Beijing China; |
| Supply Ability: | 50000 Set/Sets per Month Cabinet Server Rack; | Products Status: | Stock; |
| Surface finish: | Degreasing, Pickling, Phosphating, Electrostatic spray; | Brand Name: | SFBY; |
| Material: | SPCC Cold Rolled Steel; | Capacity: | 4u 6u 9u 12u 15u; |
| Payment Terms: | L/C,T/T,Western Union,Paypal, Alibaba trade assurance; | Certificate: | ISO9001; |
| Packaging Detail: | Standard export carton; | Depth: | 450mm; |
| Thickness: | 2.0mm/1.0-1.1mm; |
OEM Service Hot New Products 19 Inch Network Data Cabinet 8U 10U 18U 20U 22U Server Rack
Basic Information:
1) Standard | Complies with IBM, ANSI/EIA RS-310-D, IEC297-2, DIN41491: PART1, DIN41494: PART7,GB/T3047.2-92, ETSI Standard |
2) Material | SPCC high-quality cold rolled steel |

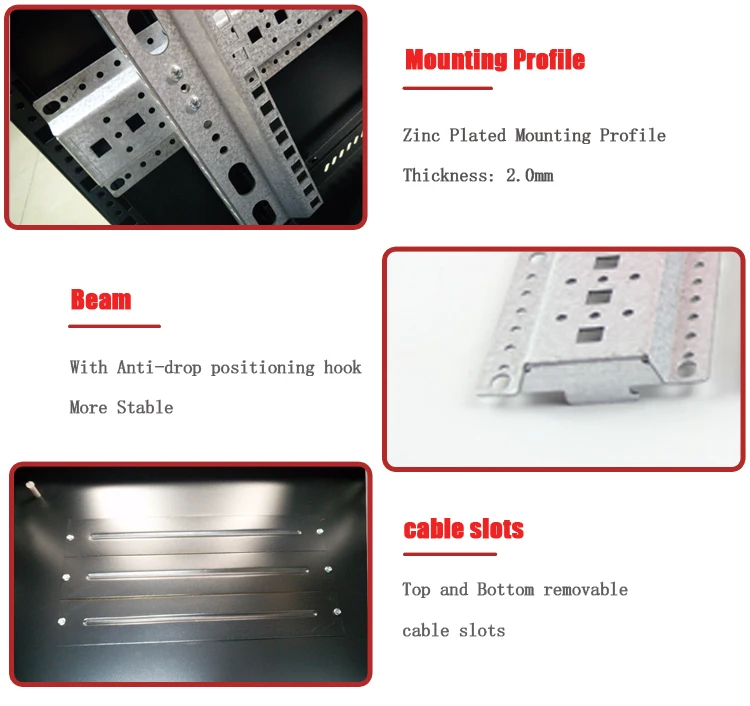

3) Thickness | Mounting profile (Square Hole) 2.0mm Others (front and rear mesh door) 1.2mm |
4) Protection Degree | IP20 |
5) Loading Capacity | 800kgs(=1763lbs) / 1000kgs(=2205lbs) |
6) Surface Finish | Degreasing, Pickling, Phosphating, Electrostatic spray. |
7) Color | Optional: Black(BSC9004) White(BSC7035) Grey(BSC7032) |
8) Origin | China. |
9) Characteristics |
2 Sets of adjustable mounting rails(Zinc Plated) Cage nut style mounting rails Removable/lockable side panels Top and Bottom removable cable slots Glass front door/Vented Rear door
|
10) Specifications
| Width - 23.62 Inches (600mm), 31.50 Inches (800mm) Depth - 23.62 Inches (600mm), 31.50 Inches (800mm), 39.37 Inches (1000mm) Rail Width - 19 inch EIA Compliant |
11) Advantage | 1.Secure,firm and reliable 2. Easy to maintain equipment 3. Two Packing Ways: 1).Assembly packing to save labour cost, ready to resell or use 2).Disassembly packing to save space and transport cost, easy to assemble 4.Certification: ISO 9001:2000 5. OEM/ODM service available |
12) Recommended options

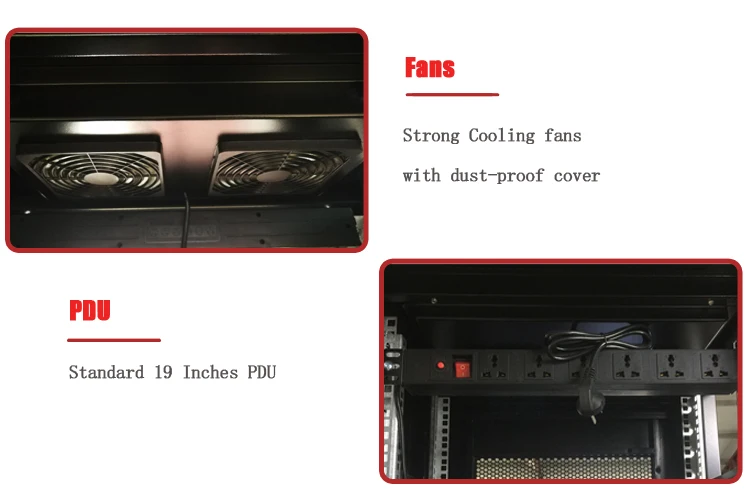

| Fan assembly kit PDU Racks Screws,Cage nuts Plastic/Metal Cable management Shelves |
2.Process Performance and Characteristics:
2.1 With strong overall structure, static loading capacity is up to 1000kgs.
2.2 Unique high-density hexagonal mesh front door and double mesh back door make ventilation vent area no less than 72% of the door area, solve three aspects of using requirements as mechanical protection, ventilation and heat dissipation, external observation of machine operating conditions. The front door can be equipped with tempered glass doors of international popular colors.
2.3 Characterized with noble and elegant appearance, exquisite workmanship, precise dimensions, it is comparable to the most high-end network server cabinets worldwide, and highlights the image of high-quality engine room project.
2.4 The left and right side doors with moonlight lock can be quickly disassembled and installed. It is quite convenient for work, maintenance and anti-theft.
2.5 Casters and support feet can be mounted simultaneously for easy movement and fixation.
2.6 Interchangeable door hinges; top four entry holes are equipped with rubber covers to meet the upper routing, lower routing and the upper and lower routing, providing vertical and horizontal routing management.
2.7 Accessories for replacement of international quality cabinets.
2.8 Satisfying 19-inch installation or making various specifications and cabinet structural changes according to customer requirements.
2.9 Satisfying the design requirements for upper air intake, lower air intake and front air intake.
2.10 Front and rear doors open greater than 130 degrees.
FAQ
Q: Are you manufacturer?
A: Yes, we are a professional manufacturer with more than ten years experience in this industry.
Q: How can I choose my needed product in your company?
A: Please select the style you are interested, then, contact us and tell us the quantity and other requirement, we will offer you quite competitive price.
Q: Can I get the samples before order?
Yes, we can supply sample demo for you.
-
