IP65 CABINET outdoor cabinet
- 100.00 unit
| Supply capacity: | 3000 IP65 CABINET per month | model: | TN-901 outdoor cabinet |
| Static loading: | 1000KG | type: | IP65 cabinet |
| ID: | silk screen, aluminum sticker, rubber sticker | Packaging Details: | Wooden case, wooden pallet; IP65 CABINET disassembly or assembly packaging |
| capacity: | 6-47U | Protection class: | IP65 |
| With air control panel: | Elective | product status: | in stock |
| Certification: | CE,RoHS,CE,ROHS,ISO9001 | brand: | multinational |
| color: | RAL5012 (top cover and base); RAL7035 (other) | Material: | SPCC cold rolled steel |
| With fan: | Elective | payment terms: | L/C, T/T, Western Union, MoneyGram, PayPal |
| port: | Ningbo or Shanghai port | Origin: | Zhejiang, China |
| size: | 6-47U | Cabinet standard: | ANS/EIA RS-310-D, IEC297-2, DIN4149, PART1, DIN41491 |

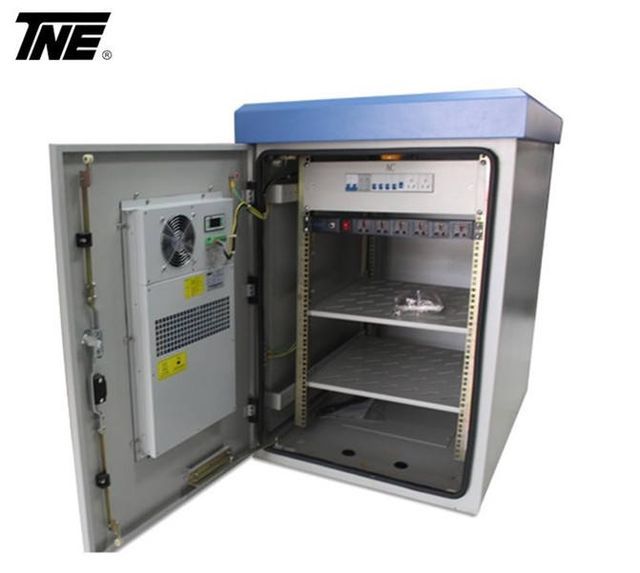

IP65 CABINET outdoor cabinet
- 19 inch street cabinet, outdoor application
- Reliable 19" International Construction, Double Walled
- Outdoor floor standing or fixed on a pole
- Front single solid metal door with handle lock
- Reinforced door hinge with 130 degree operating angle
- Rear single solid metal panel
- With 2/8 fans on the top for airflow and cooling, fan size: 120*120*38 mm
- Multiple lockable wiring holes on the top/bottom, and the size of the large hole on the bottom is adjustable
- Change specifications according to customer's special requirements
- With 1 lighting system, smoke alarm, temperature sensor
Width: 600,800mm
Depth: 600,800mm
Height: 6U, 9U, 12U, 15U, 18U, 22U, 27U, 32U, 37U, 42U, 47U - Custom size available
- Flexible packaging methods facilitate inventory and end-user delivery.
Standards and Materials:
Comply with ANSI/EIA, RS-310-D; IEC297 2; DIN41491: PART1; DIN41494: PART7; GB/T3047.2-92 standard and ETSI standard.
Surface treatment:
Degreasing, pickling, antirust phosphating, pure water cleaning, electrostatic powder coating
Material:
SPCC cold rolled steel or galvanized panel or stainless steel
thickness:
Mounting profile: 2.0mm, others: 1.50mm
Protection class:
IP-55
Color: Body Color:
RAL5012 (top cover and base); RAL7035 (other)
Package:
Certificate
Applications of our cabinets
Cabinets for information technology and telecommunications equipment use:
•Small, medium and large servers
• DVRs, security devices and routers
• Patch panels and switches
• Telephone system and PABX
• Network and communication equipment
• UPS equipment
• Other rack mount equipment
FAQ
1) What is your payment term?
--- T/T, L/C, Western Union can be accepted.
2) What is your trade term?
---EXW, FOB, CNF, CIF are also available.
3) What is the loading port?
---Ningbo, Shanghai.
4) What is your MOQ?
The MOQ for most of our products is 5 pieces, it will be different for different items. We have indicated the MOQ for each item in the price list.
5) What is your product warranty?
--- As a European market, our products have CE RoHS and other international safety standards.
---Same as other markets, international safety standard certificates are also available.
