High quality data center rack server 22U 27u,32U 37U 42U 47U network cabinet

Supplier: Ningbo Longtu Network Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr Jason Gui
Price: $50.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Supply Ability:	3000 Unit/Units per Year;	Type:	standard cabinet;
Model Number:	TN-003;	Products Status:	Stock;
Material:	SPCC Cold Rolled Steel;	Capacity:	18-47U;
Place of Origin:	Zhejiang China (Mainland);	Usage:	Network Integration System;
Certification:	CE/ROHS/ISO9001;	Size:	600*800mm;
Color:	RAL7035,RAL7044,RAL9004ect;	Static loading:	1000kg;
Protection Level:	IP20;	Brand Name:	TNE;
Thickness:	Mounting angle:2.0mm,others 1.2-1.5mm;	Port:	Ningbo or Shanghai port;
Packing Style:	Assembled and Dis-Assembled;	Cabinet Standard:	Comply with ANS/EIA;
Packaging Detail:	wooden case,wooden pallet; network server enclosure unassembly packing or assembly packing;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union;
Fun numbers:	2 or 4 or 6;

Product Description

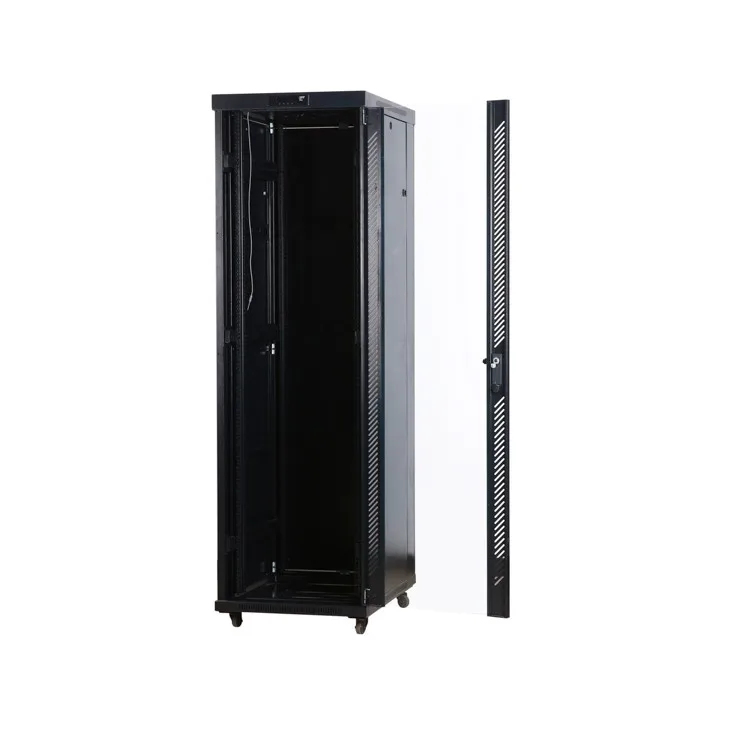

High quality data center rack server 22U 27u,32U 37U 42U 47U network cabinet

Comply with ANSI/EIA RS-310-D,IEC297-2,DIN41491;PART1, DIN41494;PART7,GB/T3047.2-92 and ETSI standard

Features:

*Exquisite design with precise dimension and craftsmanship

*Toughened temper glass door front and rear solid steel door

*Fully adjustable vertical mounting rails

*Lockable door and side panels for system security.

*Standard enclosure for low to medium density server and networking applications.

*Compact width to optimize data center space.

*Feature-rich enclosures optimized for easy installation, managing cables, integrating

Power distribution, and maximizing airflow.

*Swiveling wheels and legs can be jointly installed to with stand up to 1000kg maximum static load

*Several lockable wiring holes on top/bottom,size of the large hole at the bottom adjustable

Standard:
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI Standard
Material:
High grade cold rolled steel.
Thickness:

Mounting profile: 2.00mm others: 1.2--1.5mm

Loading Capacity:
Static Loading: 1000kgs
Surface finish: Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting.
Degree of Protection:IP20
Body Color: RAL7035, RAL9004 etc.

Optional Accessory:

Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
1U, 2U support board
Vertical Cable manager
19'' Power distribution unit(PDU)
19'' Blanking plate 1U, 2U, 4U
Heavy duty castor, Heavy duty castor with braker
Optional lock for side panels
Earth kit
And so on...

Model No.	Capacity(U)	Width(mm)	Depth(mm)	Height(mm)
TN-003	18U	600mm/750mm/800mm	600mm/800mm/1000mm/1200mm	988mm
TN-003	22U	600mm/750mm/800mm	600mm/800mm/1000mm/1200mm	1166mm
TN-003	27U	600mm/750mm/800mm	600mm/800mm/1000mm/1200mm	1388mm
TN-003	32U	600mm/750mm/800mm	600mm/800mm/1000mm/1200mm	1610mm
TN-003	37U	600mm/750mm/800mm	600mm/800mm/1000mm/1200mm	1833mm
TN-003	42U	600mm/750mm/800mm	600mm/800mm/1000mm/1200mm	2055mm
TN-003	45U	600mm/750mm/800mm	600mm/800mm/1000mm/1200mm	2188mm
TN-003	47U	600mm/750mm/800mm	600mm/800mm/1000mm /1200mm	2277mm

details

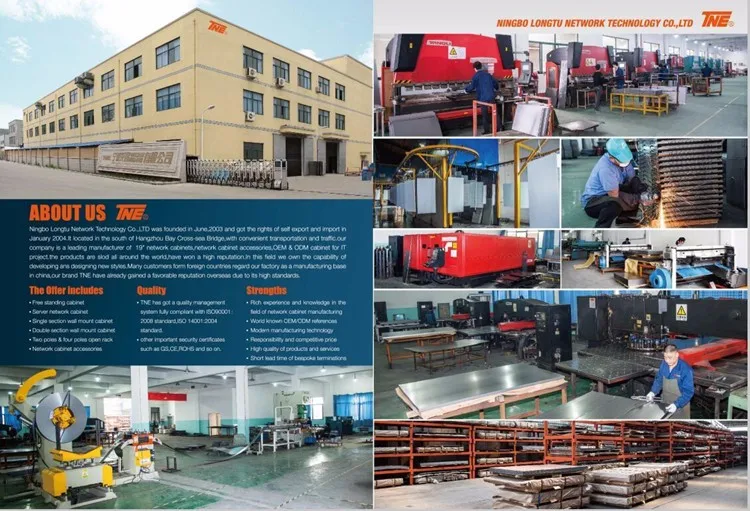

Our Company

With years of export experience along with excellent quality, advanced services and competitive prices, Longtu has won numerous customers' trust and support.

Certifications

Delivery

Applications of Our Cabinets

Rack cabinets for Information Technology and telecommunication appliances use:

• Small, Medium and Large Servers
• DVR, Security Equipment and Routers
• Patch Panels and Switches
• Telephone Systems and PABX
• Network and Communications Equipment
• UPS Equipment
• Other Rack Mount Equipment

FAQ

1) What is your Payment term?

---TT, LC, Western Union could be accepted.

2) What is your Trade term?

---EXW, FOB, CNF, CIF is also ok.

3) What is the Loading Port?

--- Ningbo,Shanghai.

4) What is your MOQ?

MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item in the price list.
5) What is your Product Warranty?

---As Europe market, we have CE RoHS and other international safety standard for our products.

---As other market, international safety standard certificate is also be provided.
