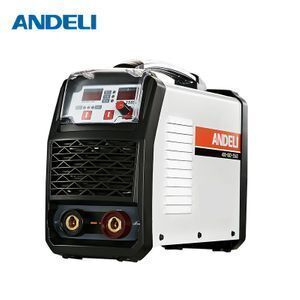

ANDELI smart portable single phase mma spot welding arc welding machine double voltage low voltage inverter welding machine

Supplier: Andeli Group Co., Ltd.
Region: Zhejiang, China
Contact: Ms Sunny Huang
Price: $58.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Zhejiang China (Mainland);	Pulse Frequency:	50/60Hz;
Supply Ability:	10000 Set/Sets per Month;	Package:	1Pcs/box;
Dimensions:	385X155X238;	Certification:	CE CCC;
Eletrode Diameter:	1.6mm-4.0mm;	Brand Name:	ANDELI;
Power(W):	6.1KVA;	Usage:	Welding all material;
Weight:	6~7KG;	Max. Load Power Capacity:	6.1KVA;
Port:	Ningbo/Shanghai/Wenzhou;	Technology:	Inverter IGBT;
After-sales Service Provided:	Video technical support;	Rated Input Voltage:	230V±15%;
Motor Type:	DC MOTOR;	Feature:	Intelligence key,Hot start,ARC force,;
Function:	MMA/Lift TIG;	Pilot Arc Current:	20-160A;
Rated Duty Cycle:	60%;	Payment Terms:	L/C,T/T,Western Union,Wechat;
Fast Sample:	In 1 days;	Condition:	New;
Voltage:	AC230V±15% / AC165V~475V;	After-sales Service Provided:	Engineers available to service machinery overseas;
Arc Current:	20-250A;	Packaging Detail:	Standard carton package Package: 1pcs/ctn Measure: 385X155X238mm;
Rated Duty Cycle @40°C:	60;	OEM:	Accepted;
Warranty:	2 Years,24Months;	Color:	White/Red/Blue/other color;

Please Attention!

Product Description

2019 intelligent ARC welding machine

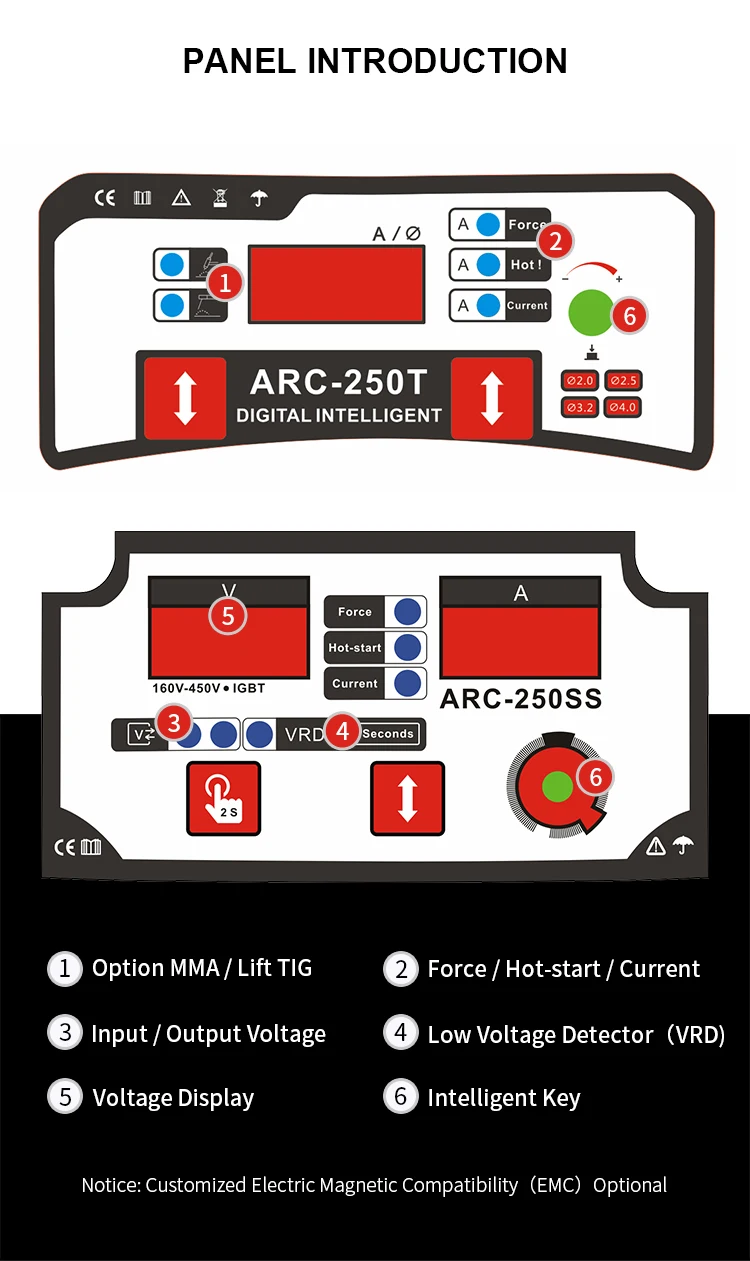

1. Advanced IGBT inverter technology control scheme, one-button intelligence significantly improves the performance of the welder and the convenience of operation, to a greater extent to meet the welding process requirements;

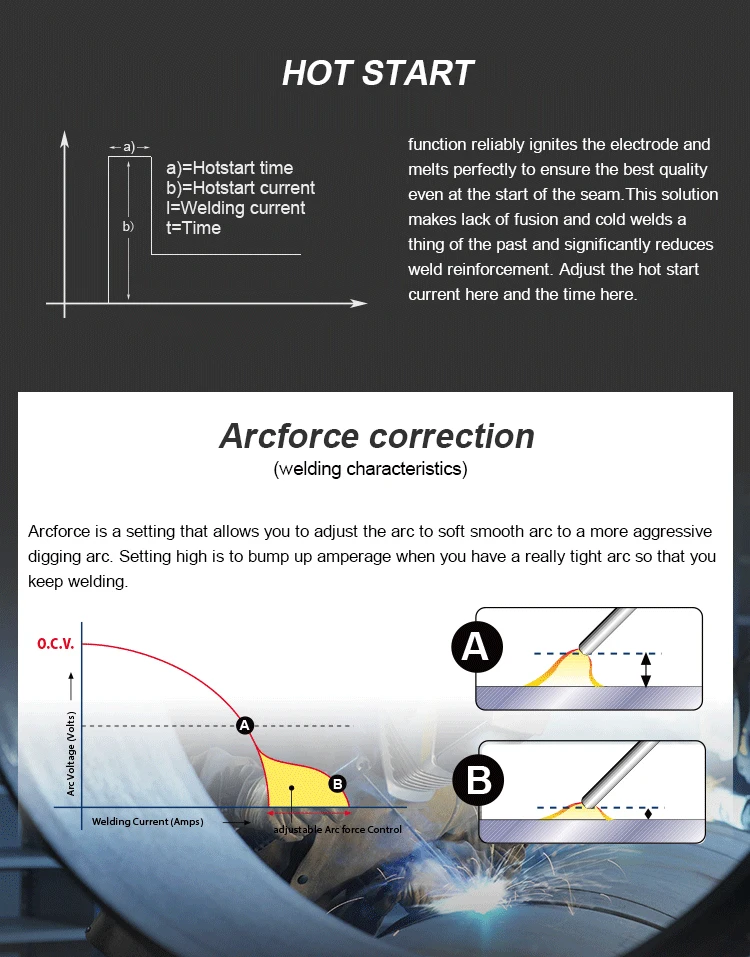

2. The adjustable thermal arc initiation function improves the arc initiation performance of the welding machine, which has the characteristics of easy arc initiation, low flying, stable current and good forming.

3. The self-adapting thrust current mode can significantly improve the performance of the welder during extended welding and realize long distance welding.

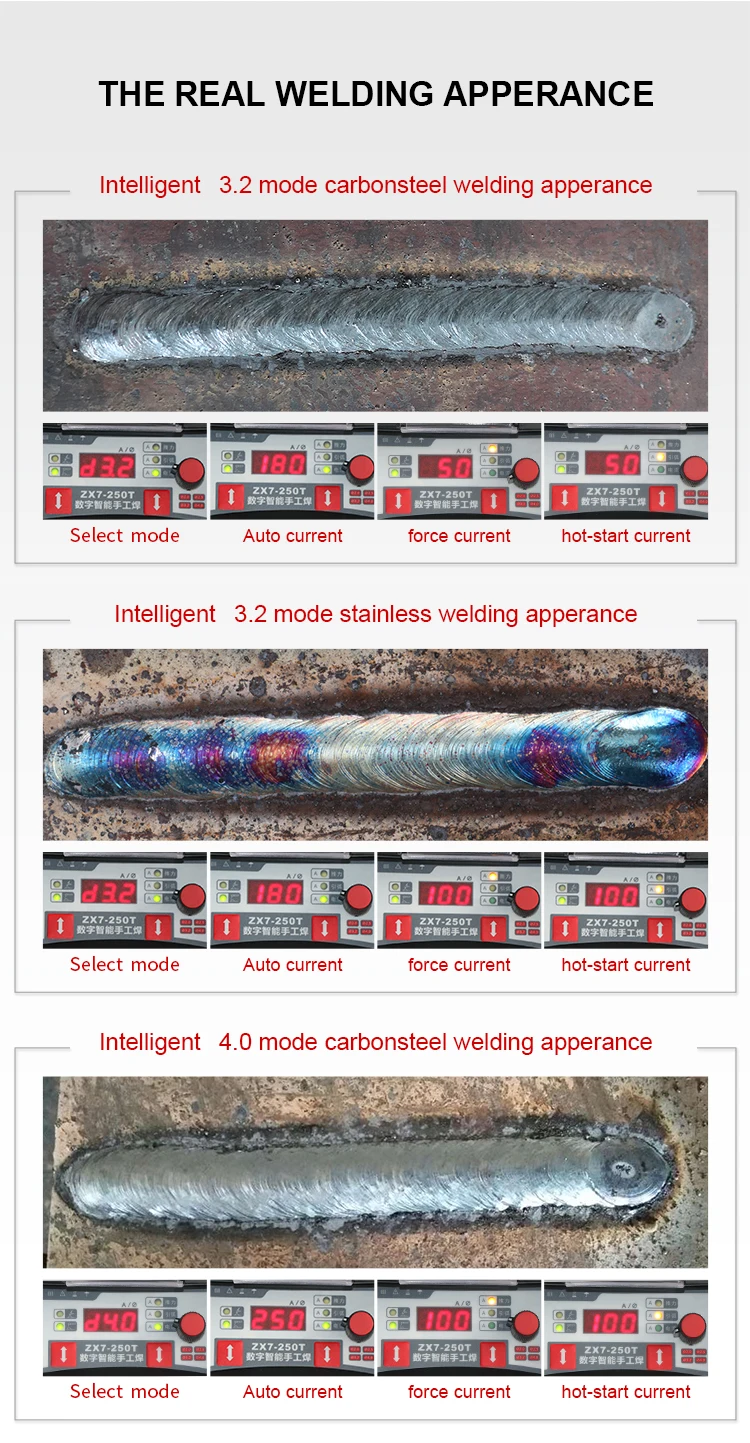

4. Easy to start arc, stable welding arc, deep weld pool and beautiful welding shape.

5. Leading power supply auxiliary design, VRD anti-shock protection function, wide voltage input and output monitoring, so that the welding machine voltage range of use is wider, with perfect over-voltage, under-voltage, over-current, overload automatic protection function(ARC-250SS)

FULL DIGITAL SYSTEM ITEM	ZX7-250T	ZX7-250S	ZX7-250SS
FULL DIGITAL SYSTEM ITEM	ARC-250T	ARC-250S	ARC-250SS
Power voltage (V)	AC220V±15%	AC220/380V±15%	AC220/380V±25%
Frequency (HZ)	50 / 60	50 / 60	50 / 60
Rated input capacity (KVA)	6.1	6.1	6.1
Rated input current (A)	27.8A	23A	23A
Rate output (A)	160A/26.4V	140A/25.6V/160A/26.4V	140A/25.6V/160A/26.4V
Output current range (A)	20-160A	20-140A/160A	20-140A/160A
No-load voltage (V)	56	65V/56V	65V/56V
Duty cycle (%)	60	60	60
Efficency (%)	80	80	80
Power factor	0.73	0.73	0.73
Insulation class	F	F	F
Protect class	IP21	IP21	IP21
Inteligent toggle	√	√	√
Voltage detection meter	×	×	√
Usable electrode (mm)	1.6-3.2	1.6-3.2/4.0	1.6-3.2/4.0
Dimension (mm)	380X123X225	380X123X225	385X155X238
Weight (kg)	6.05	6.25	7.33
