Trash Bin Fill Detection Sensor DF702 for trash / garbage bin full / empty detection wireless Lora / LoraWan

Supplier: Beijing Dingtek Technology Corp., Ltd.
Region: Beijing, China
Contact: Mr Jingqi Wang
Price: $85.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Brand Name:	DingTek;	Storage Temperature:	-40 ~ +85℃;
Port:	BEIJING EXPORT;	Model Number:	DF702;
Supply Ability:	1000 Piece/Pieces per Month;	Shell Material:	ABS;
Principle:	Ultrasonic;	Type:	Smart trash;
Detection Range:	200cm (vertical);	Wireless:	LoRa 433/868/915Mhz, 3km in view sight;
Power Supply:	Internal Battery, 2000mAh @ 7.4V Lithium;	Warranty:	1 Year;
Operating Temperature:	-20 ~ +70℃;	After-sales Service Provided:	Video technical support,Online support;
Protection Level:	IP68;	Payment Terms:	T/T,PAYPAL;
Place of Origin:	Beijing China (Mainland);	Current:	<30mA 7.4V(uploading), <20ua 7.4V (sleep);

Product Description

Current Weakness of Waste Treatment Industry

1: Fixed time and route work, unable to achieve the on-demand operation;

2: Information can't be learned in time when garbage is full, resulting in the clean-up lag and the health concern;

3: Fire hazards can't be learned in time, resulting in property loss and adverse social impact;

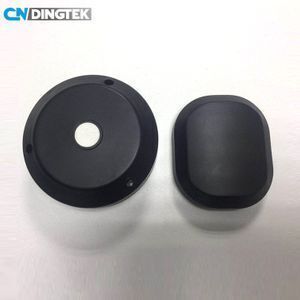

The DF702 sensor is designed for waste bin status detection,

especially for trash/garbage bin full/empty detection

It detects full/empty, flame risk, inclined (fall) or not and etc.

With LoRaWAN® module, it transmit the status via gateway to networks server and application server. User can monitor the status remotely. With the application software, user can assign the collector resource work plan and route plan. Analyze task performance and find out solution to improve.

Furthermore it is optional with NB-IoT wireless module.
It is also optional for different frequency,

such as 470Mhz (China), 868Mhz (Europe), 915Mhz(USA), 923Mhz (Australia,New Zealand).

Finally the objective of high efficiency , good environment, and low cost are achieved.

As it is with algorithm of low power consumption,

the internal battery can work for more than 3-5 years

(at 4 hours interval upload interval).

IP68 level ensure the endurable working outdoor.

Applications

Cautions: For safety, the battery of this device is non- recharged type.

If out of power, please do not recharge it, please replace with new battery from our company. What's more, the battery can not work for more than +85℃.

Monitoring
