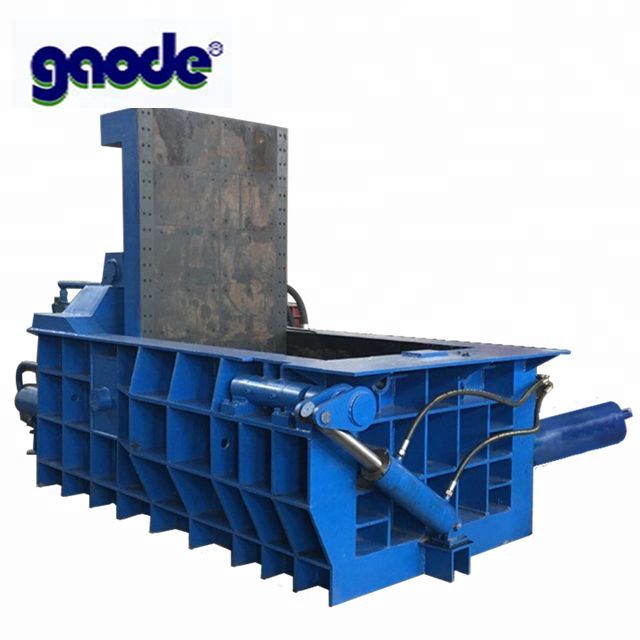

High German Supplier Hydraulic Recycling Scrap Metal Compactor
-
Supplier: Jiangsu Gaode Hydraulic Machinery Co., Ltd. -
Region: Jiangsu, China -
Contact: Ms Fenny Wang -
Price: $5000.00 /set -
Min. Order: 1 set
| payment terms: | wire transfer | Showroom location: | Canada, Turkey, Italy, France, Germany, Vietnam, Philippines, Brazil, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Argentina, UAE, Bangladesh, Ukraine, Japan, Malaysia, Australia |
| product name: | High German Supplier Hydraulic Recycling Scrap Metal Compactor | Supply capacity: | 1000 sets per year |
| port: | Shanghai | Pressure box size: | 1400*800*700mm |
| Applicable industries: | metal recycling | model: | HC81F-1250 |
| After warranty service: | Video technical support, online support, spare parts, on-site maintenance and repair services | Origin: | Jiangsu, China |
| Packaging Details: | in the nude | engine: | 18.5KW |
| Warranty: | 6 months | Material: | iron plate |
| brand: | Gold | Name: | for scrap metal compactors |
| Key words: | For recycling scrap metal compactors | Nominal force: | 1250KN |
| Health status: | new | strength: | 18.5KW |
| type: | Baler | capacity: | 21.5MPA |
| After-sales service provided: | Video technical support, on-site installation, commissioning and training, on-site maintenance and repair services, free spare parts, online support | Local service location: | Italy, Germany, Philippines, Brazil, Saudi Arabia, India, Mexico, Russia, Spain, Japan, Malaysia, Australia, Argentina, Bangladesh |
High German Supplier Hydraulic Recycling Scrap Metal Compactor
application
The hydraulic baler is suitable for steel mills, recycling companies, ferrous and non-ferrous metal smelting industries, to press metal scrap (steel, copper, aluminum, stainless steel, scrapped cars) into acceptable charge (shape: cuboid, cylinder or octagon) , thereby reducing transportation costs and increasing furnace loading speed.
Model | Nominal force | Pressure box size (LWH) | Bale size (WXH) | Bale density | capacity | cycle | strength | unpack/ Operation |
(kN) | (mm) | (mm) | (kg/cubic meter) | (kg/hour) | (S) | (kilowatt) | ||
HC81/F-1600 | 1600 | 1600X100X800 | (400-600)X350X350 | ≥1800 | 2000-3000 | 150 | twenty two | Swing out, manual valve control |
(400-600)X400X400 | ||||||||
HC81/T-1600A | 1600 | 1600X1000X800 | (400-600)X350X350 | ≥1800 | 2000-3000 | 150 | twenty two | Roll out, manual valve control |
(400-600)X400X400 | ||||||||
HC81/T-1600B | 1600 | 1600X1200X800 | (400-600)X350X350 | ≥1800 | 2000-3000 | 160 | 30 | |
(400-600)X400X400 | ||||||||
HC81/F-2000 | 2000 | 1600X1200X800 | (400-700)X400X400 | ≥1800 | 2500-4000 | 160 | 30 or 37 | Rotate out, manual valve control or PLC control |
HC81/F-2500 | 2500 | 2000X1400X900 | (400-700)X500X500 | ≥1800 | 3500-5000 | 160 | 44 | |
HC81/F-3150 | 3150 | 2000X1400X1200 | (450-700)X600X600 | ≥1800 | 3500-5000 | 160 | 60 | |
HC81/F-4000 | 4000 | 2600X1750X1200 | (500-1000)X650X650 | ≥1800 | 5000-6500 | 160 | Post-90s | |
HC81/F-5000 | 4000 | 2600X1750X1200 | (500-1000)X650X650 | ≥1800 | 9000-11500 | 160 | Post-90s | |
HC81/T-2000A | 2000 | 1600X1200X800 | (400-700)X400X400 | ≥1800 | 2500-4000 | 160 | 30 or 37 | Push out, manual valve control or PLC control |
HC81/T-2000B | 2000 | 1800X1400X900 | (400-700)X400X400 | ≥1800 | 2500-4500 | 160 | 30 or 37 | |
HC81/T-2500A | 2500 | 2000X1400X900 | (400-700)X500X500 | ≥1800 | 3500-5000 | 160 | 44 or 60 | |
HC81/T-2500B | 2500 | 2000X1400X1200 | (450-800)X600X600 | ≥1800 | 3500-5000 | 160 | 60 | |
HC81/T-3150A | 3150 | 2000X1400X1200 | (450-700)X600X600 | ≥1800 | 3500-5000 | 160 | 60 | |
HC81/T-3150B | 3150 | 2600X1750X1200 | (450-800)X650X650 | ≥1800 | 4500-5000 | 160 | Post-90s | |
HC81/T-4000A | 4000 | 2600X1750X1200 | (500-1000)X650X650 | ≥1800 | 5000-6500 | 160 | Post-90s | |
HC81/T-4000B | 4000 | 3000X2000X1200 | (600-1100)X600X700 | ≥1800 | 6000-8500 | 160 | 110 | |
HC81/T-5000 | 5000 | 5000X2000X1200 | (600-1100)X600X700 | ≥1800 | 9000-11500 | 180 | 110 |
-
