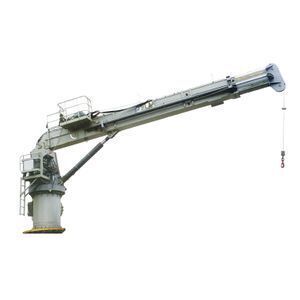

5 ton ship boat deck cranes with hydraulic system

Supplier: Xinxiang Hy Crane Co., Ltd.
Region: Henan, China
Contact: Ms Taurus Gz
Price: $100000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Condition:	New;	Certification:	CE BV ISO GOST;
Max. Lifting Height:	40m;	After-sales Service Provided:	Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support,Free spare parts;
girder structure:	box type;	Place of Origin:	Henan China (Mainland);
Color:	Customer's Requirements;	Feature:	Floating Crane;
low voltage protecting system:	Include;	Warranty:	2 Years;
double limit switch:	included;	Payment Terms:	L/C,T/T;
Control Method:	remote control;	Brand Name:	HY;
Application:	port , marine, Outdoor;	Packaging Detail:	5 ton ship boat deck cranes with hydraulic system: Electric parts in wooden case other in export plastic cloth;
Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ,Energy & Mining;	Span:	8m;
production configeration:	Top device;	Rated Loading Capacity:	5ton;
power supply:	3Ph 380V 50Hz or on request;	Product name:	5 ton ship boat deck cranes with hydraulic system;
current overload protection:	included;	working class:	M4;
Supply Ability:	6000 Set/Sets per Year 5 ton ship boat deck cranes with hydraulic system;	Rated Lifting Moment:	/;
Port:	Qingdao/Tianjin/Shanghai;

5 ton ship boat deck cranes with hydraulic system

Product Description

1.Product Description

5 ton ship boat deck cranes with hydraulic system in port or ship have been approved for use in demanding marine applications and environments.they are manufactured by modern hydraulic systems for hydraulic deck crane and a high strengt design coupled with modern fabrication techniques. the controls of

5 ton ship boat deck cranes with hydraulic system are fully proportional for precise controlled motions.Engineers will design the Deck Crane according your requirements and the crane usage.

Technical parameters of deck crane:

Load capacity: 0-80 tons
Lifting height: 0-35m
Slewing speed: 0-1.0r/s
Lifting speed: 0-10m/min (stepless speed)
Max/Min working radius: as per your requirements
Slewing degree: >360°
Max clination: (Heeling) 5°/ (trim) 2°
Power supply: as per your requirements
Design temperatur: -10°C
Wind speed: Max (working):20m/s Max(no-working):50m/s
Control: Manual platform or cabin or remote controller
Certificate: CCS ABS BV or as your requirments

2.Product Details

3.The types of deck crane

	Hydraulic Telescope Crane This types of crane is fit to be installed on the ship with the narrow arrangement,particularly marine engineering/service ship and small cargo ships. The crane's lifting, slewing,luffing are driven by hydraulic power. Its operation is flexible,safe,reliable and has a wide sdjustment range. SWL:1-25ton Length of jib:10-25m
Marine Electrical/Hydraulic Cargo Crane It is designed to unload goods in bulk carrier or container vessel,controlled by electric type or electric_hydraulic type.It is high-efficency,energy-saving,environmental protection with its compact structure,good appearance and reliable performance SWL:25-60ton Max.working radius:20-40m
	Double Hydraulic Slewing Crane Hook This crane is suitable for ports, wharf, ships, oil platforms, the main hook 100t, suitable for lifting large tonnage cargo, vice hook 5t, high lifting speed, suitable for lifting small tonnage of goods to meet different needs.
Crane Hydraulic Pipeline This crane is mounted on a tanker, mainly for ships transporting oil as well as lifting of doogs and other items, it is a common, ideal lifting equipment on the tanker.
	Hydraulic Telescope Knuckle Crane This type of crane is fit to be installed on the ship with the narrow arrangement, particularly marine engineering/service ship and small cargo ships. The crane's lifting, slewing, luffing, knuckle, telescoping are driven by hydraulic power. Its operation is flexible,safe,reliable and has a wide adjustment range. Max.SWL:15T.M

4.Related product

Packaging

Certifications

Foreign Exhibition

We participated in the Kazakhstan Machinery Infrastructure Exhibition in November 2015, participated in the Indonesia Machinery Exhibition in November 2016, and participated in the Pakistan Machinery Exhibition in March 2018. Through the exhibition, many customers have established a deep friendship with us and established good cooperation relationship

Customers visit

The customer is our everything, the profession is our persistence!

The clients in the picture are from Sri Lanka, Malaysia, Indonesia, Philippines, Egypt,

Bangladesh, South Africa, mozambique and other countries. After the visit, we have successfully signed the orders of overhead crane machine, bridge launcher crane machine,

gantry crane machine, jib crane, hoist and other products, and have signed long-term cooperative relations with us
