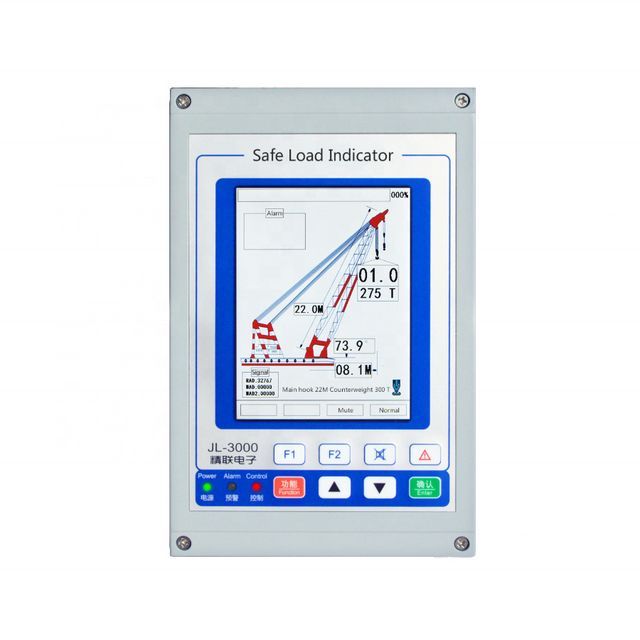

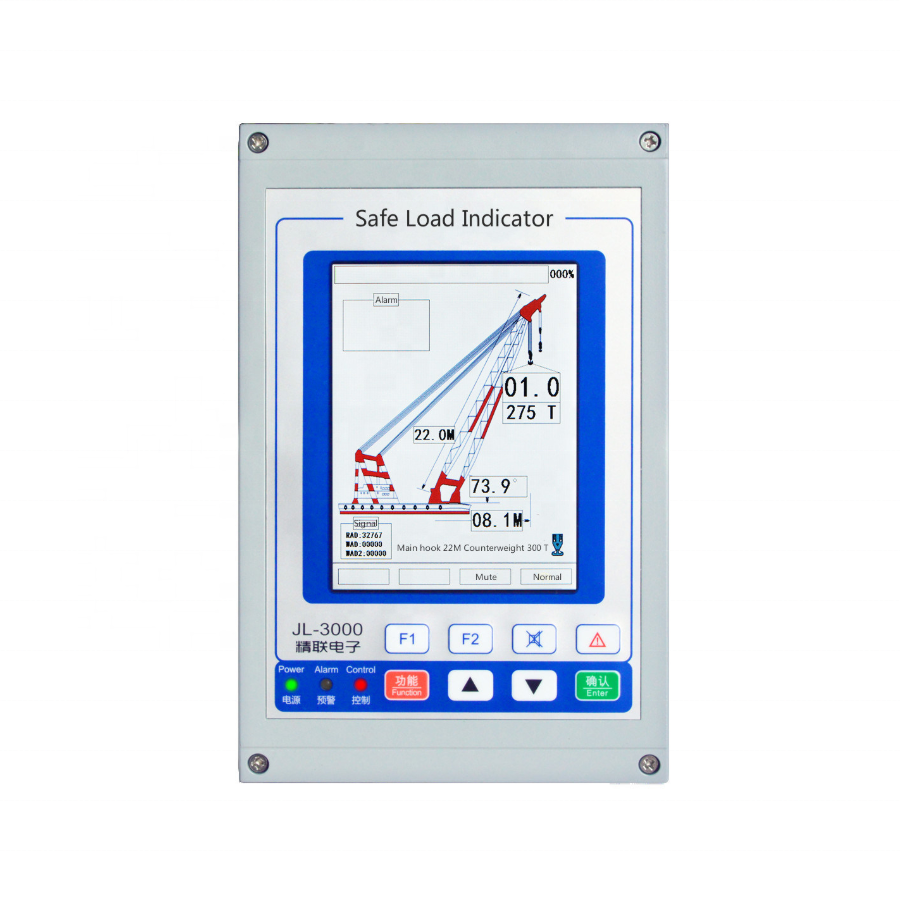

High Quality 5.6 Inch Load Moment Indicator for Marine Crane

Product details
Material:High pressure cast aluminumOrigin:Hubei, China
application:put upFunction:Automatic control, protection, monitoring, measurement
Warranty:1 yearVideo shipment inspection:if
Supply capacity:500 sets per monthbrand:Jaylen
Applicable industries:Building materials shop, mechanical repair shop, construction projectfeature:floating crane
Packaging Details:cartonMechanical test report:if
Marketing Type:normal productPackage preview:
Operating mode:continuouslyCore component warranty:1 year
Rated load capacity:-Showroom location:Vietnam, Peru, Saudi Arabia, Indonesia, Pakistan, India, Thailand, UAE, Bangladesh, South Africa, Malaysia
technical support:LifeHealth status:new
Rated lifting moment:-span:-
maximum. Lifting height:-Weight (kg):16.4 kg
port:YichangCore components:sensor, limiter
payment terms:wire transfer

Tower Crane Conventional Lattice Arm Crawler Hoist Safety Moment Indicator

Product Description
The safety load indicator (load moment indicator/crane computer) is a safety protection device for various cranes. The products are designed and produced in strict accordance with the national standard GB12602-90, which can prevent crane accidents due to overloading and misoperation.


It controls lifting equipment to operate according to the manufacturer's recommended safe load charts. Each measured parameter such as load graph, working radius, angle and extension of the crane jib will be further displayed in the operator's cabin.


Product advantages
- Ease of installation and operation;
- OEM/ODM, can be modified and customized according to customer needs at any time;
- Multiple load charts can be selected for the same unit (free downloader for customers to modify load charts anytime and anywhere);
- Full service with fast delivery and shipping documents.


Features
- Raw material
1. Industrial-grade 5.6-inch LCD screen, visible in sunlight, the brightness of the display screen can be adjusted by itself, and the screen is clearly visible in all-weather operation.
2. High-strength aluminum chassis, good sealing performance, IP65 protection grade, suitable for working in various complex environments. .

- Performance/function
1. The display is accurate and the precision is high. It is safe and stable with advanced anti-jamming technology.
2. Optional multi-channel sensor signal input interface, more functions can be customized according to your needs.
3. Easy to set up and calibrate, saving your installation cost and time.
4. Automatically save data when power off.

- MOQ:Any order quantity is welcome.
- design:Free artwork or design fees can be deducted from the order.
- delivery date:Both our regular and hot sale models are in stock, just need to be programmed to your load chart.
- After-sales service:
1. You can rely on quality service. We process every email within 24 hours (often much faster)
2. Experienced people are in charge of all your problems.
3. We will provide a detailed English manual for your operation guidance.
4. If any unforeseen things happen, we will make sure your machine will be back to running quickly.
5. Our experienced service engineers guarantee after-sales support through effective service coordination.


Product parameters

Operating Voltage

AC 220V±20% or DC 12~24V

Operating temperature

- 20ºC ~ + 60ºC

Relative humidity

<95% (25°C)

Control output capability

DC24V/1A or AC 220V/1A

power consumption

<20w

solve

0.1 tons

Comprehensive error

<5%

alarm error

<3%



System composition
The system is mainly composed of weight sensor, length angle sensor, hook limiter and safety load indicator.
1. Chinese character liquid crystal dot matrix display full liquid crystal color Chinese and English display. It can display all data that users care about, such as: current load, rated load, current angle, current radius, load rate, overload record, etc.
2. The analog signal amplification module is specially designed for the safety load indicator, and can provide up to 4 channels of analog amplification as required.
3. The industrial-grade new-generation enhanced microprocessor chip of the CPU module is faster than similar processors, has strong anti-interference ability and high efficiency.
4. Power supply module Wide voltage switching power supply module, good output waveform, strong load capacity, with overload, overcurrent protection and self-recovery functions.


Shipping Packaging and Details

Export packing: carton
Outer carton size: 43 x 28 x 22cm Outer carton quantity: 1 carton
Gross Weight: 6kg (Only includes 4.3 inch safety load indicator, please consult us for all other sensors and spare parts)

Port: Yichang, China
