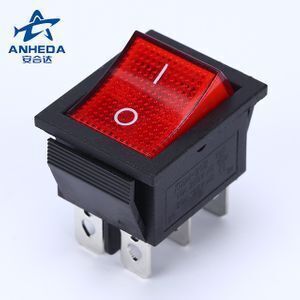

high quality 20a 125v 15a 250v ac kcd4 red rocker switch 4/6 pin

Supplier: Yueqing Anhe Electronics Co., Ltd.
Region: Zhejiang, China
Contact: Mr Daniela Hu
Price: $0.07 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Supply Ability:	300000 Piece/Pieces per Week;	Lamp color:	WhiteOrangeRedBlueGreen;
Item:	6 pins rocker switch;	Packaging Detail:	50pcs/plastic box, then in to cartons;
Max. Voltage:	250VAC;	Port:	Ningbo or Shanghai;
Color:	Red,Green;	Place of Origin:	Zhejiang China (Mainland);
Brand Name:	ANHEDA;	Product type:	Rocker Switch;
Housing color:	CUSTOM-MADE;	Material:	PA/PC;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Max. Current:	20A;
Certificate:	Rohs,CE,CQC;	Type:	KCD4 Rocker Switch;
Mechanical Life:	10000 Cycles;	Rating:	16A 250VAC / 20A 125VAC;
Function:	ON OFF, ON ON, ON OFF ON;	Model Number:	KCD4;

high quality 20a 125v 15a 250v ac kcd4 red rocker switch 4/6 pin

high quality 20a 125v 15a 250v ac kcd4 red rocker switch

Product Description

high quality 20a 125v 15a 250v ac kcd4 red rocker switch

Product details

Function	ON OFF, ON ON, ON OFF ON
Type	KCD4 Rocker Switch
Certificate	Rohs,CE,CQC
Lamp color	White Orange Red Blue Green
Housing color	CUSTOM-MADE
Material	PA/PC
Color	Red,Green
Product type	Rocker Switch
Item	6 pins rocker switch
Rating	16A 250VAC / 20A 125VAC
Product Keywords	20a 125v 15a 250v ac rocker switch,4 pins rocker switch,red rocker switch

Quality assurance:

IQC, IPQC, PQC, OQC. Inspect for supplied material, production process and final product, including withstand voltage, insulating resistance, conductor, dimension, external appearance, etc. All elated raw materials are inspected as Rohs requires.

Product Specifications

Specification of Rocker Switch
Rating		16A/250V AC, 20A/125V AC
Rated Load		2/8A 250V AC
Contact Resistance		≤50MΩ
Dielectric Intensity		≥1500V AC/min
Withstand Voltage		1500V AC/min
Temperature		-25~85°C
Insulation Resistance		≥100MΩ
Life		≥10,000 cycles
Pins		4/6
Function		ON-OFF/ON-ON/ON-OFF-ON
Illumniated		220V Neon Lamp
APPROVALS
CE	CQC	Rohs

Detailed Images

Material of Rocker Switch
Part	Material
Base Plastic	Nylon
Button Plastic	PA66/ PC
Terminal	Brass(tin plated)
Contact	Compound silver/ Copper
Spring	Tungsten steel
Waterproof Cap	PVC ( If you required)
Mount	Snap in
Application: Small household products, communication equipment, energy generator, electric tools, table lamp, electric motor, electric motor car, electric toy, UPS, medical facilities, socket, etc

Hot Selling Products

Yueqing Anhe Electronics Co.,Ltd.

Established in 2003, we are engaged in producing 12 categories and about 2,000 models of rocker switches,push button switches, toggle switches, micro switches, key switches,tact switches,slide switches and etc. Most of our products have passed safety certifications as CE, CQC. And lots of our products are made with RoHS compliant materials.

Advantages

OUR ADVANTAGES

QUALITY ASSURANCE

To provide quality products at the same time to improve after-sales support

ONE-STOP SERVICE

We have competent R&D Group and expe- rienced engineers

INDEPENDENT FACTOR

We have own assem- bling factory and mold factory

PROFESSIONAL TEAM

Professional team to provide you with efficient service

Packaging & Shipping

Shipping

INTERNATIONAL AIR MAIL

Payment

Fast Delivery

Different amount of time will be required for different

FAQ

1. Could I have prices of your products?

Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours

2. Can we print our logo/website/company name on products?

Yes, please advise the size and Pantone Code of the logo.

3. What's the lead time for regular order?

7-10 days for order quantity lower than 5000pc; For more quantity, usually 15 days.

4. Can I get a discount?

Yes, please contact us to get the best price.

5. Do you inspect the finished products?

Yes, each step of production and finished products will be came out inspection by QC department before shipping.
