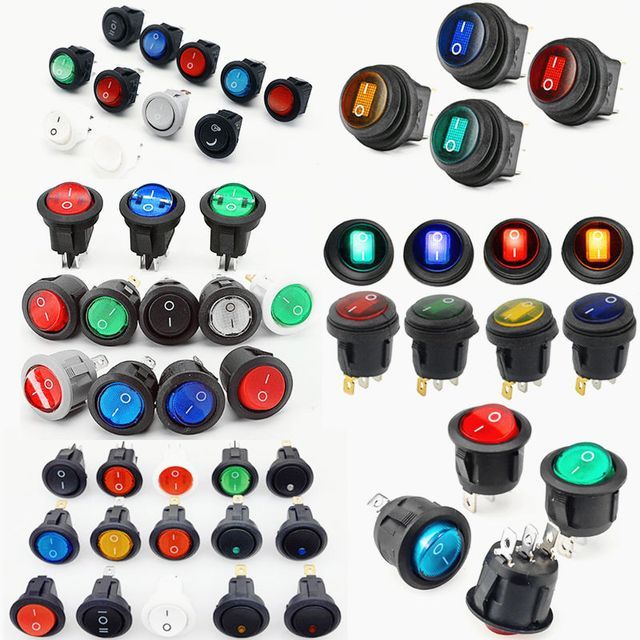

Waterproof Round Switch 15MM / 20MM / 22MM LED Illuminated Kcd1 / 12 Volt / 24 Volt / 220 Volt / 3/4 Pin 2 Way Rocker

Product Soldering: PTI 175

Product size: 15/16/20/22MM

Product configuration:With LED or without LED

product material:copper, iron, silver

Product power:3A/6A/10A 250V/125V

certified product:CCC, CQC, CE, CB, TUV

Product temperature: T85/1E4/IP66/IP65/IP67/IP64

Product lighting:Optional 12V 24V 110V 220V (customized)

Product color:Red, yellow, blue, green, black, white, gray (support customization)

Product number:Kcd1/Kcd1-101/Kcd1-102/Kcd1-103/Kcd1-104/Kcd1-105

Kcd11-101/Kcd11-102/Kcd11-103

Product terminal:

15mmpinElective

2 pins/3 pinsround switch pin

(3.7X6.6 mm and 2.6X5.3 mm)

Product FeaturesElective:

No. 101: ON-OFF (with lights(no lights)

No. 102: On-On (no lights)

No. 103: ON-OFF-ON (no lights)

22mmpinElective

2Pin/3Pin/4Pin/5Pin/6Pin round switch pin

(4.7X7.00mm)

Product FeaturesElective:

No.101: Switch (no light)

No. 102: On-On (no lights)

No. 103: ON-OFF-ON (no lights)

20mmpinElective

2Pin/3Pin/4Pin round switch pin

(4.8X8.8mm)

Product FeaturesElective:

No. 101: ON-OFF (with lights(no lights)

20mmpinoptional customization

2Pin/3Pin round switch needle

(4.8X7.0mm and 4.8X8.8mm and 3.3X4.5mm)

Product FeaturesElective:

No. 101: ON-OFF (with lights(no lights)

No. 102: On-On (no lights)

No. 103: ON-OFF-ON (no lights)

No.104: (on) - off (no light)

No.105: On-(Off) (No light)

No.106: (on) - (on) (no light)

No. 107: (on) - off - on (no light)

No.108: (on)-off-(on) (no light)

Product function description:

101: switch(Press the power, press the power, referred to as: self-locking switch,

Usually applicable to: printers, electronic scales, etc. Main control power circuit switch,

Turn on the power when in use, turn off the power after use)

No. 102: ON-ON(Press the power release button to turn off the power,

Abbreviation: momentary switch or reset switch or normally closed switch

No. 103: On-Off-On(Press on-press off-press on to control the power supply,

Abbreviation: 3-position switch, usually applicable to: speed regulation of motors, blowers, fans, etc.

Stepless speed regulation, forward rotation, reverse rotation, double control of one product

dual-purpose multi-purpose power switch)

No. 104: (ON) - OFF(Usually Power On - Press Power Off, Idle/Normal State: Power On, Abbreviated: Normally Open Switch)

No. 105: ON - (OFF)(Usually shut down and press power on, idle/normal state: power off,

Abbreviation: normally closed switch)

No. 106: (open) - (open)Press power off release power on,

Referred to as momentary switch or reset switch or normally open switch

No. 107: (ON) - OFF - ONOne-side press to start power off/one-side press to power on, referred to as single reset switch or single momentary switch

No. 108: (ON) - OFF - (ON)Press both sides to start the power - let go to turn off the power, referred to as double reset switch or double momentary switch

(Note: Due to many factors such as language translation and product market cycle, the above data is for reference only, please contact the online seller service consultation for specific matters)
