Rocker switch t120 round luminous LED light bar rocker switch 12v
- 0.01 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| model: | kcd1 | product name: | rocker switch |
| Light Color: | red, green, yellow, blue | Certificate: | CE,CQC,CCC,TUV |
| Operating temperature: | -25℃~+125℃ | payment terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| place of origin; place of origin: | Zhejiang, China | Material: | PA66/PC |
| application: | Electronic equipment | Function: | on-off, on-off-on |
| Mechanical life: | 50000 cycles | color: | red, yellow, green, blue, white |
| maximum. Voltage: | 250v | Supply capacity: | 50,000 pieces per day |
| score: | 10A 125VAC; 6A 250VAC | maximum. current: | 10a |
| port: | Ningbo/Taizhou/Wenzhou/Shanghai/Guangzhou | Pin: | 2P\3P\4P\6P |
| Packaging Details: | 1: Neutral packaging: commodity plastic bag + inner box bubble + inner box + carton. 2: Special packaging: according to customer requirements. | brand: | Haifei |
Product Description

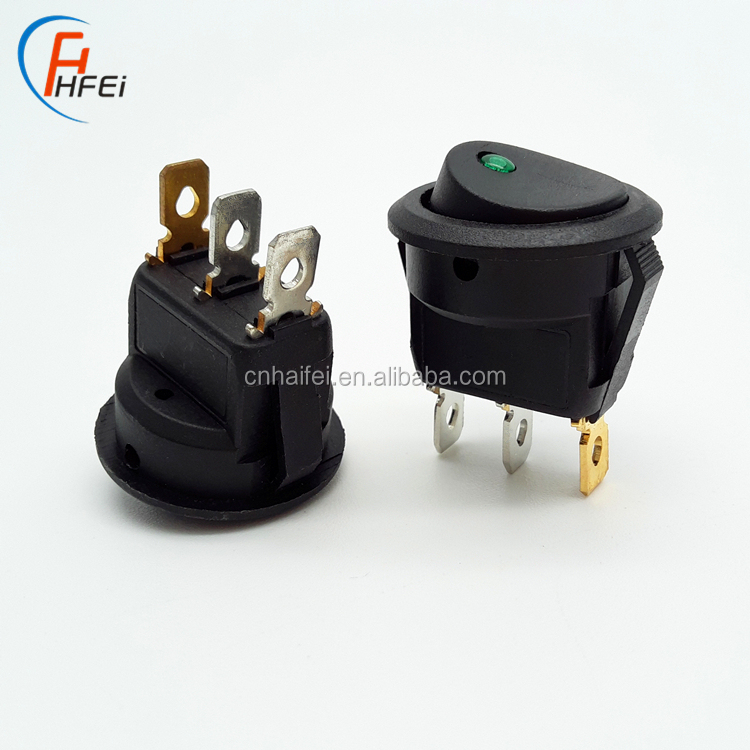

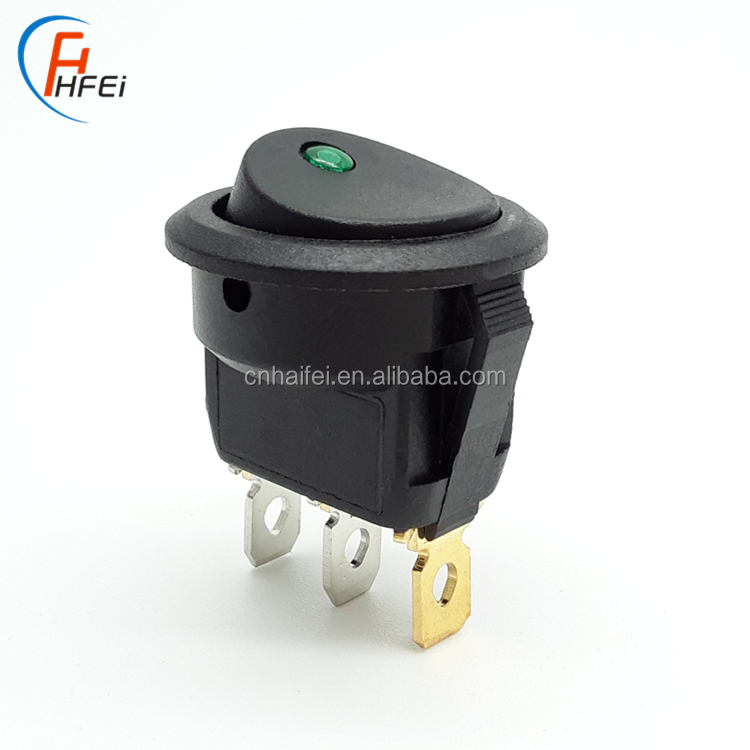

Rocker switch t120 round luminous LED light bar rocker switch 12v
Hi-Fi rocker switches are compact in design and provide high switching currents.It is a snap-fit rocker switch with high mechanical life in a rugged nylon 66 housing.They are high quality for long life under heavy loads and industry standard mounting dimensions.This rocker switch can be used in a variety of applications such as water dispensers and extension sockets.

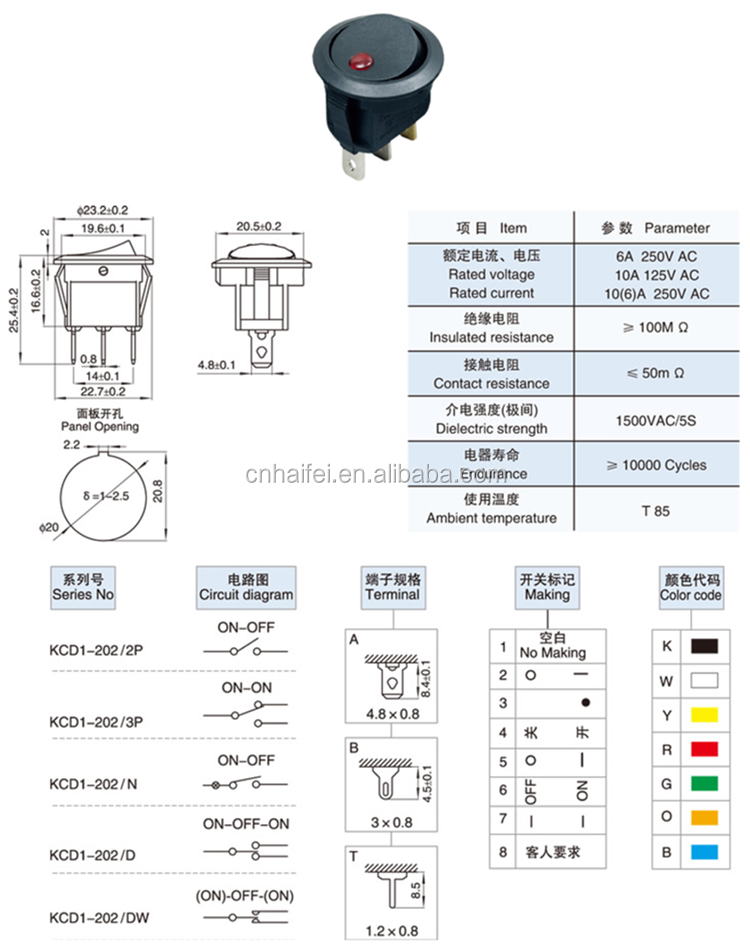

| project | Rocker switch details |
| building materials | PA66 |
| Button material | personal computer |
| Contact material | Copper and Composite Silver |
| score | 3A 6A 10A 15A 250VAC |
| temperature | -40°C to 125°C |
| Dielectric strength | 1500Vrms minimum |
| Contact resistance | <30MΩ |
| Insulation resistance | >100MΩ |
| flammable | UL94V0 |
| Electrical life | 50000 cycles |
| Mechanical life | 50000 cycles |
| Guideline | EN 61058-1 |
| Approval sign | CE CQC CCC TUV ROHS ENEC |
Product display
