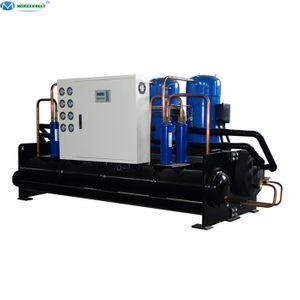

150 ton water cooled chiller price R410A Water Cooled Scroll Chiller

Supplier: Jinan Mgreenbelt Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Alice Jiao
Price: $17500.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Refrigerant:	R410a;	Compressor Brand:	Copeland or Danfoss;
Type:	Water-Cooled;	Refrigeration circuit:	3;
Selling Units:	Single item;	Brand Name:	MGREENBELT;
Dimension(LWH):	400022002100mm;	Warranty:	12 Months;
Condenser type:	Shell and tube;	Package Preview:	https://sc01.alicdn.com/kf/HTB1ieTAhzQnBKNjSZSgq6xHGXXa5.jpg_640x640.jpg,https://sc02.alicdn.com/kf/HTB1ia8nhTCWBKNjSZFtq6yC3FXa9.jpg_640x640.jpg;
Evaporator type:	Shell and tube;	Package Type:	Fumigration free plywood case for R410a Scroll chiller;
Inlet/outlet pipe fitting:	4";	Certification:	CE,ROHS,UL;
Chilled water pump:	one use one standby;	Compressor type:	Hermetic Scroll type;
Place of Origin:	Shandong China (Mainland);	Applicable Industries:	Manufacturing Plant;
Weight:	4000kg;	Chilled outlet temperature:	0C~30C;
Voltage:	220V/380/415V/460V;	After-sales Service Provided:	Free spare parts,Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Online support;
Condition:	NEW100%;	Single gross weight:	1,400 KG;
Single package size:	410X220X210 cm;

Product Description

Advantage for Power Saving 100 Ton 50 TR R410A Water Cooled Scroll Chiller

1.Higher cooling efficiency by water cooled condenser

2. low noise, without air fans

3. can be installed both indoor and outdoor

4. High COP

5. Both open type and packed type available

Box type water cooled scroll chiller, chilled water pump installed inside, water -proof

Open type water cooled scroll chiller, need installed indoor or outdoor with roof

Main Features of Power Saving 100 Ton 50 TR R410A Water Cooled Scroll Chiller

Design features
-Water temperature range 5ºC to 35ºC.
-Danfoss/Copeland scroll compressor, 2-4 units compressors design to save energy and power.

- Shipped with refrigerant R-410A.
- Shell and tube type evaporator, high efficient and easy installation(plate type, tank with coil type available on request).
-Shell and tube condenser, which to connect with cooling tower and release the heat.
-Microcomputer or PLC control system offering accurate temperature stability within ±1ºC.
-Large flow volume centrifugal pump, higher pressure available on request.
-Multi-protection devices to make sure the chiller and the equipment running safety.
-Schneider electrical components.
-Danfoss/Emerson thermal components.

Unit Safety Protection
-Compressor inner protection
-Over current protection
-High/low pressure protection
-Over temperature protection
-Flow switch
-Phase sequence/phase missing protection
-Low coolant level protection
-Anti freezing protection
-Exhaust overheat protection

Compressor

Brand: Copeland

4 units or 2 units available for this 100kw water cooled chiller

Heat exchanger

Evaporator: shell and tube

Condenser: shell and tube

Water pump

Cold water circulation water pumps, 2 units installed inside the chiller, one use and one standby

Controller

Microcomputer controller, each working status can be checked

Water Cooled Scroll Chiller
Model		MG-120W(T)	MG-60W(D)
Power Supply		380-415volts, 50hz / 440-480volts, 60hz 3phase
Input power	kW	116	57.5
Cooling capacity	Tons	103	51
	KW	362	180
	Kcal/hr	311270	154772
Compressor	Type	Scroll type	Hermetic scroll type
	Quantity	3	4 or 2
	Power(kW)	35x3	13x4
Refrigerant	Type	R410A	R410A
Refrigerant	Control type	Expansion valve	Expansion valve
Evaporator	Type	Shell and tube	Dry Shell and tube
	Flow(m3/h)	62.0	30.8
	Inlet/outlet	4"	3"
Condenser	Type	Shell and tube	Dry shell and tube
	Flow(m3/h)	83.5	41.5
	Inlet/outlet	4"	3"
Chilled water pump	Power(kW)	11.0	5.5
	Head pressure	2.0 bar	2.0 bar
Chiller size	LxWxH	400022002100	330018002000
Weight	KG	4000	2200
Nominal cooling capacity calculated according to: Inlet/Outlet chilled water temperature : 12℃/7℃ , Inlet/outlet cooling water temperature( condenser): 30℃/35℃.

Specification list for different models

Outlet water temeprature : 5C to 30C

Electric power supply options: 3phase-220v/380v/415v/460v-50hz/60hz

2-4 units compressors to save power and work indepently

High COP due to lower condensing water temperature for cooling tower

Cooling capacity: 2 ton ~ 80tons in production

Open type water cooled chiller above available

Package type water cooled chiller available

Complete system for Water Cooled Chiller

1- water cooled chiller

2- Cooling tower

3- Cooling pumps

4- Chilled water pumps

5- Water tank

Water Cooled Chiller Application

Pharma and chemical – Jacketed vessels cooling, condenser cooling, PUF mixers, Laboratories applications, x ray spectrometers, paint cooling, packing machine, anodizing, plating, liquid nitrogen plant, etc.
Automobile and Mechanical Engineering – machine tool, induction hardening and heating, welding machines, rolling mills, presses, cutting, profiling, polishing, electric discharge machine, hydraulic oil cooling, heat treatment, component washing, component cooling, environmental test chambers, drive cooling, plasma spray, vacuum systems, etc.
Plastics – injection moulding, PET, blow moulding, woven sack extrusion, sheet and profile extrusion, thermoforming, presses, etc.
Metal working – Water jet cutting, power press, hydraulic oil cooling, laser cutting, aluminium extrusion, precious metal processing, etc.
Others – textile, semiconductor, air compressor, concrete batching, dynamometer, furnace, etc

Our Company

Certifications

Packing & Delivery

FAQ

1. Are you manufacturer or Trade Company?
We are OEM professional factory, founded in 2003.
2. What's the order process?
.Inquiry---provide us all clear requirements.
.Quotation---quotation form with all clear specifications.
.Contract confirmation---provide correct contract details.
.Payment terms--- T/T 30% in advanced, balanced before shipment.
.Production---mass production
.Testing: to ensure the quality of the machine
.Shipping--- by sea, train, air or courier. Detailed picture of package will be provided.
.After sales support
3.What terms of payment you use?
T/T, L/C,etc.
4. How to get a prompt quotation?
When you send the inquiry to us, pls kindly send it with below technical information.
1)water chiller type: Air cooled or water cooled
2)Cooling capacity: _____ Kcal/hr or _____KW _____Tons
3)Refrigerant: R22 or others
4) Voltages and Frequency : ______V/PH/HZ
5) Inlet and outlet temperature to chiller
5. Can I use our own brand logo on the products?
Yes. We provide OEM/ODM service to our customers. Our professional engineers having rich experience in heat pump design and manufacture. Just tell us your ideas or provide the drawing, we can help you to carry out your ideas.

Service

Order service and technical service

A. Order service
Inquiry-Quotation-Agreement-Order Confirm-Proforma Invoice-Deposit Payment-Production-Testing --Balance Payment- Packing &Delivery--Documents Dispature- Assist of custom-cleaning --Instruction of Installation&Operation-Feedback
B. Technical service
1, We calculate the capacity and recommend the best models.
2, We design and develop the new products according to your requirement besides our standard products.
3, We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
4, We supply the spare parts and technical support in & after the warranty time.
5, We supply the training course to your workers at our factory if you need.

After sale service

C. After sale service
1. One-Year guarantee for whole unit and all parts free
2. Life time maintenance
3. Machines have to be strictly adjusted before delivery and deliver with firm & reliable packing and transportation.
4. Supply the professional refrigeration technical support and electronic technical support for your installation, debugging, operation and maintenance.
5. Supply free training course to your workers at our factory if you need.
6. Supply the spare parts and technical support in & after the warranty time.
7. Spare parts and technical support at most economic prices after the warranty.
8. 24 hours on line service each day by telephone.
