charcoal briquette coal slurry briquette machine briquette making machine price ball press machine

Product details
Granularity of raw material:≤5mm;Supply Ability:200 Set/Sets per Month ball press machine;
After-sales Service Provided:Free spare parts,Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;Name:ball press machine;
Dimension(L*W*H):2983mm*2293mm*2112mm;Type:Briquette Machines;
Certification:ISO9001:2008;Color:Client's Required;
Port:Qingdao Port;Shape dimensions:Different size of different model;
Packaging Detail:ball press machine:Packed in wooden cases, or with customer requirements.;Application:Metallurgy, mining, coal, chemical, abrasives, and other industries;
Brand Name:HENGYI;Water content of finished product:10%-13%;
Sphere size:According to your request;Applicable Industries:Energy & Mining;
Briquette shape:Round Square Hexagon Pillow;Motor Type:AC Motor;
Production Capacity:1-30 T/h;Condition:New;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Raw material:Charcoal, iron Powder;
Warranty:1 Year;Sphere pressure:60kg-200kg;
Place of Origin:Henan China (Mainland);
Product Description

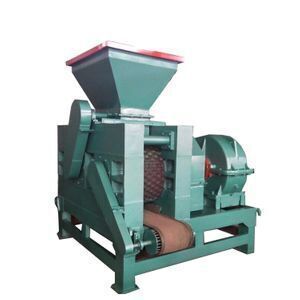

Coke powder briquette making machine description

charcoal and Coke powder briquette making machine is mainly used for anhydrous materials of non ferrous and ferrous mineral powder briquette /ball making system before the smelting furnace, such as coal,coke powder, coking coal, coal ash, coal mud,  iron ore concentrates, chromate ore concentrates,mgo power, copper power, chrome ore power,Lead Zinc Ore, steel slag, aluminum ash, Si Mn mineral powder, bauxite refractory, nonferrous metal power, refractory matter, ceramic filter sand and metallurgical powder cold pellet making industry.



Parameter

 About the Coke powder briquette making machine,we have bigger and smaller models for your choice.

ModelDiameter of roller sheet(MM)Motor power(kw)WeightCapacity(t/h)
HYQ-290290mm5.5KW1300kg1-3t/h
HYQ-360360mm7.5KW1850kg4-6t/h
HYQ-430430mm11KW2300kg6-8t/h
HYQ-450450mm13KW3000kg8t/h
HYQ-500500mm18.5KW4500kg8-10t/h
HYQ-650650mm25KW5000kg10-12t/h
HYQ-850850mm30KW5300kg15-18t/h
HYQ-10001000mm55KW6900kg20-25t/h

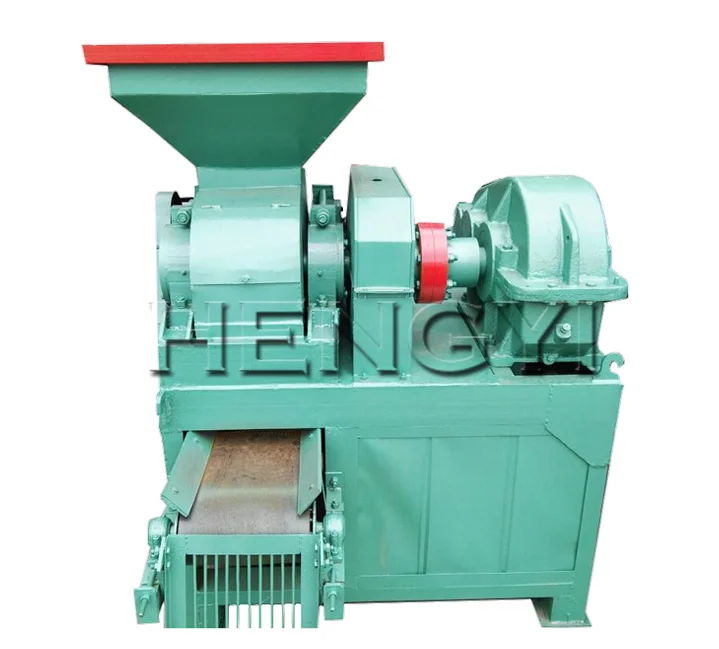

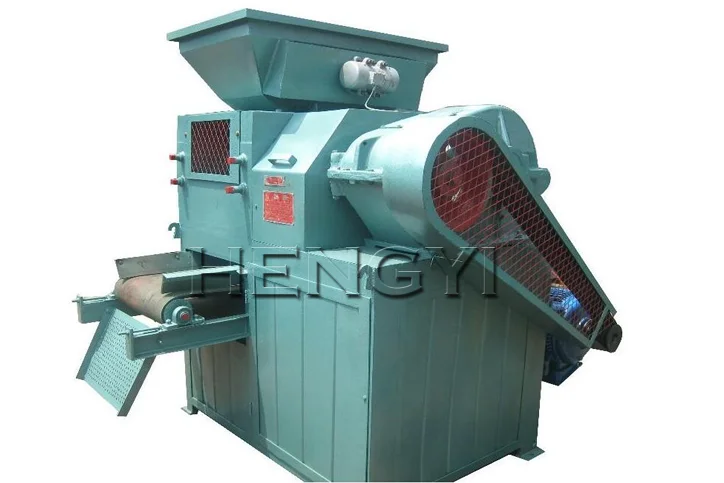

detailed image

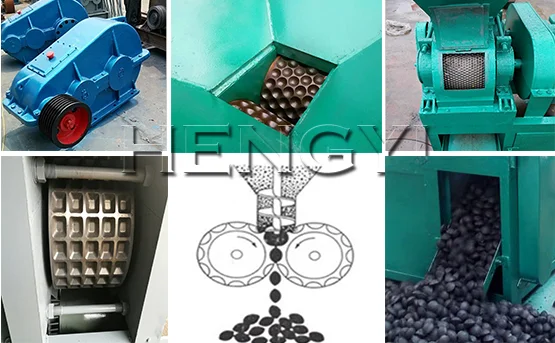

Working principle of charcoal and Coke powder briquette making machine

 This series of charcoal and Coke powder briquette making machine will pass the power on to the two pressure roller through the reducer.The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ballroll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball.





The structure of charcoal and Coke powder briquette making machine

>>1, the feeding part, is used to feed material so that the material can feed to rolloer evenly ,it is drived by Spiral comprises electromagnetic motor.

>>2. The transmission part, main transmission system is: Motor - triangle belt - reducer - Open Gear - roll.

>>3. Forming part, mainly refers to the part of the host machine, its core part is roller.





Raw materials requirements

coal powder, charcoal powder, metallic powder (FeSi powder), iron scale, iron sludge, precipitator dust, iron concentrate, raw material powder, manganese ore fines, slime peat, fireproof material, desulfurized gypsum

>>1.Mateials size required before feeding into briquette machine,less than 3mm.If the size is larger than 3mm,it is necessary to crush into smaller size  for briquette;

>>2.Moisture content:around 10%;

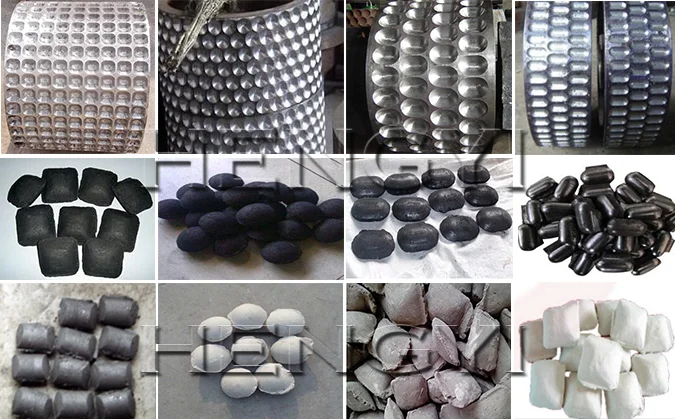

Rollers/Moulds and final products

>>1.The finished products usually 20-60mm.

>>.2The final products are smokeless, non-toxic, none peculiar and environmental protection.

>>.3The shape can be Square, ball egg-shaped, round, oval, and column, strip-type, elliptic type,pillow type and other special shapes by customizing the matching molds.





Application

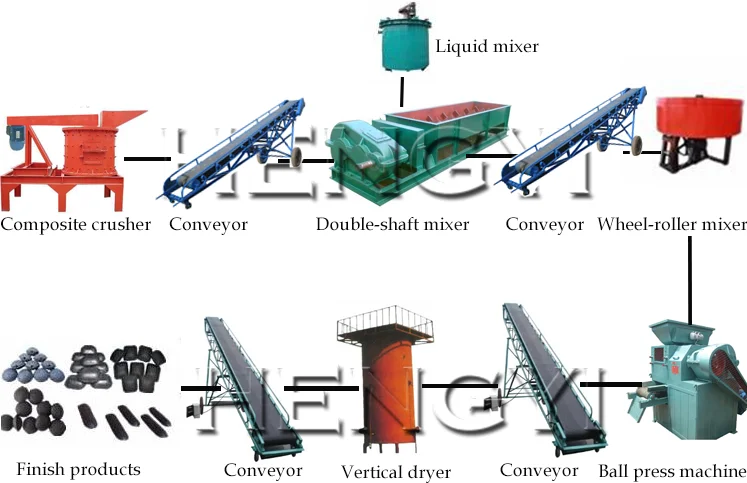

Product Flow

 Raw materials ---crushing---feeding---mixing---briquetting---drying---finished products

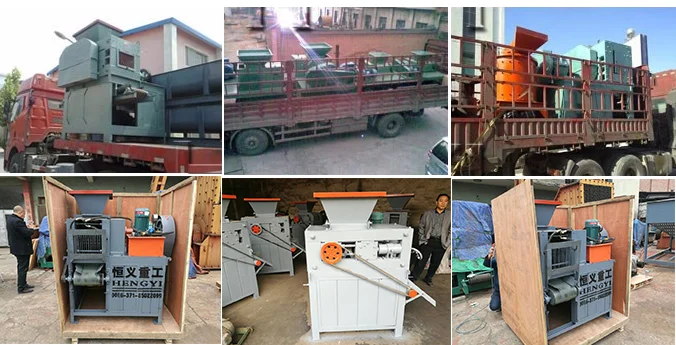

Packaging & Shipping

 >> 1.Nude packaging or free fumigation plywood case for single machine.
>> 2.Export standard container 20GP, 40GP, 40HQ, etc. For production line.
>>3.Other packaging according to your special requirement



FAQ

>>1.MOQ: 1 Set
>>2.Warranty: 18 months.
>>3.What's the lead time: 10 days
>>4.What is the package: Wood carton or as per your request
>>5.Can we change moulds? Yes
>>6.Area required: 1000M2
>>7.How much manpower needed: 2-3
Metal powder, copper powder, copper powder, mill powder, iron-bearing dust, silicomanganese, and various metallurgical auxiliary material, like quicklime powder, light calcined powder, fine coke, coal powder, desulphurization gypsum etc Can be pressed into shape once, the forming material can be smelted and used directly for the pressure ball machine.
