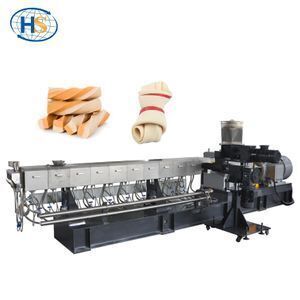

Haisi brand high quality dry animal pet dog food pellet processing extruder machine

Supplier: Nanjing Haisi Extrusion Equipment Co., Ltd.
Region: Jiangsu, China
Contact: Ms Lily Xu
Price: $38000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	Haisi;	After-sales Service Provided:	Online support;
Supply Ability:	300 Set/Sets per Year;	Product name:	Dog Food Making Machine;
Power(W):	Entire Line;	Payment Terms:	L/C,T/T;
Screw Diam:	64mm;	Weight:	3 Tons;
Packaging Detail:	packed in wooden with soft plastic;	Applicable Industries:	Manufacturing Plant;
Warranty:	1 Year;	Dimension(LWH):	2500015002200;
Certification:	CE ISO9001;	Color:	Any color as requirement;
Voltage:	Customized;	Condition:	New;
After-sales Service Provided:	Engineers available to service machinery overseas;	Port:	Nanjing;
Application:	Dog;	Place of Origin:	Jiangsu China (Mainland);
Screw material:	W6Mo5Cr4V2 material;	Automatic Grade:	PLC;

Product Description

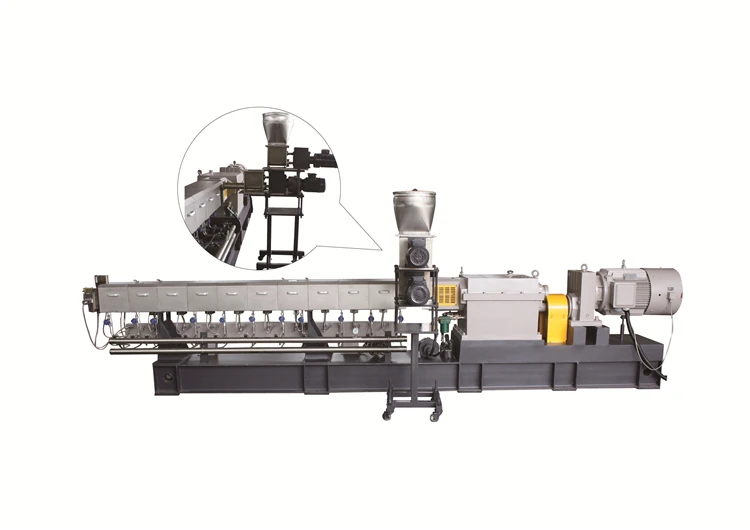

Haisi brand high quality dry animal pet dog food pellet processing extruder machine

Technical Data:

Mode	Diameter (mm)	L/D	speed (r/min)	Motor power (kw)	Torque (N.m)	Capacity (kg/h)
TSE-20	22	32-44	600	5.5	43	0.5-10
TSE-30B	31	32-48	600	15	119	5-40
TSH-35B	35.6	32-52	600-800	15-22	119	30-70
TSE-40B	41	32-52	600	45-55	437	90-150
TSH-40B	41	32-52	600	45-55	437	150-220
TSE-50B	50.5	32-52	500	45-55	430	180-270
TSH-52B	51.5	32-60	600	90-132	682	270-400
TSE-65B	62.4	32-64	600	90	716	250-360
TSH-65B	62.4	32-64	600-800	110-160	875	350-500
TSE-75B	71	32-64	600	132	1050	350-500
TSH-75B	71	32-64	600-800	200-250	1365	600-800
TSE-95B	93	32-64	600	315	2560	800-1200
TSH-95B	93	32-64	600-800	400-450	2506	1200-1600
TSE-135	133	32-64	500	550	7162	1500-2250

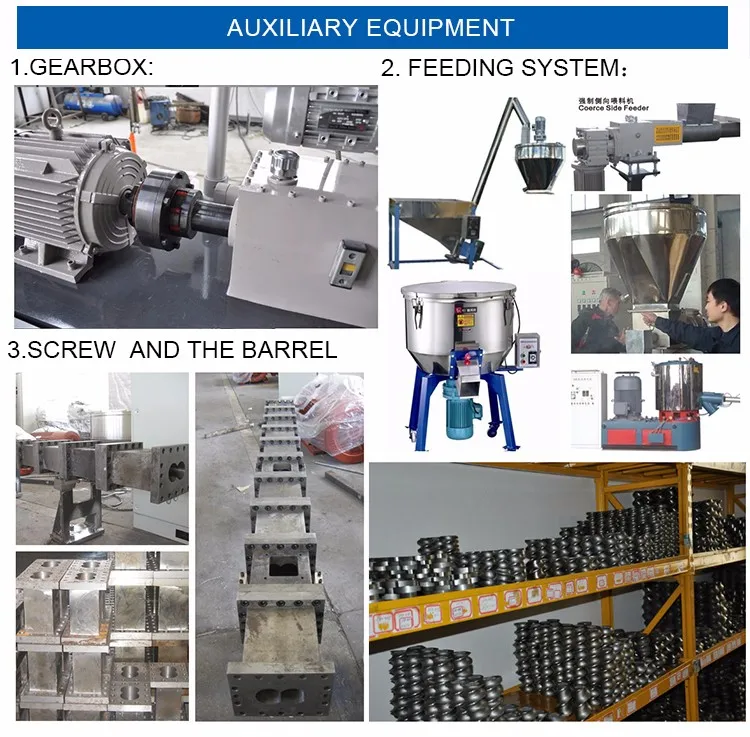

1.gearbox:
New-style project of parallel three-axises driving makes the convey axis,convey chain,decelerate and the torque assignment get together,which keeo it compact,and the key bearings are imported.

The select material of drive components is dainty. Including super intension alloy cementiteing steel,cementiting and quenching ,gear grinding technics ,strengthening of tooth face.So they can ensure high torque,high precision and low noise.

Soakage and coerce lubrication integrate smoothly.When the hydraulic circuit is over pressed, it alarms.

2. feeding system:

Metering feeders are equipped with single screw,twin screw,hollow screw,forced-feeding,side feeding,liquid-adding system,etc

3.screw and barrel
The screw elements and then kneading blocks are designed accurately,by precise processed, agile combination,with interchangeability, which can fulfill efficient self-cleaning,transmission,compounding,pressure-forming.
The screw material is made of high tool steel 38CrMoALA or W6Mo5Cr4V2 by special heat-treament.

Euro-style rectangle barrel,reflux refrigeration is optimized and disposed,which makes temperature difference in C areas smaller

According to the material and special techinics demands,the material of cylinder can use high quality nitrided steel,corrosion proof or antifriction with corresponding process

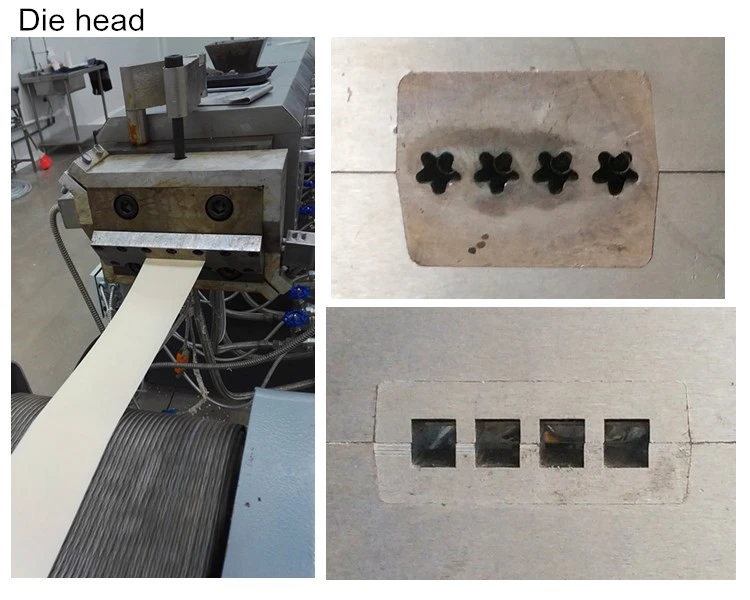

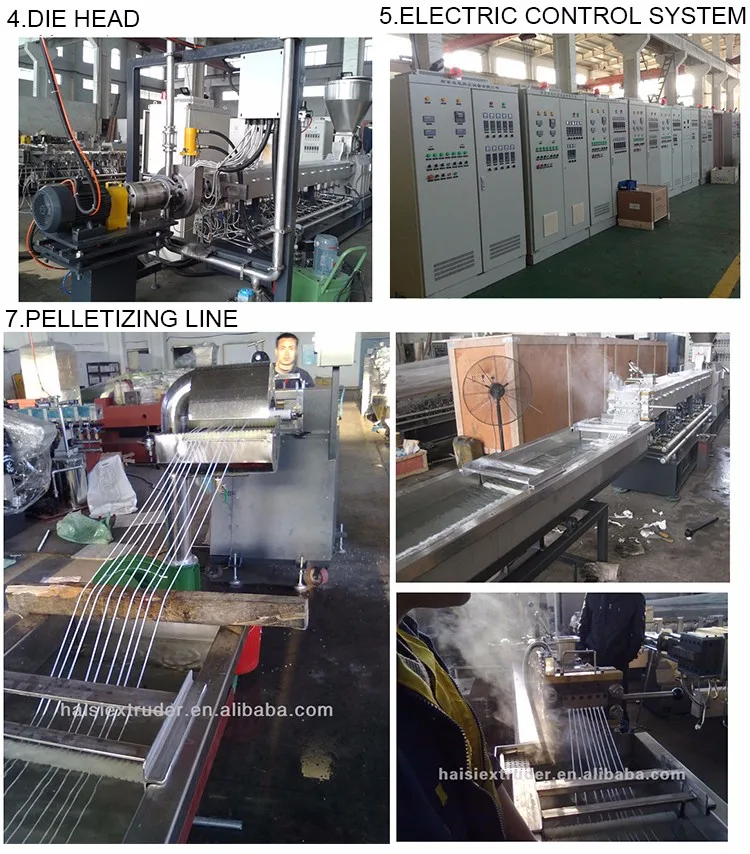

4.die head
the die head have two types :manual whirling and hydrulic pressure screen changer.
Changing screen is easy and finishes within few minutes.

5.electric control system
adopting imported PLC(OMRON or SIMES) to achieve optimized process control.Stronger function,steady performance and much higher accuracy. it can be also accomplished full-set link-lock protection,trouble safeguard,fault alarm cluing and so on
operation interface on touching screen is visual and marked ,which is brief and easy to use

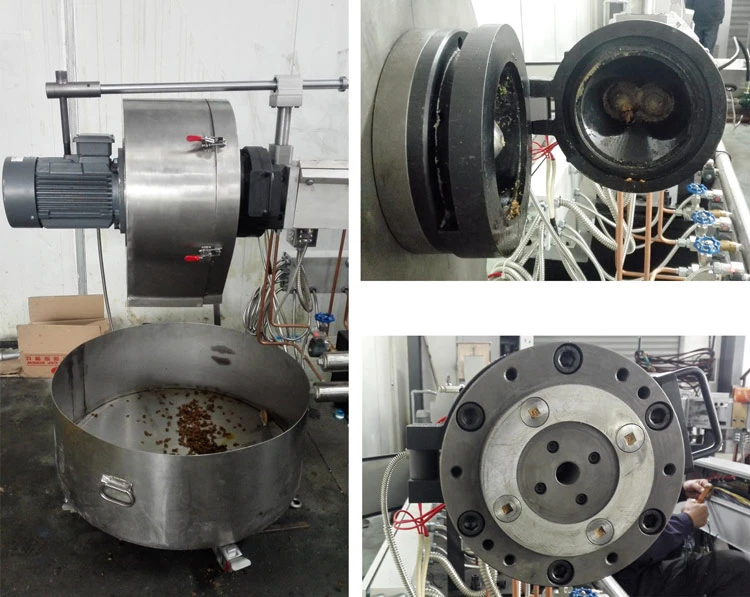

7.Pelletizing line

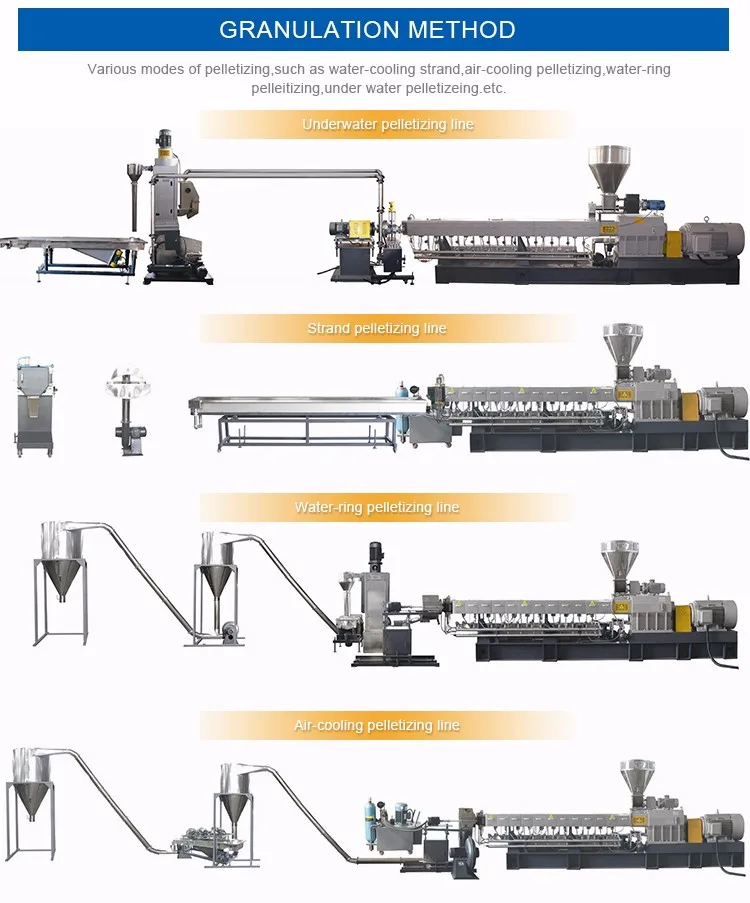

Variou modes of pelletizing,such as water-cooling strand,air-cooling pelletizing,water-ring pelletizing,under water pelleting,etc.
