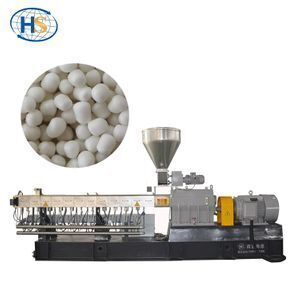

Haisi PP PE PET PC PBT ABS PVC Plastic Pellet Making Machine/Plastic Granules Twin Screw Extruder for Sale

Supplier: Nanjing Haisi Extrusion Equipment Co., Ltd.
Region: Jiangsu, China
Contact: Ms Lily Xu
Price: $30000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Condition:	New;	Delivery Detail:	within 60 days;
Packaging Detail:	wooden package or customized;	Payment Terms:	L/C,T/T;
speed:	600r/min;	L/D:	32-48;
Certification:	CE UL SGS TUV;	Motor pole:	four-pole motor;
Capacity:	100-1200kg/h;	Plastic Processed:	PP PE PET ABS PS PA PC etc.;
Weight:	2-10T;	Port:	Shanghai/Nanjing/Guanghzou;
Motor power:	15kw;	Brand Name:	semi-automatic;
Application:	Granules;	Color:	as require;
Torque:	119N.m;	Voltage:	380v 427v or customized;
Inverter Brand:	ABB;	Place of Origin:	China (Mainland);
After-sales Service Provided:	Engineers available to service machinery overseas;	Motor Brand:	Simens or WNM;
Dimension(LWH):	capacity;	Screw Design:	Double-screw;
Supply Ability:	300 Set/Sets per Year;	Automatic Grade:	semi-automatic;
Screw Diameter:	31mm;	Power(W):	customized;
Model Number:	TSE Series;

Product Description

Technical Data:

Mode	Diameter (mm)	L/D	speed (r/min)	Motor power (kw)	Torque (N.m)	Capacity (kg/h)
TSE-20	22	32-44	600	5.5	43	0.5-10
TSE-30B	31	32-48	600	15	119	5-40
TSH-35B	35.6	32-52	600-800	15-22	119	30-70
TSE-40B	41	32-52	600	45-55	437	90-150
TSH-40B	41	32-52	600	45-55	437	150-220
TSE-50B	50.5	32-52	500	45-55	430	180-270
TSH-52B	51.5	32-60	600	90-132	682	270-400
TSE-65B	62.4	32-64	600	90	716	250-360
TSH-65B	62.4	32-64	600-800	110-160	875	350-500
TSE-75B	71	32-64	600	132	1050	350-500
TSH-75B	71	32-64	600-800	200-250	1365	600-800
TSE-95B	93	32-64	600	315	2560	800-1200
TSH-95B	93	32-64	600-800	400-450	2506	1200-1600
TSE-135	133	32-64	500	550	7162	1500-2250

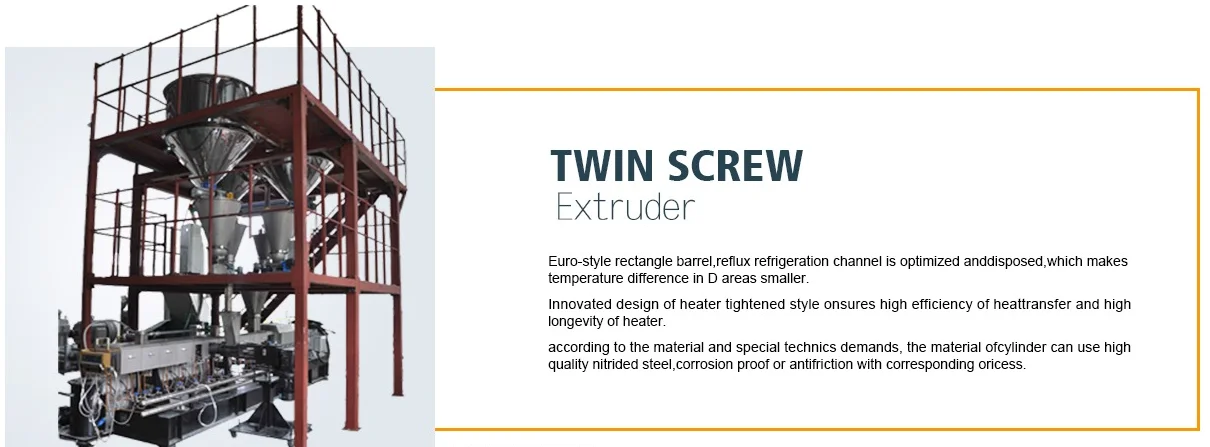

1.Strand Extruders for Filling/Compounding and Reinforcing

Fibre reiforcement : glass fibre, carbon fibre reinforced PP, PA, PBT, ABS, PC, POM, PPS, PET, etc.
Fibre reiforcement : glass fibre, carbon fibre reinforced PP, PA, PBT, ABS, PC, POM, PPS, PET, etc.
Incorporation of Fillers: Caco3, Talc, TiO2, carbon black,filled PE, PP, or EVA, etc.
Cable Compounds: cable sheath, cable insulation compounds of LDPE, HDPE, LLDPE, MDPE; radiation-crosslinkable compounds, optical fibre protection compounds, heat-shrinkable polymer compounds.
Special Compounds: PPR pipe compounds, PE compounds for crosslinked pipes, tobacco filter compounds, etc.
High Concentration Color Masterbatches: PE, ABS, PS, EVA, PP,etc. with high concentration of pigments and other processing aids.
Masterbatches with Flame-retardants: PE, ABS, PS, EVA, PET, PP, etc. with flame retardants and other additives.

The twin screw strand extruder also fit for PET bottles/ flakes recycling.

2. Water Ring Extruders for Filiing/Compounding/Modificating

PE, EVA etc. Filled with CACO3,talc,TIO2,carbon black etc.

Cable sheath, cable insulation compoundes of LDPE,HDPE,LLDPE,or MDPE;

Radiation-crosslinkable, heat-shrinkable cable compounds;

PPR pipe compounds, PE compounds for crosslinked pipes;

TPR, TPU thermoplastic elastomers; EVA and hot-melt adhesives;

Color concentrations of PE,ABS, PS,EVA,etc;

Flame retardant master batches of ABS,PS,EVA,etc;

Master batches with PE,PP,PS,etc carriers for degradation applications.

3.Air-cooling Extruders

Enforcing modification:PE,EVA etc.+CaCo3,Talc, TiO2,Carbon black.

Degradable master batch: PE,PS etc.+starch,additive etc.

Anti-flame master batch: PE, EVA etc.+Sb2O3, Mg(OH)2,AI2(OH)3 etc.

4. Underwater Extruders

1.The main material is PE+CaCO3

2.The metering feeders are equipped with single screw, twin screw, hollow screw, forced feeding ,side-feeding, etc

3.Different requirementsof feeding, such as power, pellet, lump and luqid material.

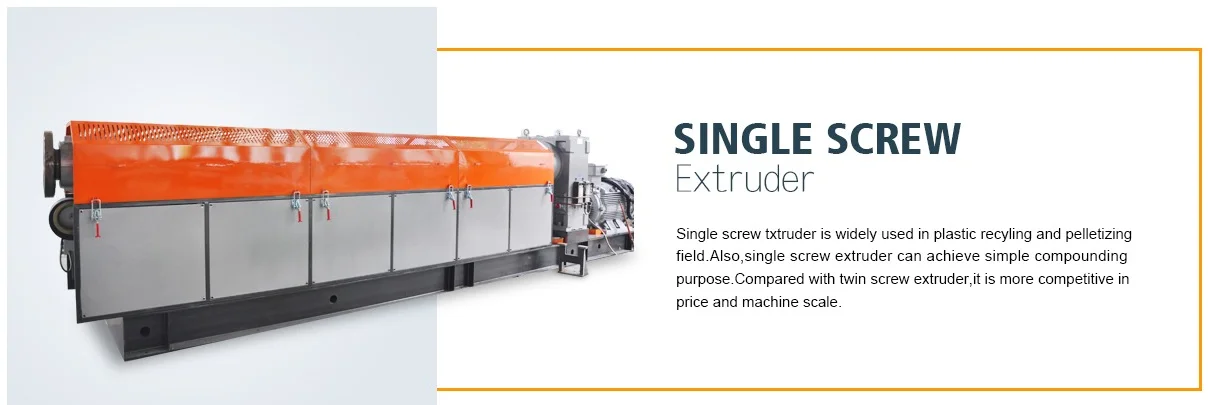

Single Screw / Two Stage Single Screw Recycling Extruder Machine

The single screw extruder fit for clean PP/PE film or PP/PE/ABS flakes recycling, not for compounding masterbatch make.the final end product could be used to make plastic carrying bags or new film.
