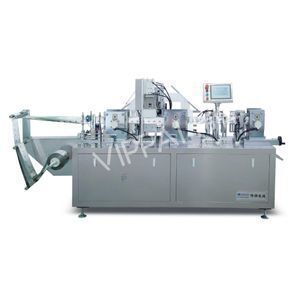

Automatic four-side sealing wet towel machine wet tissue making machine

Supplier: Wenzhou Weipai Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms wj Du
Price: $21000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Wet wipe machine types:	single pcs;	Raw material:	Nonwoven rolls;
Wetting system:	dosing pump;	Condition:	New;
Brand Name:	VIPPAI;	Application:	daily using;
After-sales Service Provided:	Engineers available to service machinery overseas;	Packaging Detail:	Packaging Size 3060 (L) * 1080 (W) * 1800 (D) Weight 1.1 T Packaging Details The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.;
Power(W):	4.8KW;	Certification:	CE CQC ISO;
Product speed:	110ppm;	Dimension(LWH):	280028001800mm;
Power supply:	220V 50/60HZ;	Port:	shanghai or ningbo;
Voltage:	220V 50/60HZ;	Finished Products:	wet wipes machine;
After Service:	12 months;	Supply Ability:	100 Set/Sets per Year;
Pcs/Pack:	1pcs;	Product type:	4 side sealing wet wipes;
Warranty:	1 Year;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union;
Place of Origin:	Zhejiang China (Mainland);	Weight:	1100KG;

Product Description

We make design of the machine according to the world advanced paper and non-woven packaging machinery technology, our wet wipes packing machine is suit for the manufacture of moist towelettes in any size and Packaging. but,it need to changed the different heater platens for manufacture different size moist towelettes , so good communication is the first step to letting us know which type wet wipes or what’s the size of the wet wipes you are preparing to produce.

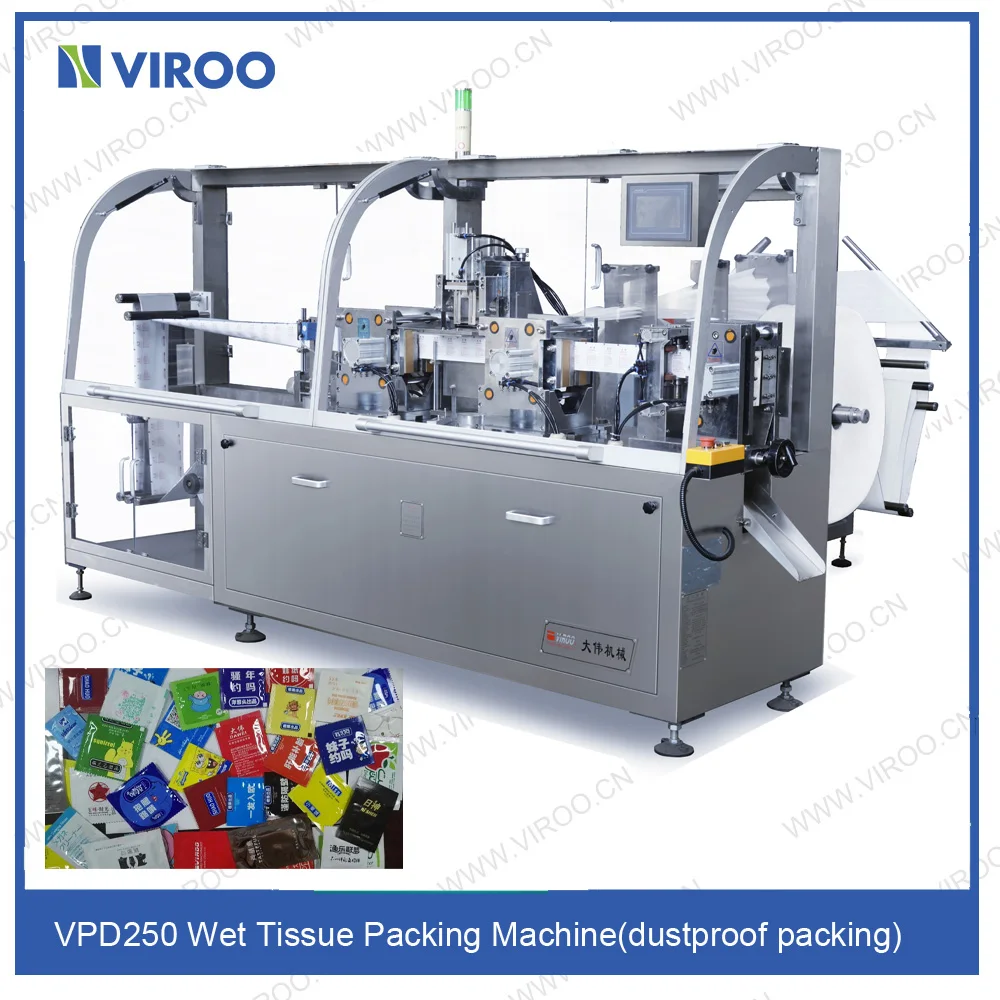

Item/model		Model:VPD250		Model:VPD350
		For alcohol pad	For wet wipes
Packaging form		Horizontal Four-side sealing
Packing material		CPP,PE,BOPP CPP film,PE film,BOPP film
Wet Tissue Material		30-80g/m² air laid paper, nonwoven, spun lace nonwoven fabric etc
Folding way		Max 10 folding vertical, and 4 folding horizontal
Packing specification	Length	30mm-50mm	50mm-125mm	80mm-175mm(special design max 220mm)
	Width	40mm -110mm
Max size		L50mm×W50mm	L120mm×W110mm	L170mm×W110mm
Packing speed		120-160bags/minute	60-120 bags/minute	60-100 bags/minute
Liquid added range		0-10ml [precision ±0.5ml ;the coefficient of viscosity should under the 20000(cp)]
Total power		2.8KW
Power supply type		Single phase two wire 220V 50/60Hz
Machine noise		≤64.9dB(A)
Air supply		0.6-1.0 Mpas
Air consumption		300-500L/min(w-1.0/10 air compression machine is needed)
Machine dimensions		L2800×W1080×H1800mm	L2800×W2800×H1800mm	L3000×W2800×H1800mm
Machine weight		1000Kg	1100Kg	1300Kgw

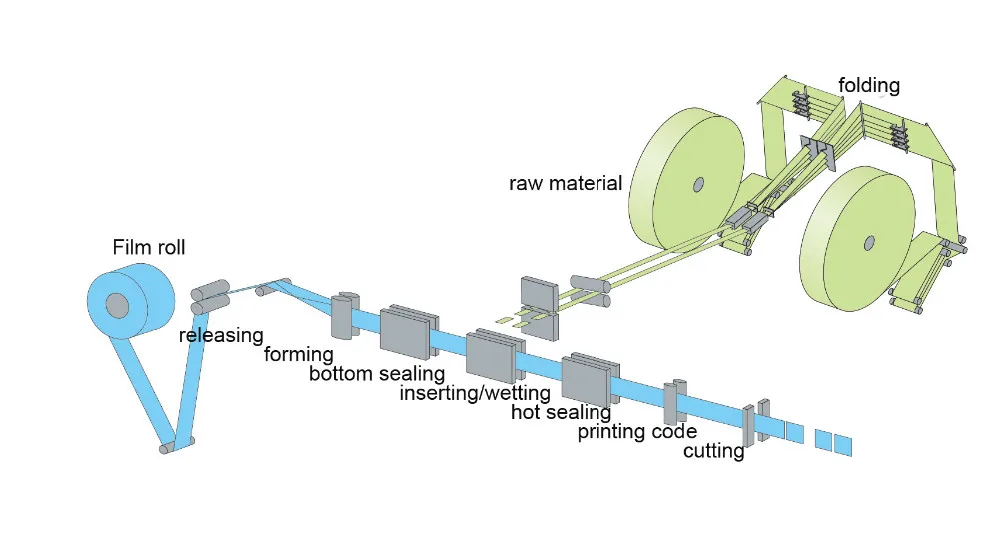

wet wipes Production flow chart

Main Features

1, The machine work steadily and continiously, It is suitable for four-side sealing products of all types wet wipes/tissue, alcohol swabs/pad and so on
2, Full automatic pouch forming, photo electricity correction, no blank edge and fault forming
3,The tissue can be folded in different types. max 8 folding vertical, and 4 folding horizontal, fold freely by unfold nonwoven width, length.
4, Adopts Japan imported spray pump, make it accurate adding with tolerance of 0.01ml/time. Multical kinds of liquid are available. it can add per liquid per bag or add all the liquid in the same bag
5, Double times sealing better to ensure the liquid adding volume and avoid leaking.
6, The machine is easy to operate, PLC touch panel, could adjust the packing temperature and speed according to the packing material,product's thickness and length. servo motor. controlled by light, electric and air power, failures can be self- diagnosised and displays clearly.the language of operate system can be made in your local language as Spanish, French,Korean,Russian,Japanese, Arabic and so on.
7, The full machine is covered with Stainless steel in good appearance, also easy to clear and durable. Low operation and maintenance cost.

Certifications

Detailed Images

Name: nonwoven fold Name: cutting and inserting parts

Brand: wei pai Function: cut the length of the tissue, fold and Function: Max 10 folding vertical, and 4 folding horizontal insert it into the pouch,then add liquid

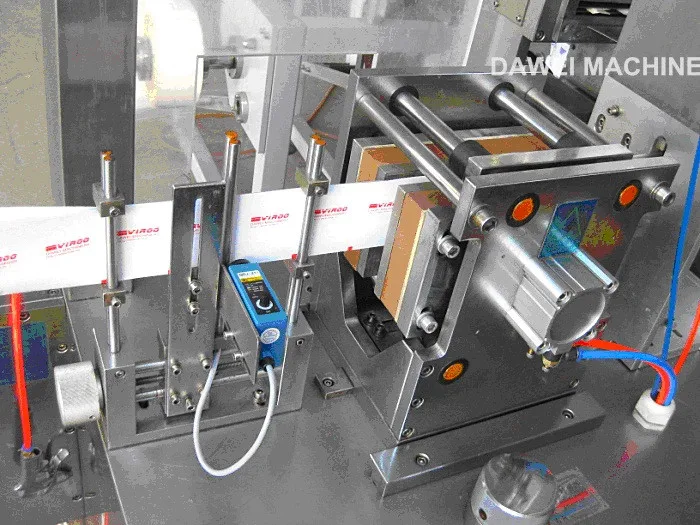

Name: forming and bottom sealing (mark sensor) Name: Cutting parts

Brand: wei pai Function: it's cut down the bags after the product

Function: fold the film and forming it into bag, finished , a single package ,twins package or

the sensor make it more exactly , anyother special edge can be changed through

no blank edge and fault forming change

Our Services

Pre-Sales Service After-Sales Service

* Inquiry and consulting support. * Training how to instal the machine, training how to

* Sample testing support. use the machine.

* View our Factory. * Engineers available to service machinery overseas

Packaging & Shipping

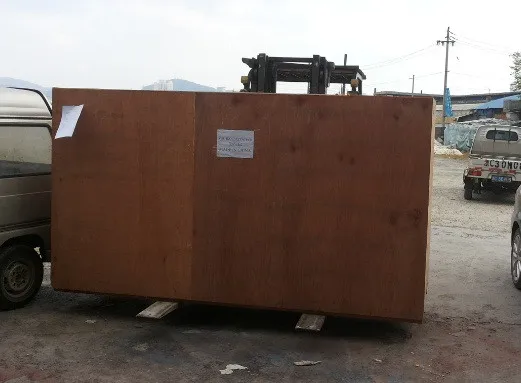

Packaging
Size	3060 (L) * 1080 (W) * 1800 (D)
Weight	1.1 /1.2T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Any questions about the machine, please contact with me.
