Automatic Lace Knitting Crochet Machine

Product details
Weight:500KG;Knitting Method:Single;
After-sales Service Provided:Engineers available to service machinery overseas;Place of Origin:Fujian China (Mainland);
Supply Ability:400 Set/Sets per Month;Port:Xiamen,Fujian,China;
Services:Operation Instruction&Professional Training;Production Capacity:High Speed;
Product Type:Elastic Band;Knitting Style:Warp;
Condition:New;Dimension(L*W*H):1.1m*1.5m*2.8m;
Delivery Detail:Usually 7-30 days.;Packaging Detail:Strong export wooden boxs.(waterproof).;
Computerized:No;Power(W):1.5kw;
Payment Terms:L/C,T/T;Products:Elastic Tape, Shoelace, Bandage;
Brand Name:GinYi;Type:Crochet;

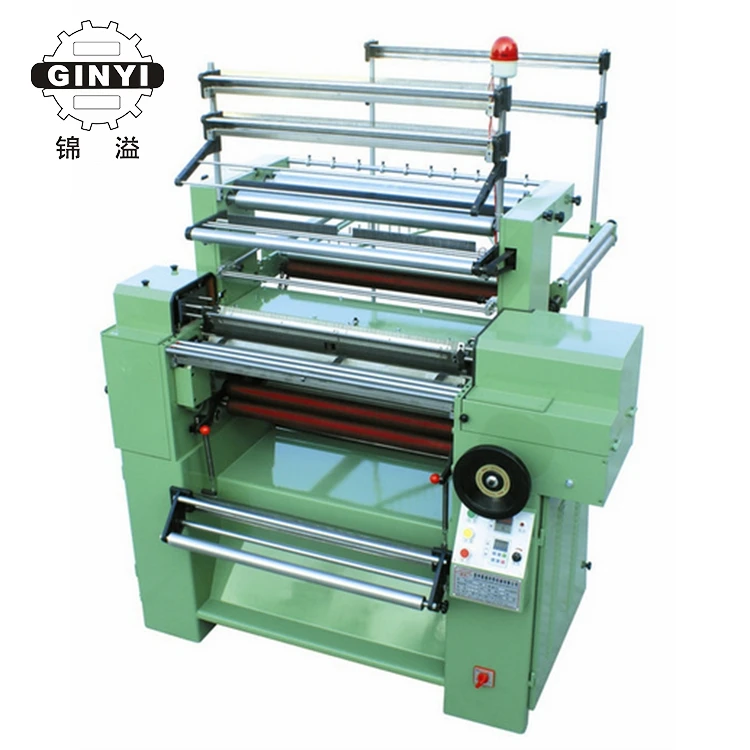

Automatic Lace Knitting Crochet Machine

Product Description

1.Specifications



ModelGNG-710/B8GNG-762/B3
Weft Guide Bar8 Pcs3 Pcs
Circle 10,12,14,15,18,20 10,12,14,15,18,20
Tape Width

10mm(62pcs),

25mm(24pcs),

30mm(18pcs),

60mm(10pcs),

70mm(8pcs)

10mm(62pcs),

25mm(24pcs),

30mm(18pcs),

60mm(10pcs),

70mm(8pcs)

Motor1.5kw1.5kw
Speed  1500 rpm 1500 rpm
Creel Ends 200pcs (means can put 200pcs creel yarn) 200pcs (means can put 200pcs creel yarn)
Beam Creel 4pcs beam creel. (can put 4 pcs beam) 4pcs beam creel. (can put 4 pcs beam)



2.Features



GND knitting machine with precision construction, with drive bearing, synchronous belt imported from Japan and Germany, which drive accurately, low noise, low failure rate. It adopts auto brake system, to make more speedy and convenient when adjusting. High speed RPM bring on high output, supply customer high economic efficiency.

GND series crochet knitting machine can weave kinds of cotton and chemical fiber light or heavy lace, Like elastic tape, shoelace, bandage and so on.

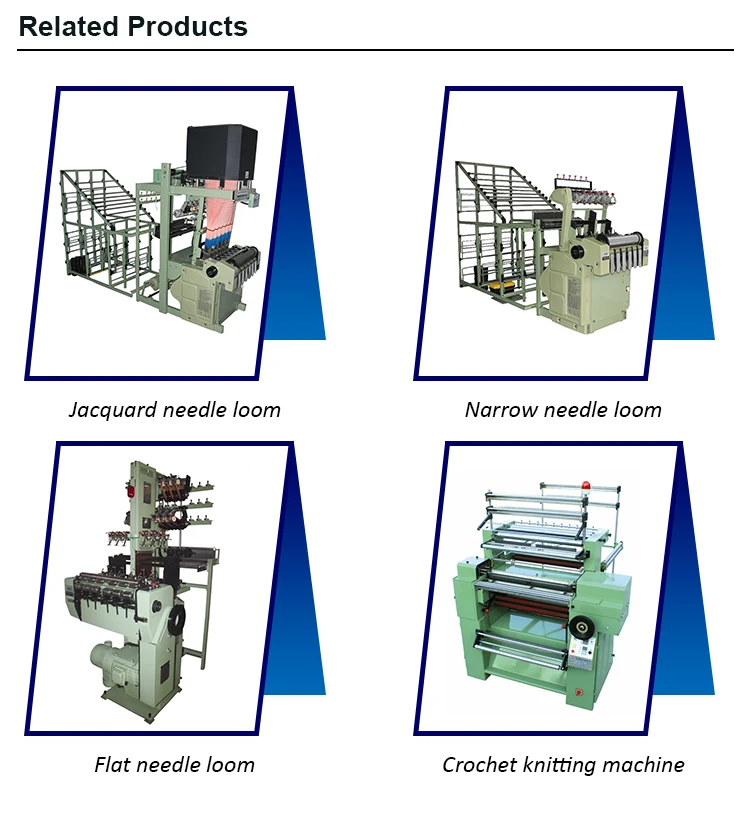

Related Products

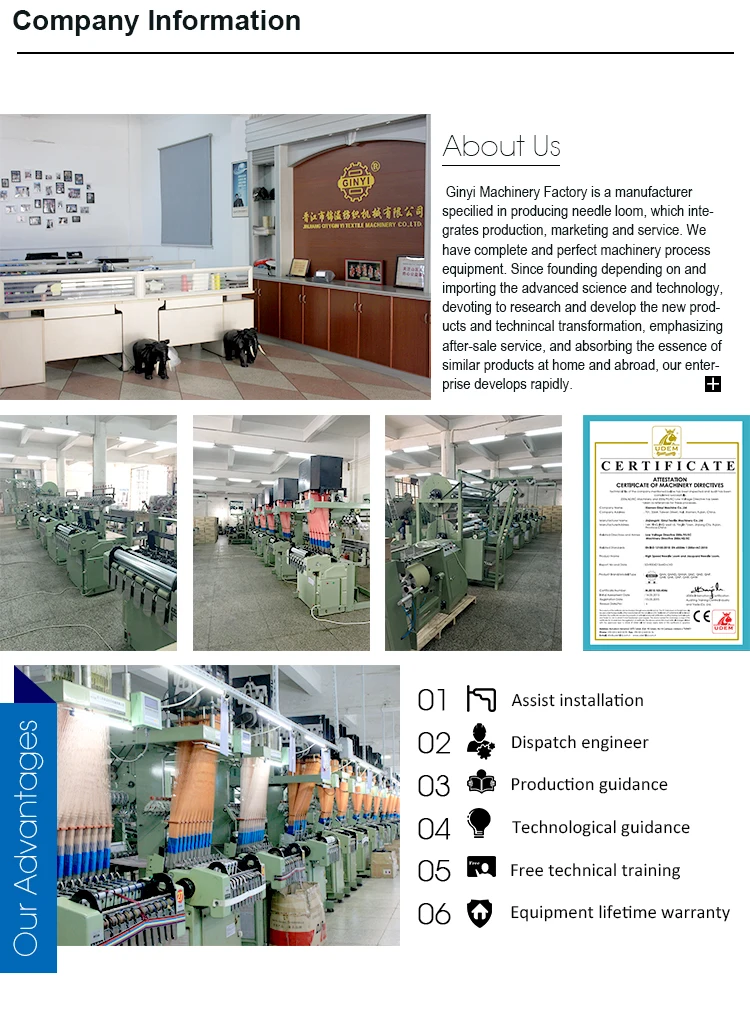

Company Information

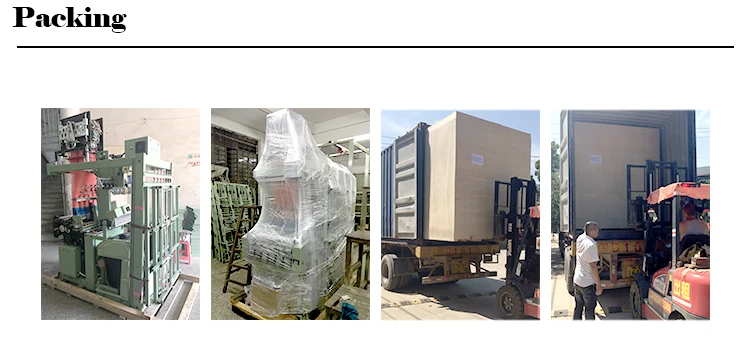

Packaging & Shipping
