Payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Warranty: | 1 year |
Supply capacity: | 1,000 sets per month | strength: | 370 watts |
Health) status: | new | Main selling points: | Easy to operate |
Marketing type: | Ordinary products | Package preview: | |
Mechanical test report: | if | Applicable industries: | Clothing stores, manufacturing plants, machine repair shops, household, retail |
Knitting method: | double | Knitting width: | 14 inches |
Production capacity: | 500 pieces/day | Core components: | engine |
port: | Ningbo or Shanghai | Product type: | Belts, rugs, elastic bands |
weight: | 104kg | Origin: | Zhejiang, China |
Dimensions (length*width*height): | 890*460*1020mm | Knitting style: | flat, weft |
Core component warranty: | 2 years | Bed width: | 14 inches, 20 inches |
Packaging details: | wooden box | Product name: | placket knitting machine |
Computerization: | No | Measurement: | 3G/5G/6G/7G/9G/10G/12G/14G/16/18G |
Video outbound inspection: | if | type: | flat |
Brand name: | Haoyue | Measurement: | 3GG,7GG,12GG,16GG,9GG,5GG,18GG,others |
Plain cord fabric two-end electric placket knitting machine

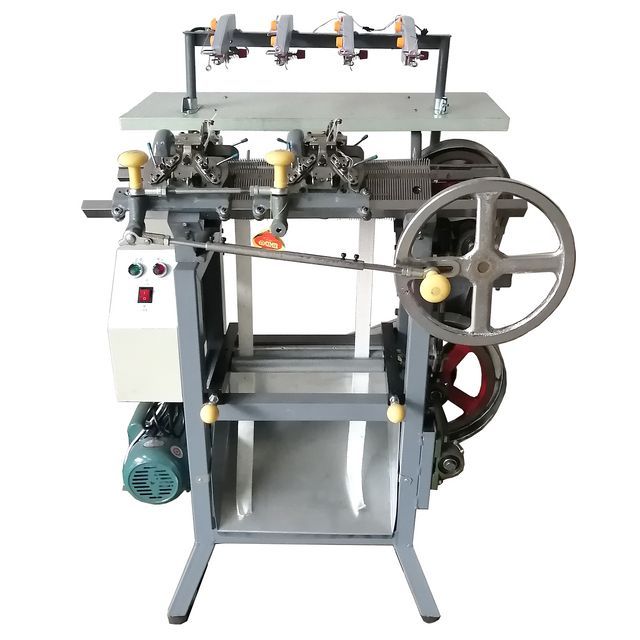

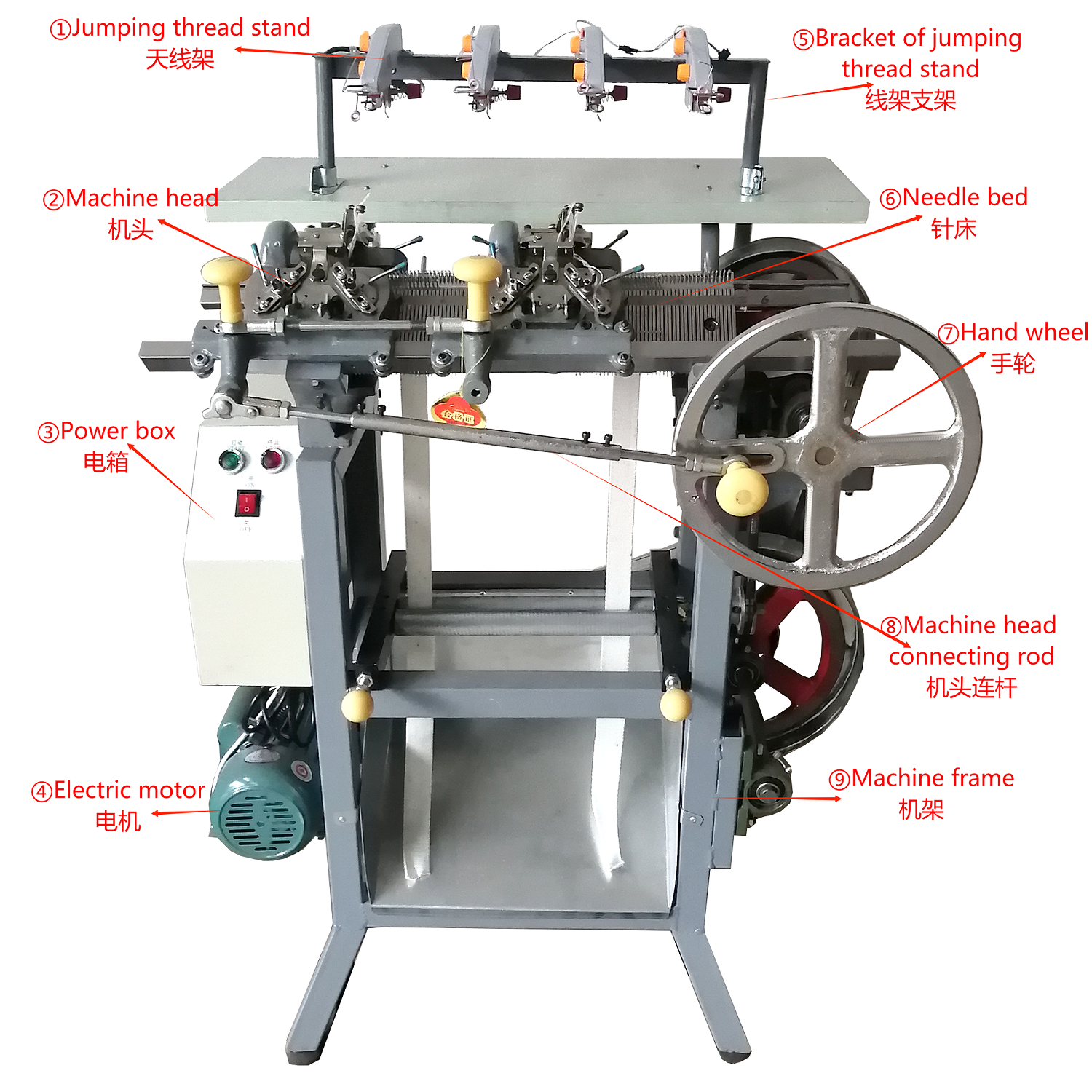

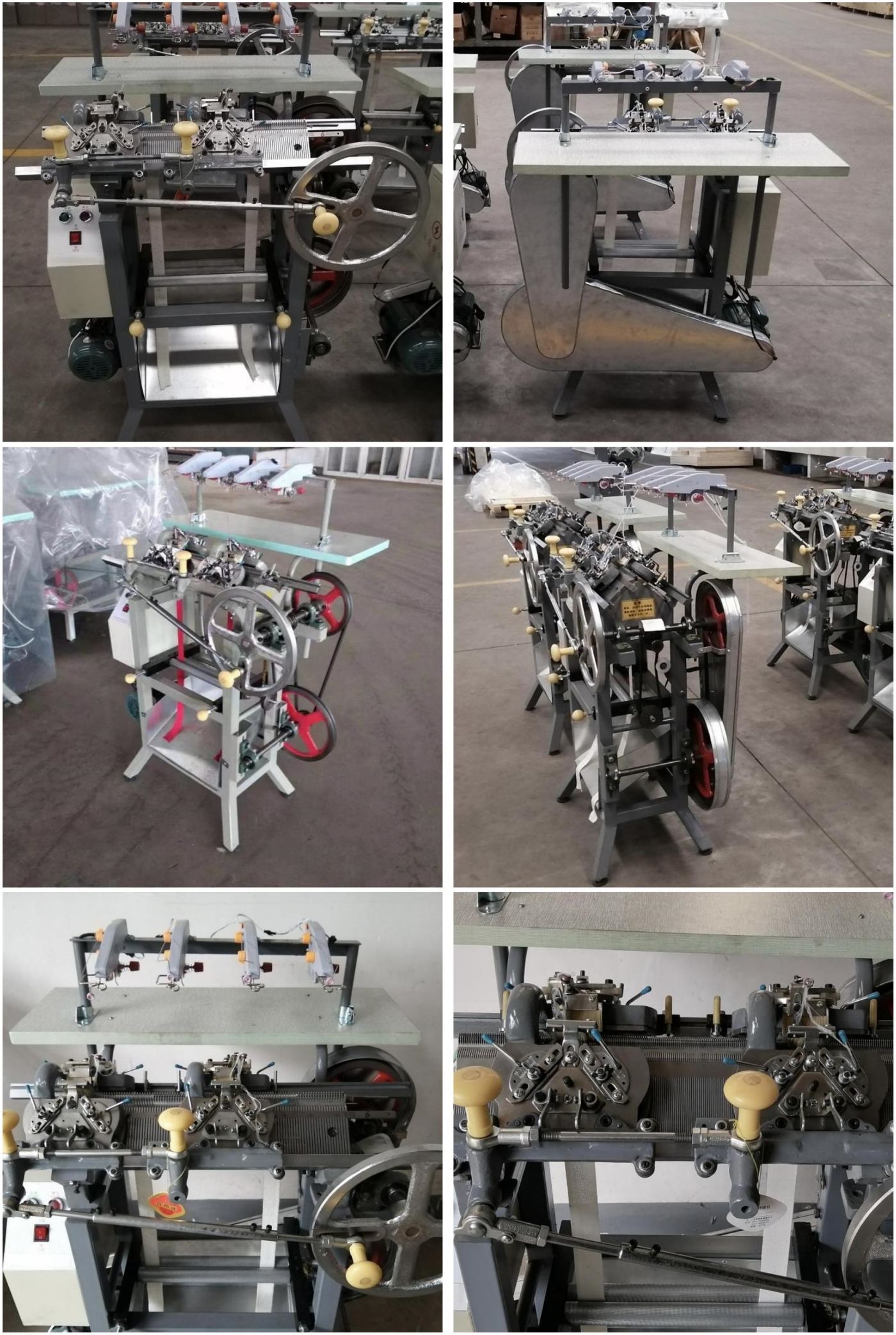

Machine display |

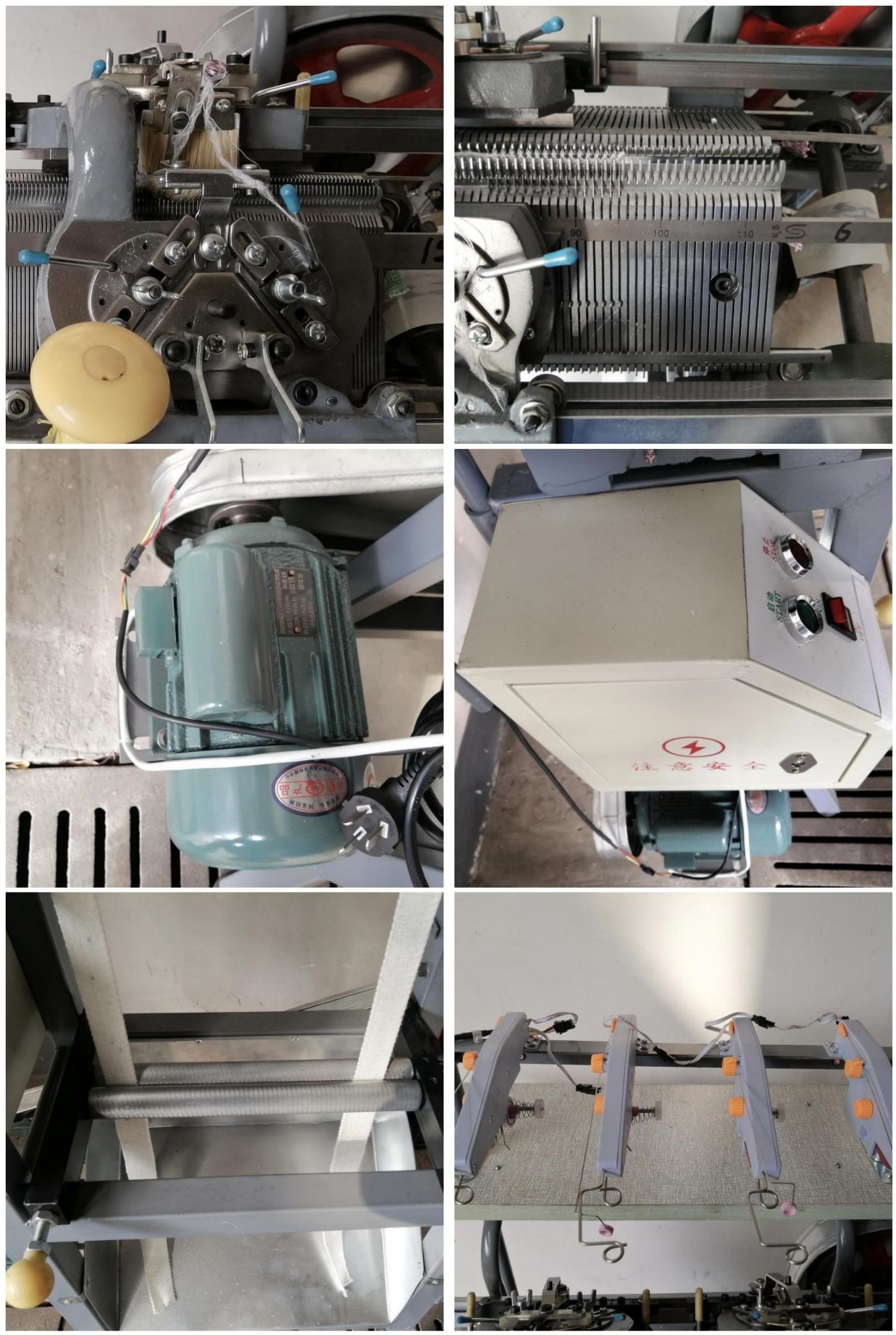

Carefully crafted needle bed |
The bed is made of high-quality steel, which is impact-resistant and wear-resistant. Precise positioning can be achieved.
Needle beds are interchangeable |
Thick needle gauge: 5G, 6G, 7G
Fine needle gauge: 9G, 12G, 14G
Fine needle gauge: 16G, 18G
Fast shifting and simple operation.
Reliable quality and efficiency first |
If your requirements for a ribbon weaving machine are excellent efficiency, simple operation and good reliability, then this machine is your ideal choice.
feature |
This machine is equipped with safety devices. When a thread is destroyed, it is automatically stopped. The width of the ribbon can be adjusted steplessly. After removing the connecting rod of the machine head, the machine becomes a single-head electric placket knitting machine, making it easy and convenient to knit extra wide plackets. The machine is stable and has low noise. It has strong adaptability to weaving different wool yarns. Easy to maintain.
Specification |
Pin gauge: 3G, 5G, 6G, 7G, 9G, 12G, 14G, 16G, 18G
Needle bed length: 14", 20"
Motor: single-phase 220V; motor power: 370W
Machine size:
14 inches: 890mm*480mm*1020mm/Net weight: 104KG
20 inches: 1260mm*500mm*1030mm/Net weight: 120KG

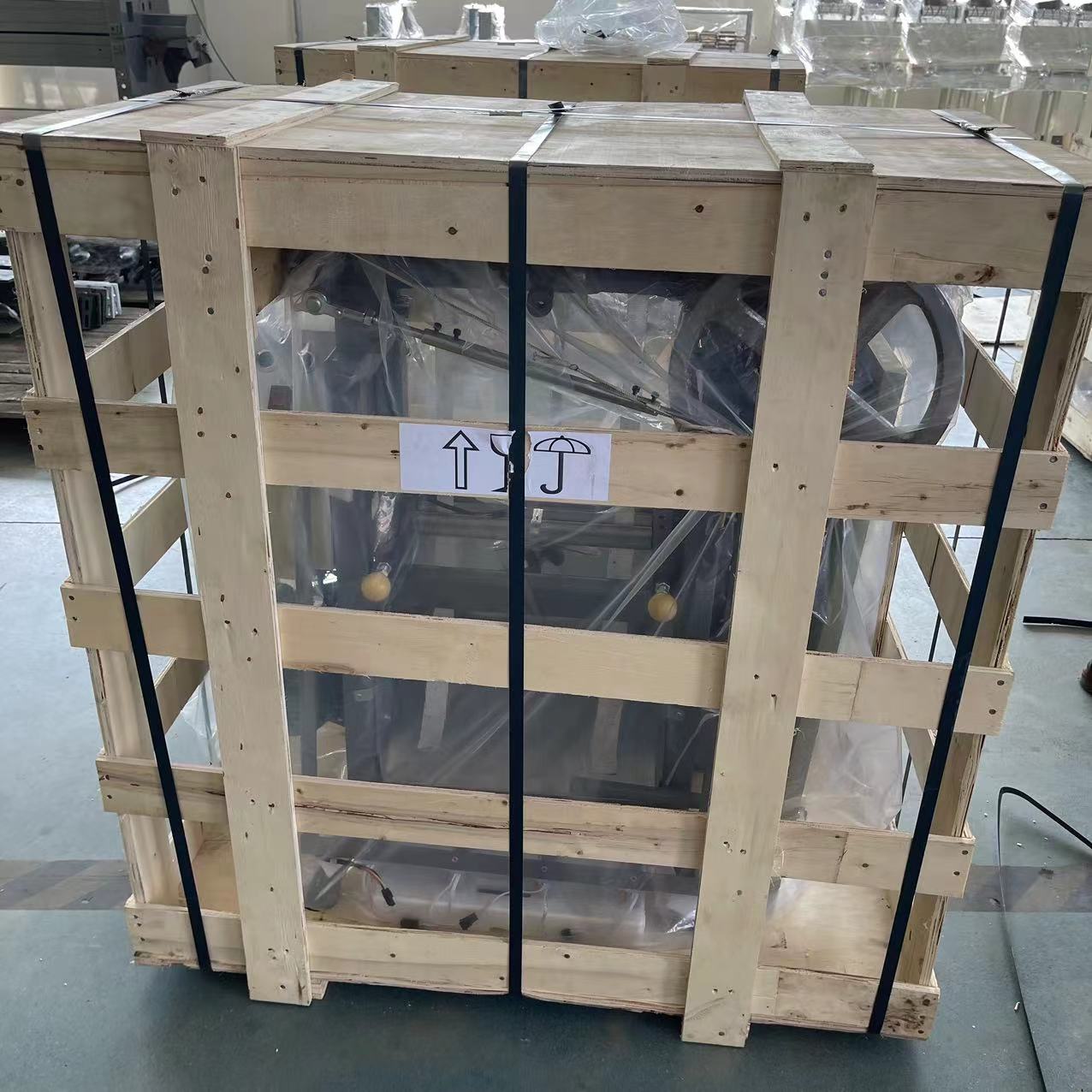

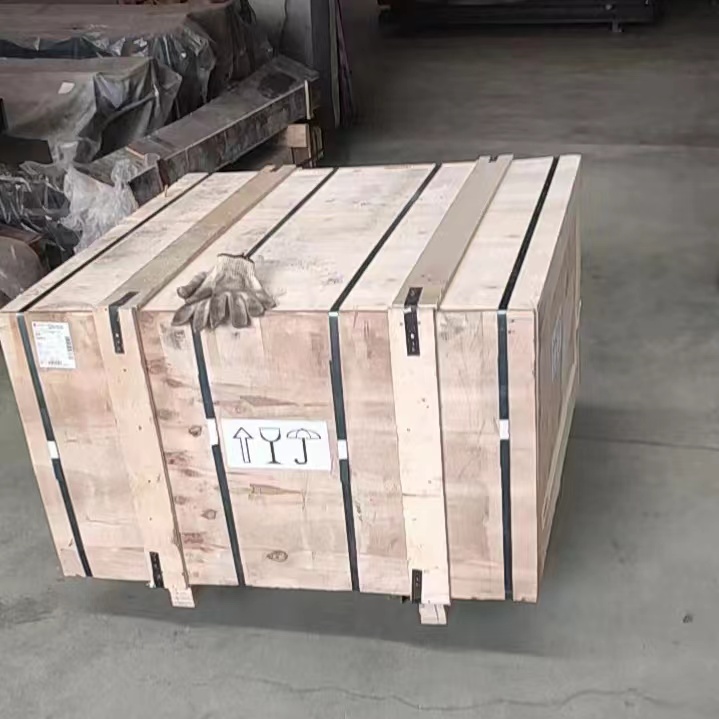

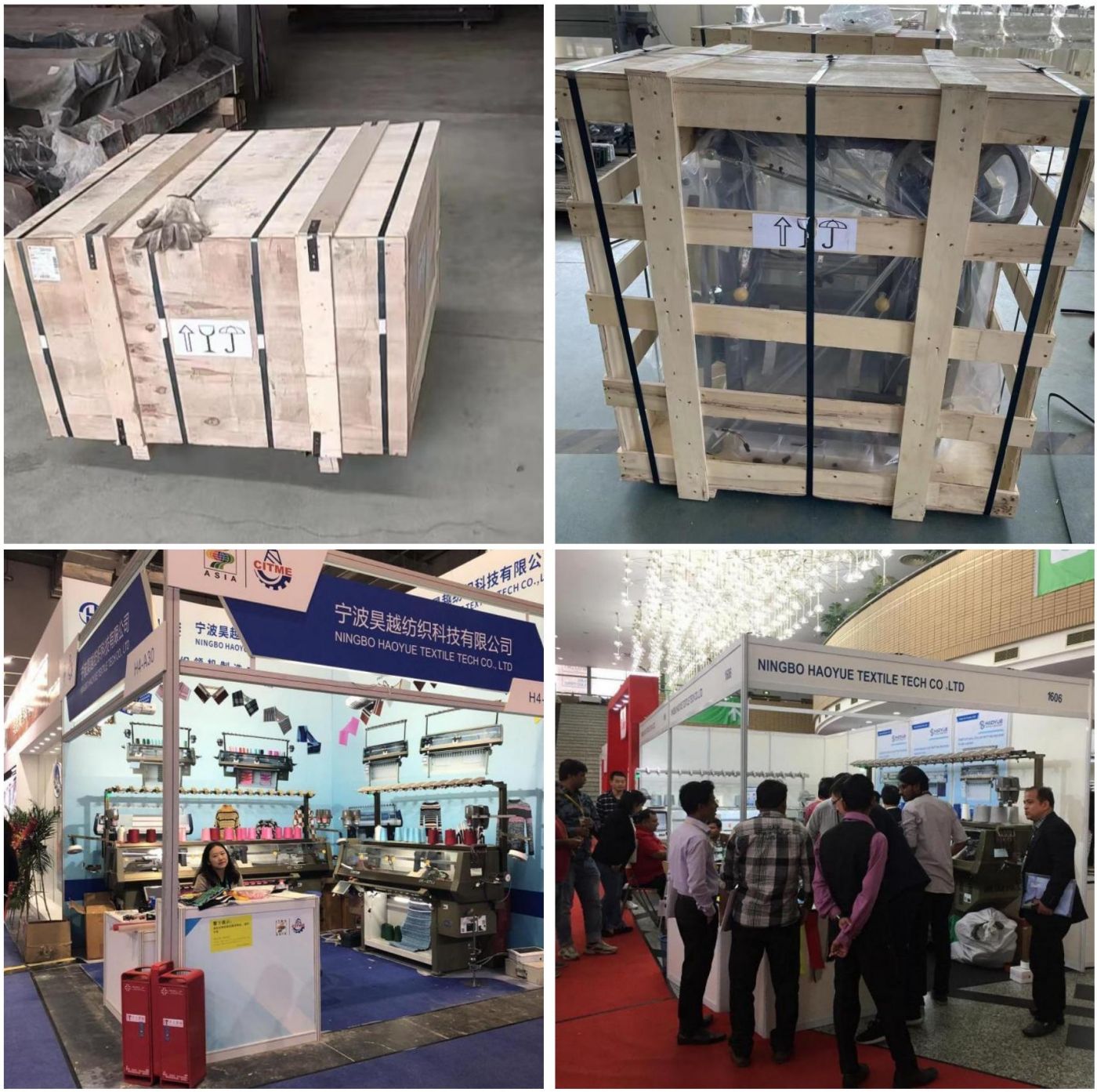

Packing size:
14 inches: 960mm*560mm*1130mm/Net weight: 130KG
20 inches: 1360mm*600mm*1130mm/Net weight: 155KG
