One Stop Supplier ISO Shipping Container Spare Parts

Supplier: ACE Container & Parts Co., Limited
Region: Tianjin, China
Contact: Mr Aaron Liu
Price: $1.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Port:	Tianjin Port;	Container Door Panel:	Corten Steel;
Certification:	CSC;	Door Sail:	Corten;
Gasket:	EPDM;	Gasket Retainer:	Stainless Steel;
Name:	Container Spare Part;	Type:	Dry Container;
Door Lock Parts:	Casting steel, Galvanized;	Payment Terms:	L/C,D/P,T/T,Western Union;
Brand Name:	ACE;	Supply Ability:	5000 Piece/Pieces per Month Container Spare Part;
Place of Origin:	Tianjin China (Mainland);	Capacity:	33.2CBM;
External Dimensions(l x W x H)(mm):	6058 x 2438 x2591 mm;	Internal Dimensions(l x W x H)(mm):	5899 x 2352 x 2393 mm;
Hinge:	Casting Steel, Galvanized;	Length (feet):	20';
Door Rail:	Corten;	Packaging Detail:	Container Spare Part packed in wooden cases or as per your quest;
Corner casting:	Corten, Stainless steel, SCW480;	Port:	Tianjin, ShangHai, ShenZhen, GuangZhou;

Hot Selling Product

Brand New CSC Certified 40ft HC Open Side Shipping Container

Manufacture CSC Certified New 20ft High Cube Side Opening Container Shipping

Brand New CSC Certified 6.5ft Tricon Container for Military

Wholesale Brand New CSC Certified 10ft Shipping Container

Wholesale 20ft High Cube Shipping Container with CSC Certificate

Manufacturer New 40ft High Cube Shipping Container

Product Description

Why choose ACE?

1.ACE provide full range of ISO shipping container parts with good quality and reasonable price.
2.ACE have exported ISO dry container parts to Over 80 Countries until the end of 2017.
3.ACE are the No. 1 Seller of container parts.

4. Mixed order is also no problem.

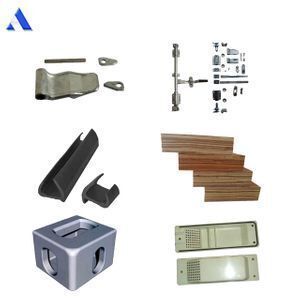

Container Corner Casting Container Door Locking Bar

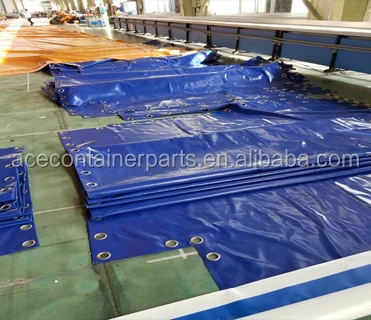

Container Door Locking Device Container Tarpaulin

Container Door Gasket Container Door

Other Parts	DESCRIPTION	Dimensions(mm)	Material
Door End	ISO Corner Fitting, 8pcs/set	178x162x118	SCW490
	Door Hinge Set	Blade, Pin, Lug, Bush
	Container Door Locking Device
	Door Gaskets	1143x2254	EPDM
	Gasket Retainer		SUS304
	CSC plate	0.8x100x200	SUS304
	Door Panel (3 CORR)	2.0X943X1957	CORTEN
	Door Vertical Member Edge SQ.Tube	3.2x50x100x2260	CORTEN
	Door Horizontal Member Edge, Channel	3.0x50x150x1024 or 943	CORTEN
	Door Sill	4.5x158x150x2400	CORTEN
	Door Header Lower	4.0x112.5x113x137.5x2400	CORTEN
	Rear Corner Post inner	12x113x40x2353	CORTEN
	Rear Corner Post outer	6.0x70x39x230x2400	CORTEN
Front End	Front End Panel	2.0x1024x2400	CORTEN
	Front Corner Post	6.0x209x225x2400	CORTEN
	Front Bottom Rail	4.0X115X154x2400	CORTEN
	Top End Member SQ.Tube (Horizontal)	3.0x60x60x2112	CORTEN
Roof	Container Roof Panel (5 CORR)	2.0x1045x2356	CORTEN
	Door Header Upper (Extension Plate)	3.0x388x2400	CORTEN
	Top End Rail (Extension Plate)	3.0X397x2400	CORTEN
Side	Container Side Panel	1.6x1116x2400	CORTEN
	Top Side Rail, SQ. Tube	3.0x60x60x5702	CORTEN
	Ventilator Cover	204x67x25	ABS
Base	Container Plywood Flooring, 19ply	28x1160x2400	Hardwood
	Floor screw	L=5 to 120	CORTEN
	Bottom Side Rail	4.5x50x162x30x5702	CORTEN
	Cross Member Small	4x45x122x45x2350	CORTEN
	Cross Member Large	4x45x122x75x2350	CORTEN
	Fork Pocket Bottom Plate	360x300	CORTEN
	Fork Pocket Top Plate	360x2350	CORTEN
	Gooseneck parts		CORTEN
Other	Lashing Ring		SS41
	Hexagon Set screws Nuts and Bolts	L=6 to 200	CORTEN
	Sealed pop rivet Blind rivet	4.8*16.5	CORTEN
	Decals: Weight& Capacity, UIC, Container Type, Ower's Serious		CORTEN
	Open Top Container: Header Hinge,Tarpaulin, Eyelet,TIR Cable, D-Ring
	Flat Rack: Twistlocks

Packing & Delivery

Container Spare Parts Packing and Loading:

All container spare parts are packed into pallet and pallet box.

Corner Casting: Exported Pallet. 100 pcs into one pallet, 20 pallet into one 20ft container.

Door Lock Parts: Steel Pallet, 200 sets into one pallet.

Plywood: 30 pcs into one pallet, 8 pallets into one 20ft container.

For other container steel structure parts, you could order them in mixture, usually 25 tons of parts loaded into one 20ft container.

FAQ

1. Are your container parts good quality?
Yes, all of our container are ABS, BV, GL, CCS Certificate. If our parts are not good, our container won't be good. How can we pass the ABS, BV, GL, CCS testing.

2. Can we order mixed parts?
Sure, you could order.

3. Any surface treatment for your parts?
Yes, with zinc rich pimer coating or Galvernised.

4. Can i order a container to load our parts?
Yes, that will be good, we often do like this for our customer, so we are experienced for operating SOC shipment.

Our Company

ACE Container & Parts Co., Ltd.

We are very famous and professional Container and Parts supplier in China, and have been container line for over 10 years, also have exported our product to 55 countries by the end of 2015, including Japan, Korea, Southeast Asia, North and South America, Africa etc.

With the increment of requirement for offshore equipment, ACE Container & Parts also arrange offshore equipment production for Oil and Gas platform as per you customized requirement, all of them are design as per DNV2.7-1 & EN12079 standard.

Main Products: All Type Shipping Container Spare Parts, ISO Dry Container, Reefer Container, Offshore Equipment, All kinds of Container Parts and Customized Special Container
