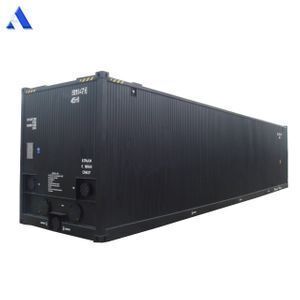

65000L Asphalt Bitutainer 40ft Bitumen Transportation Tank Container

Supplier: ACE Container & Parts Co., Limited
Region: Tianjin, China
Contact: Mr Aaron Liu
Price: $24500.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Capacity:	65000L;	Frame Material:	Corten steel;
Brand Name:	ACE;	Length (feet):	40';
Brand Name:	ACE;	External Dimensions(l x W x H)(mm):	1219224382896MM;
Tank Material:	Q345D;	Stacking:	Each container is approved for 9 high stacking.;
Internal Dimensions(l x W x H)(mm):	12032123522695MM;	Design Temperature:	-20 to +170 centigrade;
Insulation:	Yes;	Approval:	IMDG, CFR49, ADR/RID, AAR 600, CSC, TC, TIR, ISO UIC, US/UK DOT;
Single package size:	1219.2X243.8X289.6 cm;	Place of Origin:	Tianjin China;
Type:	Tank Container;	Certification:	CSC;
Pressure(Working/Test):	1.76/2.65Mpa;	Single gross weight:	10,500 KG;
Selling Units:	Single item;	Package Type:	This is container, will be shipped as SOC directly;
Certificate:	LR ASME;	Keyword:	Bitumen container;

SUPER SEPTEMBER

Hot Selling Product

ASME Standard T11 ISO Fuel Tank Container for Sale

Brand New T3 Bitumen Tank Container Container

ASME Standard 20 Feet Bulk Cement Tank Container

LR Certified 40ft T50 LPG Gas Tank Container

LR Certified ISO New 20ft LNG Tank Container for Sale

New T50 LPG ISO Gas Tank Container with LR Certified

Product Description

Introduction of 40ft Bitutainer

Bitumen container is a special container for transporting liquid goods such as food, medicine and chemical products.The structure is a liquid tank fixed in a metal frame.It consists of two parts: the tank body and the box body frame.

The cargo is loaded into the loading hole of the top of the tank, and when the cargo is discharged, the cargo hole is discharged or sucked out from the top.The frame is made of rectangular steel, with high quality and light intensity. It is suitable for road, road and railway asphalt transportation.

Suitable for Storage of Hot Liquid Bitumen, Bitumen Emulsions, PMBs and Heavy Fuel Oils

65 Metric Tonne Capacity
Double skinned with high value factory installed insulation
Re-circulation connection options available
High performance factory fitted heating tubes
Use as individual static storage tanks or as part of a facility
Transported empty as a standard 40ft ISO Tank Container
Fully framed with corner twist locks
Range of bitumen handling equipment available

Advantages of 40ft Bitutainer

1. Energy conservation and environmental protection

2. Convenient and quick

3. All-weather, unaffected by the weather

4. The advanced logistics information system ,realizes the real-time control and control of bitumen tank.

Specification_ Bitumen tank container

Specifications(UN T3 Portable Tank):
Dimensions(L x W x H)		1219224382896	MM
Inside Cubic Capacity		65,000	L
Max. Gross Weight		75,000	KGS
Tare Weight (Nominal)		10,500	KGS
Stacking		192,000	KGS
Pressure	Working pressure	1.76	Bar
	Test pressure	2.65	Bar
Design Temperature	Frame	-20 to +170 ℃
	Tank
Material	Frame	SPA-H,Q345D or equivalent
	Tank	16MnDR
Thickness	Shell	6.0mm
	Ends	6.0mm after forming
Corner Casting	SCw49, ISO1161, 8pcs
Data Plates	One set of stainless steel data plates
Design Code	ASME VIII Div 1
Approval	Lloyds or BV Construction Certificate, IMDG, CFR49, ADR/RID, AAR 600, CSC, TC, TIR, ISO UIC, US/UK DOT

Click here and view more products

1. Dry Containers: 10ft, 20ft, 40hc, 45hc, Flat Rack, Side Door, etc.

2. Reefer Containers: 8ft, 10ft, 20ft, 40hc, 45hc etc.
3. Tank Containers: 10ft, 20ft, 40ft, 45ft, etc
4. Offshore Equipment: Container, Basket, Reefer, Workshop, etc.
5. Full range of Container Parts
6. Lashing Equipment: Twist Lock, Bridge Fitting, Turnbuckle etc.
7. Trailer Parts: Twistlock, Gearlock, etc.

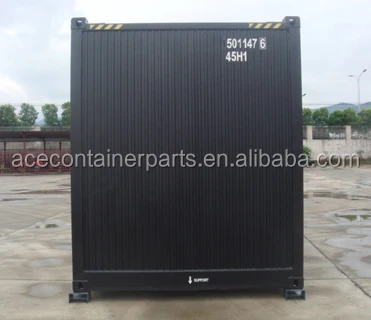

Detailed Images

Our Company

ACE Container is a professional Container & Parts supplier in China, which has over 10 years experience this line, 7 years Golden Member in Alibaba, Trade Assurance Service in Alibaba. Also ACE Container has exported products to over 80 countries at the end of 2017.

Our Main Business Line: All kinds of Dry Cargo Container, Bitumen Tank Container, Reefer Container, Off shore Container, Dry Container Parts and Container Lashing Equipment.
Our Main Market: USA, Canada, Southeast Asia, Australia, New Zealand, Middle East, Middle and West Europe.

Our Service

With development of container line, we are also further extending and improving our service, please check as follows:
1. Buyer's Logo and Color.
2. 45 day's Free stock in our CY
3. Clearing Customs for the container for free.
4. Supply "Storage Service". We have storage in Tianjin, Shanghai, Ningbo, Guangzhou port.
5. Arrange "One Way" service to some main ports.
6. OEM Tank is available
7. Accept third party inspection and testing

FAQ

Q:. Are your bitumen tank container is brand new?
Yes, our all bitumen tank containers are brand new.

Q: Can you provide the drawing of the bitumen tank container for confirmation?
Sure, we'll provide the drawing after order confirmed before production.

Q: Do you have small or large volume bitumen tank container?
Sure, we could do Tank Container form 1000L to 60000L.

And could produce offshore Tank as per DNV2.7-1 / EN12079 Standard.

Q: Do you provide OEM Service?
Yes, we have a first-class team and could design as per your requirement.

Q: Does your bitumen tank container meet with international requirement?
All of our iso tank container will be approval by BV //LR / CCS and meet with below requirement.
ISO 1496/3
UN Transport of Dangerous Goods
UIC International Rail Approval
TIR International Transport Goods under Custom Seal
CSC International Convention for Safe Containers
DOT US Code Federal Regulations CFR49
DOT UK Carriage of Dangerous Goods
CTC Canadian Transport Commission (Rail)\
AAR American Association of Railroads
FRA Federal Rail Association USA
BAM G.D.R Domestic Approval
ISO/TC11

Certification
