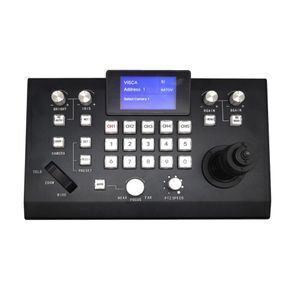

KATO KT-510C v isca over ip protocol ptz joystick keyboard controller support ip camera for church
-
Supplier: Shenzhen KATO Vision Co., Limited -
Region: Guangdong, China -
Contact: Ms Helen Wong -
Price: $650.00 /set -
Min. Order: 1 set
| Positions: | 200 preset positions; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal; |
| Protocol: | Pelco-D; Pelco-P; Visca; | Supply Ability: | 3500 Set/Sets per Month WBC Control/ Iris/ brightness control available; |
| Model Number: | KT-510C; | Port: | Shenzhen; |
| Item Name: | KATO IP Joystick Controller; | Packaging Detail: | Neutral or KATO Package Broadcasting system/ Conference Keyboard Controller; |
| Brightness: | Yes; | Place of Origin: | Guangdong China (Mainland); |
| Camera OSD: | Yes; | Iris: | Yes; |
| Joystick: | 3D Left/Right; Up/Down; Zoom; | LCD: | English display; |
| Connector: | RS232/422/485 keyboard controller; | WBC Control: | Yes; |
| Brand Name: | KATO/OEM; |
KATO KT-510C v isca over ip protocol ptz joystick keyboard controller support NDI camera for church
1.Support Visca over IP;
2.Can replace the Sony and Panasonic Joystick controller;
3.Usually for recording and broadcasting;
4.Can be OEM and ODM
Features:
1. Optical 3D joystick gives you a more comfortable roll / pan/ zoom operation.
2. Can control cameras by network and serial port.
3. Can quickly adjust the camera for a variety of settings, such as: auto focus adjustments, AE adjustments, a series of auto white balance adjustments, and brightness iris adjustment.
4. PTZ and lens control speed can be adjusted through the control knobs.

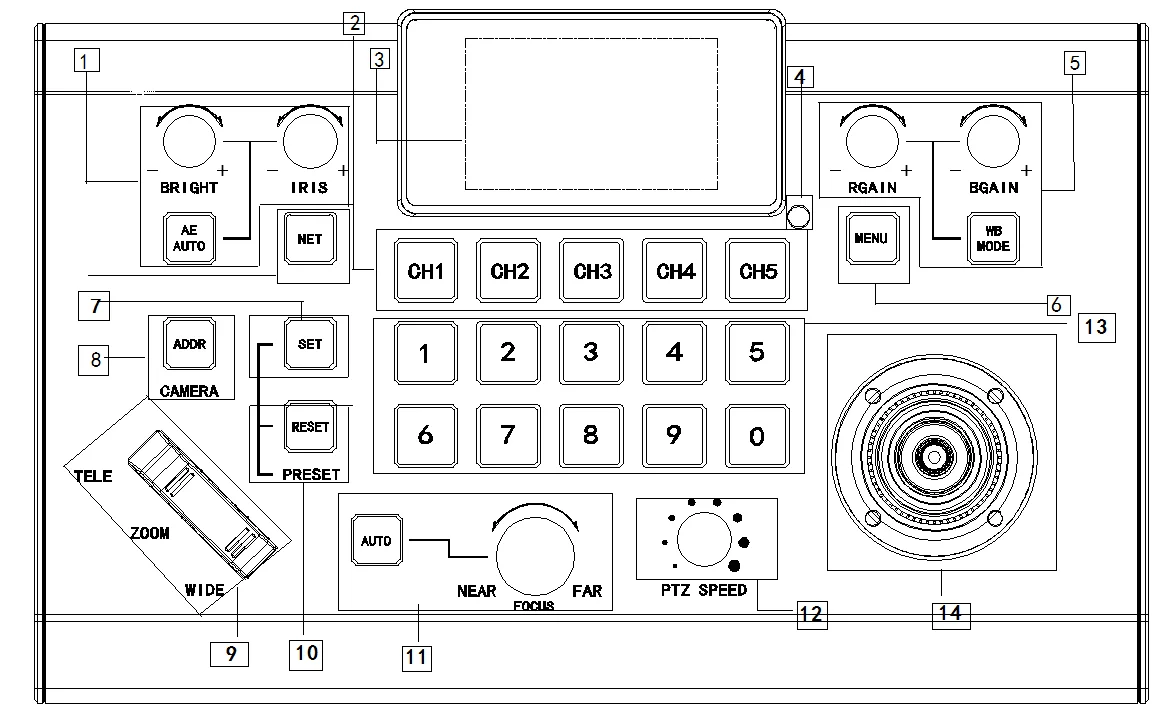

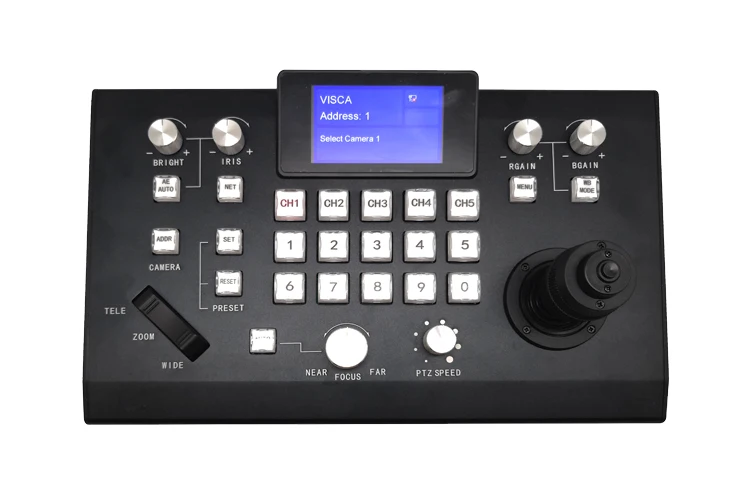

Front side:
1.AE MODE Select
“AE Auto” Auto exposure
“-BRIGHT+” Bright adjustment
“-IRIS+” Iris adjustment
2.“CHANNEL” 1-5 number buttons, selection for camera control channel

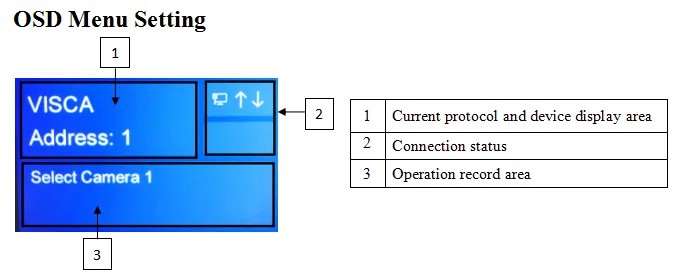

3.Keyboard Display
4.Indicator light
5.White Balance Adjustment
“WBC MODE” Auto WBC
“+R GAIN-” Red gain or less
“+B GAIN-” Blue gain or less
6.“MENU” Call keyboard menu/Exit/Long press to call camera menu
7.“SET”+ “Number” Set presets
8.“ADDR” Select camera ID
9.“ZOOM” Focal length adjustment
“TELE” Zoom in
“WIDE” Zoom out
10.“Reset”+ “Number” Delete presets
11. Focus mode selection
“AUTO” Auto focus
“NEAR” manual focus mode close up
“FAR” Manual focus mode far focus
12. “PTZ SPEED” Camera pan/tilt/zoom speed adjustment
13. “POSITION” 1-0, numbers for setting, calling and deleting presets
14. Control joystick
Select the camera you want to control.
Left/Right: Pan
Pitch Up/Down: Tilt
Rotate clockwise/Counterclockwise: Zoom in/Zoom out
When you release the remote, the camera will stop moving

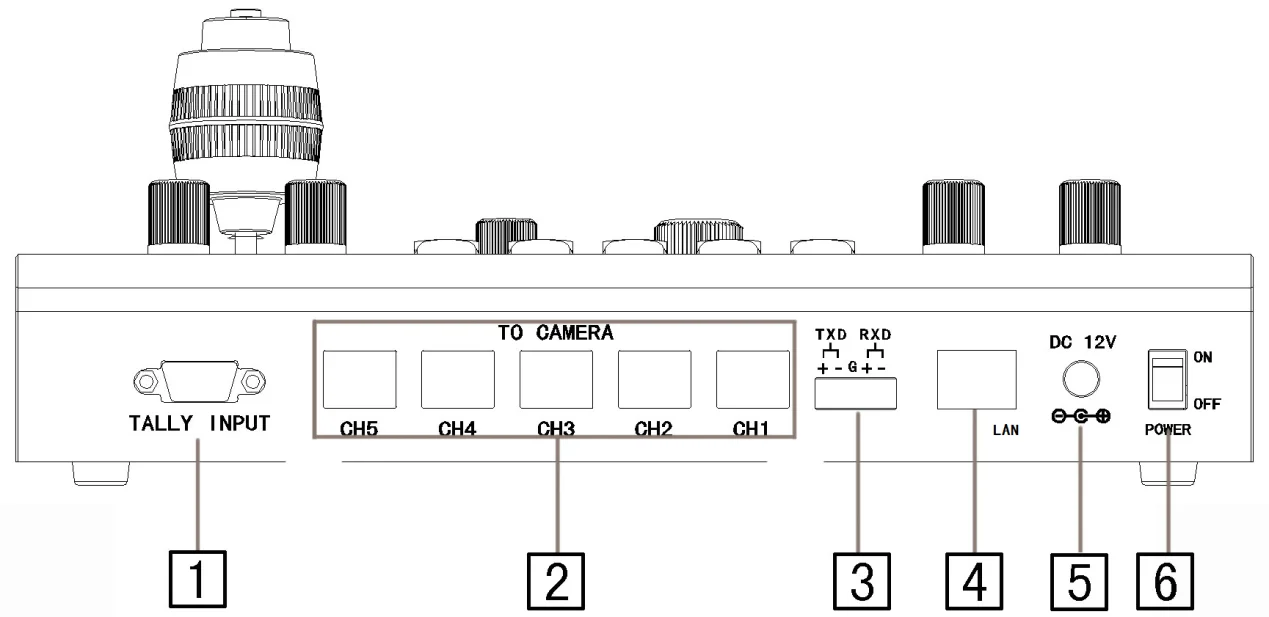

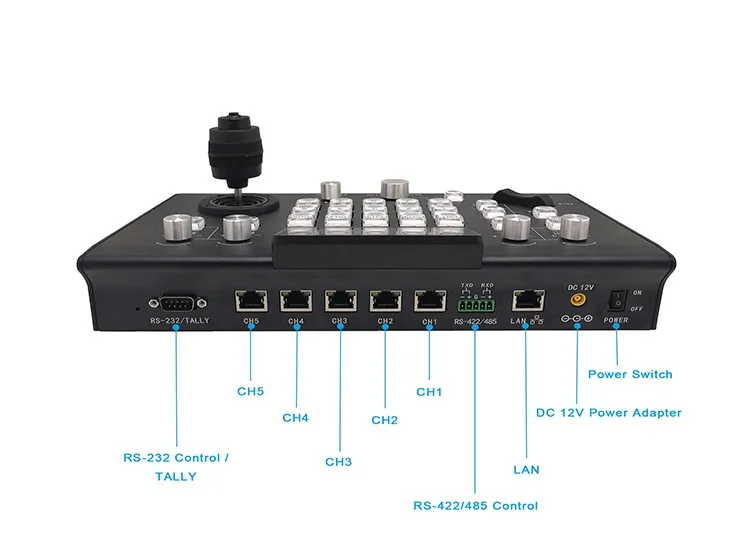

Backside:
| 1.TALLY port |
| 2.Camera RS232 control channels (CH1-CH5) |
| 3.RS422/485 control (use CH1 control) |
| 4.Ethernet port |
| 5.12V DC power supply |
6.Power switch |
Connection:
Why Choose US
1. What's your payment term?
Our payment term is TT in advance before shipment
2. What`s your warranty period?
The warranty period is 3 years and start from the purchase date.
3. Do you offer remote assistance when facing a technical problem?
Yes, surely.We have very professional technical team,and it is our responsibility to help our clients when meet
with any technical problem.
4. Could I put my own logo on products?
Sure, we have our R&D department, we can do ODM and OEM.
5. How do you guarantee the quality?
We have our own QC to inspect all our goods before packing. And also, we have do CE/FCC/ROHS, ISO 9001.
6. I'm buying with your company at the first time, how can I trust you?
We totally understand if you have some doubt about us at our first cooperation. You are welcome to visit our
company or our factory anytime you like. You can also choose trade assurance for your order.
Helen Wong (KATO VISION Co.,Ltd)
Skype: sales04kato
Whatsapp:+86 15014735046
Email: sales04(at)9ttop.com
Tel:+86-0755-89500973
Website: www.katovid.com
Address:4/F, Block B, Dexinchang Industrial Park, Qingxiang Rd., Longhua district, Shenzhen 518109, China
*************************************************************
Kato Vision, 16 years experience in video conferencing system since 2004.
-
