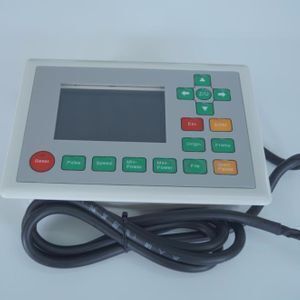

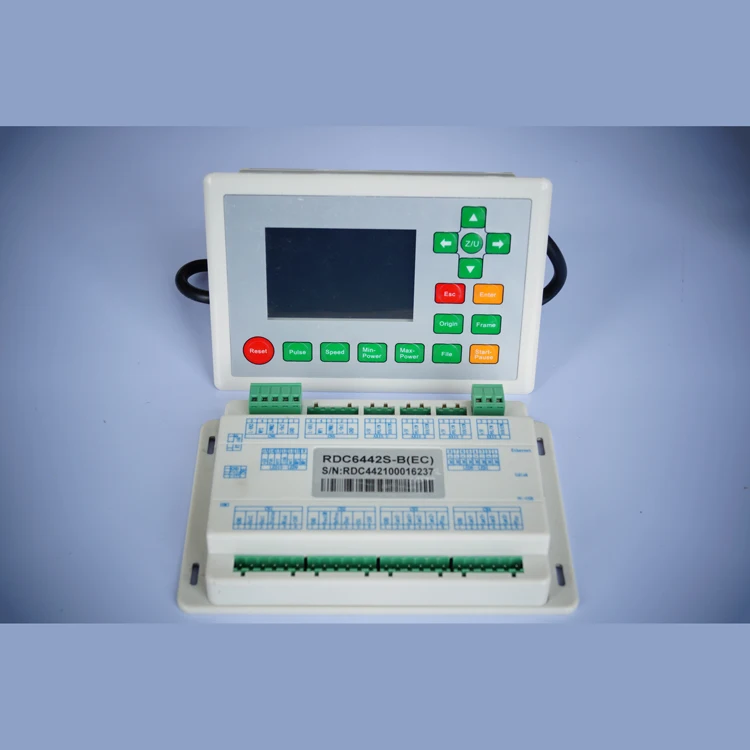

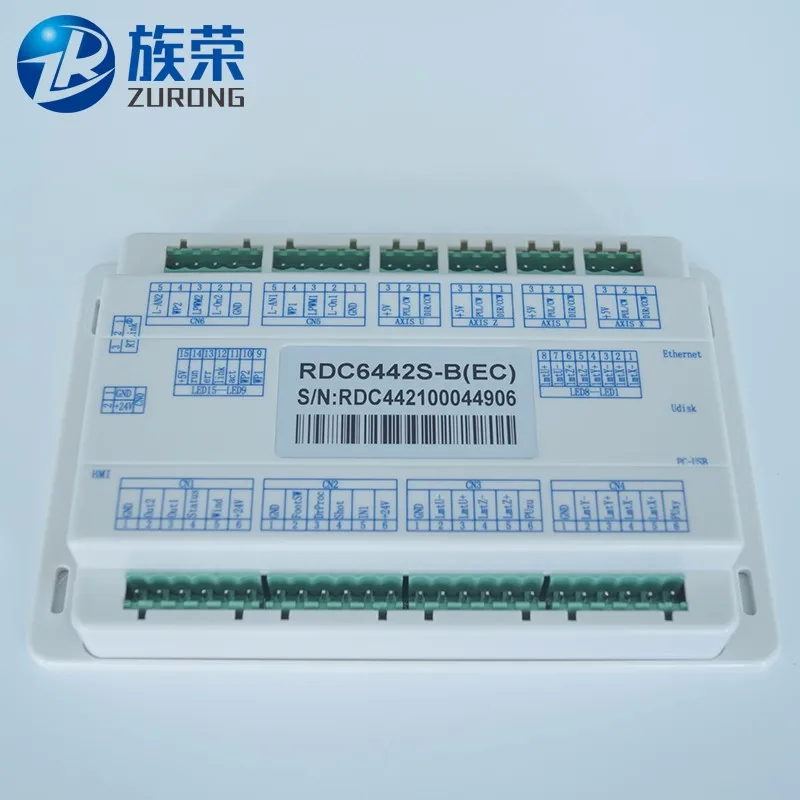

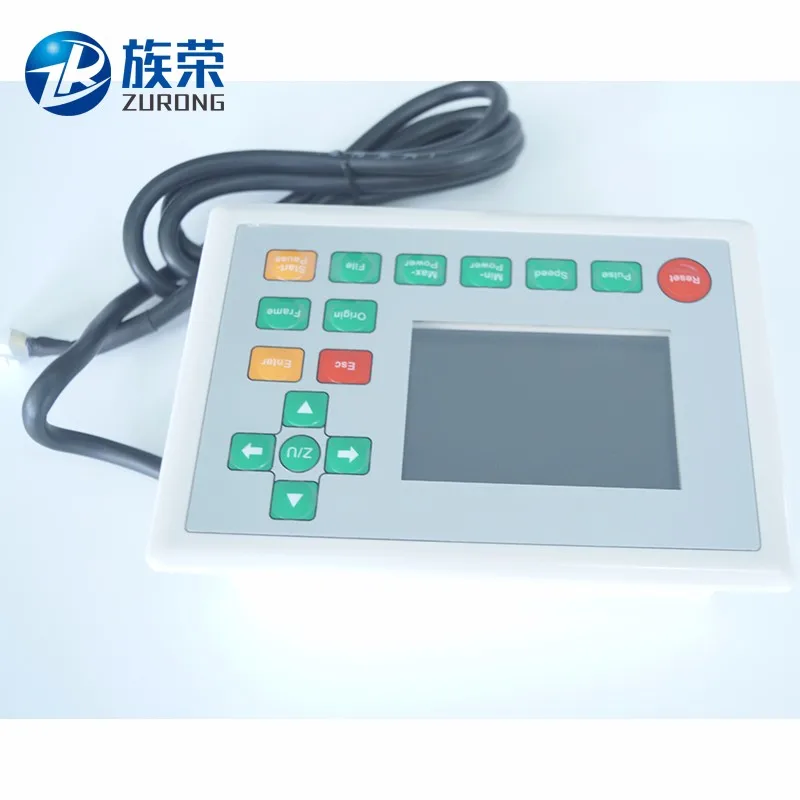

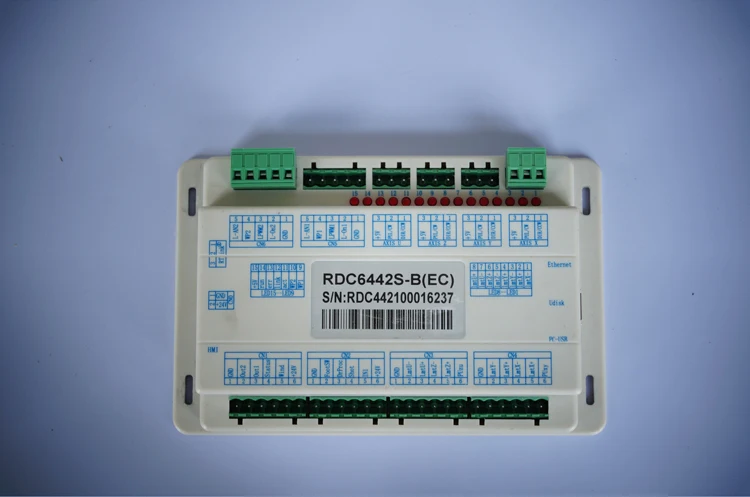

SHZR Torch Height Controller For Cnc Plasma Laser Controller Cnc Controller
- 200.00 piece
| System: | Embedded Platform; | Application: | Grinder; |
| Dimension(L*W*H): | 150mmX100mm; | CPU: | ARM(32bits)+DSP+FPGA; |
| Port: | shanghai; | Brand Name: | SHZR; |
| Supply Ability: | 1000 Piece/Pieces per Week; | Weight: | 2; |
| Packaging Detail: | 1pcs/plastic box/box; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Condition: | New; | Warranty: | 1year; |
| Axis: | 4 Axis; | Model Number: | Ruida 6442G; |
| Product Name: | CNC Control System; | Certification: | CE; |
| Place of Origin: | Shanghai China (Mainland); |
Welcome to Shanghai Zurong Photoelectronic Technology Co.,Ltd
SHZR Torch Height Controller For Cnc Plasma Laser Controller Cnc Controller
SHZR Torch Height Controller For Cnc Plasma Laser Controller Cnc Controller
Digital laser control signals:
(1) TTL level output, 50 mA,drive capability(can set enable signal polarity in software)
(2) PWM frequency 2K-50K for adjustable
(3) PWM duty ratio is 1% ~ 99%, adjustable
(4) PWM value is up to 5.0 V
Motor control signal:common-anode output, drive capability 20 mA. Motor control pulse frequency: Max.500KHZ
USB: Max. transmission rate 12M bps; The longest distance is 5 meters.
Network:Max. transmission rate is100M; Max. transmission distance is 200M.
Interpolation:Linear/circular arc/B spline, accuracy + / - 0.5 pulse
Output: 4-channel, photoelectric isolated OC gate output, the max. drive capability 500mA drive capability (with follow-current protection).
Input:4-channel, photoelectric isolated input, compatible with 5V/ 12V / 24V logic level
Laser Machine
Laser Tube

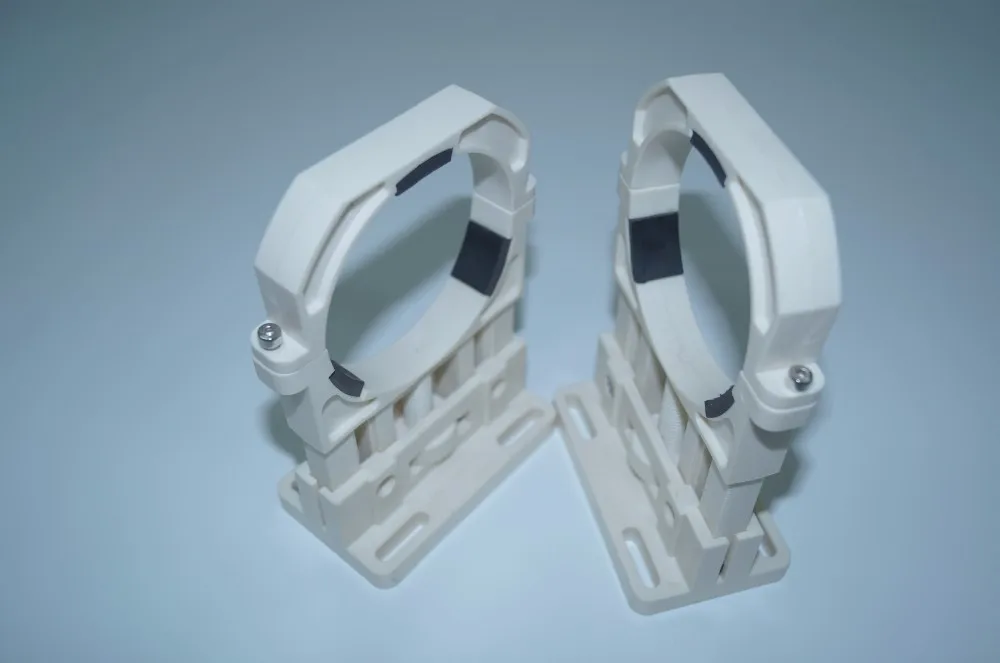

Laser Machine Spare Parts
Please kindly confirm which you are interested in.
If not find the one you need in the excel, pls notice that OEM ODM also available for Shanghai Zurong manufacturer which owns 8000 square meters factory.
