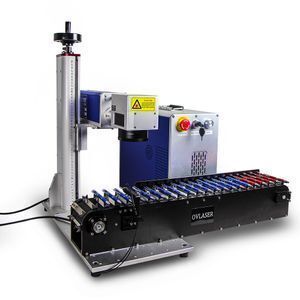

China OV Laser 20w separate portable fiber laser marking machine

Product details
Applicable Industries:Manufacturing Plant,Machinery Repair Shops,Farms,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops;Key Selling Points:Easy to Operate;
Laser Marking Depth:0.01-4mm;Certification:CE,ISO,SGS,FDA;
Place of Origin:Hubei China (Mainland);Application:Laser Marking;
Applicable Material:Metal and some non-metal;Marking Head Brand:SINO-GLAVO;
Laser Source:IPG, Raycus;Package Preview:https://sc02.alicdn.com/kf/HTB1Hx47dBKw3KVjSZFOq6yrDVXae.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HTB1Nz86dBGw3KVjSZFwq6zQ2FXaY.jpg_640x640.jpg;
Marking Speed:7000mm/s;Selling Units:Single item;
Working Accuracy:0.001mm;After-sales Service Provided:Online support,Video technical support;

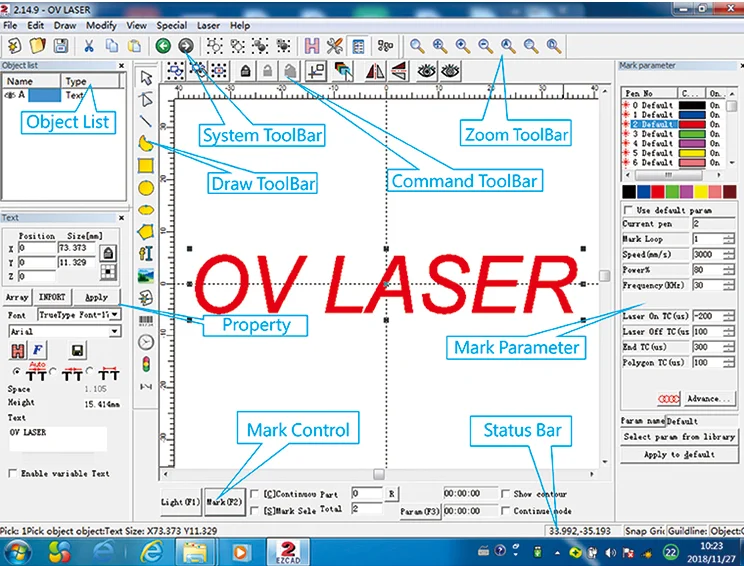

Control Software:EZCAD;Name:China OV Laser 20w separate portable fiber laser marking machine;
Power Supply:220V/50HZ/1-PH or 110v/60HZ/1PH;Condition:New;
Cooling Mode:Air Cooling;Laser Source Brand:RAYCUS;
Single gross weight:75 KG;Marking Area:50mm*50mm--- 300mm*300mm;
Laser Head:Galvanometer;Package Type:There are 3 layers of package: waterproof thickening plastic bag, foam to protect from shaking, solid export wooden case. China OV Laser 20w separate portable fiber laser marking machine;
Laser Type:Fiber Laser;Laser Wavelength:1064nm;
Control System Brand:JCZ;Brand Name:OV Laser;
Single package size:88X48X57 cm;CNC or Not:Yes;
Graphic Format Supported:AI,PLT,DXF,BMP,DST,DWG,LAS,DXP;Fiber Laser Source Lifespan:100,000-200,000 hours;
Warranty:3 years;

China OV Laser 20w separate portable fiber laser marking machine



Buying tips:

Could you tell us the information below, so we can give you more customized solution:

1. What do you mark? metal or non-metal

Fiber laser is for marking metal part and CO2 laser is for marking non-metal part.

2. What is your marking area?

Usually our marking area is 110mm*110mm-300mm*300mm

3. Do you want mark on flat surface or curved surface?

Standard models can mark on flat surface, if you want mark on curved surface, you need a rotary fixture(USD200)

4. What is your marking depth?

All laser marking depth is less than 1mm, but if you keep marking and marking, it will be deeper.







Product Description

Features:

Fiber Laser marking machine: Open worktable, easy to load the material.

Application Materials:

Fiber laser marking machine can work with most metal marking applications, such as Stainless Steel, Brass, Aluminium, Steel, Iron etc, and can also mark on many non-metal materials, such as

ABS, Nylon, PES, PVC, Makrolon,etc.

Applicable Industries:

Electronic Components: Resistors,Capacitors,Chips,Printed Circuit Boards, Keyboard, etc.

Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.

Instrument: Panel Board, Nameplates, Precision equipment, etc.

Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.

Automobile Parts: Pistons&Rings,Gears,Shafts,Bearings,Clutch,Lights.

Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.





Technical data:



Product NameLaser Marking MachineCooling ModeAir Cooling
ModelOV SF-20/30/50Max Marking Speed7000mm/s
Laser SourceRaycusMininum Line Width0.015mm
Power20/30/50W Mininum Character0.2mm
Laser Wavelength1064umPulse Frequence30 KHz - 60 KHz
Filed Lens Brans wavelengthOperation Environment5℃~45℃ , clean or dust-free / dustless
Marking Area110*110mm-300*300mmPower SupplyAC110V /220V +10% / 50HZ or 60HZ
Control CardJCZ Brand EZCADOperation SystemWin XP / 7 / 8 / 10 (32 bit , 64 bit)







Advantages:



1.The fiber laser generates high-quality permanent coding on each part without affecting the functionalitybarcode, QR 2D codes, text, logos, serial numbers and optical characters, etc).

OV Laser offers a customized solution for meeting customers’ personalized requirements from processing to maintenance.


2.When power more than 30w, it is easily to cut stainless steel, aluminum,copper, brass, gold silver.Max 1mm thickness.


3.When laser is equipped with electric Z-axis, it can automatic focus distance and convenient  to dodeep engraving until 0.8mm aluminum etc.


4.OV LASER also supply mopa series fiber laser marking machine.Mopa fiber laser can mark colors on stainless steel and titanium, also mark black on anodized aluminum and some plastic.

Sample Show

>>Nonmetallic Material





>>Metal Material Marked on Surface



>>Metal cutting and deep engraving

Packaging & Shipping





customer feedback

We strongly encourage customers to pay through Alibaba trade assurance order. On the one hand, customers will pay more safely, on the other hand, they will be more secure for future after-sales services.

If you think our machine is very good, please give us a good evaluation of five stars. Thank you.

Company Information



Other optional shape



Ovlaser Co2 fiber laser marking machine, pls click here.

Ovlaser common fiber laser marking machine. pls click here.

Ovlaser 3D fiber laser marking machine. pls click here.

Ovlaser UV fiber laser marking machine. pls click here.

Ovlaser optical fiber laser welder machine. pls click here.



FAQ

Q1: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".


Q2: This model is not suitable for me, do you have more models available?
Yes, we can supply many models, such as separate portable, table type, enclosed type, mini portable, fly type etc.
Replacement of some part based on your need. The above are most popular. If it can not meet your requirement, then tell us. We have the ability to make specially according to your requirement!



Q3:What's the guarantee, in case the machine breaks down?
The machine has two years' guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client's feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.


Q4:How's the payment?
Telegraphic Transfer(T/T). Alibaba trade assurance order(T/T, Credit card, E-checking ect).
