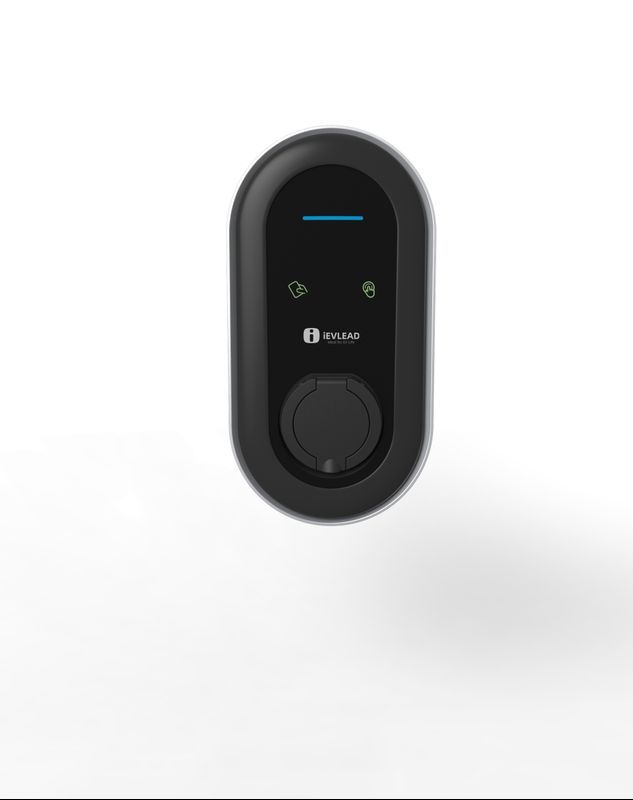

IEVLEAD AD1-EU7

Supplier: SHENZHEN YIYUANLAI SCIENCE &TECHNOLOGY CO.,LTD (iEVLEAD)
Region: China
Contact: Ms Ivy Zou
Price: $192.00 / 1 - 100 pieces
$184.00 / 101 - 200 pieces
$180.00 / 201 - 500 pieces
Min. Order: 1 piece

Click here to contact

Product details

AC Power supply	Phase 1 + N +PE
Rated Power	7KW
Rated Voltage	AC 230V, 50/60HZ
Rated Current	32A
Charge Mode	Type 2 IEC 62196-2
Plugs	Socket, Case B connection
Charging Control	Smart phone APP control, Tap card control, Plug and charge
Display Screen	3.8 inch LCD screen
Indicator Light	4 LED lights
Communication Interface	WIFI, BLUETOOTH, 4G, LAN
Communication Protocol	OCPP 1.6J
Safety Protection	Over current protection, over voltage protection, under voltage protection, over temperature protection, leakage protection, Unconnected PE ground protection, etc.
RCD	Type A (AC 30mA) + DC6mA
Relative humidity	95%RH, No water droplet condensation
Vibration	0.5G, No acute vibration and impaction
Installation Location	Indoor or outdoor, good ventilation, no flammable, explosive gases
Mounting	Wall- mounted or Pole-mounted ( mounting pole is optional)
Altitude	2000m	IP Code	IP55
Storage temperature	-40 ~ 75℃	Operation temperature	-30 ~ 50℃
Product Weight:	2.40KG	Carton Dimension (HWD)	455mm	260mm	150mm
Certification	CE, TUV
