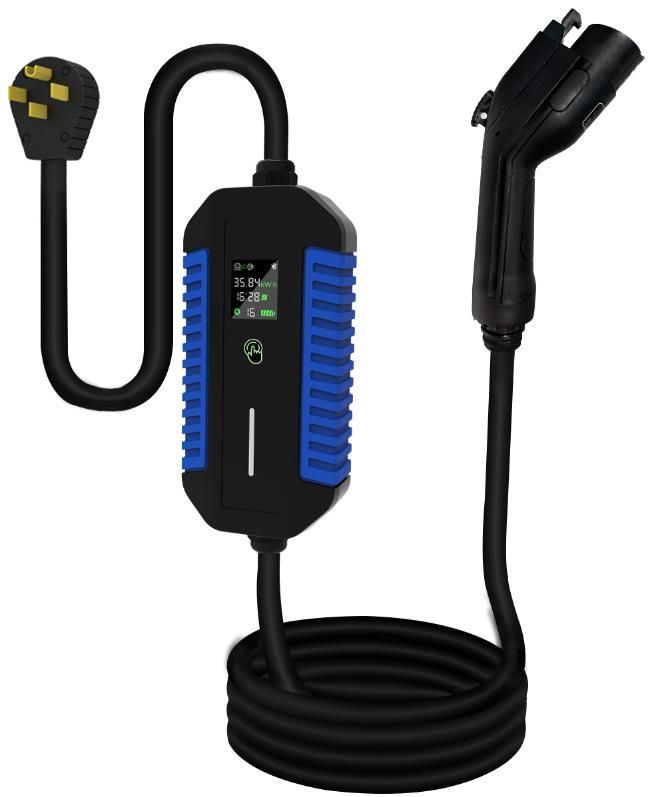

iEVLEAD Top quality Level 2 SAEJ1772 40A EV Smart AC Portable Charging point

Working power: 240V, 60Hz

Rated Current: 8- 40A

Button: Current switching, Cycle display, appointment delay rated charging

Current Switching: The current can be switched between 6-40A by pressing the button

Protect: Over current 1.05In, over voltage and under voltage ± 15%, over temperature > 60 ℃, reduce to 8A to charge, and stop charging when > 65℃.

Leakage Protection: CCID 20, AC 25mA

Working Temperature: -30 to 50℃

Storage Temperature: -40 to 80℃

Temperature check: 1. Input plug cable temperature detection   2. Relay or internal temperature detection

Ungrounded protection: Button switch judgment allows ungrounded charging, or PE is not connected fault

IP: IP66/ IK08

Relay control: Relay open and close

LED: Power, charging, fault three-color LED indicator

NEMA 14-50, NEMA 6-50
