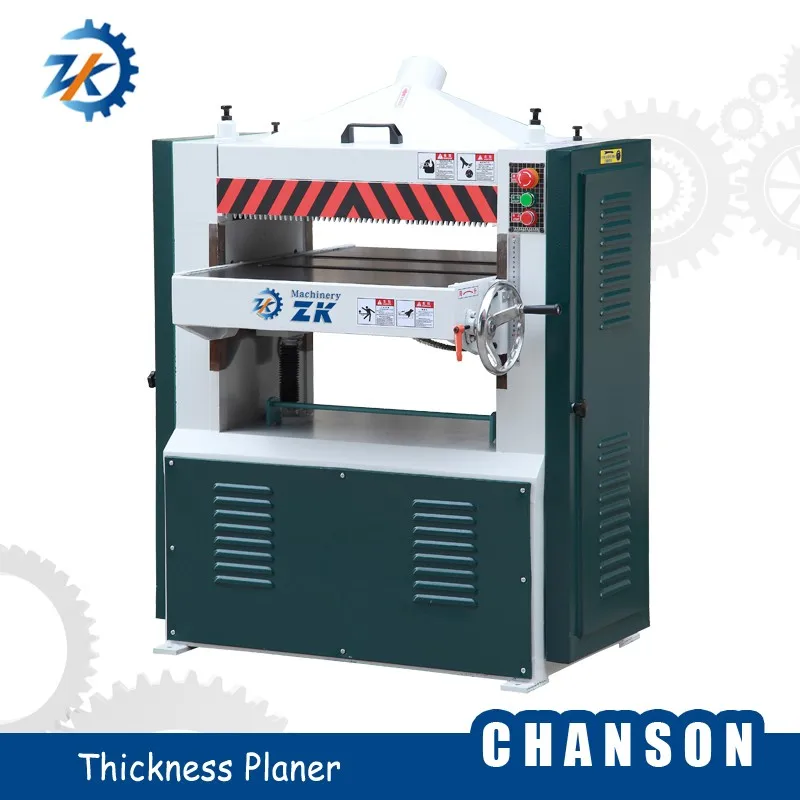

ZK Single Side 600mm Wood Thickness Planer MB106

Product details
Certification:ISO;Use:wood thickness;
Max working width:600mm;Min working length:250mm;
Supply Ability:50 Set/Sets per Week;Feeding speed:6-8m/min;
Max working thickness:180mm;After-sales Service Provided:Online support;
Condition:New;Payment Terms:L/C,T/T,Western Union,MoneyGram,Cash;
Dimension(L*W*H):760*1060*1270mm;Brand Name:ZK / CHANSON;
Weight:550kg;Power(W):5.5kw;
Voltage:380v50hz;Packaging Detail:pearl wool or wooden case;
Voltage:380V;After-sales Service Provided:Engineers available to service machinery overseas;
Applicable Industries:Machinery Repair Shops,Manufacturing Plant,Wood Furniture;Warranty:1 Year;
Place of Origin:Guangdong China (Mainland);Spindle speed:6500r/min;
Port:Shunde;
Product Description

It is the common equipment used in processing furniture and solid wood,flat planning for the wooden parts

1.The body is with heavy-duty steel and with special heat treatment process, better stability and lower noise.
2.All the parts are made with fine processing of high-precision CNC Center, greatly improve the precision.
3.The strict and elaborate assembly process to ensure each equipment requirement gets to its standard indicator.

SPECIFICATIONS FOR SINGLE SIDE THICKNESS PLANER
Model
MB108
MB106
MB105
MB104
Spindle speed
6500rpm
6500rpm
6500rpm
6500rpm
Feeding speed
6~8m/mn
6~8m/mn
6~8m/mn
6~8m/mn
Planing width
830mm
630mm
500mm
400mm
Planing thickness
5~180mm
3~180mm
3~180mm
3~180mm
Planing length
≥250mm
≥250mm
≥250mm
≥250mm
Max cutting output
4mm
4mm
4mm
4mm
Motor power
7.5kw
5.5kw
5.5kw
4kw
Weight
630kg
550kg
500kg
430kg
Overall Dimensions
760×1030×1270mm
760×1060×1270mm
760×930×1240mm
760×830×1240mm
Product Details

Optional Part

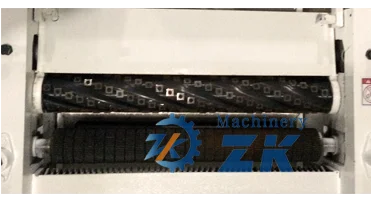

Thread Cutter For Optional

Optional Part

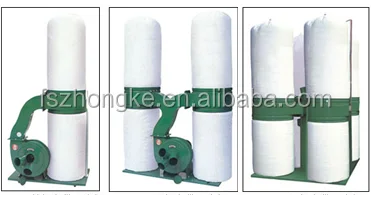

2.2kw/3kw/4kw/5.5kw/7.5kw dust collector for optional

Packing & Delivery

Plastic Foam Packing:

Packing size(L*W*H) :
MB104: 765*830*1250mm
MB105: 765*935*1280mm
MB106: 765*1070*1280mm
MB108: 765*1320*1280mm

Steel Shelf Packing (just suitable for HQ)

Packing size(L*W*H):
MB104: 1650*860*2400mm
MB105: 1650*950*2450mm
MB106: 1650* 1100*2450mm
MB108: 1650*1350*2500mm

Plywood Case Packing

Packing size(L*W*H):
MB104: 810*850*1300mm
MB105: 810*950*1330mm
MB106: 810* 1100*1330mm
MB108: 810*1350*1330mm
