The latest technology capsule polishing sorting machine
- 2000.00 1 - 1 units
- 1900.00 2 - 2 units
- 1800.00 >=3 units
| Main selling points: | multifunctional | Core components: | engine |
| Core component warranty: | 1 year | Applicable industries: | Manufacturing plants, food and beverage plants, farms |
| Health status: | new | strength: | 180W |
| application: | capsule | Supply capacity: | 30 units per month |
| Warranty: | 1 year | brand: | PF |
| Mechanical test report: | if | Voltage: | 110V/220V |
| Showroom location: | not any | After-sales service provided: | Engineers can repair machinery overseas |
| Video outbound inspection: | if | productivity: | 150,000 capsules/hour |
| Marketing type: | normal product | payment terms: | L/C, Western Union, T/T, MoneyGram |
| Weight (kg): | 45 | Packaging details: | Only export wooden box packaging size: 960x720x640mm Gross weight: 65kgs. |
| Dimensions (length*width*height): | 800X550X1000mm | Place of origin: | Zhejiang, China |

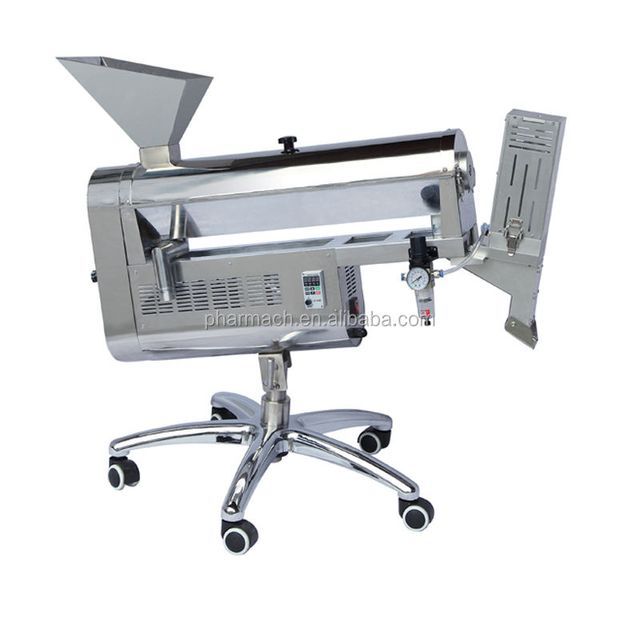

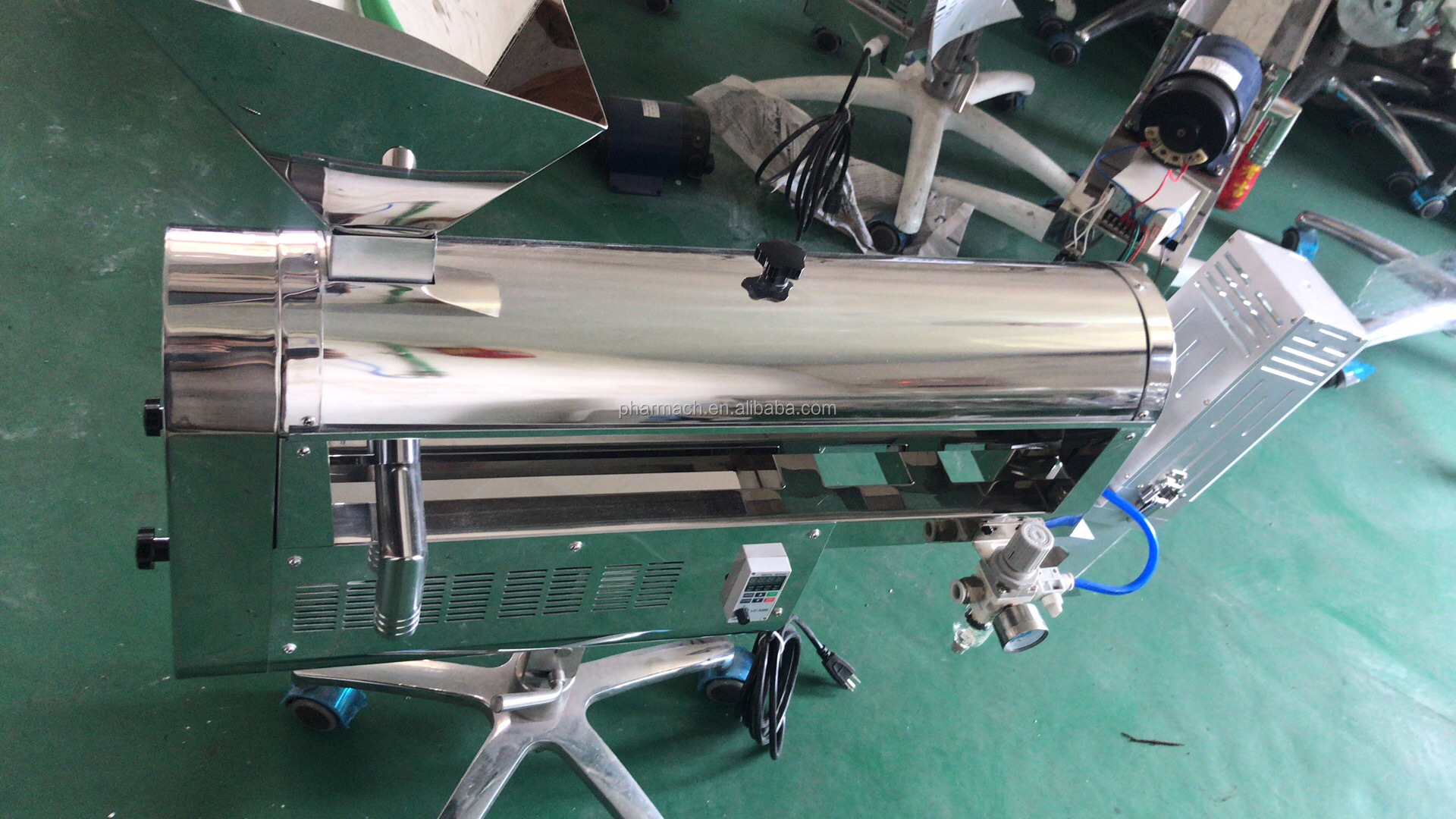

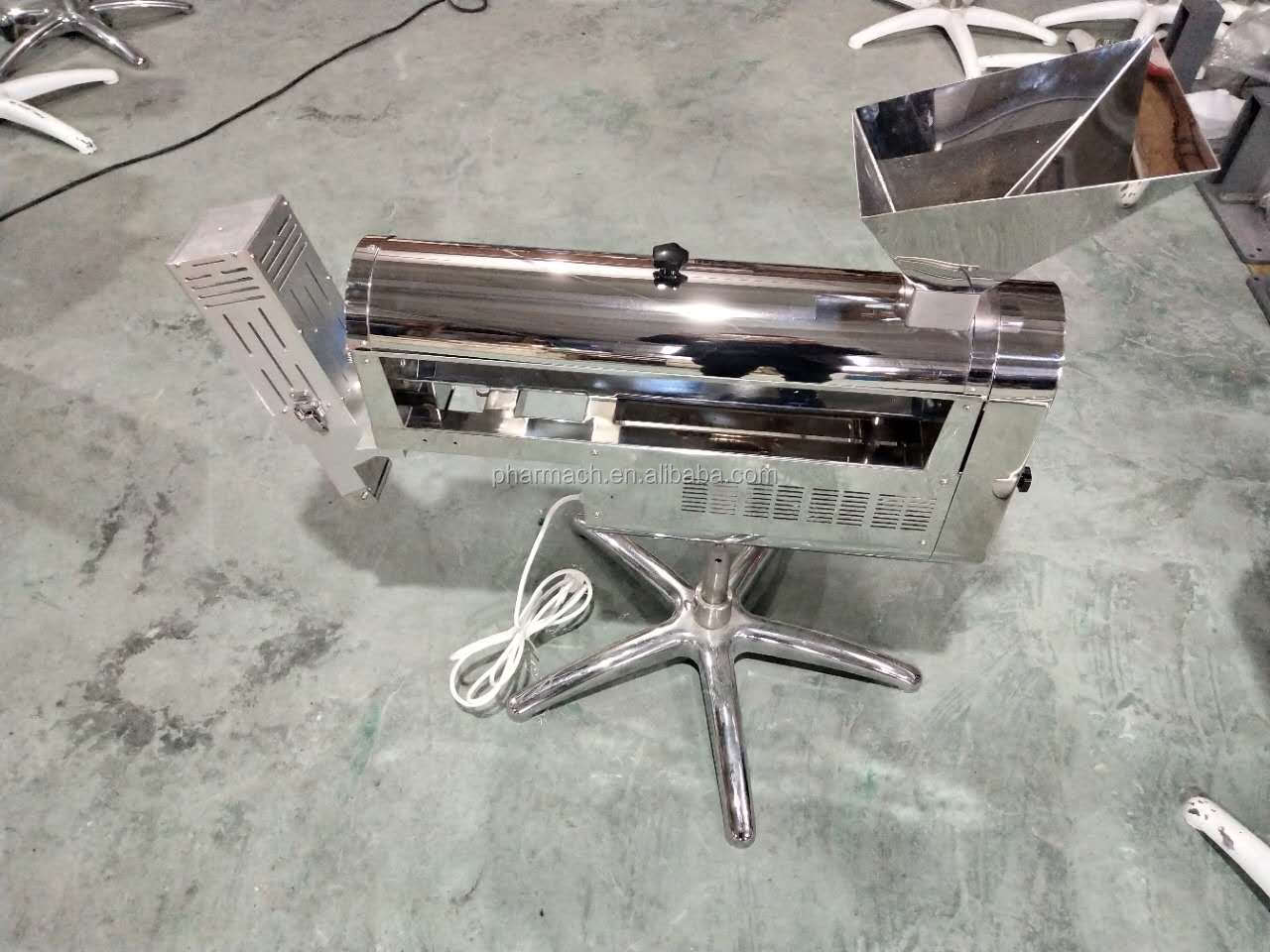

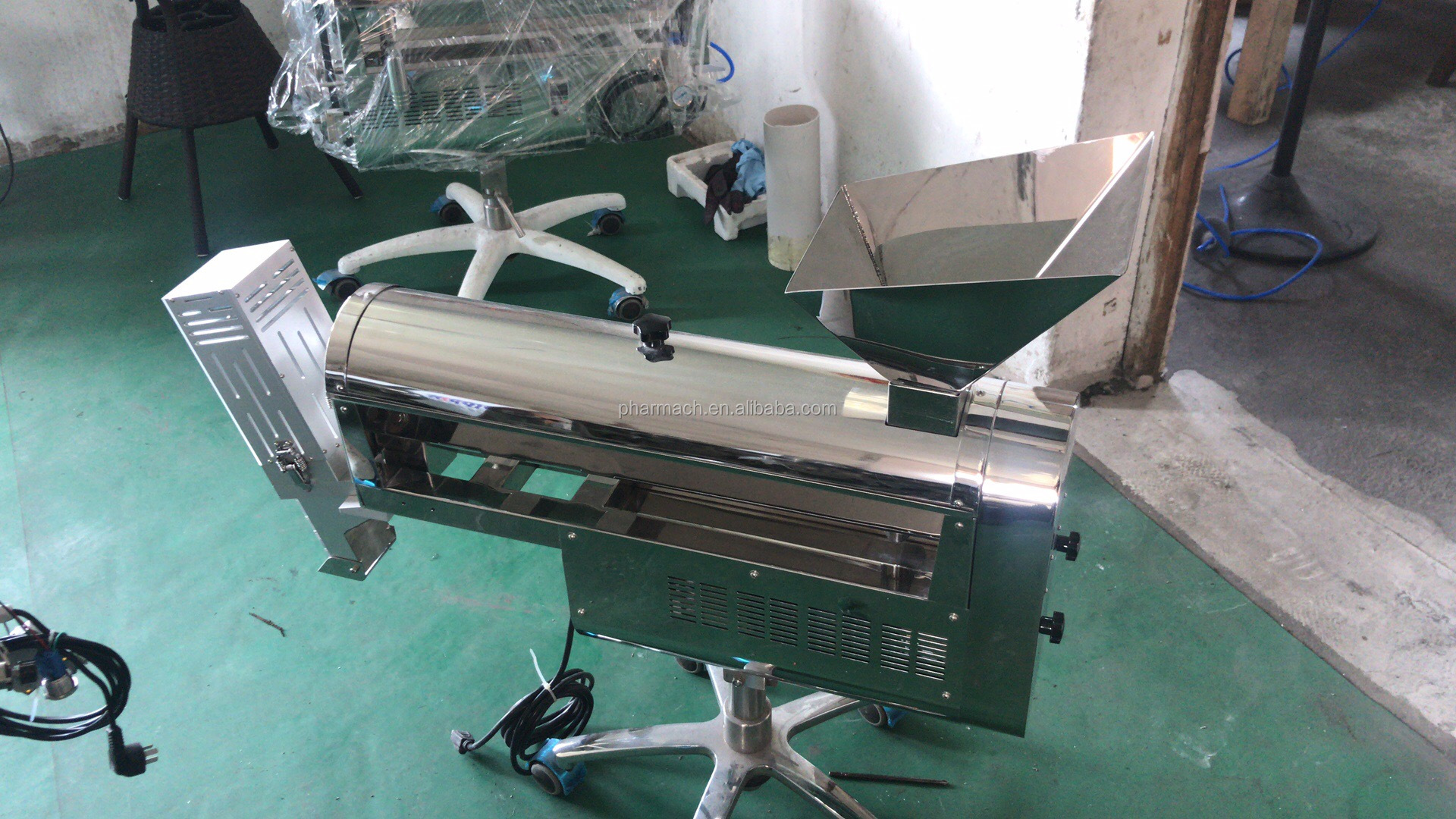

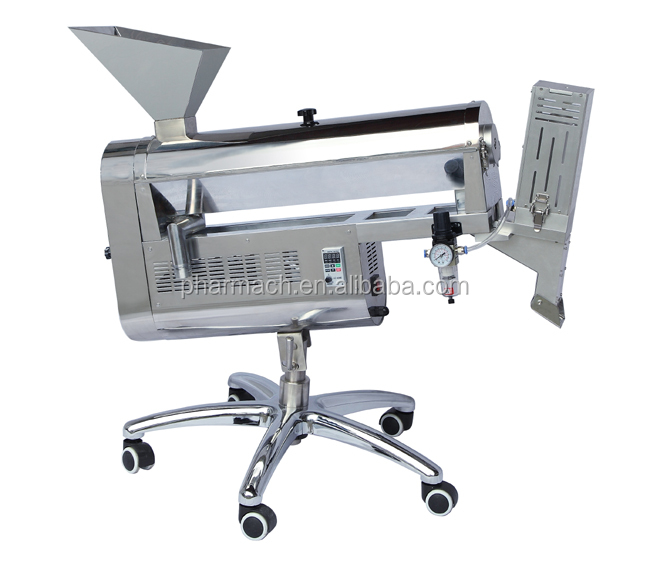

JFP-110A capsule polishing and sorting machine
JFP-110A is a newly designed capsule polishing machine used for polishing capsules and tablets.
feature:
1. Height and angle are adjustable to fit any chute of the machine. Therefore the product can be polished immediately after production.
2. Eliminate static electricity and automatically remove ultra-lightweight capsules, fragments, and empty products
3. The new mesh cylinder ensures that the capsule will not get stuck during operation.
4. The capsule is not in direct contact with the metal mesh, effectively protecting the printed capsule.
5. New brush, durable and easy to replace.
6. Excellent design, quick to clean and easy to maintain.
7. Using variable frequency speed regulation, it is suitable for continuous long-term operation.
8. Synchronous belt drive to reduce machine noise and vibration
9. Suitable for capsules of various sizes, no need to replace parts.
10. The main components are made of high-quality stainless steel and comply with GMP requirements.
The main technical parameters:
|
Ability to work |
150,000 pieces/hour |
|
power supply |
220V 50HZ 2A, 180W |
|
negative pressure |
2.7 cubic meters/minute-0.014 MPa |
|
compressed air |
0.25 cubic meters/minute 0.3Mpa |
|
Overall dimensions (length x width x height) |
800X550X1000mm |
|
Machine weight |
45kg |
configuration list:
|
Name |
Model |
brand |
quantity |
Comment |
|
Three-phase asynchronous motor |
MS6324 |
China |
1 |
|
|
fuse |
RT14 |
China |
1 |
|
|
Inverter |
DVM-2S004G-02 |
Dryer |
1 |
|
|
switch; power switch |
KCD2 |
Drew |
1 |
|
|
Limit switch |
AZ7310 |
SNJQ |
1 |
|
|
air filter pressure regulating valve |
TM2000-02 |
STNC |
1 |
|
