2in1 ULTRASONIC+CRUSH ROLLER BLIND AND ZEBRA BLIND CUTTING R

Supplier: Guangzhou Stec Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Ryan Yun
Price: $10500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Cutting width:	3200MM/3500MM/4000MM;	Single package size:	450X85X110 cm;
Model Number:	STRC-A1;	Machine frame:	aluminum;
Package Preview:	https://sc02.alicdn.com/kf/HTB1Ay7qkyAnBKNjSZFvq6yTKXXaG.jpg_640x640.jpg;	After-sales Service Provided:	Engineers available to service machinery overseas;
Delivery Detail:	30 days after payment;	Function:	ultrasonic cutting &blade cutting;
Selling Units:	Single item;	Brand Name:	STEC;
Cutting material:	roller blind /awning fabric;	Place of Origin:	Guangdong China (Mainland);
Inspection light:	LED;	Single gross weight:	1,000 KG;
Package Type:	steel frame with poly wood cover;

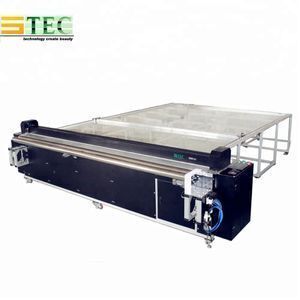

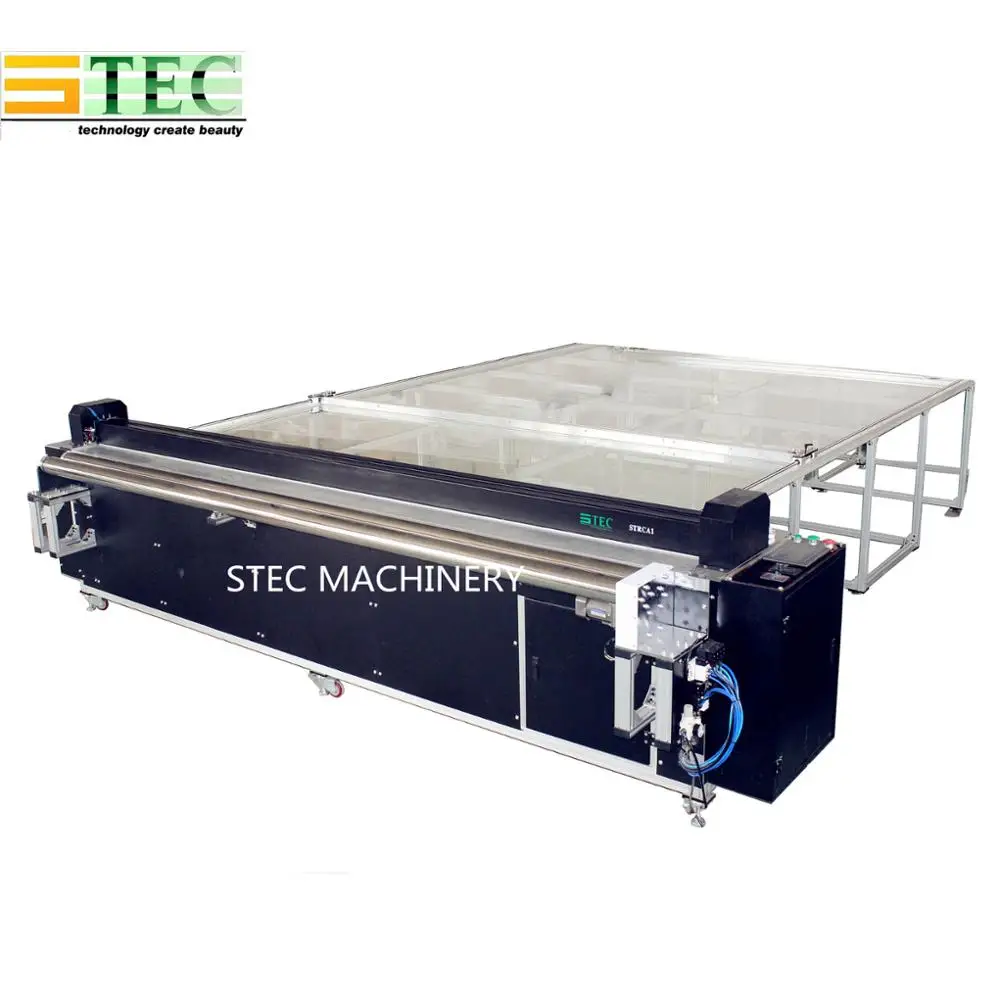

2IN1 ULTRASONIC AND CRUSH

ROLLER BLIND AND ZEBRA BLIND CUTTING AND EDGE SEALING MACHINE

Product Description

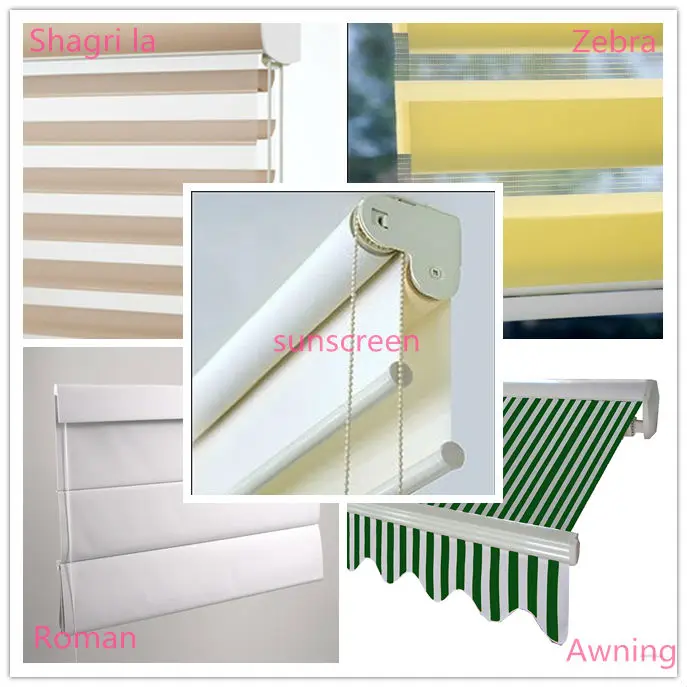

STRC-A1 ultrasonic and crush fabric cutting machine is used to produce roller blind /zebra blind /Shagri la blind with the procecess of fabric cutting with the edge sealing

SPECIFICATIONS:

Ultrasonic&Cold Cut Roller Blind Fabric Cutting machine
Voltage	110/220V AC 50/60HZ
Rate power	2.2KW
Working air pressure	0.4~0.5PMA
Max fabric cutting width	2700mm/3000mm(standard)/3500mm/4000mm
Cutting system	Ultrasonic cutting&Crush cutting
Blade	HSS Blade
Leveling	Adjustable foot leveling with wheel
Dimension	L4100mmW900mmH1100mm for 3m cutting
Packing size	4200mm1000mm1250mm
N.W	860KG
G.W	950KG
Package	Steel frame with poly wood board cover

FUNTION FEATURES:

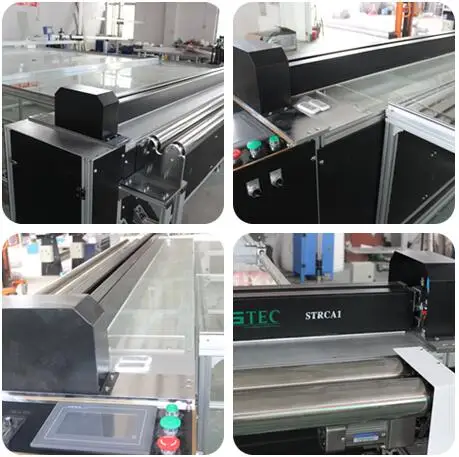

1.Using touch screen control to interchange ultrasonic and cold cutting
2. Suitable for cutting all fabric including sunscreen fabric ,polyester base fabric,PVC fabric,awning fabric

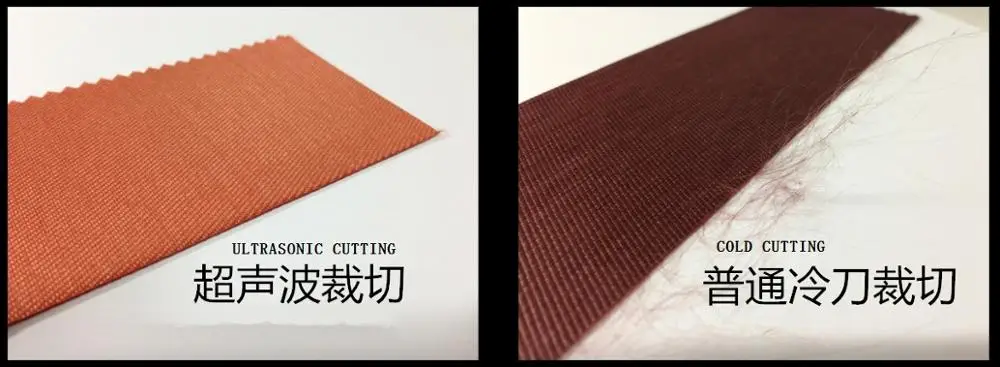

3. Excellent cutting and sealing properties by ultrasonic cutting
4. Stable ultrasoinc output,cutting the fabric with beautiful edge,no fray ,no bruning.
5. This machine uses the liner cutting system with perfect straight cuts for square cutting
6. Safety sensor to provent accedent
7. Electric fabric feeding and fabric calibrating moving system to improve feeding speed and accuracy.

8.Back lighting for fabric inspection.
