Production line of heat-bonded polyester-cotton rolls for quilt inner factory
-
Supplier: Nantong Langshan Home Textile Machinery Co., Ltd. -
Region: Jiangsu, China -
Contact: Ms Jasmine C -
Price: $33000.00 /set -
Min. Order: 1 set
Product details
| Final product: | Polyester rolls and sheets | Health status: | new |
| strength: | 87-154KW | Supply capacity: | 5 sets/month, polyester cotton machine |
| Packaging Details: | Packed in bubble film, loaded in a 40ft container | Packing type: | Thermal bonding of low melting point fibers |
| Heating type: | Electric and Gas Ovens | Core components: | Bearings, motors |
| Video shipment inspection: | if | Origin: | Jiangsu, China |
| company: | Manufacturer since 2003 | WeChat: | +86-13328088178 |
| Warranty: | 1 year | Applicable industries: | manufacturing plant |
| Marketing Type: | Hot Products of 2022 | brand: | Saburo |
| Showroom location: | not any | Model: | SL-850,SL-1230,SL-1850,SL-2000 |
| Mechanical test report: | if | Name: | Polyester Cotton Reel Production Line |
| raw material: | 3-15D*32-64MM polyester fiber | Weight (kg): | 10000 |
| Core component warranty: | 1 year | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, Alibaba Trade Assurance Order |
| capacity: | 100-150,150-200,200-300,300-400KG/H | port: | Shanghai, Qingdao |

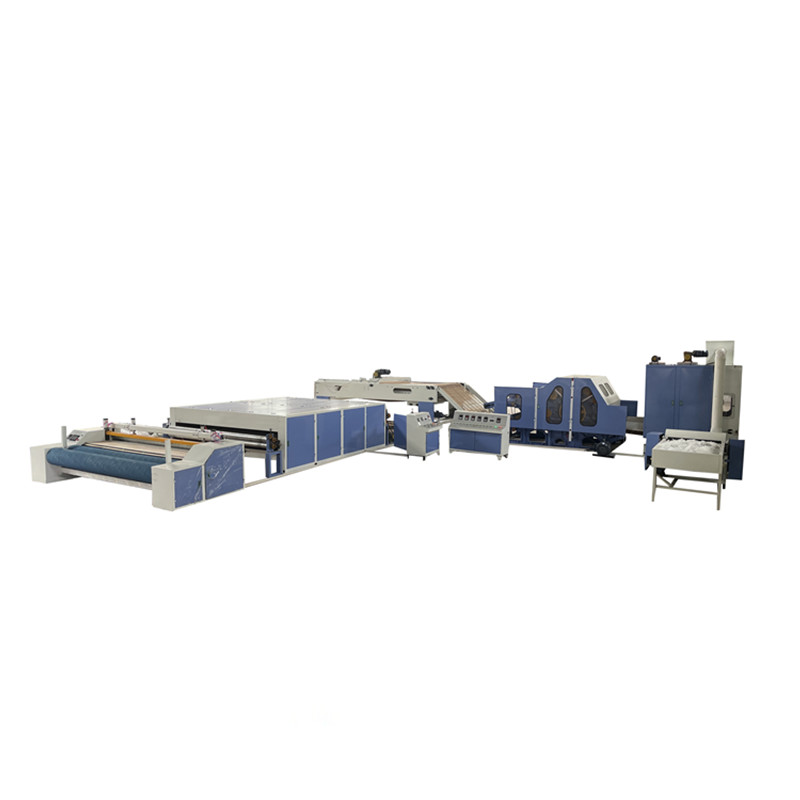

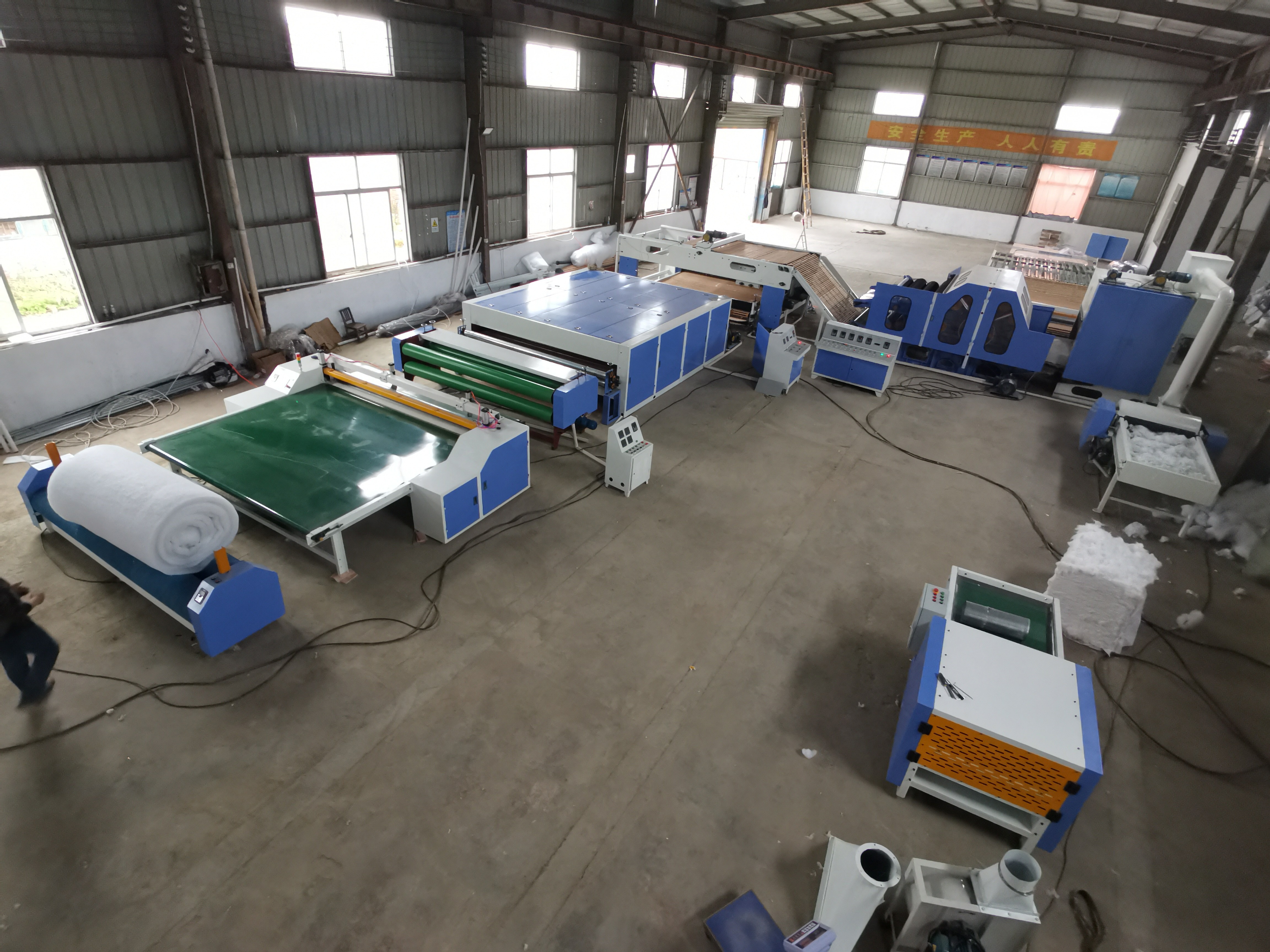

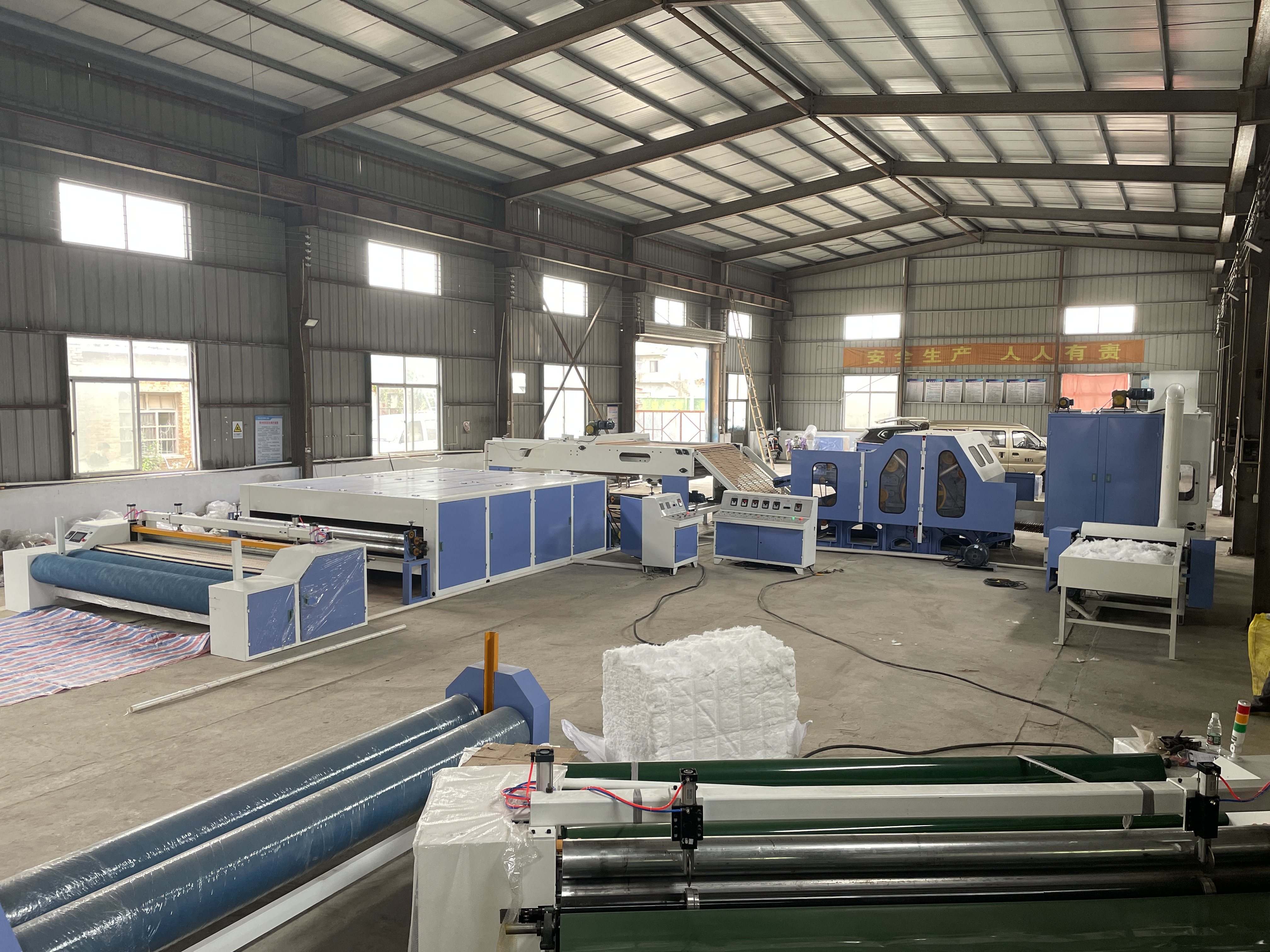

Polyester Cotton Reel Production Line
1. The whole production line adopts frequency conversion speed regulation, the running speed can be adjusted, and the operation is convenient
Operation,
According to customer needs, different configurations are adopted, and the finished product can be used for quilts,
Mattresses, fabrics, sofas, cushions, car seats, etc.
2. Weigh and mix fibers of different specifications one by one, and feed them into the opening machine. The real machine is blue,
White
3. Open the compressed fiber raw materials into fluffy fibers and transport them to the feeding box
4. Collect the fluffy fibers conveyed by the opener and transport them evenly to the carding machine
5. Opening and carding the fiber layer, after carding by free rollers, the fibers in the fiber layer
more tightly intertwined.
6. Continuously form a fiber layer with a certain width and thickness by folding the fiber layer back and forth

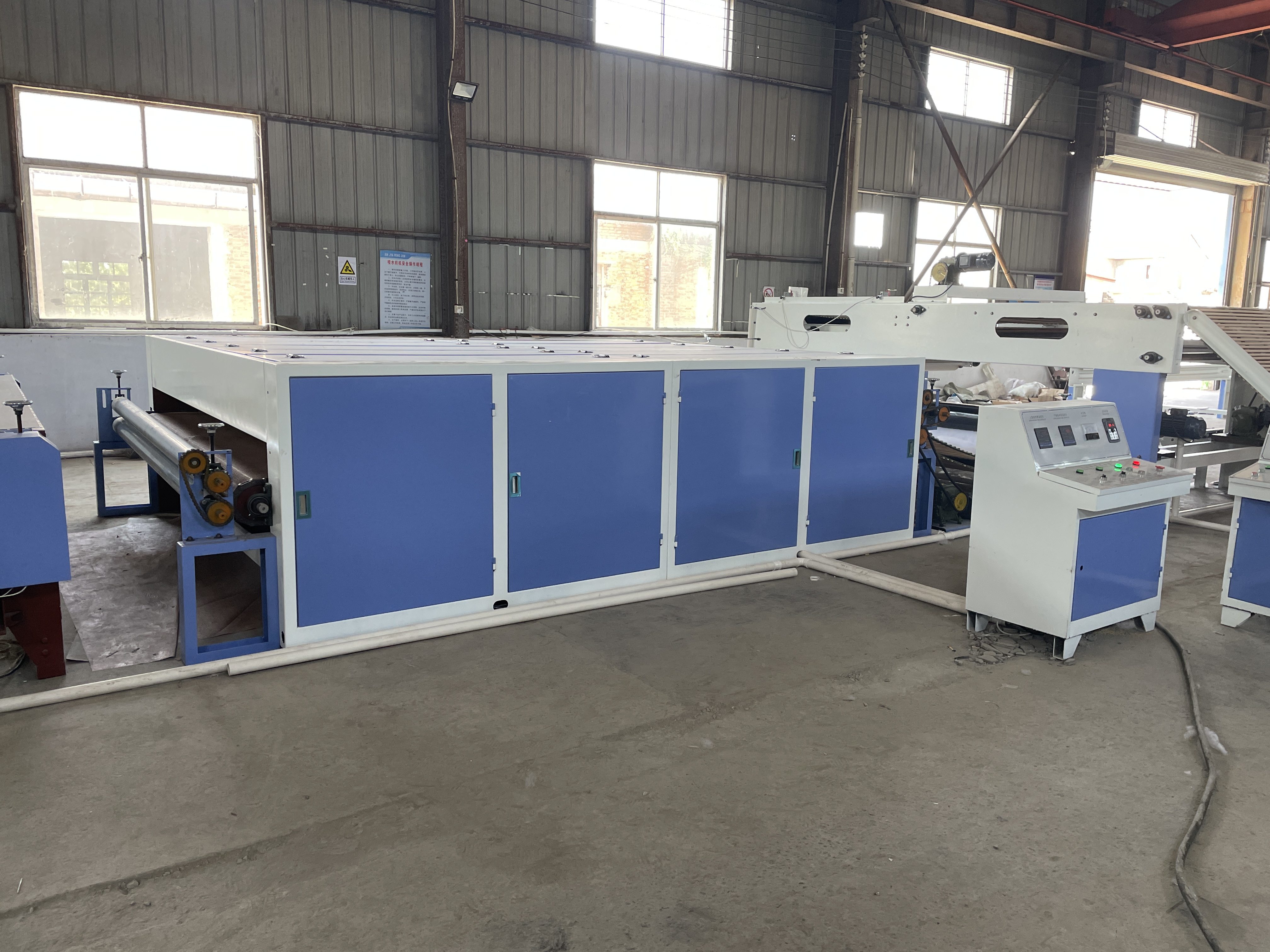

7. When the fiber layer passes through the oven, the high temperature makes the low melting point chemical fiber melt in the whole fiber
layer. When cooled, it acts like a glue that holds all the fibers together, but is more environmentally friendly

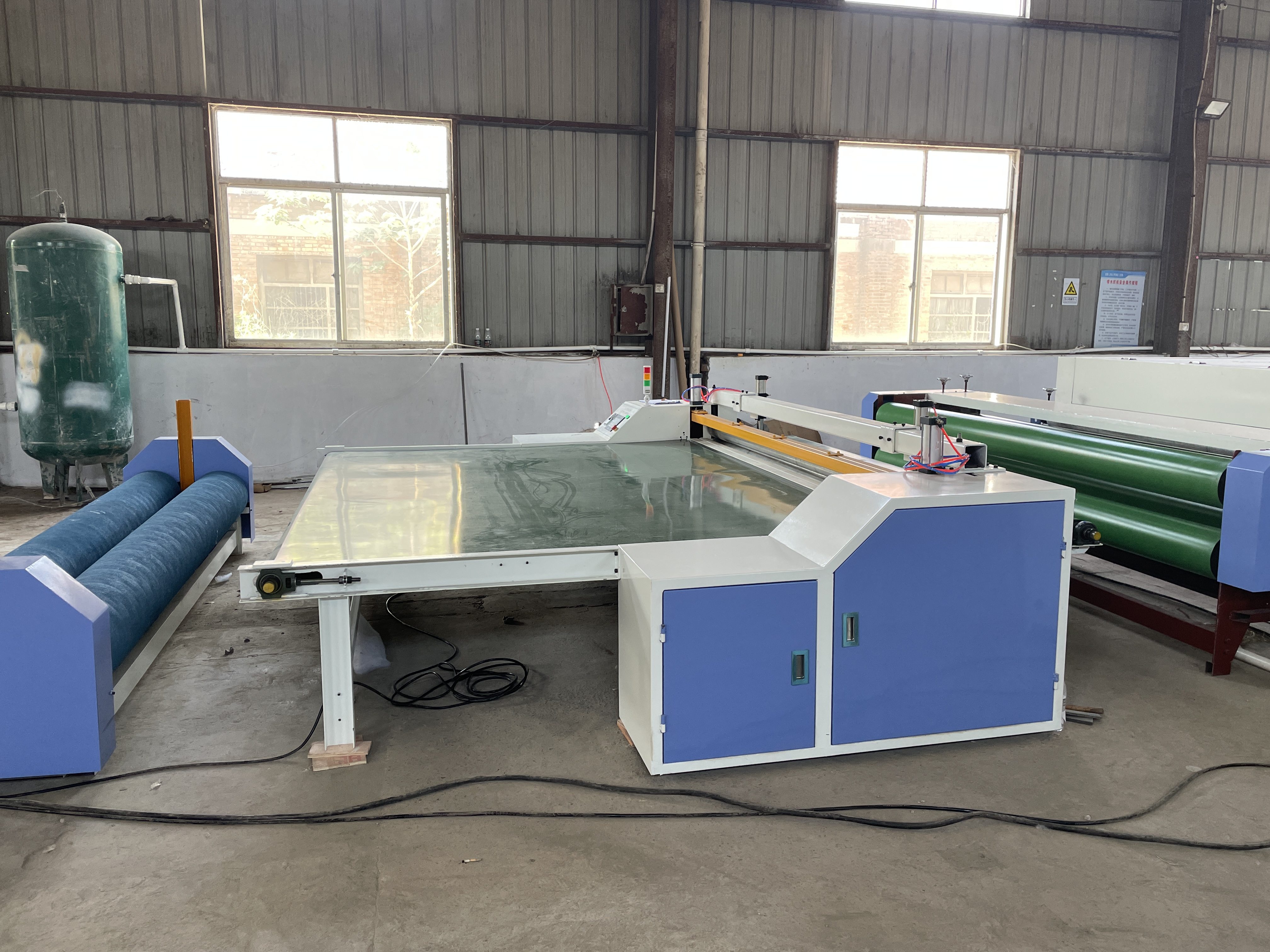

8. Use a press knife to trim the edge of the layer, roll the layer into the roll through the cloth roller, and set the required roll length on the PLC. when. . . when
When the length reaches the set value, the cross-cutting knife works automatically to cut the fiber layer horizontally
Operation,
According to customer needs, different configurations are adopted, and the finished product can be used for quilts,
Mattresses, fabrics, sofas, cushions, car seats, etc.
2. Weigh and mix fibers of different specifications one by one, and feed them into the opening machine. The real machine is blue,
White
3. Open the compressed fiber raw materials into fluffy fibers and transport them to the feeding box
4. Collect the fluffy fibers conveyed by the opener and transport them evenly to the carding machine
5. Opening and carding the fiber layer, after carding by free rollers, the fibers in the fiber layer
more tightly intertwined.
6. Continuously form a fiber layer with a certain width and thickness by folding the fiber layer back and forth
7. When the fiber layer passes through the oven, the high temperature makes the low melting point chemical fiber melt in the whole fiber
layer. When cooled, it acts like a glue that holds all the fibers together, but is more environmentally friendly
8. Use a press knife to trim the edge of the layer, roll the layer into the roll through the cloth roller, and set the required roll length on the PLC. when. . . when
When the length reaches the set value, the cross-cutting knife works automatically to cut the fiber layer horizontally
Model | SL-850 | SL-1230 | SL-1850 | SL-2000 | |||
floor area | 15*10*2.5M | 15*10*2.5M | 16*10*2.5M | 16*10*2.5M | |||
Maximum Product Width | 2800-3000-3200-3600-4000MM-6000MM optional | ||||||
Packing density | 60-800GSM | ||||||
output | 80-150KG/hour | 150-200KG/hour | 200-300KG/hour | 300-400KG/hour | |||
Power (gas/electricity) | 42/97KW | 46/100KW | 54/130KW | 56/135KW | |||

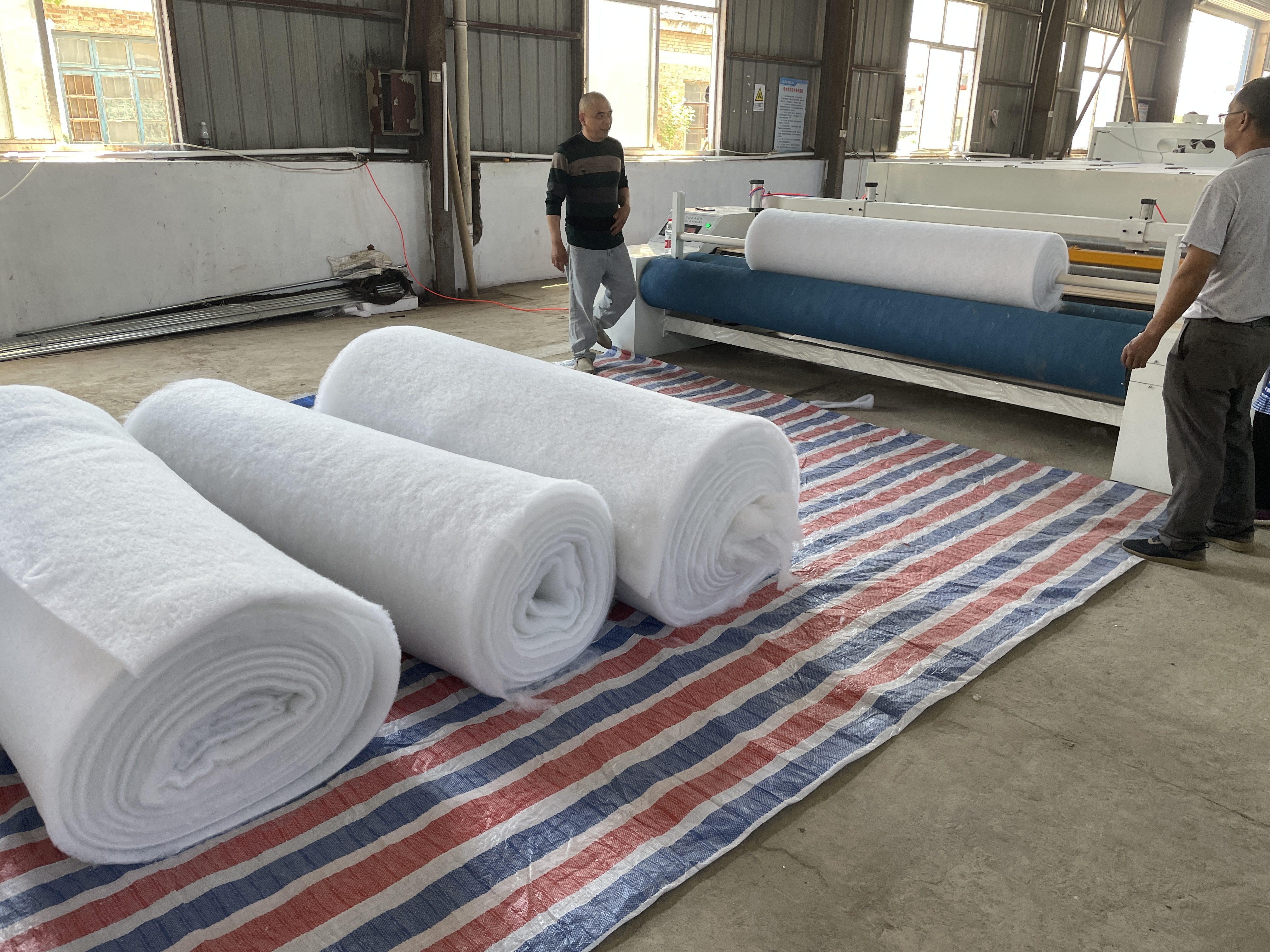

finished product | Polyester Cotton Roll & Non-adhesive Cotton Sheet | ||||||
Q1:Warranty, Quality and Service
A: We provide one year warranty, within one year, if the machine is broken, we provide parts for free;
And we provide online guidance within 12 hours, lifelong service
Q2:Experience, expertise and engineers
A: We are a home textile manufacturer with nearly 20 years experience, our engineers are online eight hours a day, we will provide the best
Pre-purchase and post-purchase guidance
Q3:trust and safety
A: We are a family business group, all of us work in this market and only in this field, we must do our best because
There is nowhere to go, no matter when you encounter difficulties, you can always find us
Q4:Advantages and why choose us
A: We have rich experience, professional team, never absent after-sales service
We have helped many, many customers in the world, and we grow together with all customers
A: We provide one year warranty, within one year, if the machine is broken, we provide parts for free;
And we provide online guidance within 12 hours, lifelong service
Q2:Experience, expertise and engineers
A: We are a home textile manufacturer with nearly 20 years experience, our engineers are online eight hours a day, we will provide the best
Pre-purchase and post-purchase guidance
Q3:trust and safety
A: We are a family business group, all of us work in this market and only in this field, we must do our best because
There is nowhere to go, no matter when you encounter difficulties, you can always find us
Q4:Advantages and why choose us
A: We have rich experience, professional team, never absent after-sales service
We have helped many, many customers in the world, and we grow together with all customers
