2025 400W 12N.CM 90000rpm Brushless Micro Motor Jewelry Polishing Drilling Machine

Supplier: Fujian Aite Precision Machinery Co., Ltd.
Region: Fujian, China
Contact: Mr Ian Sara
Price: $186.01 / 1 - 23 sets
$185.00 / 24 - 101 sets
$184.56 / >=102 sets
Min. Order: 1 set

Click here to contact

Product details

Package preview:		grade:	DIY, industrial, AT-CM-044&A4&A7
strength:	400W	Energy source:	electrical
Maximum torque:	A4 mobile phone 12N.CM, A7 mobile phone 10N.CM	Customization support:	OEM, ODM, OBM
Rotating speed:	A4 machine head 50000rpm, A7 machine head 60000RPM	usage:	Drilling machines for expensive jewelry processing
size:	20.918.311.3cm	Warranty:	1 year
Supply capacity:	999999 sets per week	Place of origin:	Fujian Province, China
model:	AT-CM-044&A4&A7 jewelry making tools	Machine level:	DIY/Industrial
application:	Engraving/cutting/polishing/drilling	Packaging details:	The engraving machine is packed in the inner box; then put into the carton
Identification:	Welcome to customize your own Logo	size:	2.35mm/3mm/3.175mm
warranty period:	1 year	Voltage:	110V/220V
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPal	product name:	Brushless Micromotor Jewelry Polishing Drilling Tool Machine

Product Description

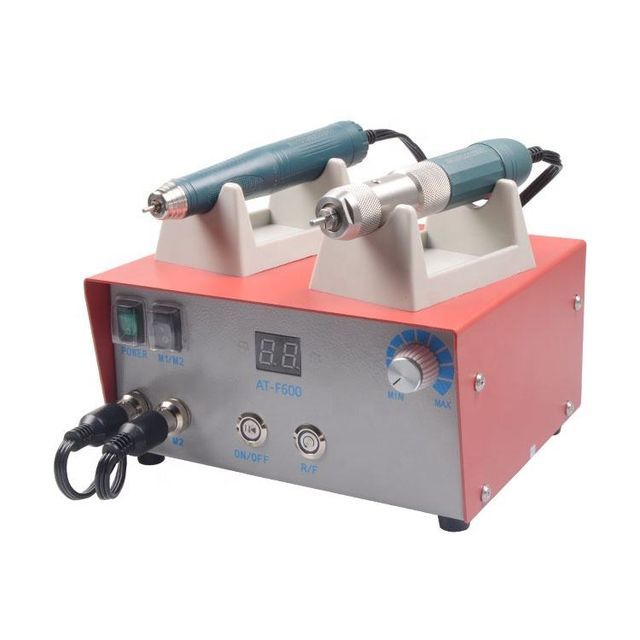

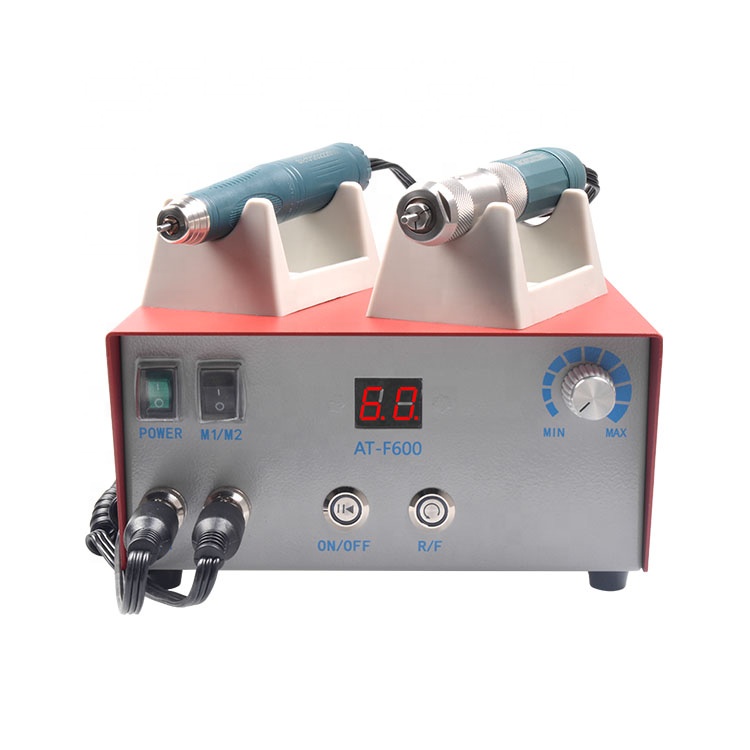

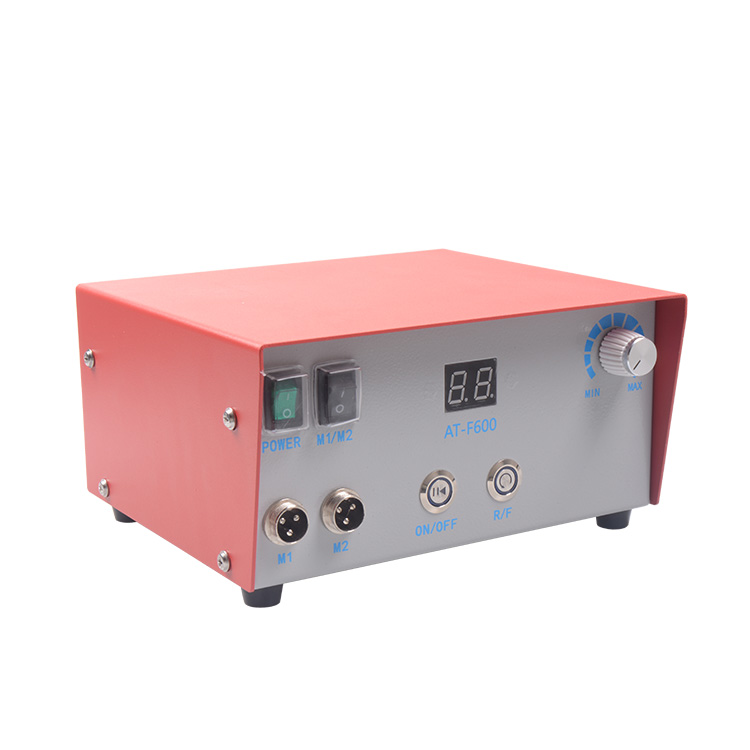

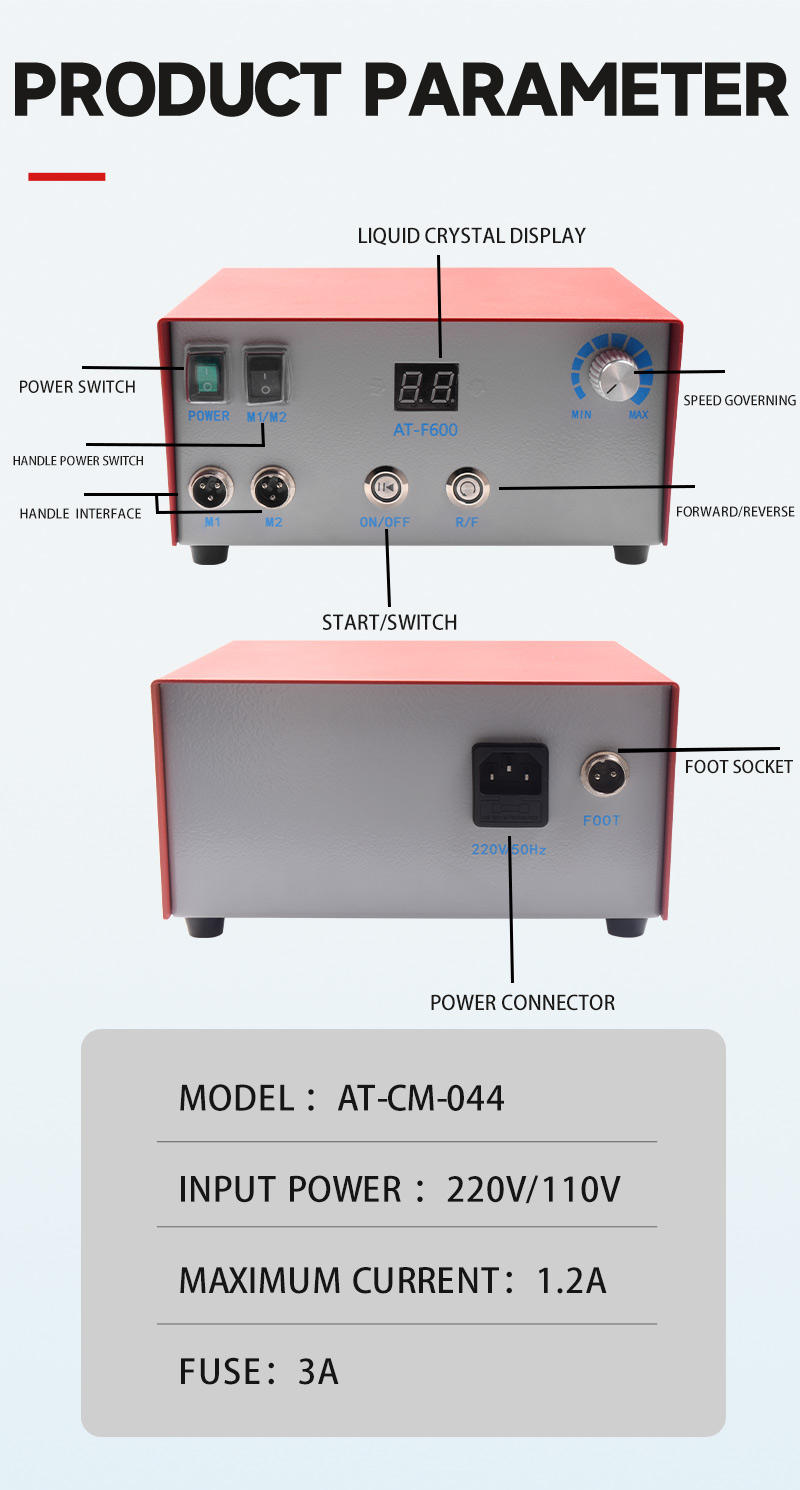

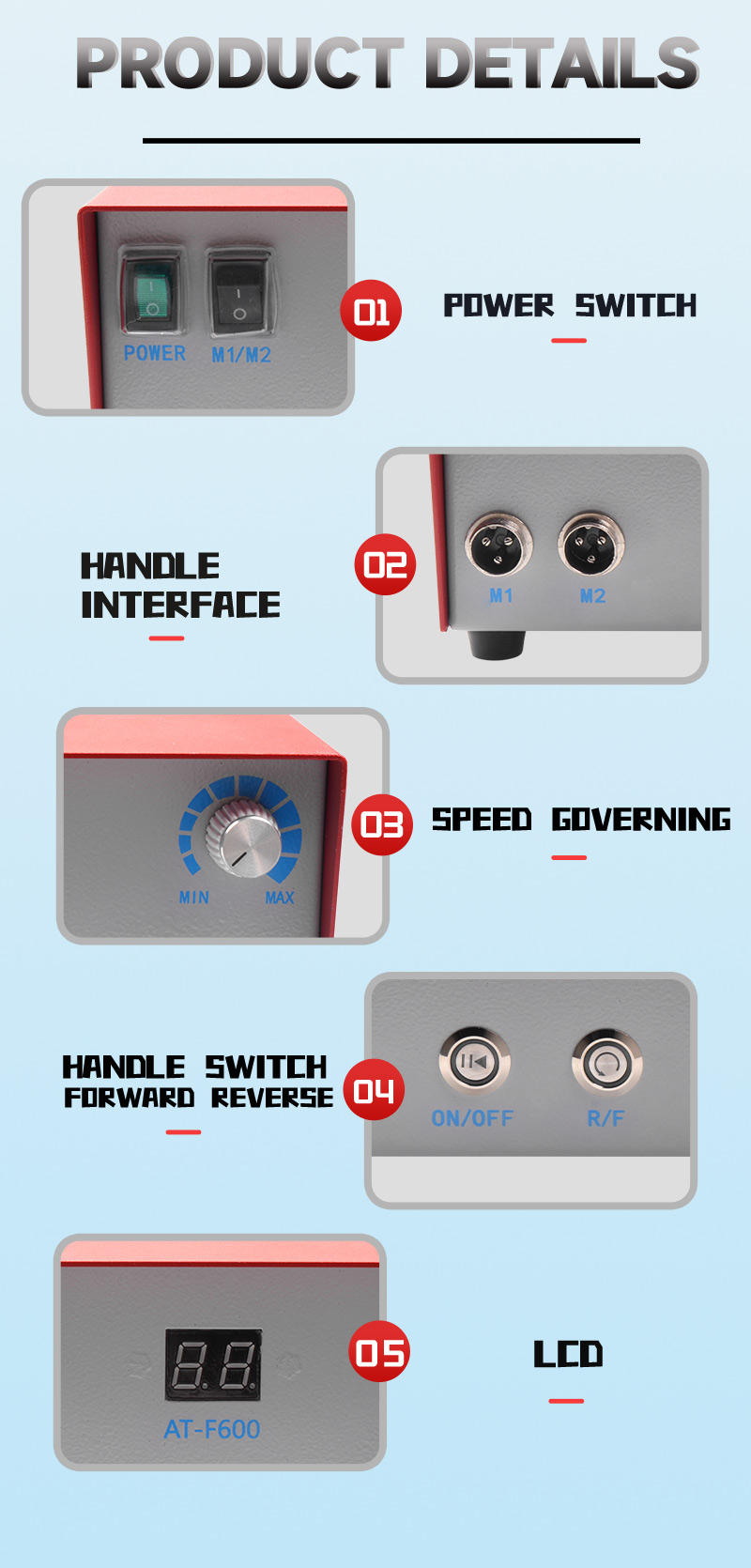

AT-CM-044 power supply onlyAT-A4 12N.CM 50000rpm tipAT-A3/A7 60000/90000rpm tip Foot switch (click image)

Production name	400W 12N.CM 90000rpm Brushless Micromotor Jewelry Polishing and Drilling Tool Machine
The input of the engraving machine	110V/220V (50/60HZ)/OEM acceptable (please tell me you need 110V or 220V when placing order)
output	36V/OEM acceptable (engraving machine standard 36V)

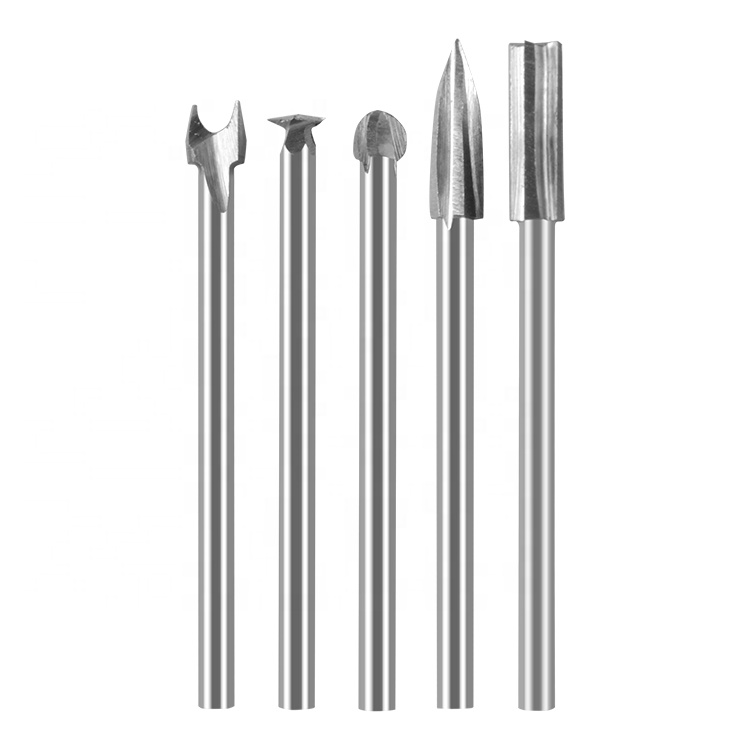

Handheld engraving machine grinding accessories	2.35mm /3mm/ 3.175mm (A4 mobile phones also have 4mm and 6mm)
type	Brushless Engraving machine, the price of this link includes the machine head, A4, and A7 machine heads
Jewelry engraving machine tool standard packaging	Packed in an inner box and then put into a carton; the inner box has English non-brand standard packaging, or OEM your brand OK
Item Number	AT-CM-044&A4&A7 handheld polishing machine
sampling time	3-15 days
Machine features	This new machine has a greater power of 400W, allowing the machine head to obtain greater torque at lower speeds.
Mass production time	3-15 days (OEM styles need to check the design, estimated 10-30 days)
payment method400W 12N.CM 90000rpm Brushless Micromotor Jewelry Polishing and Drilling Tool Machine	Paypal 5% bank fee; TT USD 50 baking fee per payment; Alibaba insurance contract 2.5% bank fee; Western Union remittance without bank fee Choose your preferred payment method

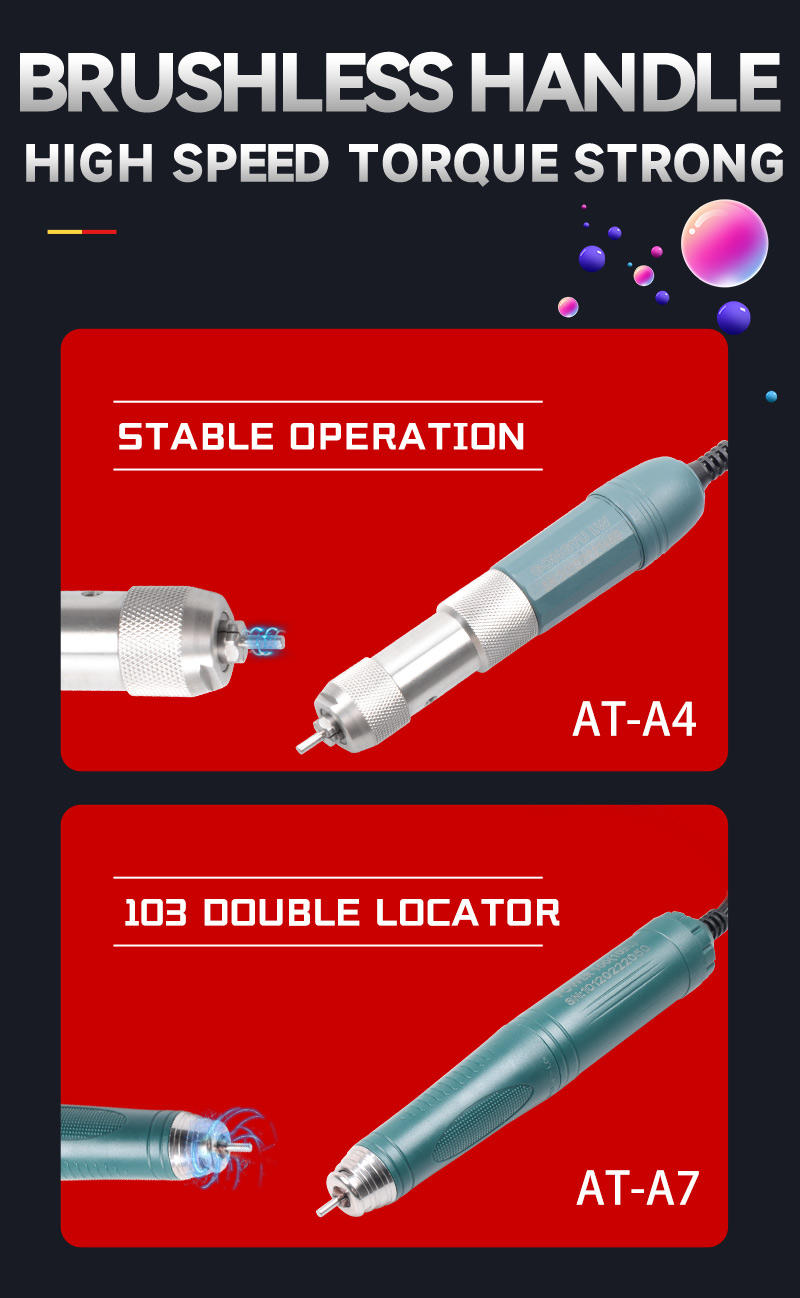

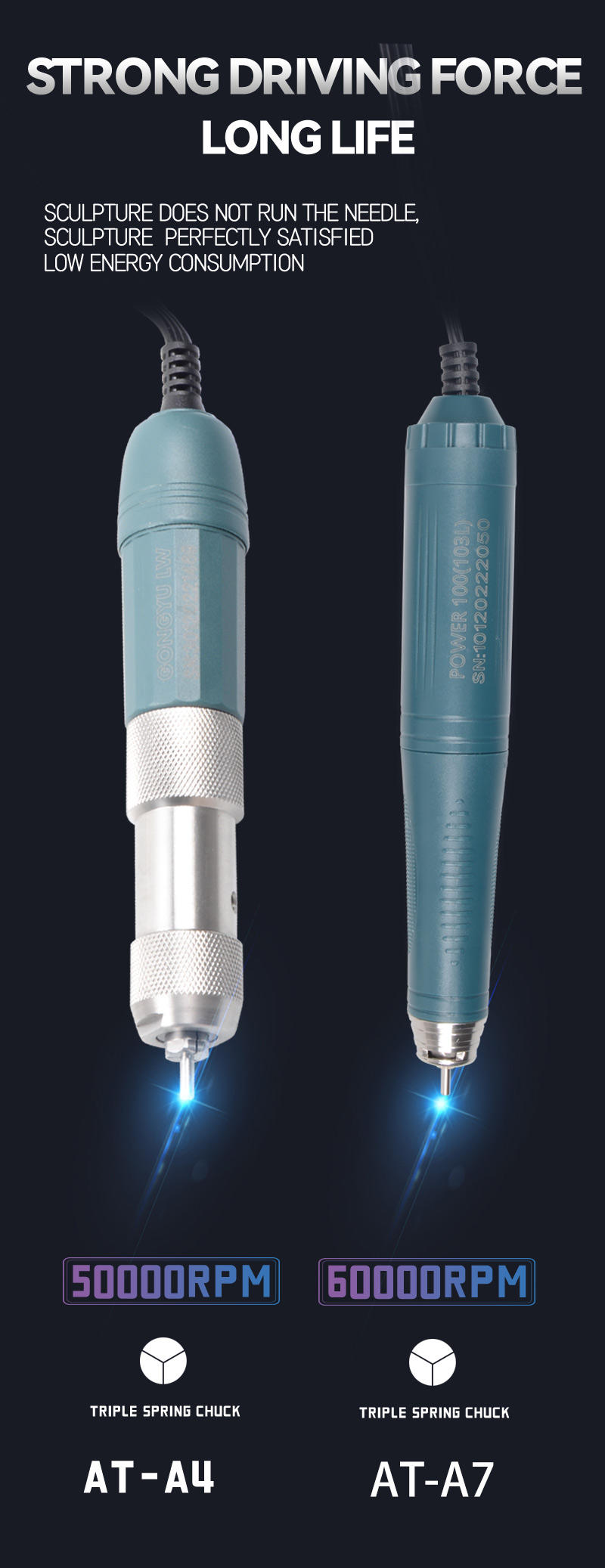

AT-A4 mobile phone type			Brushless micromotor mobile phone
Maximum torque			12N.CM/ OEM acceptable
Rotating speed			maximum50000 rpm/ 60000RPM / OEM acceptable
Bearing			Special locator style, the strongest power, fighting for the embryo

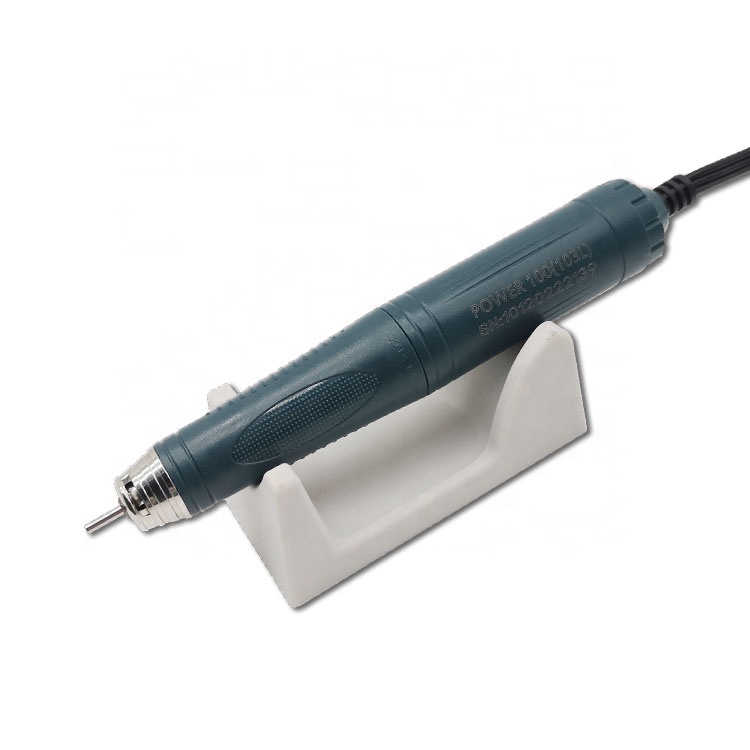

AT-A3/A7 mobile phone type			Brushless micromotor mobile phone
Maximum torque			10N.CM
Rotating speed			maximum60000 rpm/90000 rpm/Accept OEM
Bearing			103 Dual positioner

1. This product was developed for dental technicians. It can also be used in jewelry processing, manicure, polishing, handicraft engraving, mold processing, electronics and other industries.

Thank you for purchasing our products. Proper maintenance and timely replacement of product parts can extend the service life of the product.
In order to improve and upgrade the product, the appearance and configuration of the product may be adjusted without prior notice.
2. Product warranty
The handle has a 6-month warranty, except for wearing parts. Such as three-leaf spring (chuck), shaft core, small shaft core, bearings; the control box and pedal are guaranteed for one year.
4. Maintenance suggestions
4.1) Please keep the area around the handle clean and dry
4.2) When there is dust and dirt inside or outside the handle, please wipe it with a small amount of alcohol, but avoid a large amount of alcohol or moisture from penetrating into the bearing. The inside of the handle cannot be filled with oil (the bearings will become too hot to use), nor can it be filled with water (the bearings will rust and be damaged)
4.3) You can use an air gun for cleaning, but be aware that the gas emitted by the air gun may contain moisture. Be sure to avoid water vapor blowing into the bearing to prevent rust.

about Us

Fujian Aite Precision Machinery Co., Ltd.

Founded in 2008, it is a factory specializing in the production and sales of handheld high-speed brushless electronic grinders and accessories. Our factory is located in Wuyi Zhigu Software Park, Wuyi High-tech Zone, Nanping City, Fujian Province, China. It has sophisticated imported mechanical processing equipment and mature core parts production and processing technology. In the past, the company was engaged in the production and processing of core components of high-speed grinders. Our company has produced core components of high-end grinders, and all technical indicators have reached or even exceeded imported similar products. At the same time, the high-speed brushless grinder power supply independently developed and designed by our company has dual drive control chips, supports dual-channel stable output, and can continuously drive two high-speed brushless electronic pens at the same time; filling the gap in related products in the industry. At present, the company has applied for a number of national invention patents. The high-speed brushless electronic grinders produced by our company are suitable for many industries such as jewelry, jade, stone, dentistry, nail salons, and processing industries that require manual precision repair. Our main products include but are not limited to: nail drills; engraving machines; manicure lamps; and accessories for these machines. Your ideas and cooperation are welcome.
