10kw STC ST Three Phase 220v dynamo generator

Product details
Rated Voltage:400 / 230V;Supply Ability:3000 Piece/Pieces per Month;
Excitation type:Self-exited;Options:Control panel;
Packaging Detail:Plywood Case;Rated Current:5.4A-90.1A;
Key word:10kw generator;Rated Power:3KW / 3.75KVA-50KW/62.5KVA;
Warranty:12 Months/1000 Hours;Color:Blue,Green,as for your request;
Model Number:STC;Place of Origin:Fujian China (Mainland);
Output Type:AC Three Phase;Type:Three Phase Alternator;
Frequency:50/60HZ;Port:FUZHOU;
Payment Terms:L/C,T/T;Power factor:0.8 Lagging;
Pole:4;Brand Name:SIPORUI;
Speed:1500/1800rpm;Product Name:10kw STC ST Three Phase 220v dynamo generator;
Delivery Detail:Shipped in 30 days after payment;
Product Introduction

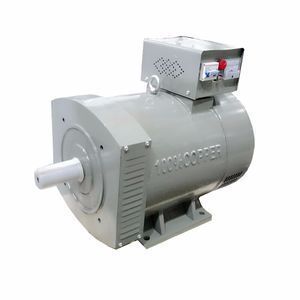

10kw STC ST Three Phase 220v dynamo generator

10kw STC ST Three Phase 220v dynamo generator

The generators are to be used in town ,the countryside,work site,Mountain,Irrigation,ship power source for lighting purpose,It can also be used as a reserved power Source for emergent case.

The generators are of drip-poof with the adoption of harmonic ercitation system, that allow your easy operation and simple maintenance,The generators are of three-phase four-wire type ,making use of atar connecting with neutral point . The rated line voltage is 400V . Phase voltage 230V . Frequency 50HZ . power factor 0.89(lag). It can provide 60Hz and the other voltage’s generator according to necessary. They can be coupled with a prime mover directly or through V-belt making right or reverse continuous rotation at the rated speed . When the revolution slip of prime mover is 3% and load varies in the range of 0-100%cosΦ1.0 0.8 they give Food constant volgate . After sudden change (increase of decrease ) of load .the generators constant voltage . will soon return to their normal working state , without any starting devices the generator can directly start an unloaded induction motor.

Product Parameters
Type
Output
Output
Rated Curr.
Volt
Power Factor
Pole
Speed
Freq
STC-3
3.75KVA
3KW
5.4A
400/230V
0.8
4
1500/1800Rpm
50/60HZ
STC-5
6.25KVA
5KW
9A
400/230V
0.8
4
1500/1800Rpm
50/60HZ
STC-8
10KVA
8KW
14.4A
400/230V
0.8
4
1500/1800Rpm
50/60HZ
STC-10
12.5KVA
10KW
18.1A
400/230V
0.8
4
1500/1800Rpm
50/60HZ
STC-12
15KVA
12KW
21.7AA
400/230V
0.8
4
1500/1800Rpm
50/60HZ
STC-15
18.75KVA
15KW
27.1A
400/230V
0.8
4
1500/1800Rpm
50/60HZ
STC-20
25KVA
20KW
36.1A
400/230V
0.8
4
1500/1800Rpm
50/60HZ
STC-24
30KVA
24KW
43.2A
400/230V
0.8
4
1500/1800Rpm
50/60HZ
STC-30
37.5KVA
30KW
54A
400/230V
0.8
4
1500/1800Rpm
50/60HZ
STC-40
50KVA
40KW
72.1A
400/230V
0.8
4
1500/1800Rpm
50/60HZ
STC-50
62.5KVA
50KW
90.1A
400/230V
0.8
4
1500/1800Rpm
50/60HZ

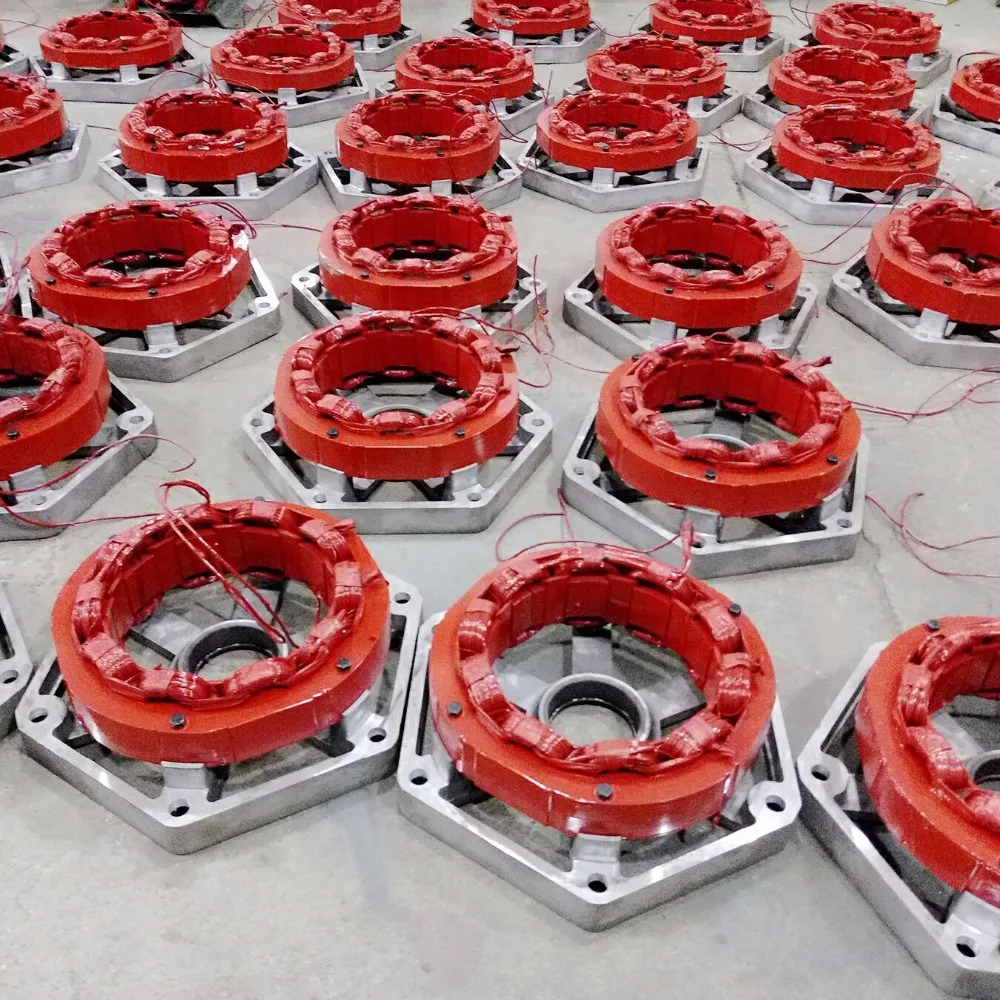

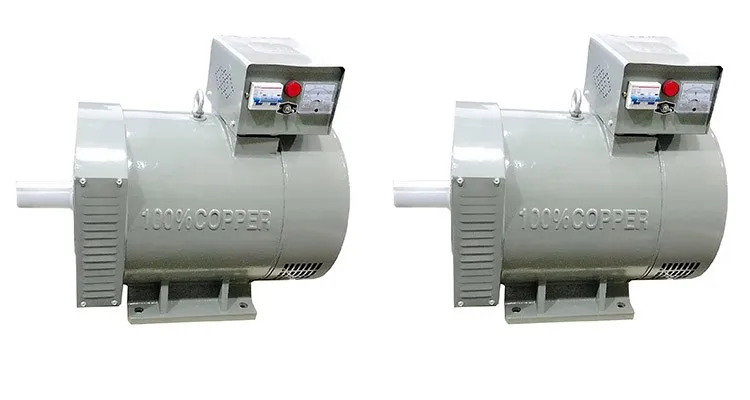

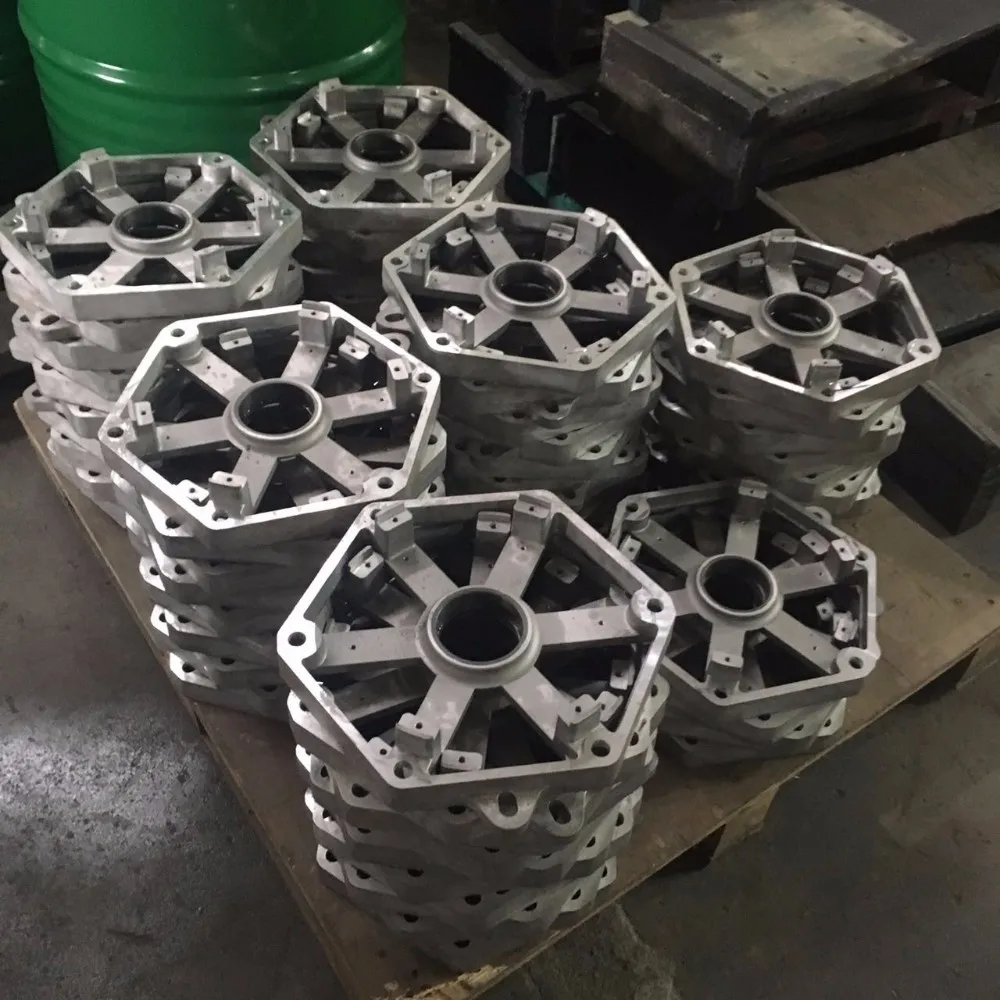

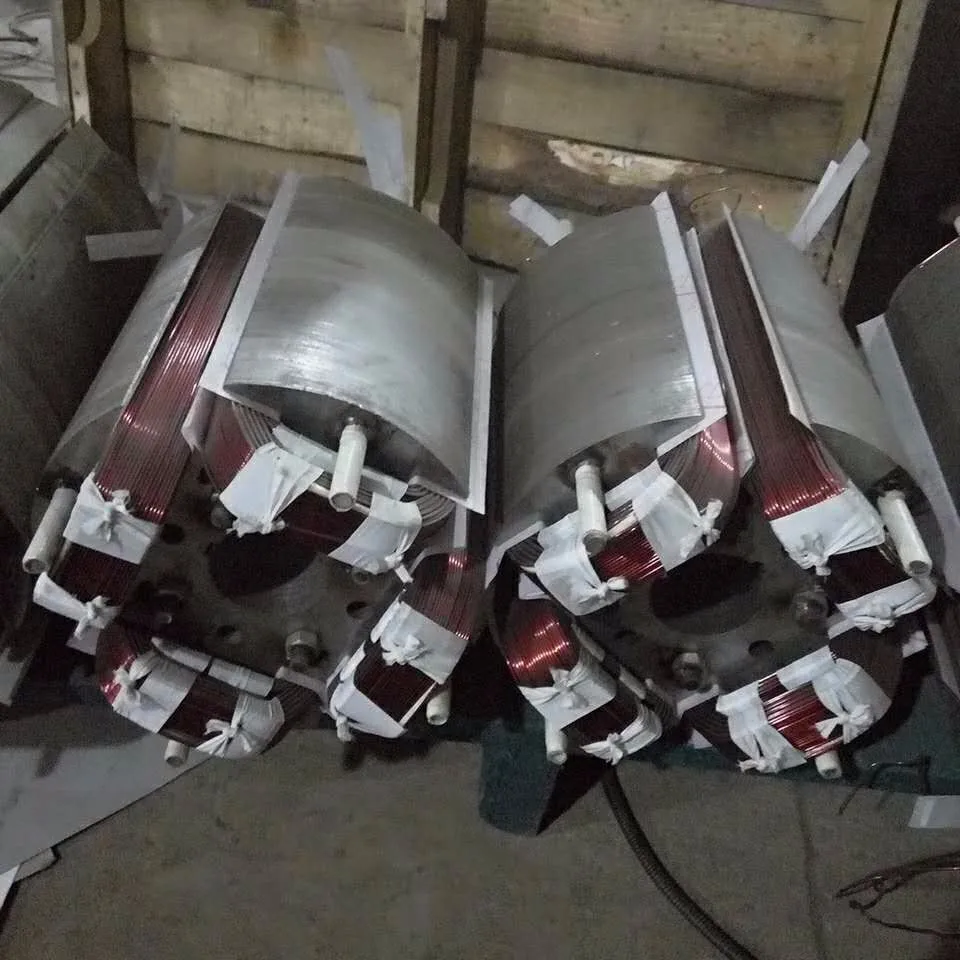

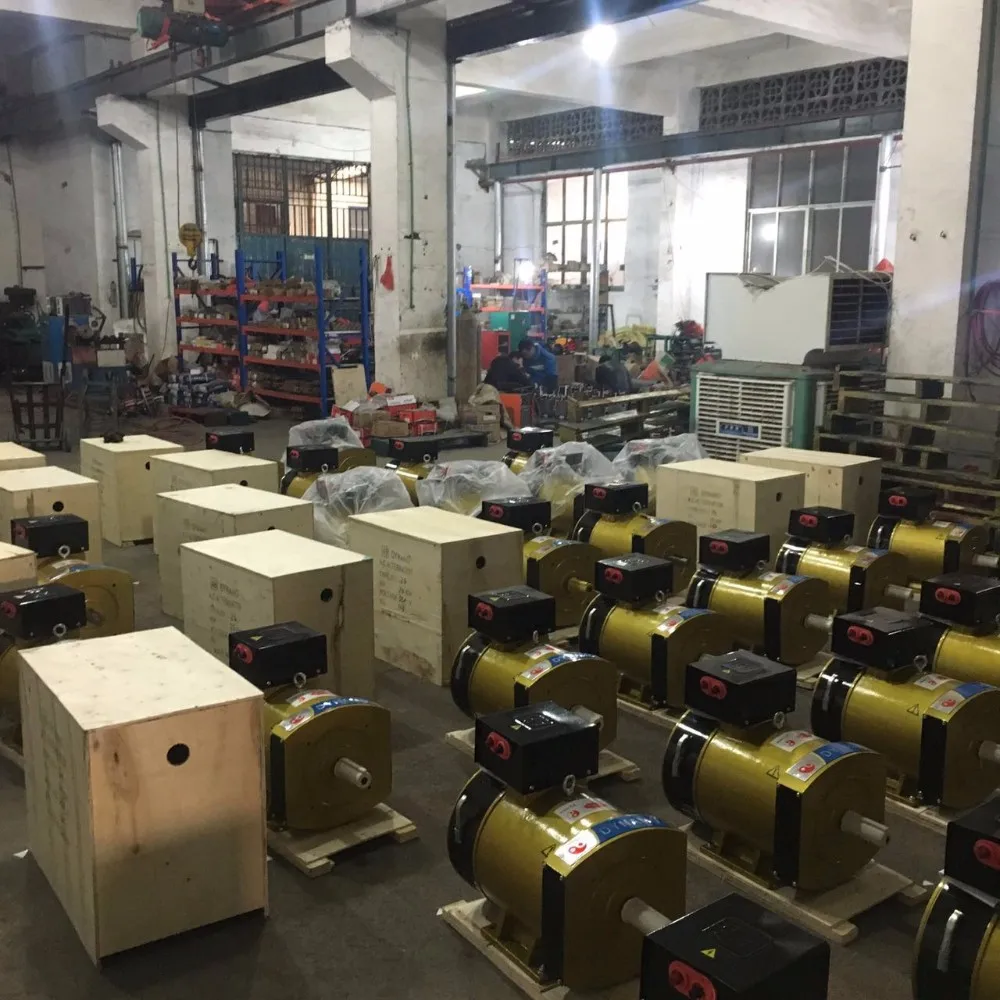

Product Details Show
Why Choose Us

10kw STC ST Three Phase 220v dynamo generator


#-Good quality material

#-Professional engineers design and production line manufacturing

#-100%Output, 100%Copper
#-Strong Iron Housing

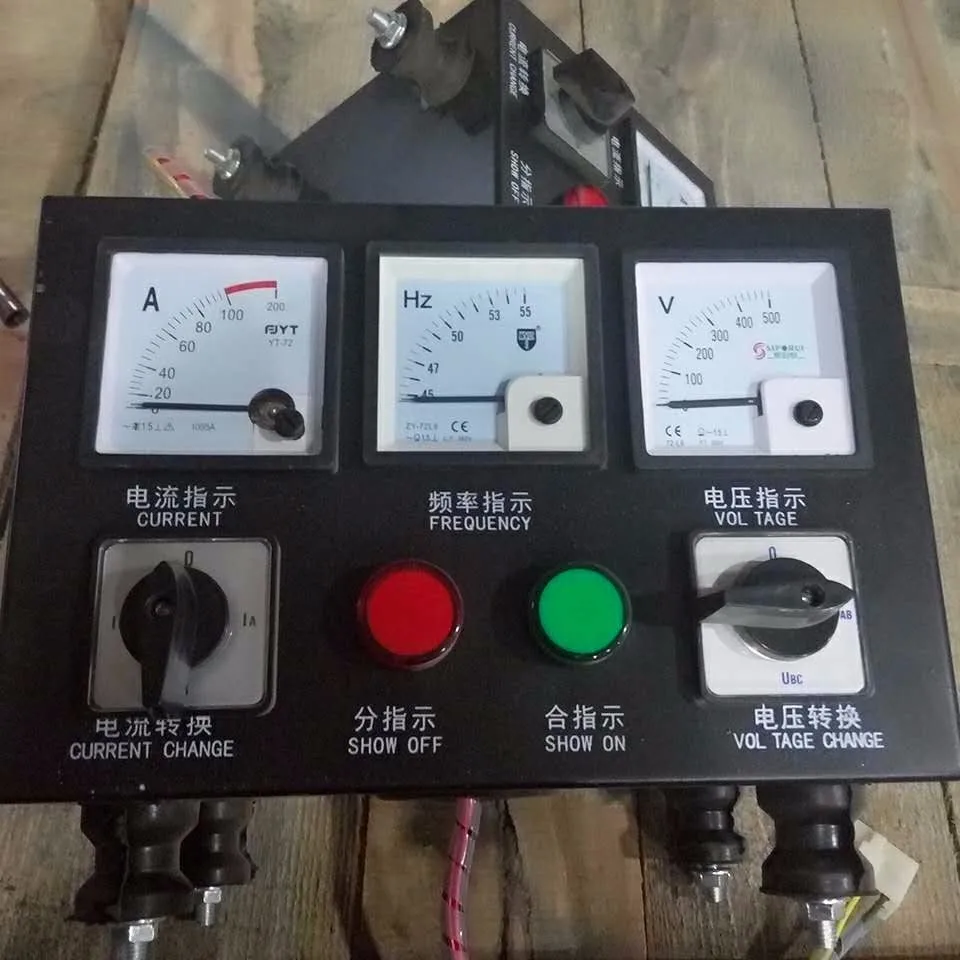

#-Good Circuit Breaker, Volt Meter and Indicator in Control Box
#-Perfect Stack in Stator
#-Wonder Drop-Proof

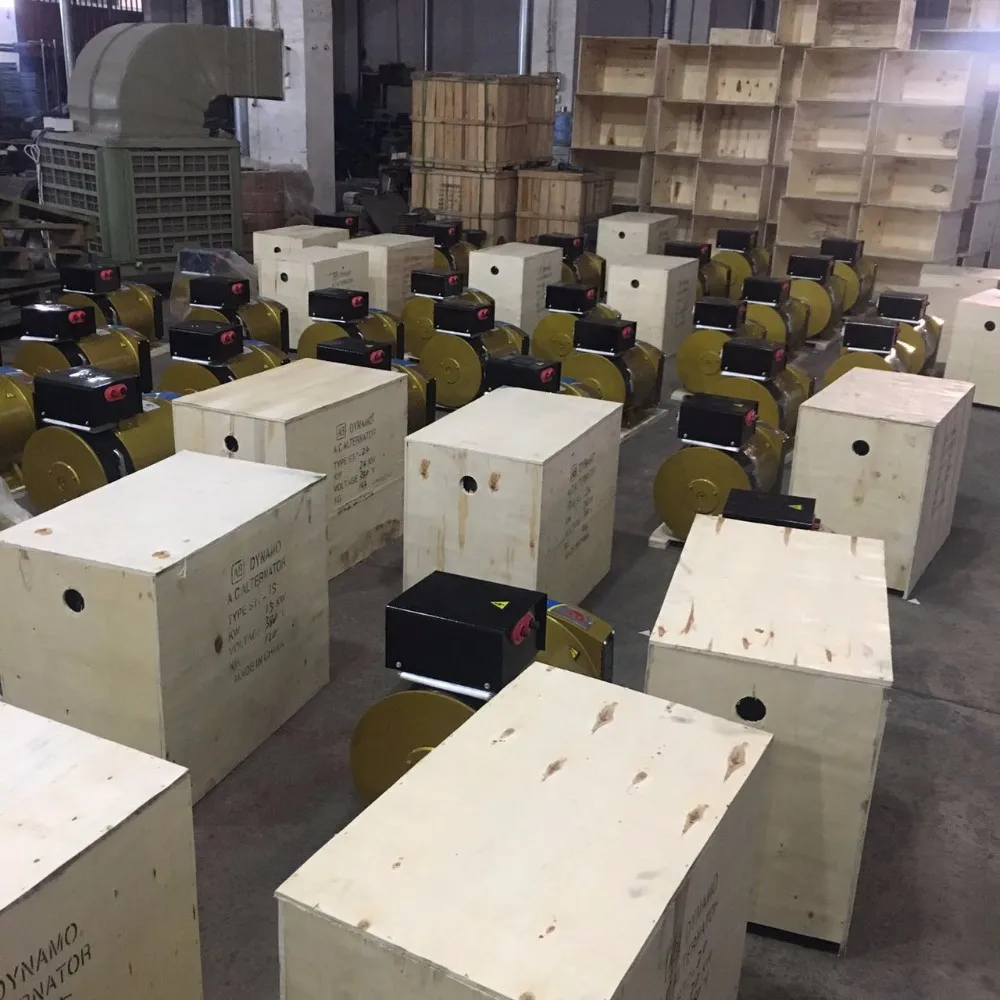

Product Packing
