Fuel cell pump hydrogen circulation pump hydrogen fuel cell system has good performance Products from Hefei Sinopower Technologies Co.,Ltd.

Product Details

Motor Power:	0.3kW	Package preview:
Maximum pressure increment kpa:	20	Rated pressure increment kpa:	15
port:	Shanghai	Limited Data:	100
payment terms:	Presentation of documents, presentation of documents, wire transfer	brand:	ruby
Packaging details:	Demonstration of Hydrogen Fuel Cell Lab Educational Products	Protection level:	IP67 rating
l Working voltage VDC:	twenty four	model:	Rubri-HCP10H/L
Supply capacity:	3000 pieces per quarter	Place of origin:	China

Product Description

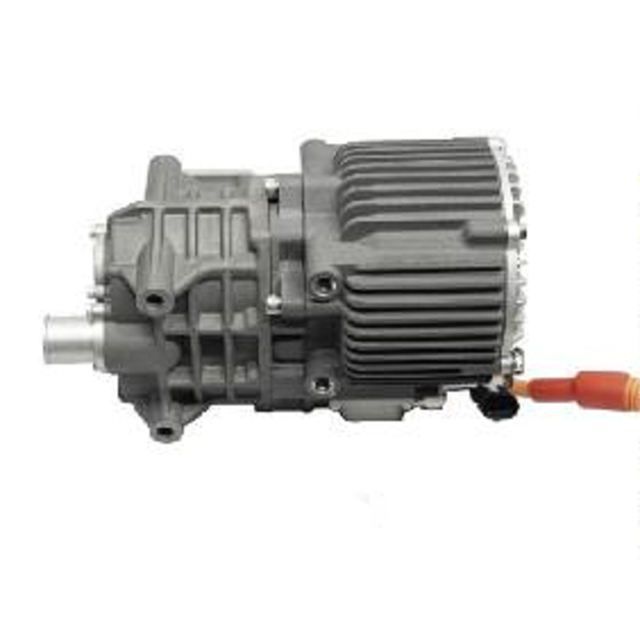

Hydrogen circulation pump

Function:
1. Improve hydrogen utilization in order to improve the reaction efficiency of the fuel cell and reduce the reaction time of the fuel cell during acceleration. In general, the hydrogen supply capacity of a fuel cell is greater than the theoretical consumption
hydrogen. If the hydrogen cycle is not matched, this excess hydrogen supply will be directly discharged with the exhaust gas, causing a large amount of waste of hydrogen.
2. Improve hydrogen-related safety. If the hydrogen cycle is not matched, a large amount of unreacted hydrogen will be emitted directly into the atmosphere through the tail exhaust port, creating a huge potential for high-concentration hydrogen emissions.

Specification

Project parameters	unit	Rated	Rated	Rated	Rated	Rated
Model	-	Rubri-HCP10H/L	Rubri-HCP20F/L	Rubri-HCP47H/L	Rubri-HCP30H	Rubri-HCP60
Motor Power	kilowatt	0.3	0.6	0.5	1	2
speed	Rotating speed	20000	22000	6000	8000	8000
Rated pressure increment	Kilopascal	15	20	16	40	40
Maximum pressure increase	Kilopascal	20	25	20	50	50
Limited Data	cubic meters/hour	100	700	380	30	60
noise	b	70	<75	75	75	75
Protection level	-	IP67 rating	IP67 rating	IP67 rating	IP67 rating	IP67 rating
Dimensions	mm	105×100×145	140×140×125	170×135×200	218×161×129	300×161×129
L working voltage	DC voltage	80/24	twenty four	twenty four	400-750	400-750
Air tightness	ml/min	<0.1	<0.1	<0.1	<0.1	<0.1
