1000W Hydrogen Fuel Cell System Multifunctional Portable Outdoor Power Supply Outdoor Mobile Power Supply Energy Storage Power Supply 300W
- 6350.00 piece
| payment terms: | wire transfer | brand: | New Wright |
| Supply capacity: | 1000 pieces per day | port: | Shanghai Harbor |
| Packaging Details: | Packing Details Carton Packing + Pallet | model: | HyMo-M300 |
| application: | Toys, electric tools, electric vehicles | place of origin; place of origin: | Jiangsu, China |
| Warranty: | 1 year |

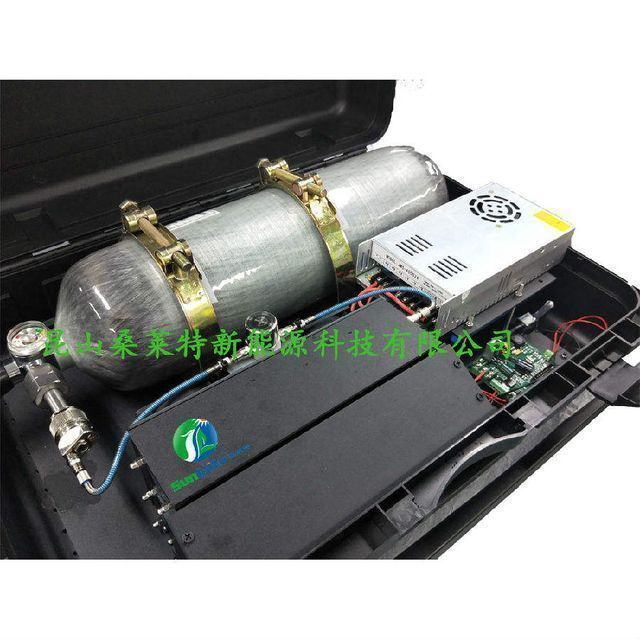

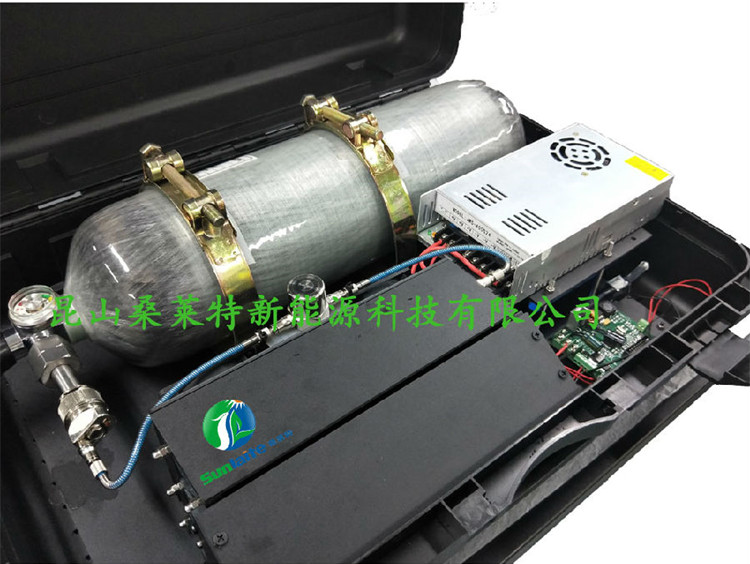

The HyMo series PEM fuel power supply is air-cooled and self-humidifying, which can work stably and reliably in complex environments.
Its compact structure and good environmental adaptability make it suitable for outdoor portable backup power supply, fixed power station, mobile equipment and vehicles, etc.
HyMo portable power supply output voltage is 220V/AC, 1000W/2000W/2500W optional.
HyMo has a remote monitoring function, which can remotely control the power switch, monitor its output power, battery temperature, hydrogen storage capacity, etc.
feature:
Small size, light weight, high performance, easy to carry, long life, quiet design.
HyCaMo series fuel cell is the proprietary technology of Kunshan Sanlaiite, air-cooled self-humidification power supply,
And can work stably in the complex and changeable natural environment.
Simple structure, high reliability and safety.
Fast start-up, short response time, and good environmental adaptability.
Simple control system, easy to integrate various application scenarios.
Technical data,
|
parameter |
rated power |
300W |
|
Rated voltage |
AC220V/DC5V--USB |
|
|
Rated working time |
4-6 hours |
|
|
ambient temperature |
-5—40℃ |
|
|
environment humidity |
10%-95% relative humidity |
|
|
weight |
4.0 kg |
|
|
size |
620*400*180mm3 |
|
|
Hydrogen storage bottle |
volume |
4.7L |
|
Recommended pressure limit |
15MPa |
|
|
HySts |
rated power |
320W |
|
rated current |
14.5A |
|
|
voltage range |
23.2-36V |
|
|
produce efficiency |
Not less than 50% |
|
|
Oxidizer/Coolant |
Air (natural environment under standard atmospheric pressure) |
|
|
gasoline |
hydrogen purity |
Not less than 99.99% |
|
work pressure |
0.04Mpa-0.055Mpa |
|
|
Hydrogen consumption |
0.2-6.5 L/min |
Our fuel cell systems include Cell Catalyst, Cell Stacks, Cell MEA, HyMo solution, fuel cell equipment solution, etc. We have a complete production line, please contact us for more product details.
