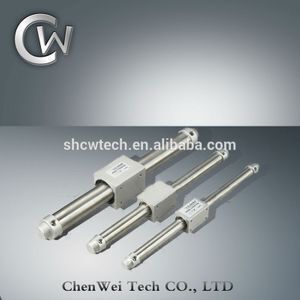

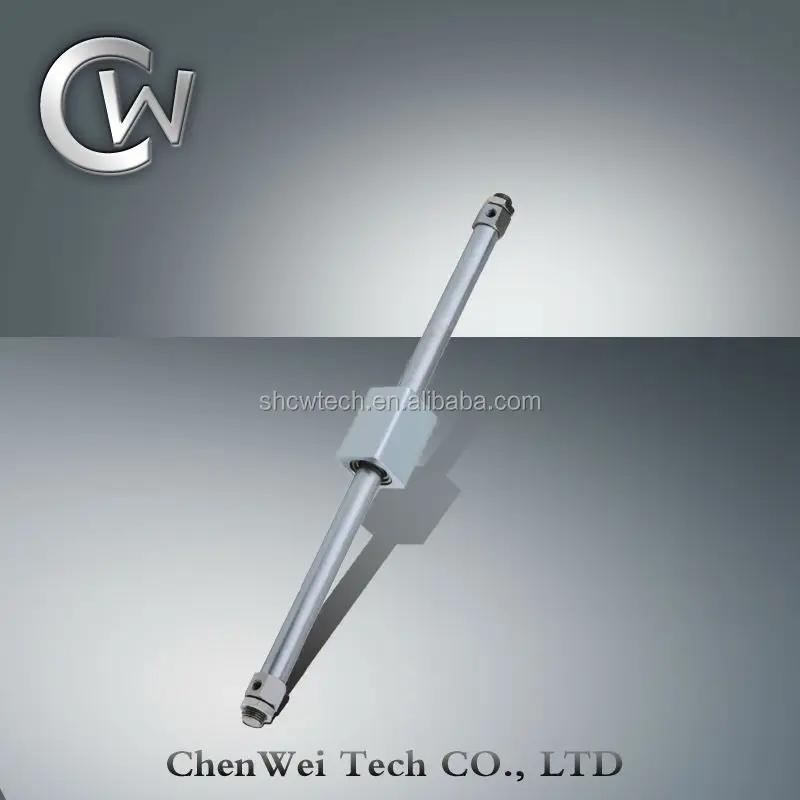

CY1B Magnetically Coupled Rodless Pneumatic Cylinder

Supplier: Shanghai Chenwei Trading Co., Ltd.
Region: Shanghai, China
Contact: Ms candy chen
Price: $40.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Delivery Detail:	within 7 to 10 days after payment;	Structure:	rodless cylinder;
Speed range:	30-800mm/s;	Port:	ningbo or shanghai;
Maximum Stroke:	1000mm;	Place of Origin:	Zhejiang China (Mainland);
Working medium:	compressed air;	Payment Terms:	L/C,T/T,Western Union,MoneyGram,PAYPAL;
Cushion:	adjustable cushion;	Power:	Pneumatic;
Shaft Diameter:	10-25mm;	Packaging Detail:	1)with our logo on inner box,outside carton without any logo; 2)OEM: without any logo; 3)Clients designed packages;
Proof pressure:	1.5MPa;	Working temperature:	-5-70 degree;
Model Number:	CY1B;	Working pressure:	0.1-1.0MPa;
Standard or Nonstandard:	Standard;	Body Material:	Stainless Steel;
MOQ:	2pcs;	Product type:	CY1B Magnetically Coupled Rodless Pneumatic Cylinder;
Brand Name:	CW;	Supply Ability:	100 Piece/Pieces per Week;

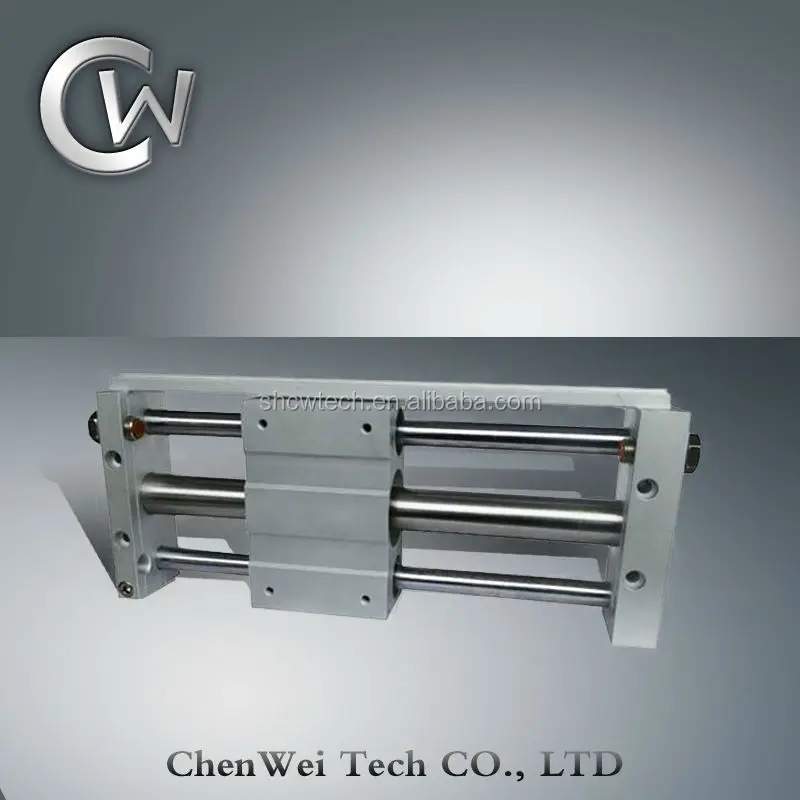

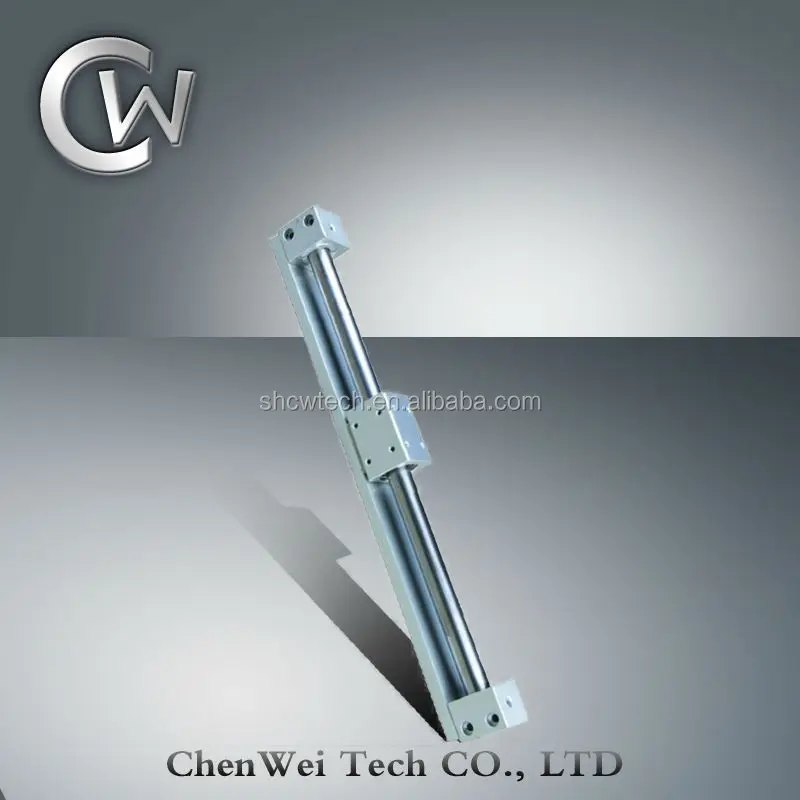

CY1B Magnetically Coupled Rodless Pneumatic Cylinder

Features:

1) Basic magnetically coupled rodless cylinder.

2) Bore size 10,15,20,25,32,40

3) Strokes from 50 to 1600mm

4) Available with high or low magnetic holding force

5) Long life time with no external leakage

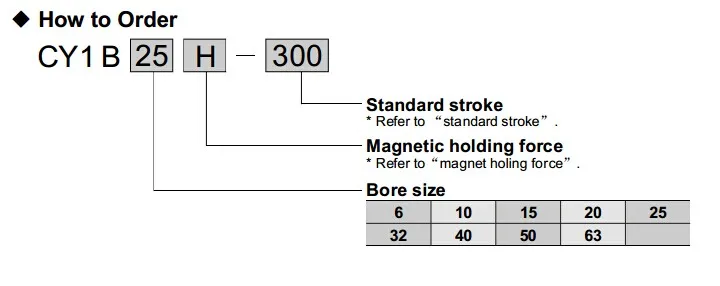

How to Order:

Specification:

Bore size(mm)	10	15	20	32	40
Fluid	Filtered compressed air
Proof pressure	1.05Mpa
Operating pressure range	0.18~0.7Mpa
Ambient and fluid temperature	-20~80ºC(No freezing)
Piston speed	50~400mm/s
Port size	M5X0.8		Rc1/8		Rc1/4
Cushion	Rubber bumpers at both ends
Mounting orientation	Unrestricted
Mounting nuts(2pcs)	Standard equipment(Accessory)

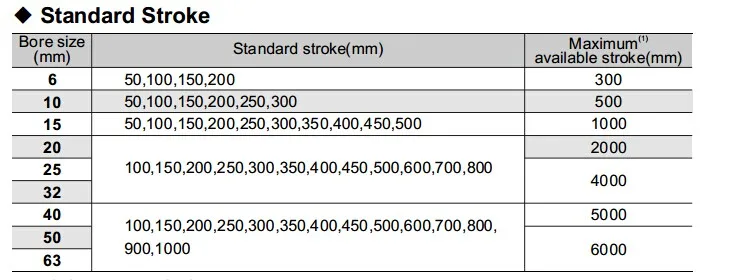

Standard Stroke:

Main Mterial:

No	Description	Material
01	Cylinder Body	Aluminium Alloy
02	Cylinder Tube	Stainless Steel
03	Cylinder Cover	Aluminium Alloy
04	Piston	Aluminium Alloy
05	Cushion Gasket	Polyurethane
06	Wearing Ring	Special Resin
07	Piston Seal	NBR
08	Wiper Scraper Seal	Special Resin

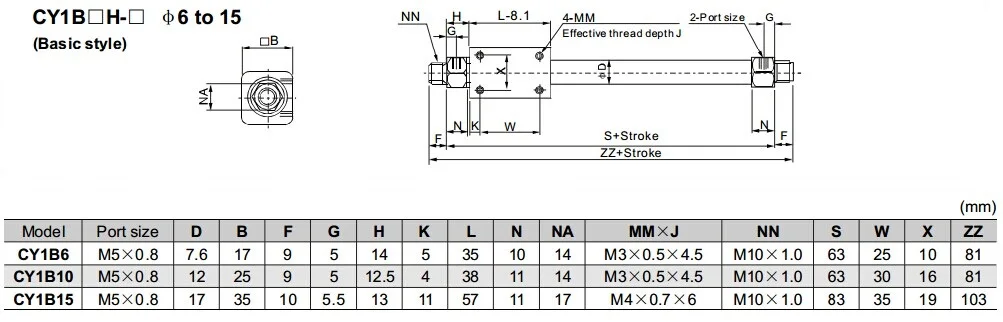

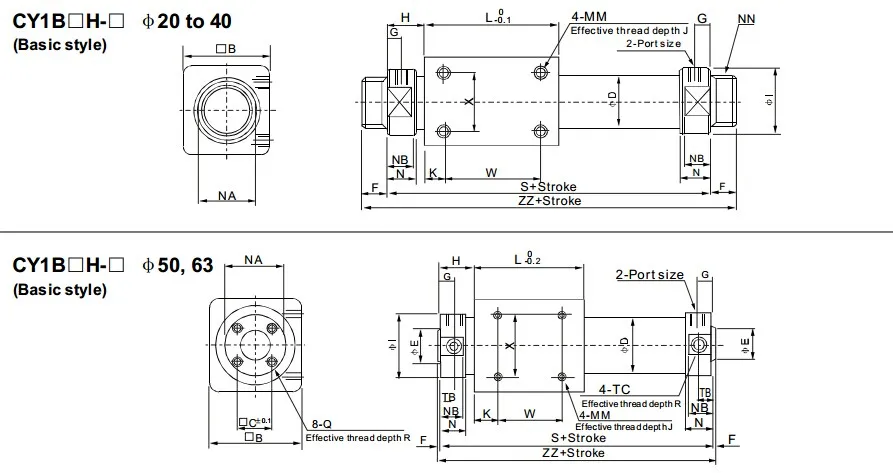

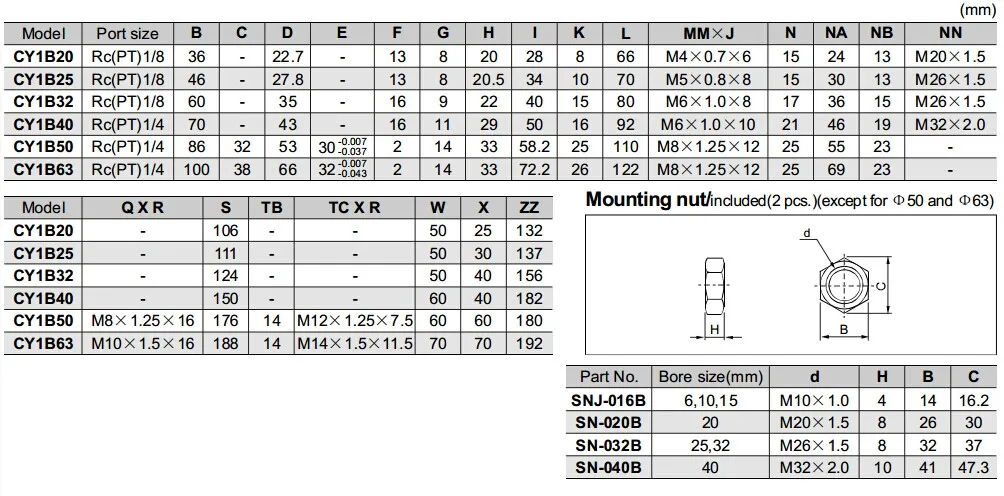

Dimensions and sizes

Shippment
1: Usually we ship your order by sea or by air...
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.

Package
1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: export standard carton, Foam outside protecting the goods against damage

Payment
1: We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.

Why choose us

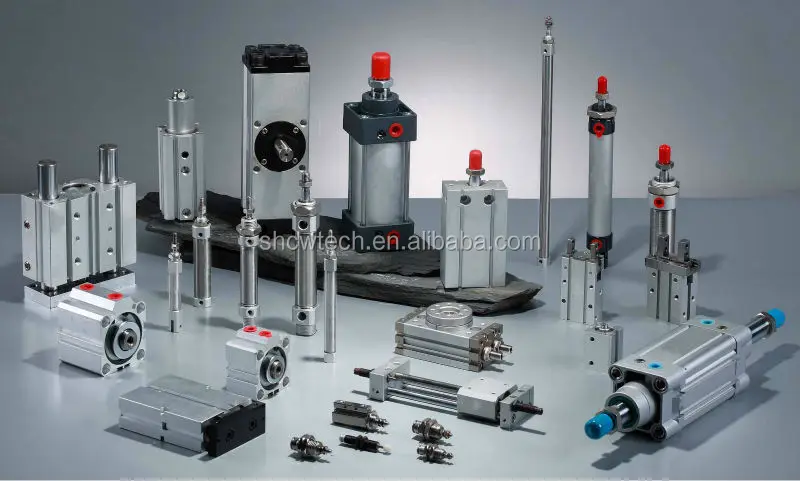

1: Various style for each products and completely series pneumatic products for you to choose from.
