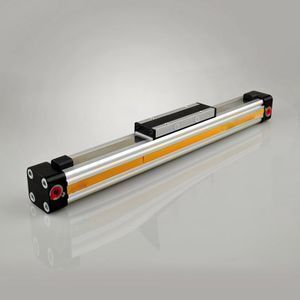

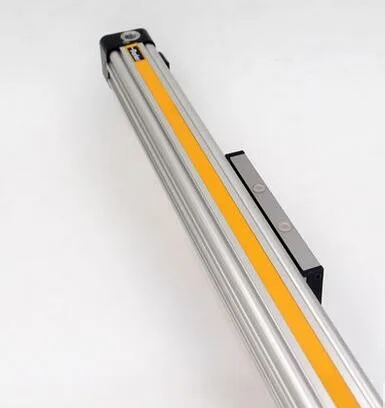

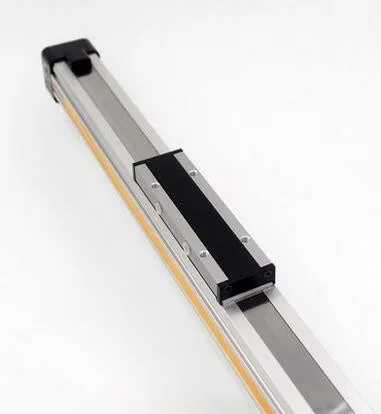

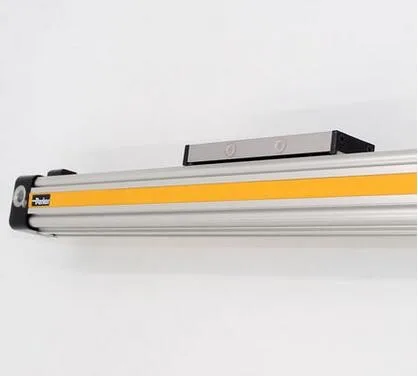

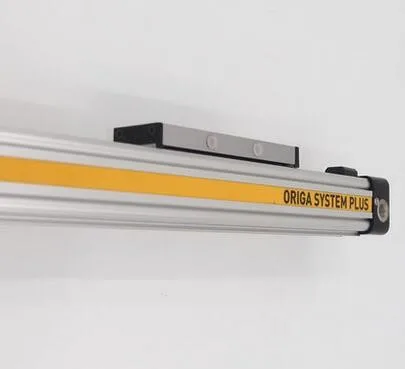

PARKER ORIGA OSP-P25-450mm Mechanically Rodless Cylinder

Supplier: Shanghai Chenwei Trading Co., Ltd.
Region: Shanghai, China
Contact: Ms candy chen
Price: $210.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Standard or Nonstandard:	Standard;	After Warranty Service:	Online support;
Working medium:	compressed air;	Cushion:	adjustable cushion;
Product type:	PARKER ORIGA OSP-P25-450mm Mechanically Rodless Cylinder;	Brand Name:	CW;
Proof pressure:	1.5MPa;	Body Material:	Stainless Steel;
Power:	Pneumatic;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Local Service Location:	None;	Condition:	New;
Structure:	rodless cylinder;	Warranty:	1 YEAR;
Showroom Location:	None;	MOQ:	1pcs;
Selling Units:	Single item;	Single gross weight:	3.0 KG;
Package Preview:	;	Working temperature:	-5-60 degree;
Working pressure:	0.1-1.0MPa;	Single package size:	10X10X80 cm;
Packaging Detail:	export standard package;	Place of Origin:	Zhejiang China;
Speed range:	100-1500mm/s;

PARKER ORIGA OSP-P25-450mm Mechanically Rodless Cylinder

Features:

OSP - P series rodless cylinder adopt unique metal seal inside and outside, has realized the long service life, with excellent performance in the field of automation.
The longest stroke is 6 meters (longer stroke can be customized).
cylinder life is more than 8000 kilometers
Standard cylinder speed: 0.2-4 m/s
Low-speed cylinder speed: 0.005 to 0.2 m/s
High-speed cylinder speed can be up to 30 meters/seconds
Standard control positioning accuracy is up to + / - 3 mm, pneumatic control servo positioning accuracy + / - 0.1 mm/m
Temperature range: - 10 ℃ to 80 ℃
The superior features are widely used in screen printing, pad printing, spraying, throwing knives, feed and other occasions.

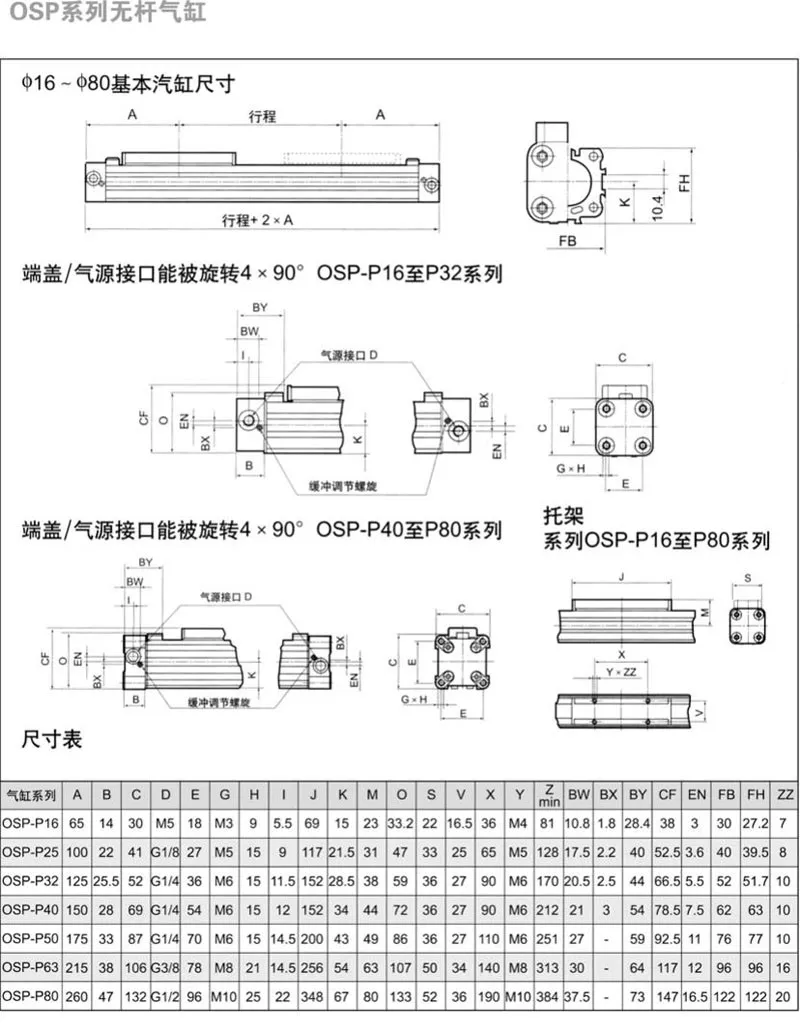

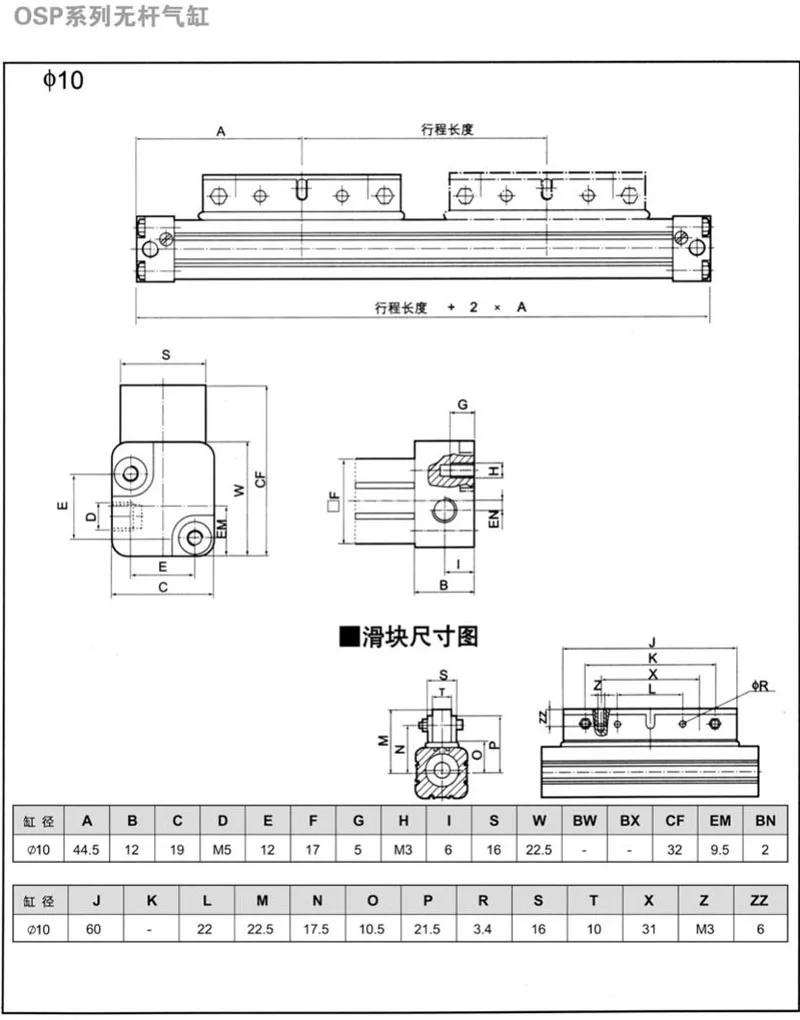

Specification:

Stroke[mmφ]	Theoretical force6bar[N]	Effective force at 6bar[N]	Max Torque			Max Load F[Nm]	Buffer length[mm]
Stroke[mmφ]	Theoretical force6bar[N]	Effective force at 6bar[N]	M[Nm]	Ms[Nm]	Mv[Nm]	Max Load F[Nm]	Buffer length[mm]
OSP-P10	47	32	0.2	1	0.3	20	2.5
OSP-P16	120	78	0.45	4	0.5	120	11
OSP-P25	295	250	1.5	15	3	300	17
OSP-P32	483	420	3	30	5	450	20
OSP-P40	754	640	6	60	8	750	27
OSP-P50	1178	1000	10	115	15	1200	30
OSP-P63	1870	1550	12	200	24	1650	32
OSP-P80	3016	2600	24	360	48	2400	39

Shippment
1: Usually we ship your order by sea or by air...
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.

Package
1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: export standard carton, Foam outside protecting the goods against damage

Payment
1: We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.

Why choose us
1: Various style for each products and completely series pneumatic products for you to choose from.
2: Large stock for fast shipping.
3: High quality with competitive price
4: Sample order & small quantity order is ok

5:Customize according to your special demand.
6: Provide free products information.
7. Reliable quality assured and active after-sell service

Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Saturday. & Sunday and Chinese holidays. If you have any other requirements or questions, welcome to visit our website, or just contact with us directly. Thank you!
