Quick Installation Plug and Play Complete Fuel Monitoring Solution Ultrasonic Fuel Level Sensor with GPS Tracker Fleet Fuel Tracking

Supplier: Shenzhen Ninghui Technology Limited
Region: Guangdong, China
Contact: Mr Alex Wu
Price: $99.00 / 1 - 99 pieces
$91.00 / 100 - 499 pieces
$85.00 / >=500 pieces
Min. Order: 1 piece

Click here to contact

Product details

Minimum level detector:	2-3cm	usage:	Fuel monitoring
Serial port output:	RS485	Single piece packaging size:	28X8X10cm
model:	UL212+TA508-4G	solve:	0.1mm
Output:	RS485	brand:	purpose
accuracy:	99.5%	theory:	ultrasound
Maximum tank thickness:	8 mm	Sales unit:	Single product
Maximum sensor cable length:	9 meters	Model:	UL212+TA508
power supply:	9~45V DC	Place of origin:	Guangdong, China
describe:	purpose	Gross weight of single piece:	2.000kg
type:	liquid level sensor

Product Description

Advantage:	No drawings inside the tank, easy to install	Material:	Any liquid, diesel or gasoline
Output:	RS232(RS485)/Analog(0~5V)	solve:	0.1mm
Baud rate:	Default 9600 or customized	power supply:	9~36V DC
measure:	1m (default) or 2.5m	Tank thickness:	up to 8mm

Specification

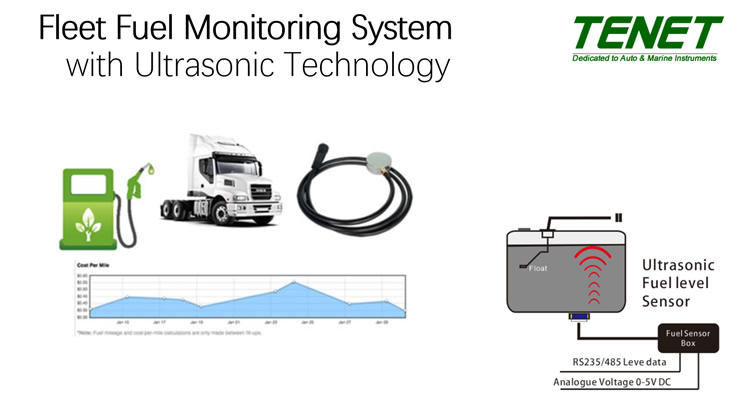

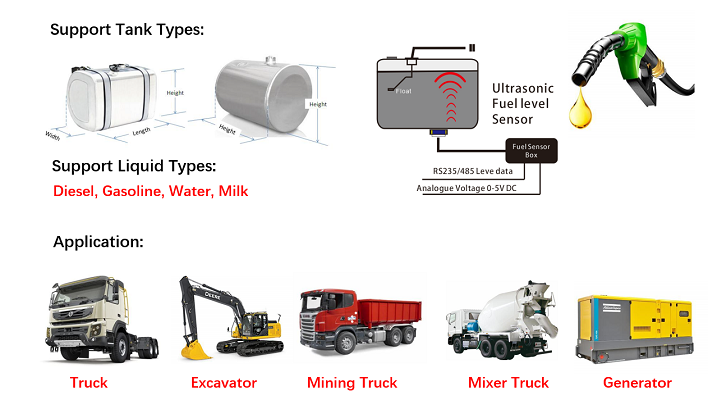

Ultrasonic fuel level sensor.

Applications: M2M devices, GPS trackers, mobile DVR

* No drawings/tank disassembly required, easy installation
* Serial output: RS232 (default)/RS485
* Analog output: 0~5V (default)
* Baud rate: default 9600 or customized
* Measuring range: 1m (default) or 2m
*Material: any liquid, diesel or gasoline
* Resolution: 1~2mm
* Minimum liquid level detection: 5~6cm
*Maximum. Tank thickness: UL202 supports MAX 8 mm; UL202-E supports MAX 12mm
*Maximum. Sensor cable length: 15 meters
* Power supply: 5~36V DC
* Detector IP66, controller box IP61
* Supported brands: Teltonika, Calamp, Atracker, Wireless Link, BSJ, Queclink, Meitrack, etc.

detailed picture
