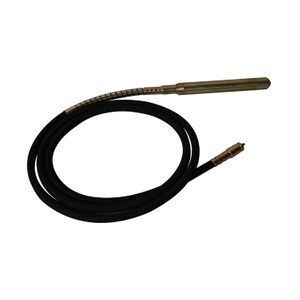

standard pin type electric vibrator poker concrete vibrator vibrator poker
- 30.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Payment Terms: | L/C,D/A,T/T; | Type: | Internal; |
| Vibrator poker: | V28; V32; V38; V45; V50; V60; V70; | Supply Ability: | 5000 Carton/Cartons per Month; |
| Warranty: | 1 Year; | Length of Flexible Shaft: | 6m (4-10m as optional); |
| Voltage: | 220V; | Weight: | 25kg; |
| Color: | Customer's Request; | Model: | SS-VE; |
| After-sales Service Provided: | Online support; | Packaging Detail: | Packaging DetailsPacking is the Carton made of strong,sturdy wooden Compressive strength and corrosion resistancePortShanghai 25-30days after confirming order,detail delivery date should be decided according to production season and order quantity.; |
| Dimension(L*W*H): | 50/60HZ 1.4-2.4mm 80x68x7; | Drive Mode: | Electric Vibrator; |
| Application: | Construction Industry; | Applicable Industries: | Construction works ; |
| Port: | shanghai; | Place of Origin: | Jiangsu China (Mainland); |
| Engine: | Electric; | Certification: | CE; |
| Condition: | New; | Brand Name: | SUNSHINE; |
| Engine Type: | Electric motor; | Coupling: | Customer's Request; |
| Model | SS-VE | ||||||
| Motor | Electric motor | ||||||
| Rated power [KW] | 2.2 | ||||||
| Voltage [V] | 220 | ||||||
| Frequency [Hz] | 50/60 | ||||||
| Phase | single phase | ||||||
| Unloaded Speed [RPM] | 2850 | ||||||
| Vibrator poker | V28 | V32 | V38 | V45 | V50 | V60 | V70 |
| N.W./G.W. [kg] | 8/10 | ||||||
| Package (L x W x H) [cm] | 25X20X35 | ||||||
| Model | V28 | V32 | V38 | V45 | V50 | V60 | V70 |
| Poker size[dia.x Lenght] | 28x450 | 32x450 | 38x465 | 45x475 | 50x475 | 60x480 | 68x480 |
| Vibrating Amplitude [mm] | 1.4 | 1.8 | 1.8 | 2 | 2 | 2.4 | 2.4 |
| Dia. of flexible hose [mm] | 30 | 30 | 30 | 30 | 32 | 32 | 32 |
| Dia. of flexible shaft [mm] | 10 | 10 | 10 | 10 | 12 | 12 | 12 |
| N.W.[kg] | 15 | 15.5 | 16 | 17 | 19 | 22 | 23 |
| Length [m] | 6m (4-10m as optional) | ||||||
| Vibrating frequency [VPM] | 12000-14000 | ||||||
| Rotational speed [rpm] | 3000-3600 | ||||||
| Package (L x W x H) [cm] | 53x42x45 | ||||||
| Package size [cm] | 80x68x7 | ||||||
Concrete Vibrator
The basic principal of concrete vibration is to consolidate the mix by removing entrapped air. Vibration is a series
of rapid compressive impulses which greatly reduces the surface friction between the various size particles of
the mix. The result is the rearrangement of these particles into a denser mass. During the vibration process.
Unwanted trapped air escapes to the surface.
The advantages of consolidating concrete by vibration:
Greater density of the concrete
Greater strength
Improved bond with reinforcement steel
Greater bond on construction joints
Greater durability
Improved product finish
