Worm & Worm Gear Spare Parts

Supplier: Taizhou Sihai Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Hailey Wang
Price: $25.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Applicable industries:	Hotels, clothing stores, machine repair shops, food and beverage factories, retail, food and beverage stores, advertising agencies	Customization support:	Processing
port:	Shanghai/Ningbo	brand:	Chen Xin, Chen Xin
model:	RV025-150	Supply capacity:	8000 pieces per month
Packaging details:	1 set/carton, several cartons/wooden pallets	pressure angle:	20/25 degrees
direction:	left hand	Place of origin:	Zhejiang, China (Mainland), Guangdong, China
Transmission arrangement:	insect	Warranty:	1 year
payment terms:	L/C, Western Union, T/T

SMRV series worm

gear unit

High

output

Torque

Product Description

Technical performance and selection reference

Motor Power	Model	Speed ratio	Output speed	Output torque
0.25kW 1400rpm	RV075	60	24 rpm	68.0 nautical miles
		RV075	80	18 rpm	80.0 nautical miles
		RV075	100	14 rpm	94.0 nautical miles
0.37kW 1400rpm	RV075	40	35 rpm	74.0 nautical miles
		RV075	50	28 rpm	88.0 nautical miles
		RV075	60	24 rpm	97.0 nautical miles
		RV075	80	18 rpm	119.0 nautical miles
		RV075	100	14 rpm	139.0 nautical miles
0.55kW 1400rpm	RV075	25	56 rpm	76.0 nautical miles
		RV075	30	47 rpm	87.0 nautical miles
		RV075	40	35 rpm	108.0 nautical miles
		RV075	50	28 rpm	128.0 nautical miles
		RV075	60	24 rpm	144.0 nautical miles
		RV075	80	18 rpm	177.0 nautical miles
		RV075	100	14 rpm	206.0 nautical miles
0.75kW 1400rpm	RV075	15	94 rpm	66.0 nautical miles
		RV075	20	70 rpm	85.0 nautical miles
		RV075	25	56 rpm	101.0 nautical miles
		RV075	30	47 rpm	117.0 nautical miles
		RV075	40	35 rpm	147.0 nautical miles
		RV075	50	28 rpm	174.0 nautical miles
		RV075	60	24 rpm	196.0 nautical miles
		RV075	80	18 rpm	250.0 nautical miles
1.1kW 1400rpm	RV075	10	140 rpm	66.0 nautical miles
		RV075	15	94 rpm	95.0 nautical miles
		RV075	20	70 rpm	122.0 nautical miles
		RV075	25	56 rpm	148.0 nautical miles
		RV075	30	47 rpm	171.0 nautical miles
		RV075	40	35 rpm	216.0 nautical miles
		RV075	50	28 rpm	263.0 nautical miles
		RV075	60	24 rpm	297.0 nautical miles
1.5kW 1400rpm	RV075	7.5	186 rpm	68.0 nautical miles
		RV075	10	140 rpm	89.0 nautical miles
		RV075	15	94 rpm	129.0 nautical miles
		RV075	20	70 rpm	166.0 nautical miles
		RV075	25	56 rpm	202.0 nautical miles
		RV075	30	47 rpm	233.0 nautical miles
		RV075	40	35 rpm	299.0 nautical miles
2.2kW 1400rpm	RV075	7.5	186 rpm	99.0 nautical miles
		RV075	10	140 rpm	131.0 nautical miles
		RV075	15	94 rpm	189.0 nautical miles
		RV075	20	70 rpm	249.0 nautical miles
		RV075	25	56 rpm	304.0 nautical miles
		RV075	30	47 rpm	247.0 nautical miles
3.0kW 1400rpm	RV075	7.5	186 rpm	135.0 nautical miles
		RV075	10	140 rpm	178.0 nautical miles
		RV075	15	94 rpm	258.0 nautical miles
4.0kW 1400rpm	RV075	7.5	186 rpm	180.0 nautical miles
4.0kW 1400rpm		RV075	10	140 rpm	237.0 nautical miles

Specification

product name	RV075 worm gear reducer/worm gearbox
ratio	7.5,10,15,20,25,30,40,50,60,80,100
strength	0.25~4.0kW
color	blue/silver/black or as per request
weight	9kg
Material	Shell: aluminum alloy

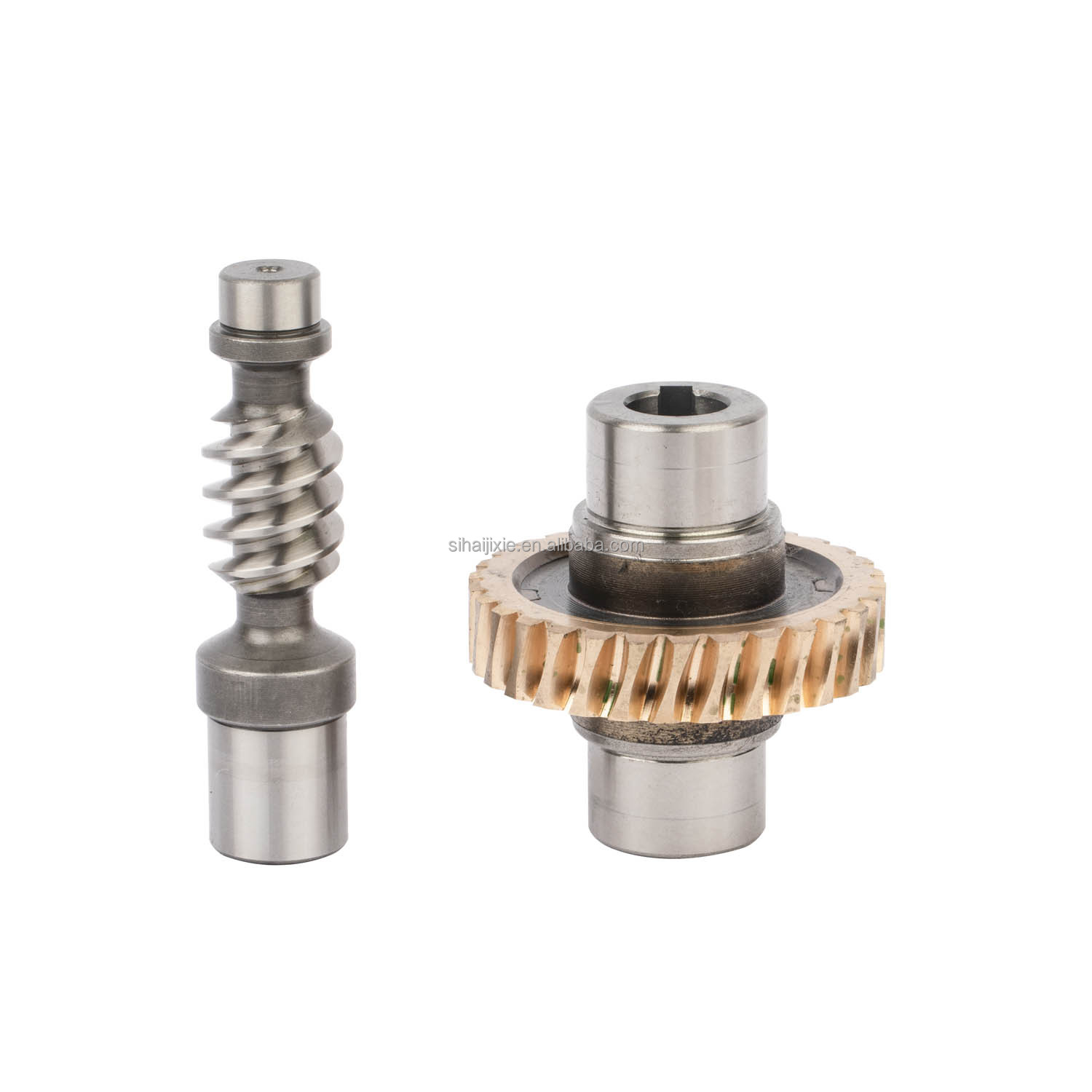

		The gear is made of carburized 20CrMnTi material, which has good wear resistance and no noise.
		The worm gear is hub cast iron QT500 and bronze ZQSn10-1
		Worm shaft: 20Cr steel, surface carburizing, hardness HRC60
Stand-alone input version	SMRV: suitable for motor flange couplings
		SMRV-E: Motor flange coupling with worm extension shaft
		SRV: with input shaft
		SRV-E: with double extension worm shaft
Applicable number of motor poles	2 pole, 4 pole, 6 pole
Imperial size	usable
Personal customization	usable
Extra services	Processing
quality assurance	1 year
feature	High precision, smooth transmission and large output torque. It also means high quality and long service life.
		Multiple heat sinks for rapid heat dissipation
		Suitable for all-round installation

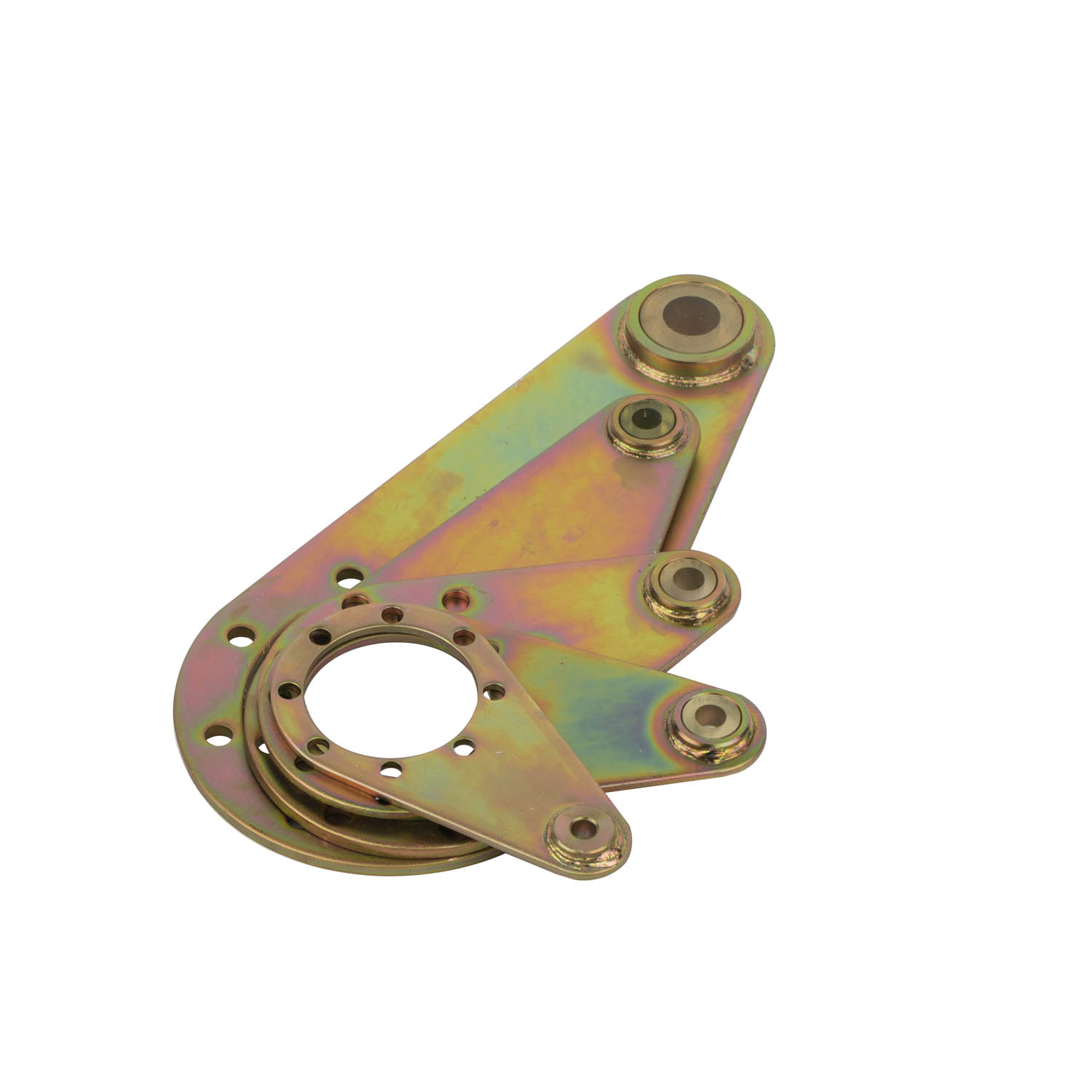

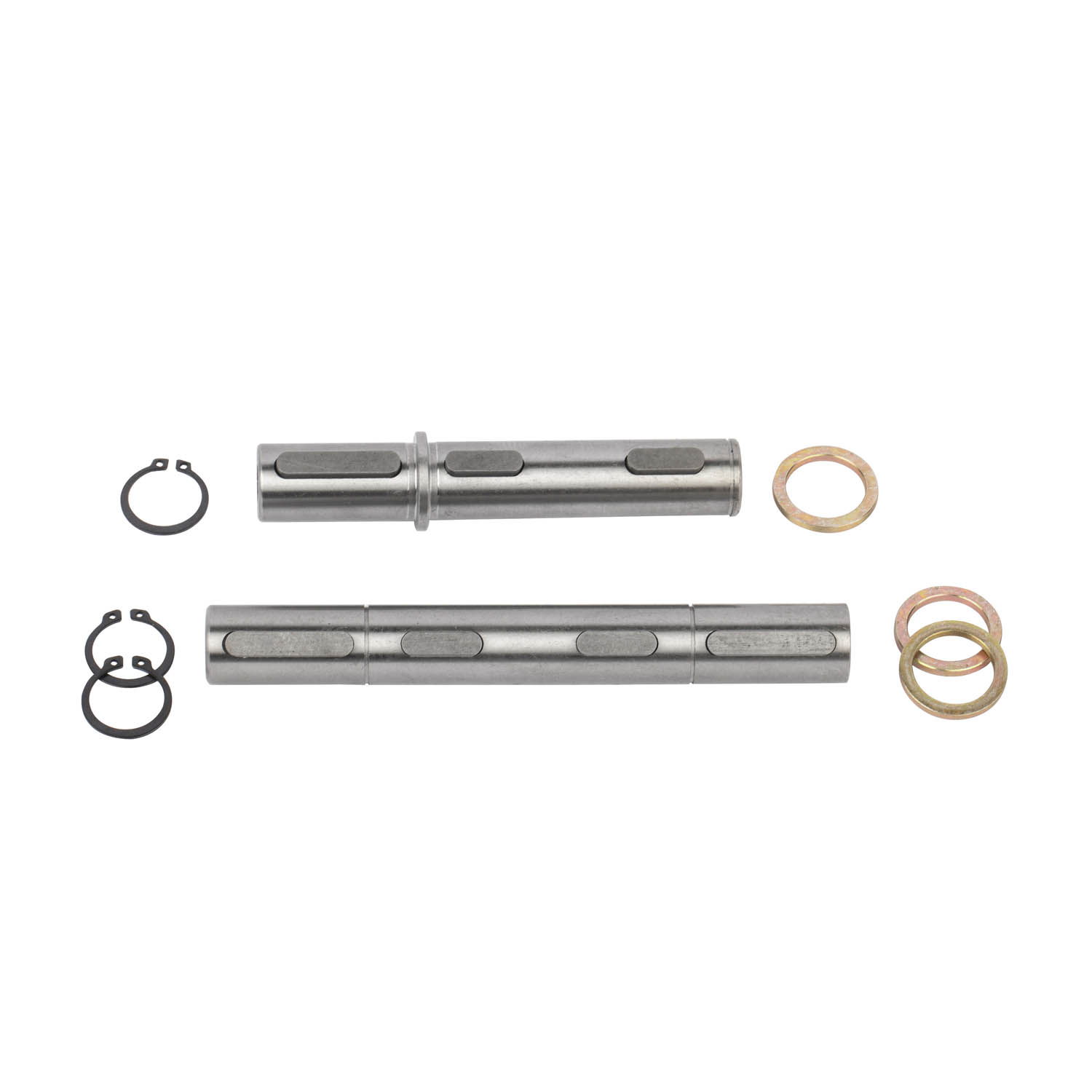

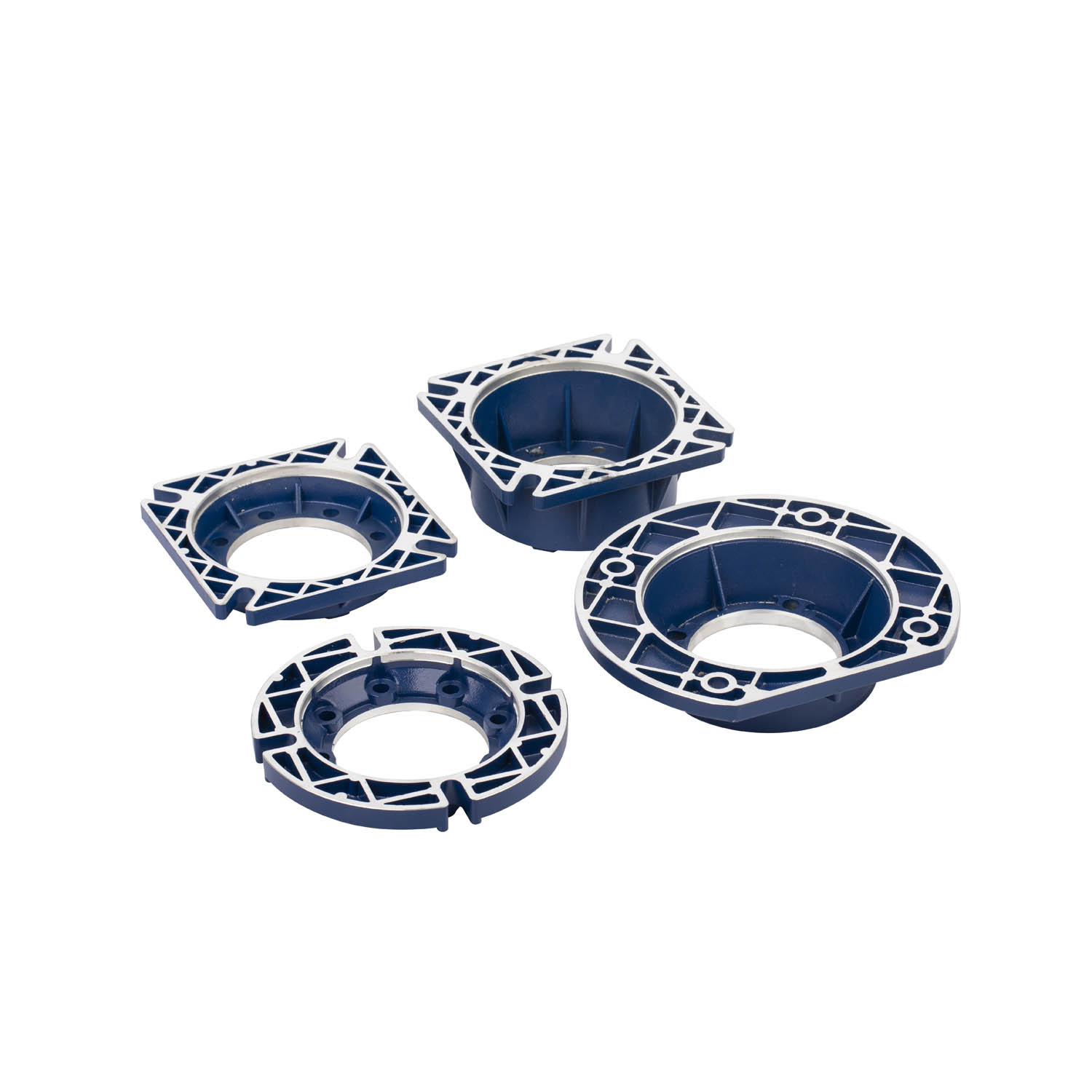

		Various accessories can be easily installed such as torque arms, different types of flanges, shafts, etc.
		Good anti-rust properties

We produce reducers in strict accordance with ISO9001 standards and provide customers with high-quality reducers at competitive prices. Our gearboxes are equipped with accessories from internationally renowned brands, such as SKF brand oil seals, Shell brand lubricants, and NSK brand bearings. Housings and gears are produced under our company's strict quality control. All our products are in large stock, we can also provide you with customized reducer solutions, please feel free to contact us.

Taizhou Sihai Machinery Co., Ltd.

history:More than 20 years of experience in manufacturing reducer products. Scale: Covering an area of 13,300 square meters. m, with more than 113 employees.
technology: A group of professionals. Technical engineers and strong R&D team.
manage: Scientific ERP management and strict quality control system.
equipment: 50 CNC lathes and 6 mechanical processing machines. Center, 6 gear grinding machines, 2 high-speed hard tooth surface gear hobbing machines, 12 gear hobbing machines
machine. 10 CNC cylindrical grinders, 4 CNC internal cylindrical grinders, 1 spectrometer, 1 high-speed gear shaping machine,
The gear measurement center has 2 coordinate measuring machines and 1 coordinate measuring instrument.
Innovation: Continuously enrich product categories to meet customer needs. Production capacity: 1000 pieces/day.
Long-term supplier to world-class enterprises:The main markets are in Southeast Asia, Europe and the Middle East.
Marketing model: all export business.

FAQ

Q1: How to choose a reducer that meets our requirements?
A1: Tell me the motor information, or provide drawings of relevant parameters of the motor, or take some clear photos of the motor and related equipment for me. I would appreciate it if you could tell me what type of reducer you originally used.

Q2: When is the best time to contact you?
No matter what time, I will reply to you as soon as possible.

Q3: How is the quality of your products?
A3: Quality will always be the foundation of our company. I recommend you buy a sample to evaluate the quality. Taizhou Sihai Machinery Co., Ltd. Engaged in reducer R&D, design and production for more than 20 years.

Q4. Do you offer tours?
A4: Yes! welcome! Give me advance notice.

Q5. How long does the delivery time take?
A5: We agreed at that time
