Privileged JN MPPT 12v 24v 48v Automatic Solar Wind RS485 Hybrid Panel Charge Controller 1000W

Supplier: Anhui Jnge Power Co., Ltd.
Region: Anhui, China
Contact: Ms Sunny Tao
Price: $124.00 / 1 - 19 pieces
$122.83 / >=20 pieces
Min. Order: 1 piece

Click here to contact

Product details

Protection level:	IP30	Storage temperature:	-30℃~70℃
Supply capacity:	1,000,000 pieces per year	weight:	4kg
efficiency:	99%	size:	350310170mm
color:	green	Warranty:	1 year
Packaging details:	Our solar charge controller standard export packaging; solar panel charge controller; solar power generation system	Working hours (hours):	24 hours
Certificate:	CE	type:	Maximum power point tracking
port:	Any port in China	model:	JN-MPPT-Privilege-1000W
RS485 communication:	Elective	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Place of origin:	Anhui, China	brand:	JNGE
product name:	JN-privilege-1000w	Battery Type:	AGM/lithium configurable
Operating temperature:	-20℃~50℃

product description

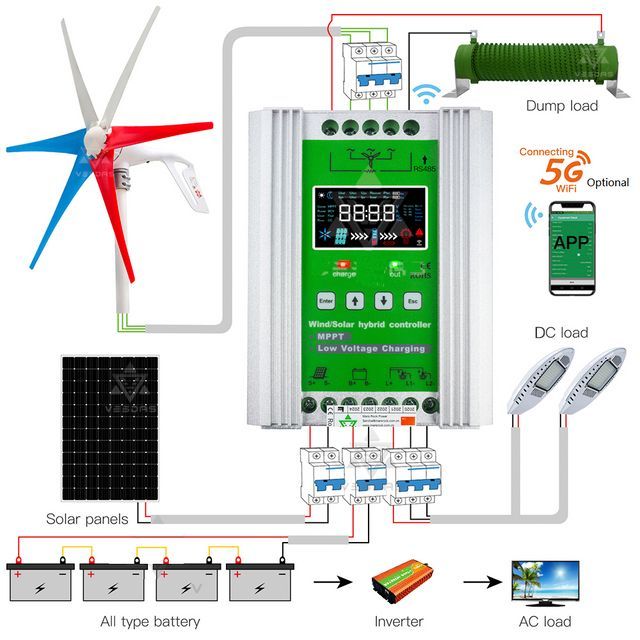

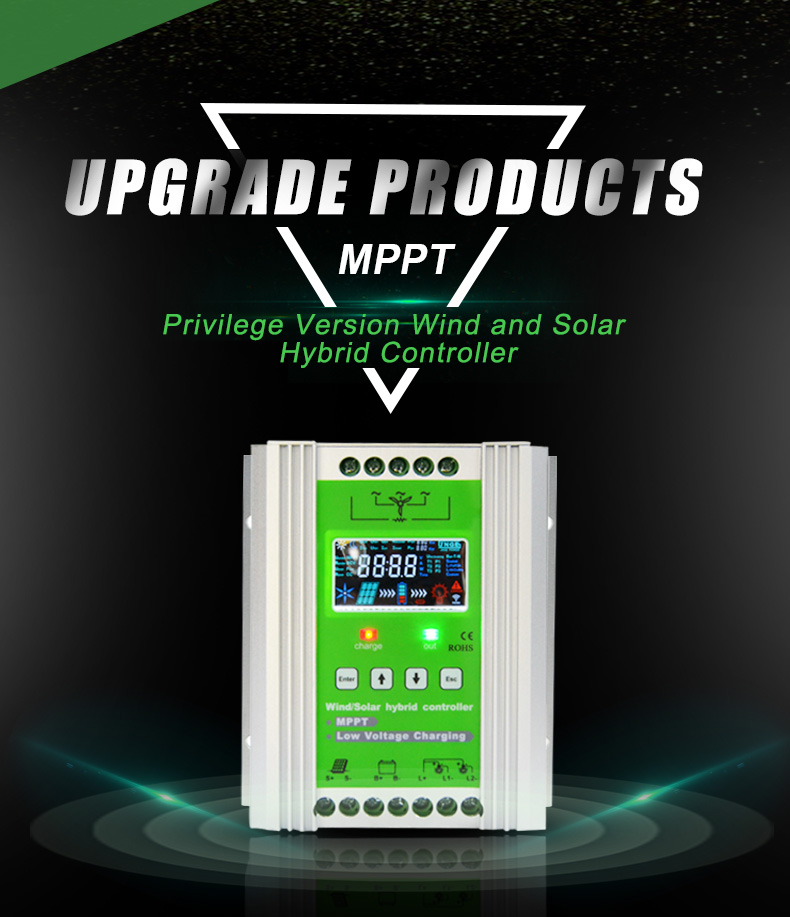

MPPT hybrid wind solar charge controller

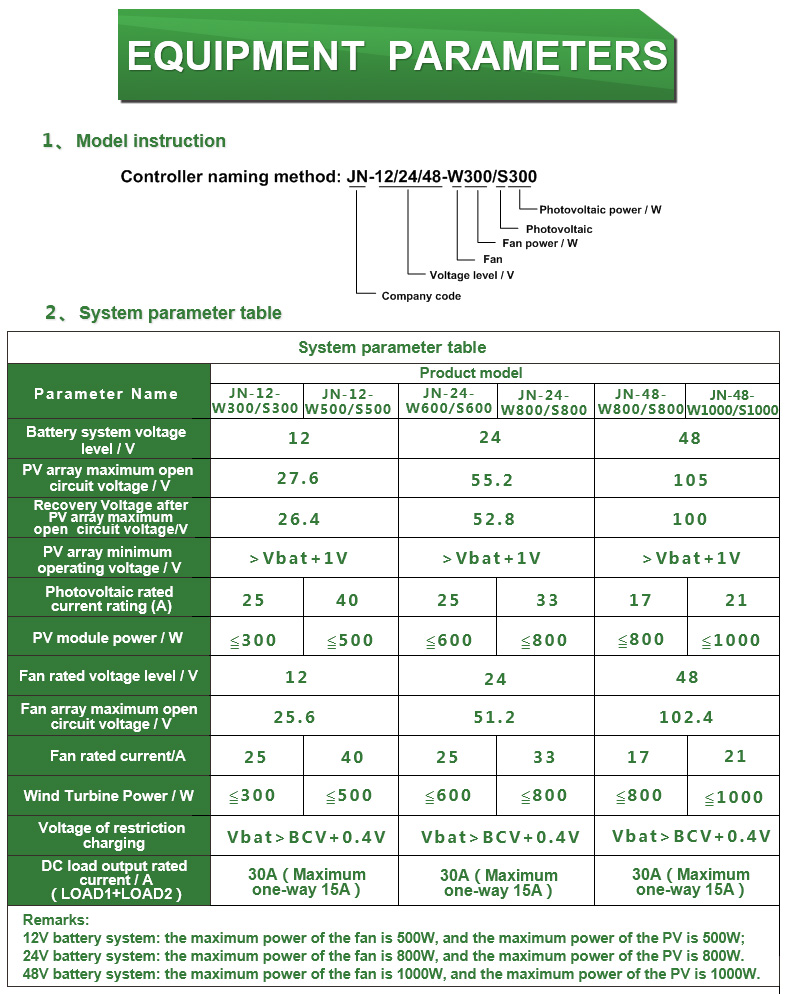

Product parameters

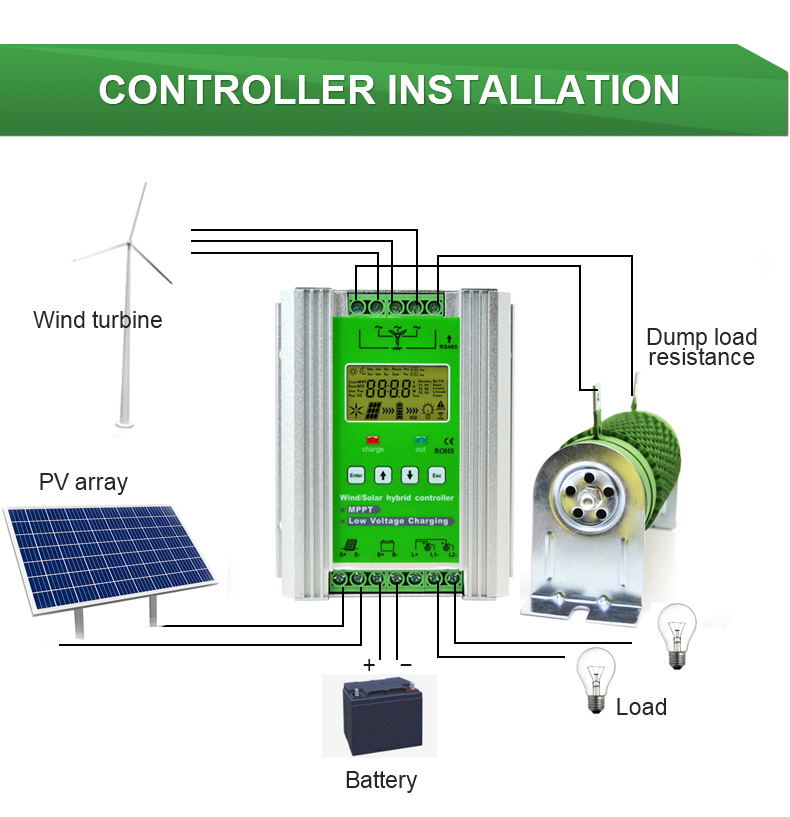

Wind and solar complementary charging controller

Product Details

▷ With multiple load control modes, the DC load has two outputs, and the output power and time can be set

▷ Time control: Street light and home street light mode: The time can be set through the UP and DOWN keys. The default value is "15H". You can set other times as needed. This time, the night working time of the street light is set.

Home mode: The time is "24H", indicating that the DC load needs to work 24H

Wind and solar complementary charging controller

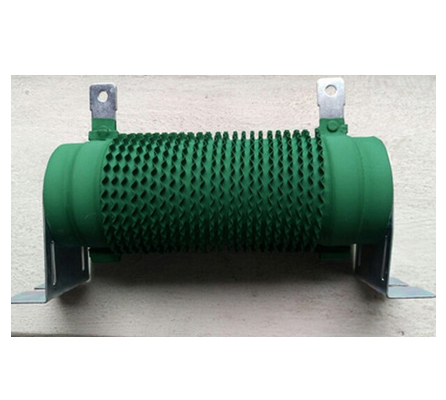

▷Unloading resistor is a default component at no additional cost

▷ Comprehensive protection functions: overcharge, over-discharge, overload, etc.

▷When the wind speed is high or the fan power exceeds the battery and load absorption range, the controller immediately activates the stepless unloading resistance protection system

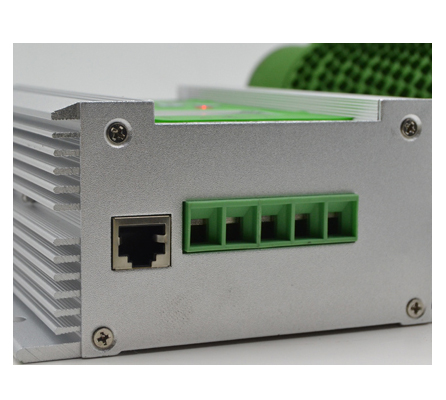

▷Remote monitoring through three methods: computer monitoring; mobile phone WIFI; through mobile phone GPRS

▷Fan three-stage charging mode: MPPT charging-lift charging-floating charging-

▷ Photovoltaic three-stage charging mode: CC constant current - boost charging - float charging -

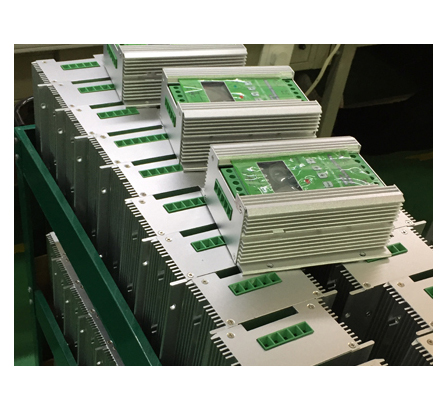

Product processing
