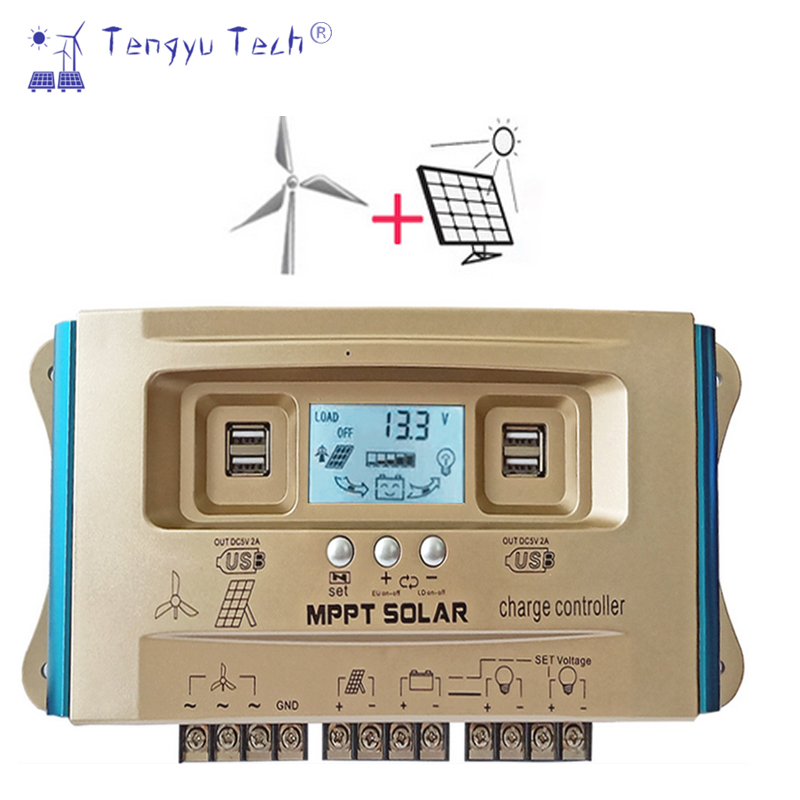

Tengyu's new wind-solar hybrid charging controller dual USB charging wind-solar hybrid system controller MPPT charging regulator

Click here to contact
Product details
product name:MPPT Wind-Solar Hybrid Charge Controllermodel:TY-WSC-06
Certificate:Chief Executivetype of battery:Lead-acid/lithium/lithium iron phosphate battery
exhibit:LCD screenplace of origin; place of origin:Guangdong, China
Single package size:29X14X10 cmFunction:Wind Solar Hybrid Charge Controller
brand:OEMWarranty:3 years, 3 years
type:MPPTRated current:30A/40A/50A/60A/100A
Certification:Chief ExecutiveGross weight per piece:1.000 kg
Charging Mode:MPPT maximum power point trackingSales unit:single product
Rated voltage:12v/24V/36V/48V/60V Autoapplication:Charger Controller, Wind Controller, Solar System Controller
Packaging Preview:Maximum PV Voltage:90V
System Voltage:12v/24V/36V/48V/60V Auto
Product Description
product name
Tengyu's new wind-solar hybrid charging controller dual USB charging wind-solar hybrid system controller MPPT charging regulator

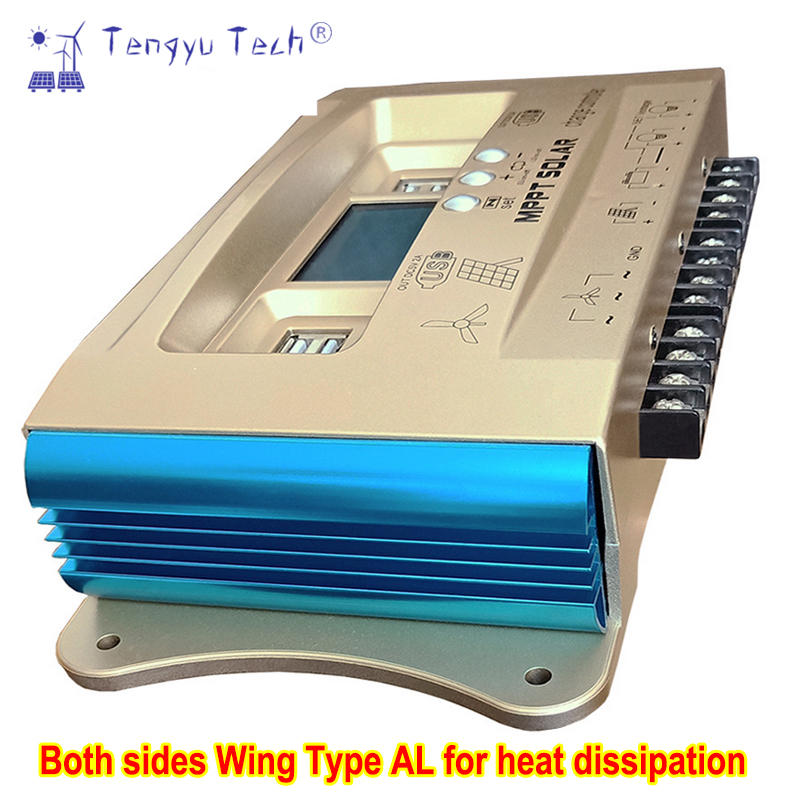

Material
aluminum
Function
MPPT Solar Charge Controller for Lithium and Lead Acid Battery Solar Conditioners
pack
Neutral bag

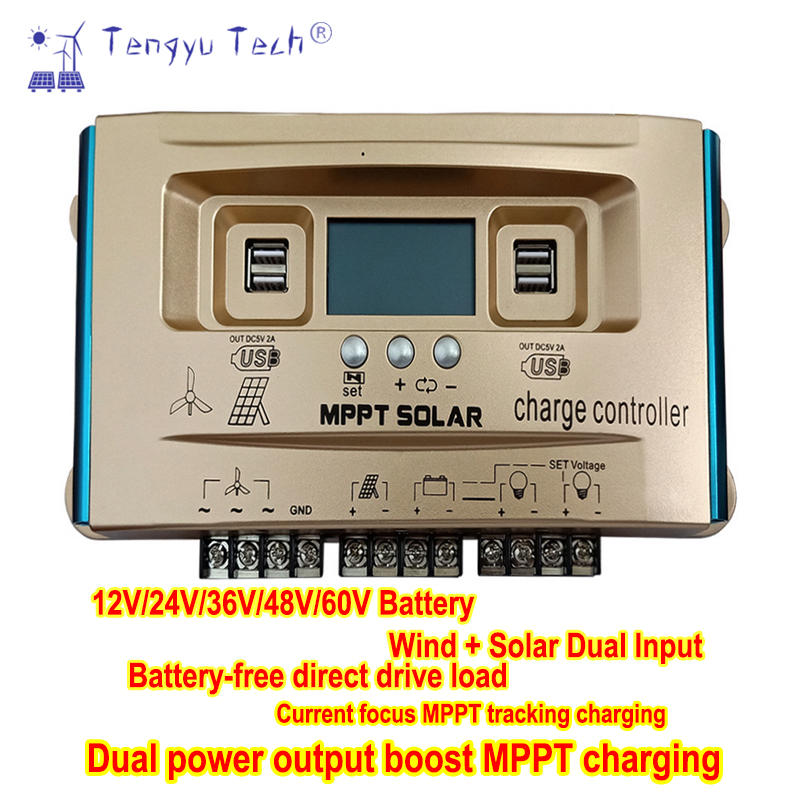

  • Performance description


Tengyu's new wind-solar hybrid charging controller dual USB charging wind-solar hybrid system controller MPPT charging regulator

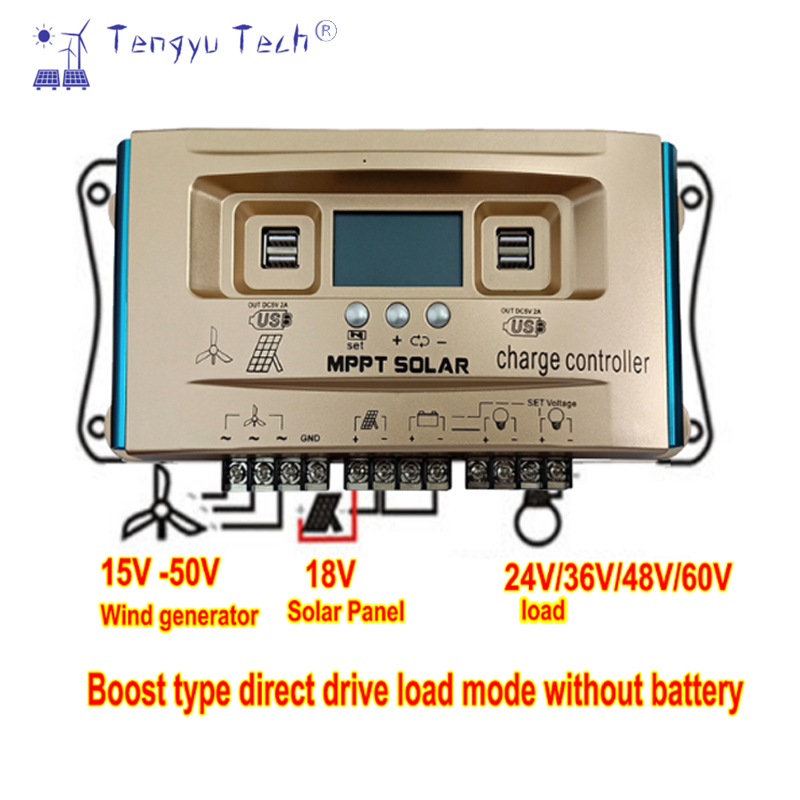

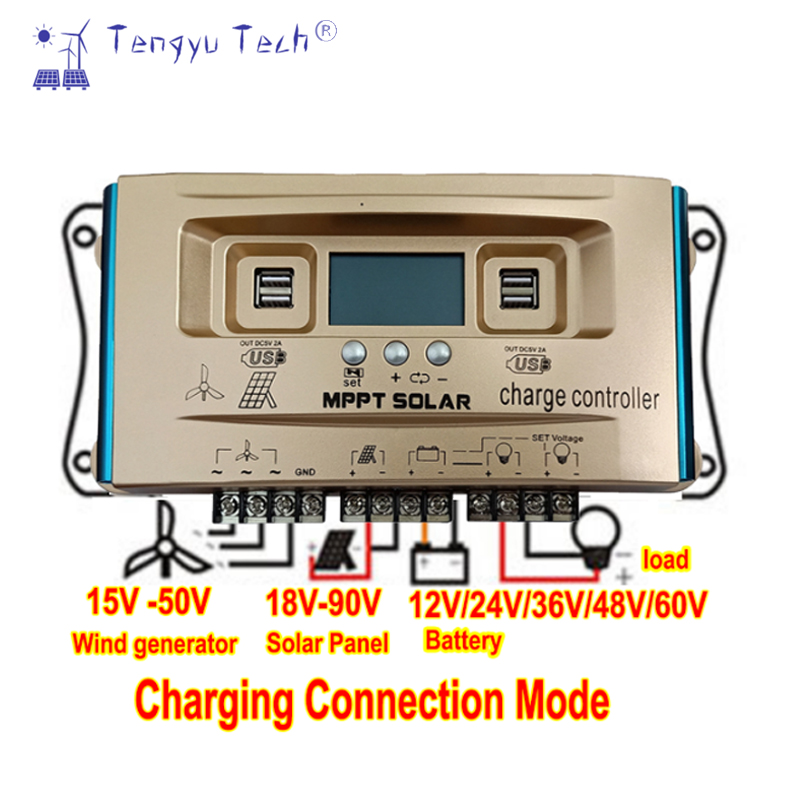

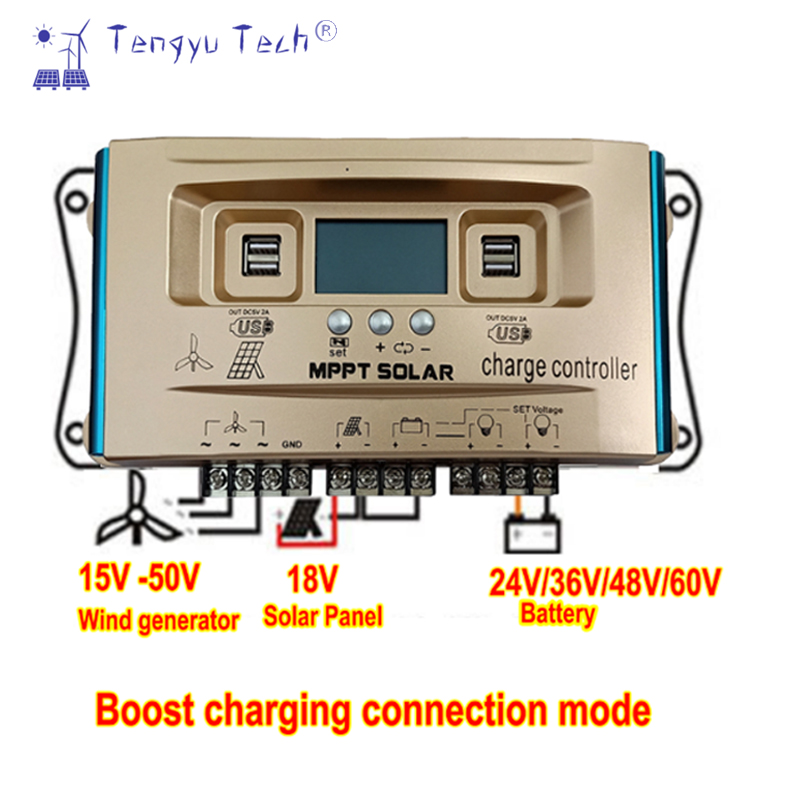

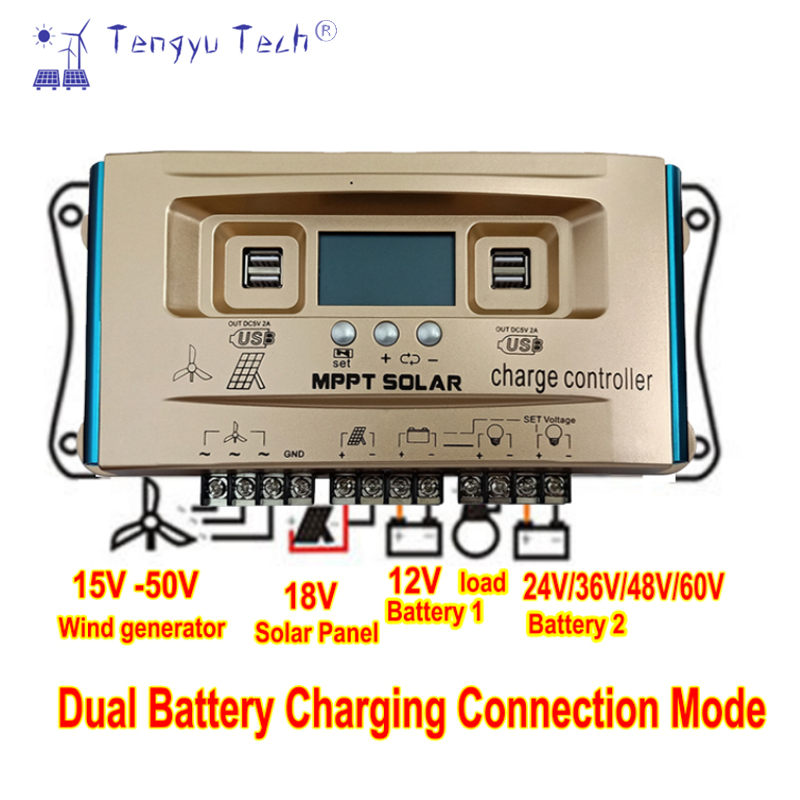

Connection method
Product parameters
Model
TY-WSC-30
TY-WSC-40
TY-WSC-50
TY-WSC-60
TY-WSC-100
Rated charging current
30A
40A
50A
60A
100A
Rated discharge current
10A
10A
20A
20A
30A
Balanced 12V/24V
B01 Lithium
B02 gel
B03 Flood
12.2V/24.4V
14.2V/28.4V
14.6V/29.2V
maximum solar input
18V solar panel for 12V battery, 36V solar panel for 24V <40V
Balanced 36V/48V
B01 Lithium
B02 gel
B03 Flood
37V/49V
42V/56V
44V/58V
maximum solar input
54V solar panel for 36V battery and 72V solar panel for 48V <80V

Balanced 60V
B01 Lithium
B02 gel
B03 Flood
61V
71V
73V
maximum solar input
60V battery is charged with 90V solar panel, the voltage is less than 100V
12V float
14.2V (default, adjustable) 12.0---15.0
12V discharge stop
10.7V (default, adjustable) 9.0---11.5V
12V discharge reconnect
12.5V (default, adjustable) 11.0---13.0V
24V float
28.4V (default, adjustable) 24.0---29.0V
24V discharge stop
19.0V (default, adjustable) 18.0---22.0V
24V discharge reconnect
22.0V (default, adjustable) 22.0---26.0V
36V floating
42.0V (default, adjustable) 36.0---45.0V
36V discharge stop
30.0V (default, adjustable) 27.0---33.0V
36V discharge reconnection
38.0V (default, adjustable) 36.0---42.0V
48V floating
56.0V (default, adjustable) 48.0---60.0V
48V discharge stop
40.0V (default, adjustable) 36.0---44.0V
48V discharge reconnection
50.0V (default, adjustable) 48.0---56.0V
60V float
71.0V (default, adjustable) 60.0---75.0V
60V discharge stop
50.0V (default, adjustable) 45.0---55.0V
60V discharge reconnect
63.0V (default, adjustable) 60.0---70.0V
self-consumption
<10mA
USB output
Maximum 5V/2A
Operating temperature
-10-+60℃
size and weight
268*138*66mm/650g
