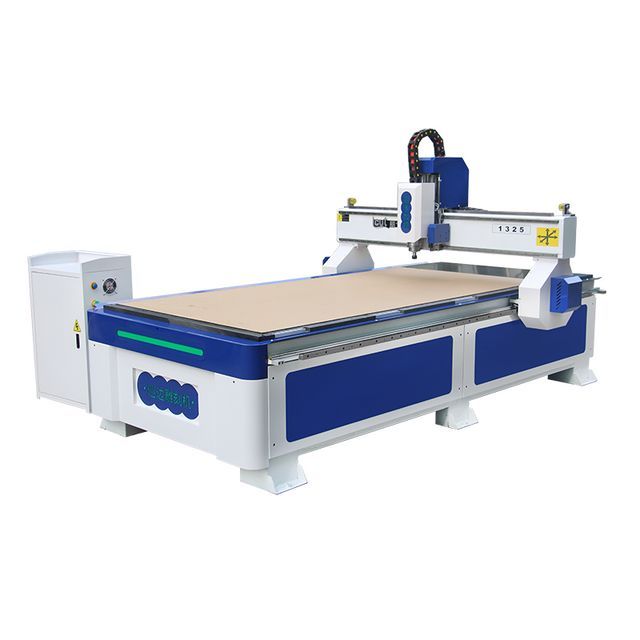

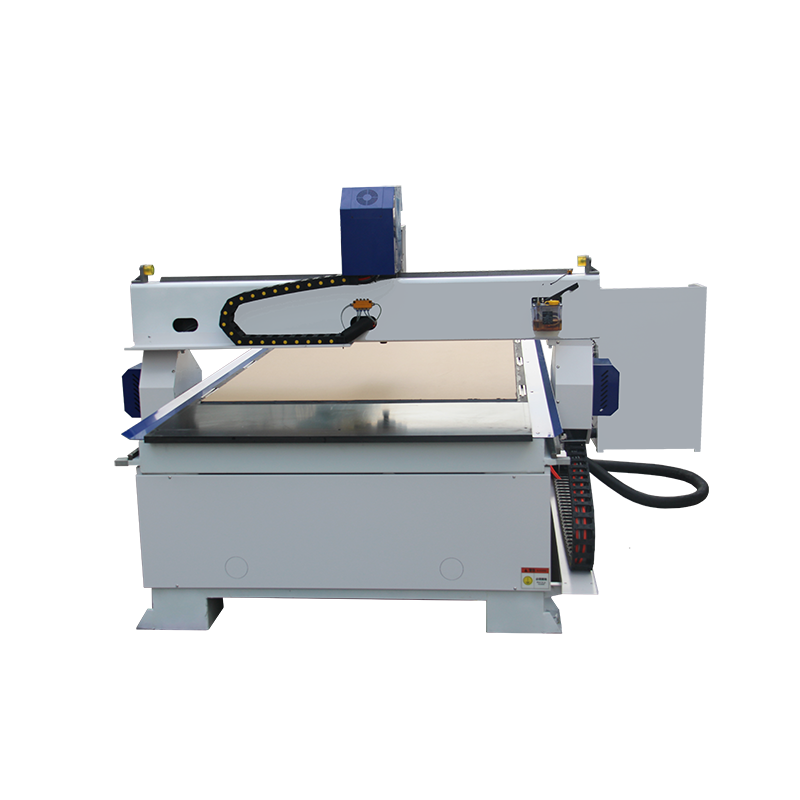

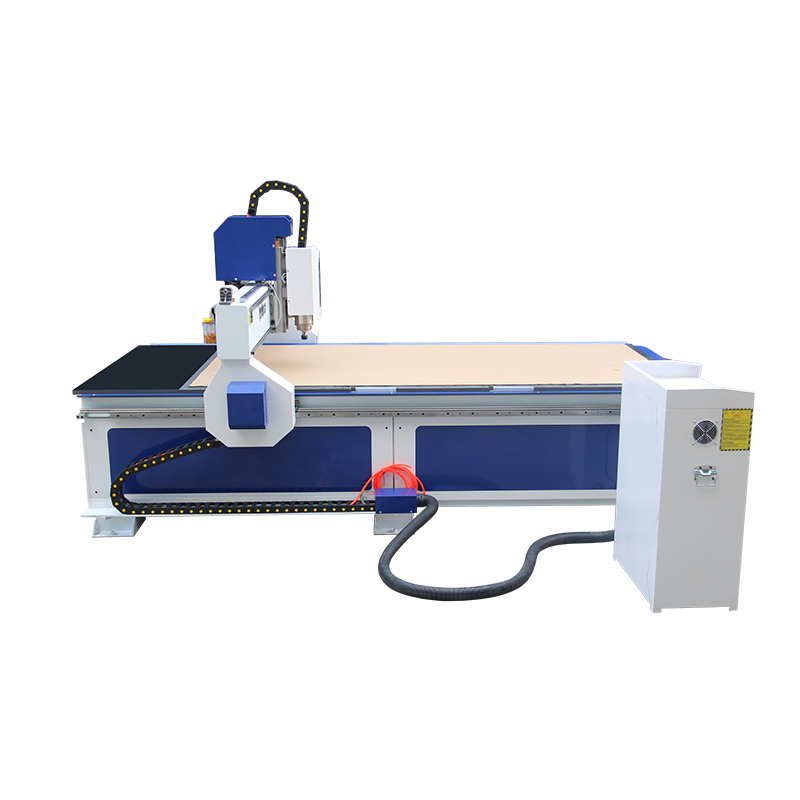

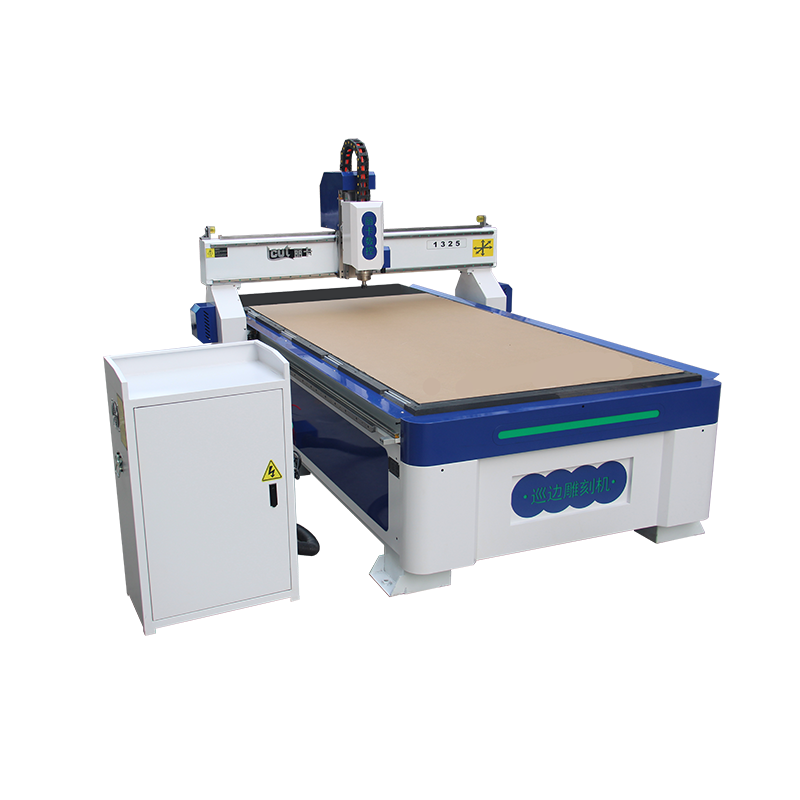

Price concessions CNC router mechanical cutting and engraving 3d CNC router

Click here to contact
Product details
Core components:PLC, motor, gear, pumpDimensions (length*width*height):3300*2000+1550mm
Showroom location:Russia, Chile, South AfricaHealth status:new
Main selling points:multifunctionalApplicable industries:Advertising industry
Spindle speed range (rpm):0 - 40000 rpmFunction:Sculpture
Core component warranty:3 yearsport:Shanghai, Qingdao, Ningbo, Shenzhen
Positioning accuracy (mm):0.05mmRepeatability (X/Y/Z) (mm):≤0.05mm
brand:LCUTPackaging details:1. Whole film packaging machine 2. Anti-collision wrapping 3. Fumigation-free plywood wooden box iron ties
Translation speed:200-800/secondWeight (kg):900
Warranty:3 yearsMarketing type:normal product
Material:PVC, acrylic, density board, foam board, ABS, aluminum-plastic, etc.Mechanical test report:if
Supply capacity:5,000 sets per monthMachine name:CNC milling machine/engraving and cutting machine/CNC milling machine
Place of origin:Henan, Chinaapplication:Precision electrodes, other applications, precision molds
Spindle power (kW):3.2Video outbound inspection:if
Repeat accuracy:0.05 mmDrive System:High precision linear guide
type:CNC engraving machine/engraving cutting machine/cnc engraving machineMaximum cutting size:2500mm*1300mm
payment terms:L/C, Western Union, T/T, MoneyGram
Product Description
Specification
Model
LCUT-A3+ CNC engraving machine
Drive System
Imported servo motor
translation speed
200-800/second
Cutting thickness
50mm
date format
DXF/HPGL, etc.
interface
USB/Internet port
Repeat accuracy
0.05 mm
motor
stepper motor
Drive System
High precision linear guide
Spindle motor power
3.2KW
Vacuum fan power
2.2kW
Maximum cutting size
2500mm×1300mm
Applicable materials
PVC, acrylic, density board, foam board, ABS, aluminum-plastic, etc.
Function
CNC engraving machine/CNC milling machine/engraving machine
