ATC CNC Mini Metal Milling Machine

1. Picture:

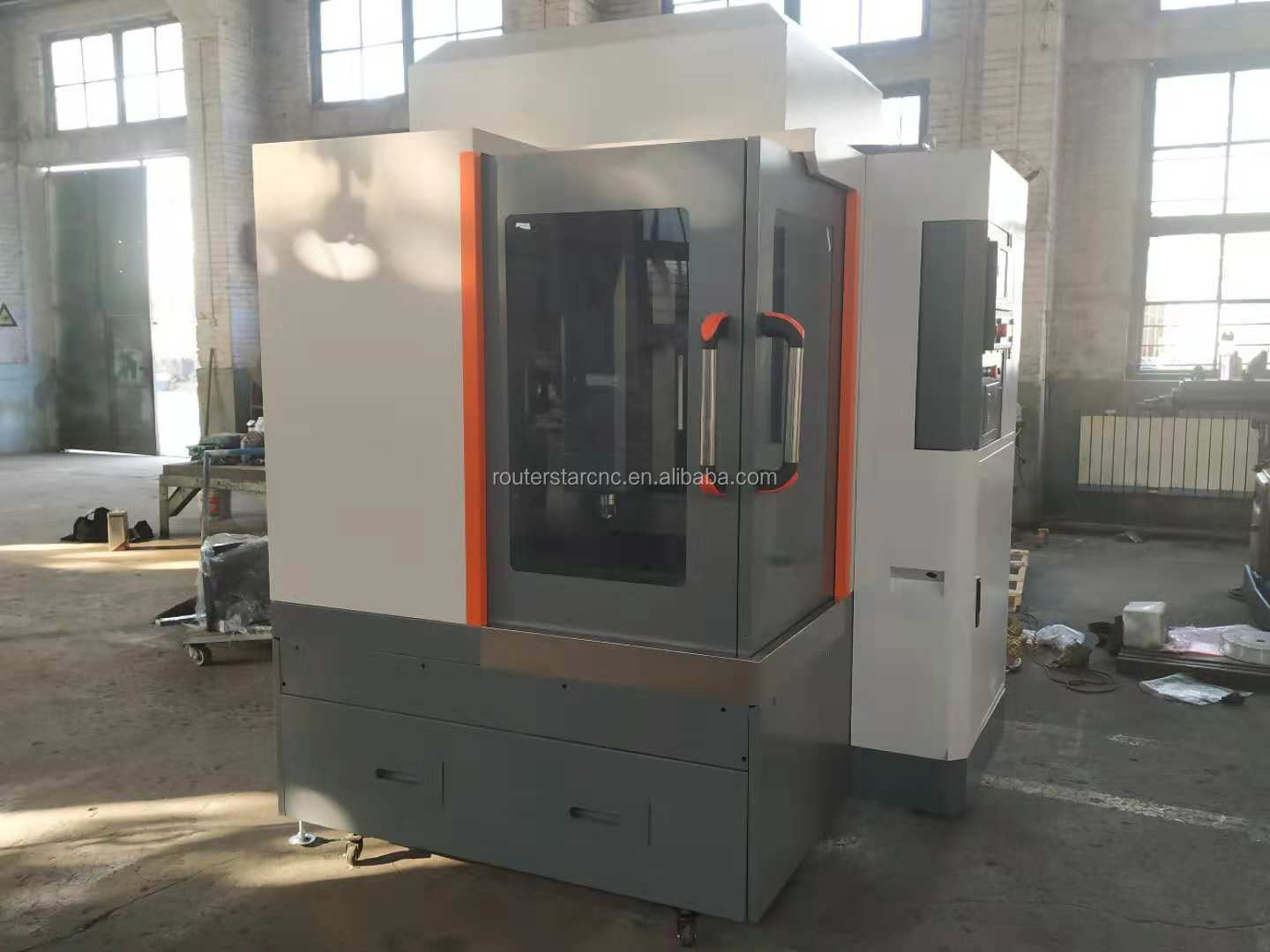

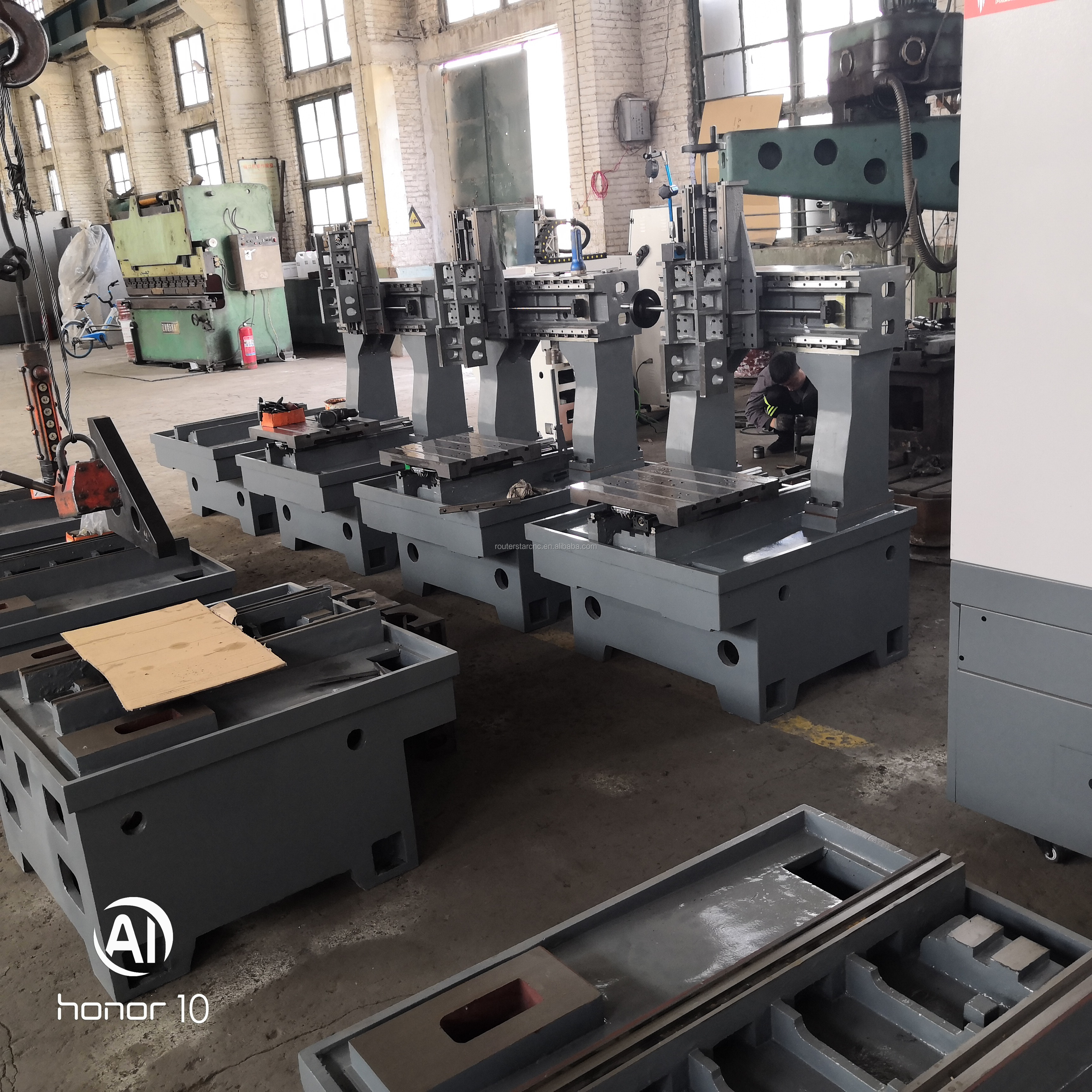

The whole body is made of cast iron, which is stronger, and the weight of the whole machine is 1000kgs

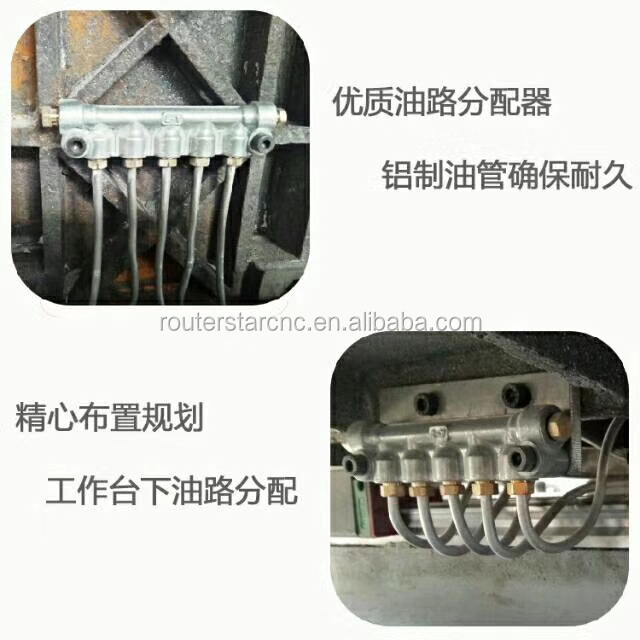

All tubing is metal not plastic for longer life

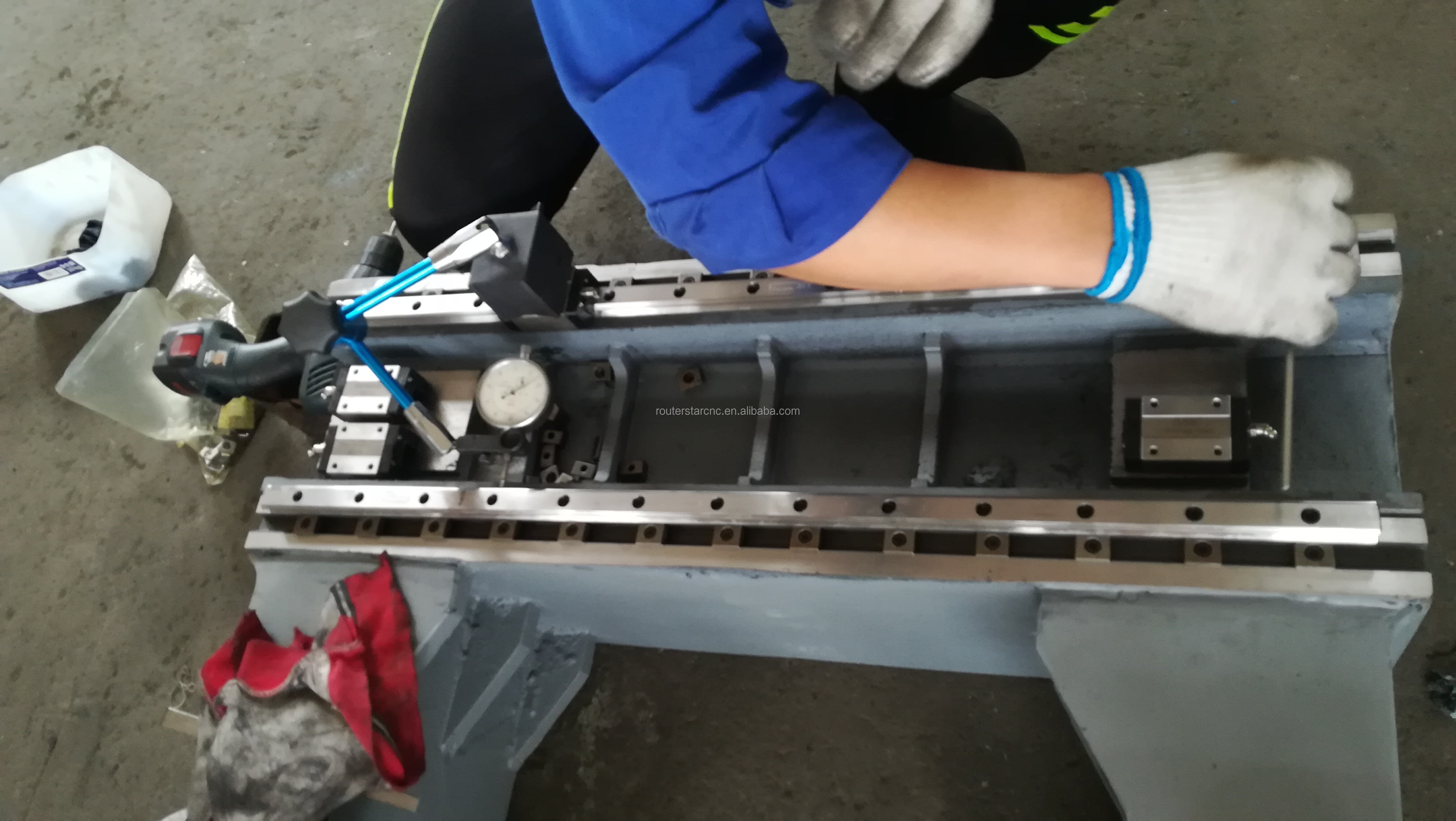

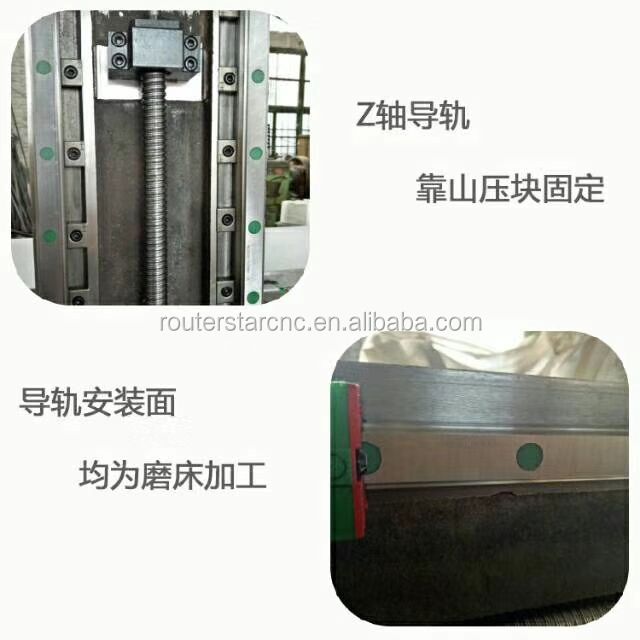

All rail installations are stabilized by metal pieces to ensure straight work and never deform

The track mounting surface is all milled by CNC grinding machine.

All installations will be checked with professional instruments

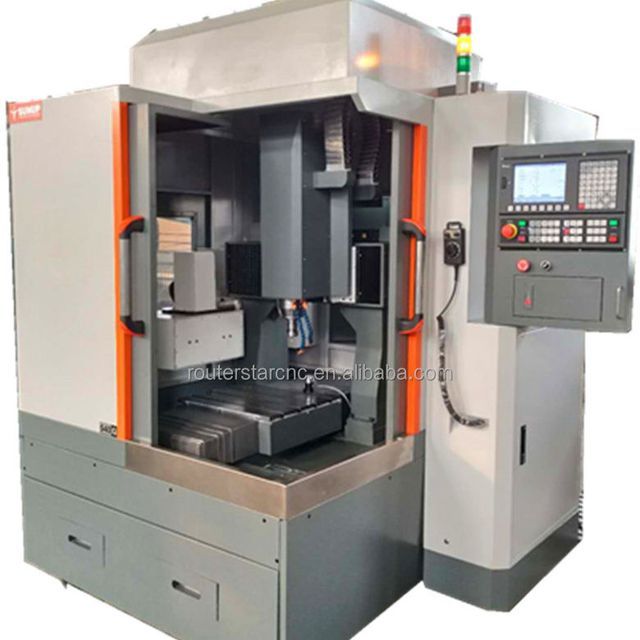

Mini CNC milling mold making machine with moving table. The machine body is cast iron, more stable

bright

A computer screen is required in the control system

higher precision

#Working area: 400*400*250mm. Machine cast iron

#AC220V 50/60HZ 1 phase

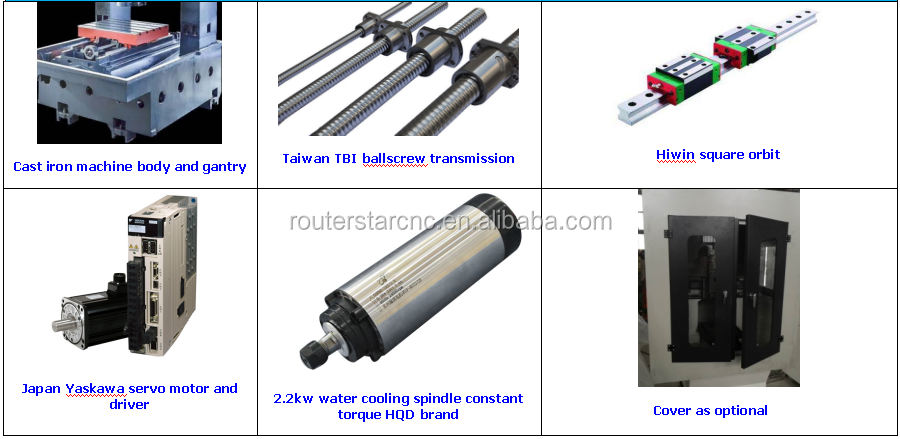

#Delta Control System

#XYZ Taiwan original track

#TBI XYZ axis ball screw

#Japan Yaskawa servo motor and driver 400w

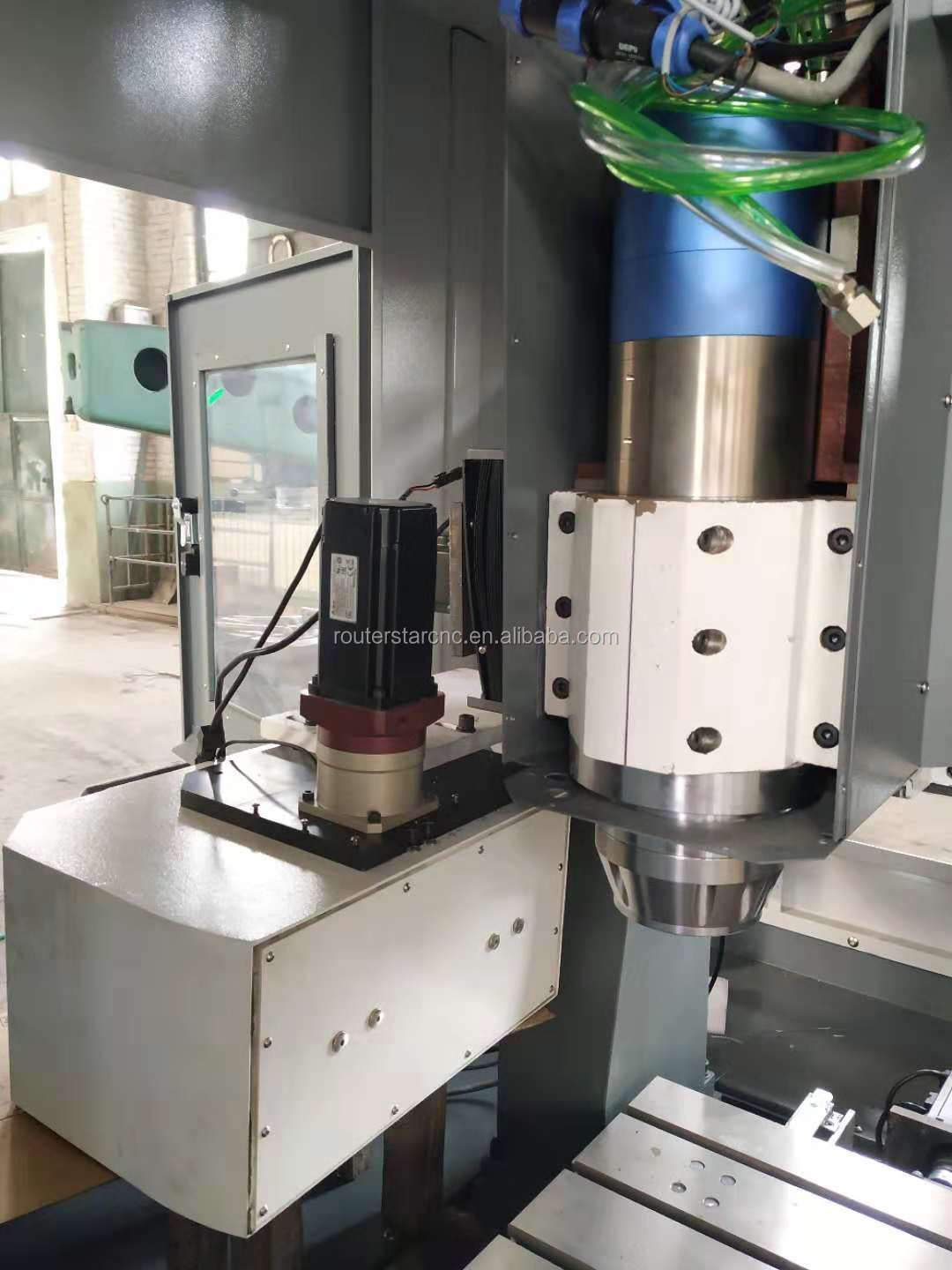

#China ATC spindle 5.5kw BT30

#Delta Inverter

#Wooden packing

#Package size: 1.2*1.3*2.2m

# Weight: 1100 kg

2. Parameters

3. Application

RS5040ATC Mini Forming Engraving Machine

Mainly for the forming industry, metal parts manufacturing industry

Material: stone, marble, steel, stainless steel, iron carving and milling.

steel,

Equipped with an automatic tool change system, which can automatically change the tool, the speed is fast,,,,

Milling jobs can be done quickly.

The rough and fine machining of the core of the precision mold mold is completed at one time, the copper electrode of the mold, the batch processing of aluminum products, the shoe mold manufacturing, the jig processing, the watch eye industry

Engraving and milling machine: as the name suggests. It can be engraved or milled. On the basis of the engraving machine, the main shaft, servo motor power, and bed endurance are added. While maintaining the high speed of the main shaft, the more important thing is high precision. Engraving and milling machines are also developing at high speeds, generally called high-speed machines, with stronger cutting capabilities and high machining accuracy. They can also directly process materials with a hardness above HRC60 and form them at one time.

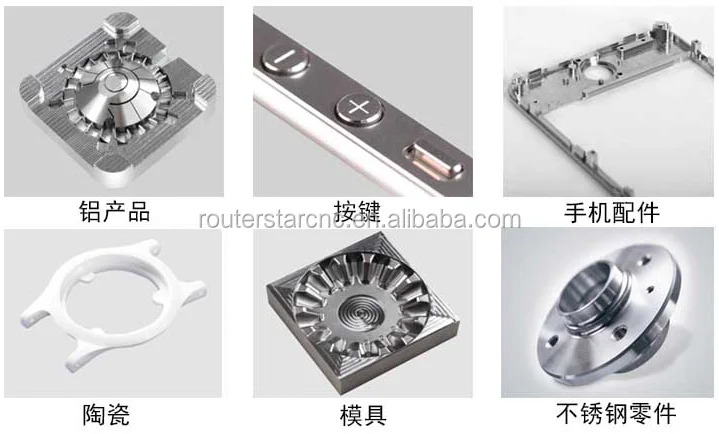

4. Working sample:

Aluminum products

metal button

phone parts

ceramics

molded metal

stainless steel parts

How to choose the right CNC engraving and milling machine?

1. Tell me what size do you want? 400*400 or 600*600 or 600*500mm?

2. Which metal will you process, if you know its HRC hard material is better

3. What products do you produce? It would be better if you show me your sample pictures

4. How much precision do you want? We will match the right configuration for you.

Also, please do not compare this milling machine with the normal CNC milling machine 6060, the parts are all different, and the milling machine is made of integral cast iron. The weight is 1000 kg, if the size is 650, the weight of the cast iron body is 2700 kg. Original Taiwan Shangyin/PMI track, large ball screw, original NC studio system NC60A or Delta system......

1. All detailed consulting services before sales.

2. 12 months quality guarantee time after sale, the main parts of the machine (excluding wearing parts) are not man-made damage, we will send you a new one for free during the warranty period (but need your help to return the old part).

3. Free training in our factory.

4. Parts will be provided to you at cost price.

5. 24 hours a day online service, free technical support for life.

Our staff can come to your place for training or adjustments
