Factory Direct Sell High Precision Linear Shaft

Supplier: Lishui Wangong Precision Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms. Annie Xu
Price: $3.00 / >=10 meters
Min. Order: 10 meters

Click here to contact

Product details

Diameter:	3--150mm;	Port:	Shanghai or Ningbo Port;
Packaging Detail:	Factory Direct Sell High Precision Linear Shaft Packing Details : 1,PE bag,Shock Bubble Bag,Export standard carton,wooden box 2,Based on customer special requirement Delivery Time : 1,Generally we have stock for the items which is highly wide used,so the production time always will be 15-20 Days against payment 2,For big orders,we need negotiate on the delivery time;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Hardness Depth:	0.8-3mm;	Torque Capacity:	Customers'requirements;
Coatings:	GCr15, S45C,9Cr18;	Structure:	Circular;
Customized:	Customized Drawing;	Surface Hardness:	HRC58-62;
Treatment:	Chrome Plating;	Technology:	Induction Hardened;
Place of Origin:	Zhejiang China (Mainland);	Product name:	Linear Shaft VS Rotary Shaft;
Material:	S45C Carbon Steel or Bearing Steel;	Model Number:	SWC/SF6;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Construction works ,linear shaft;	Roughness:	Within 1.5;
Tolerance:	h7,g6,h6,f7;	Brand Name:	ERSK;
Supply Ability:	500000 Meter/Meters per Month;	Straightness:	75um/1000mm;

Product Description

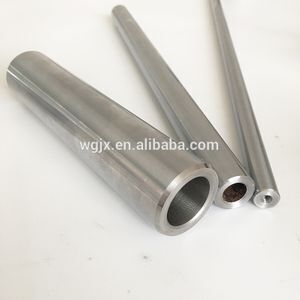

Factory Direct Sell High Precision Linear Shaft In 6mm

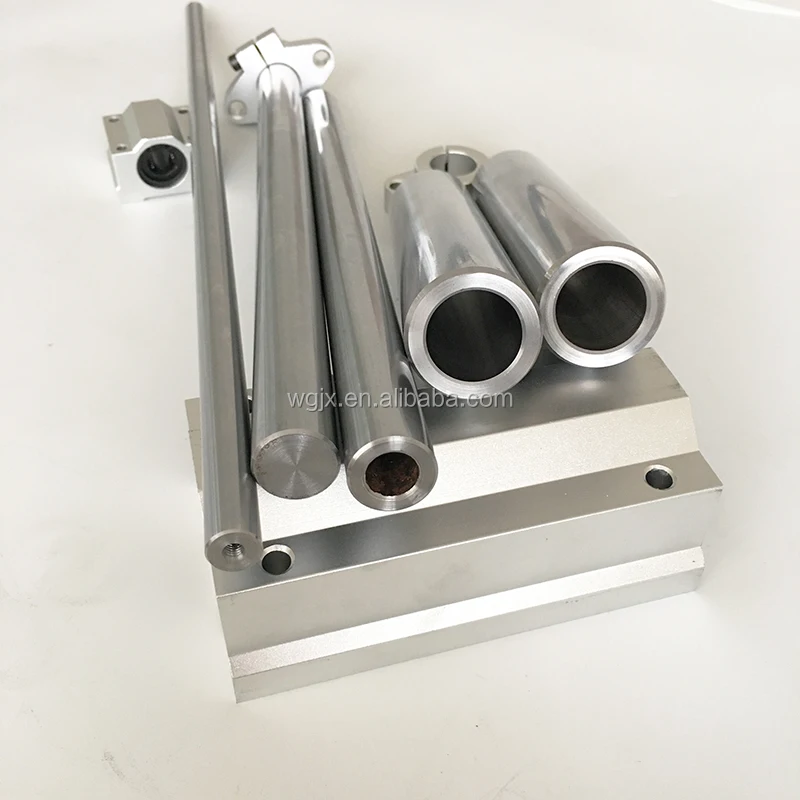

Linear Shaft (Linear rod; Steel bar; Optical axis)

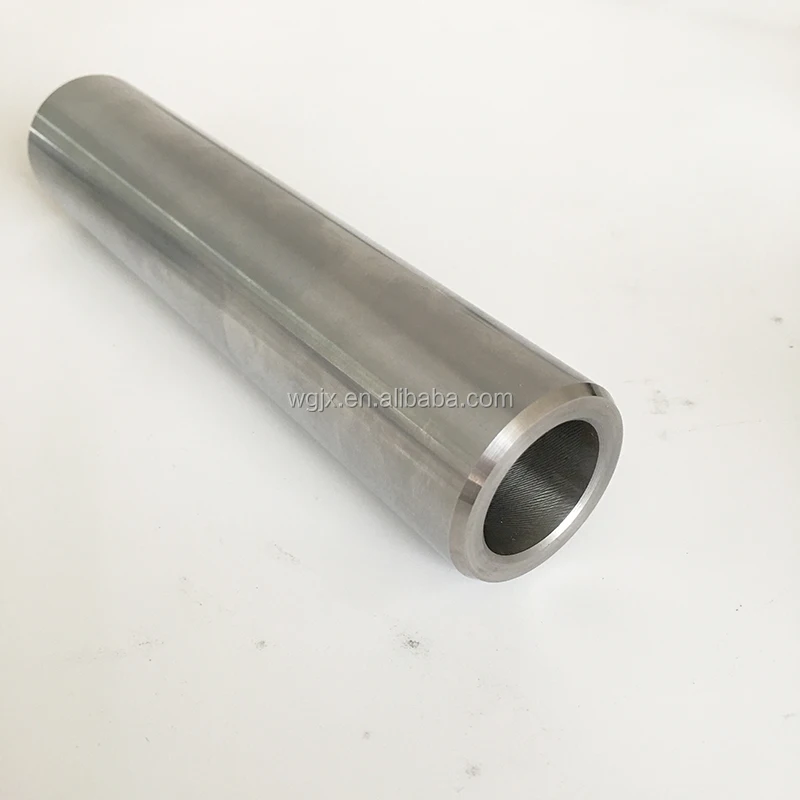

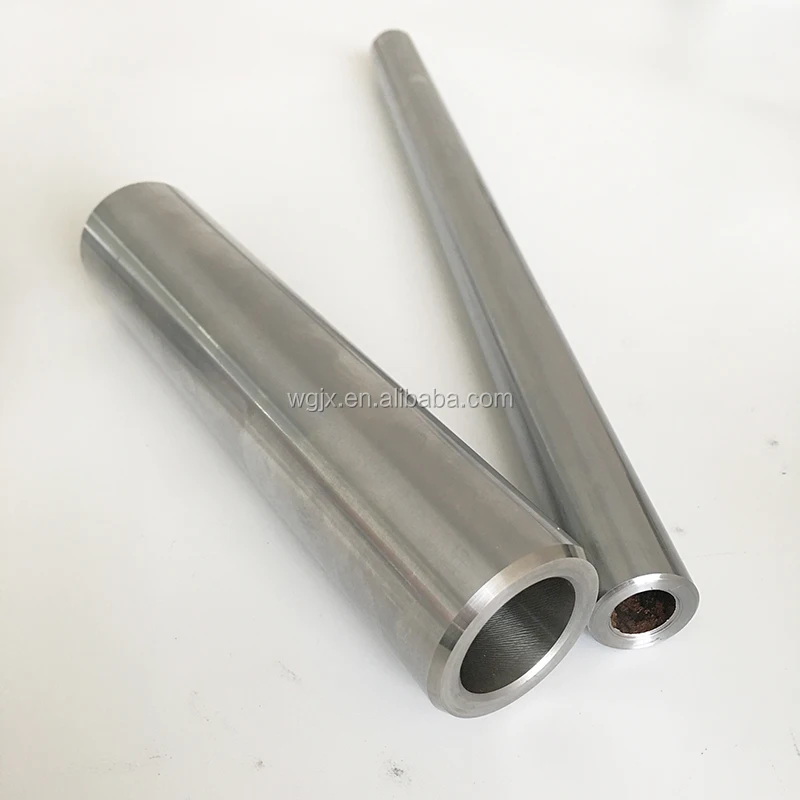

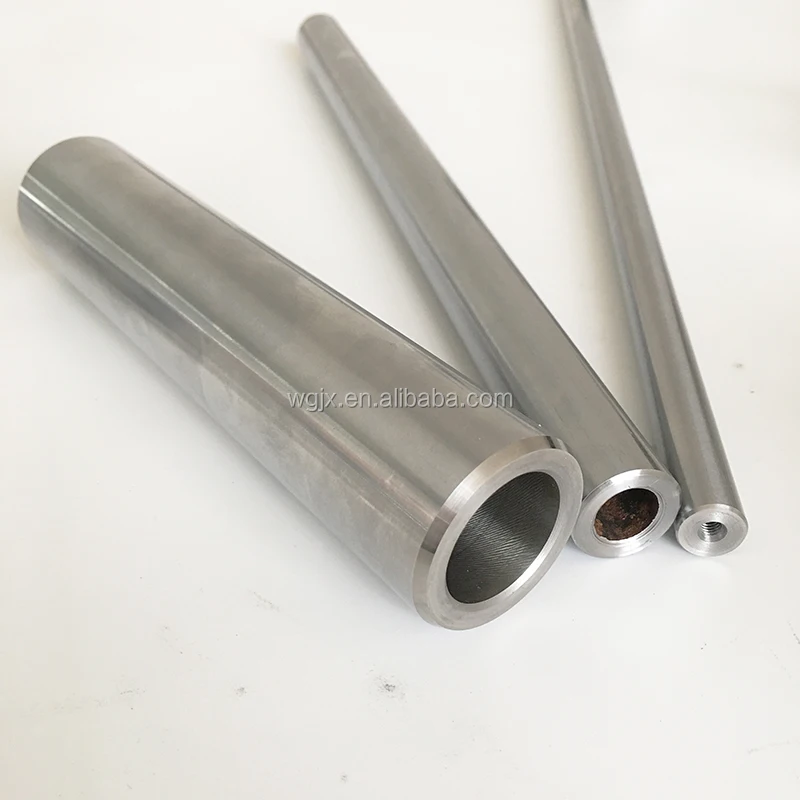

Model	WCS SFC Series Solid shaft, hollow shaft as demand
Diameter	2/3/4/5/6/8/10/11/12/13/14/15/16/17/18/19/20/22/25/28/30/32/35/38/40/45/50/55/60/70/80
Length	Length:10mm-6000mm
Quality	ISO9001:2008 standard
Material	1,45#steel;2,GCr15;3,SUS440C
Hardness	HRC:58-62
Hardened layer thickness	0.8-3.0mm
Length	10-6000mm
Precision	g6/h6/h7 or under customized requirement
Roughness	Within 1.5μm
Straightness	Not excess 1.5μm of 100mm (Rmax)
Roundness	Within 3.0μm (Rmax)
Thickness of Chrome plated	1-2μm,1.5μm on average
Performance	Long life and Low Noise
Appearance	Smooth,Anti-Corrosion,Hardened,Chrome plated

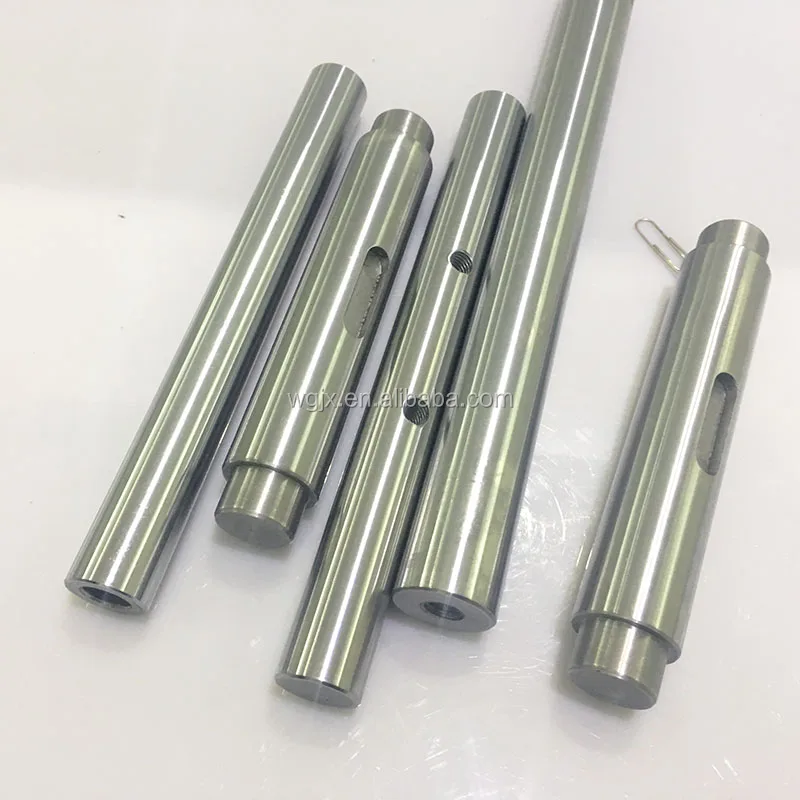

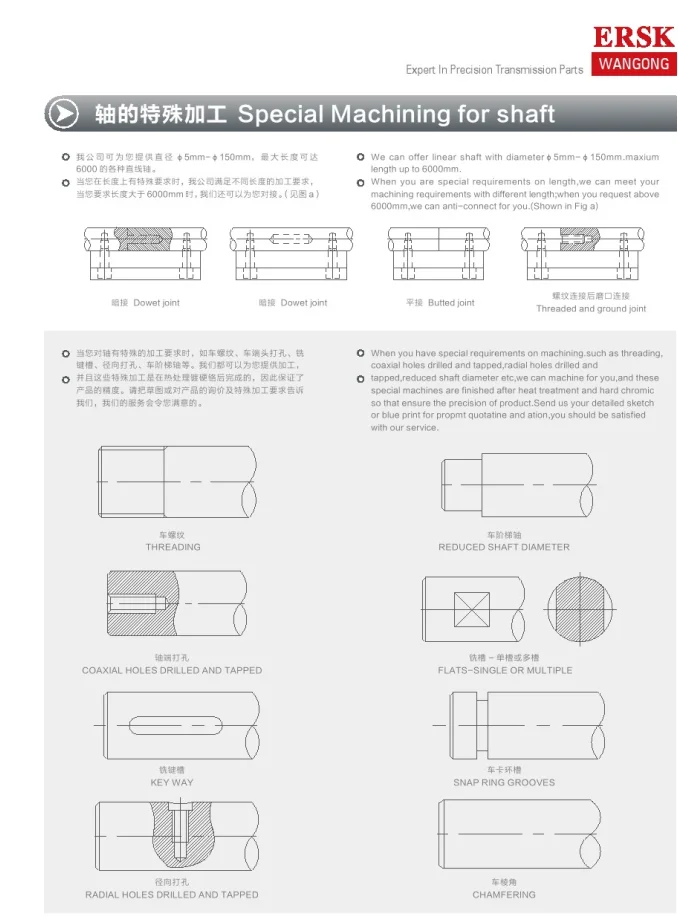

Service	Special requirement on machining, such as threading, coaxial holes drilled and tapped, radial holes drilled and tapped, reduced shaft diameter etc; We could supply OEM service to our customers
Application	Machine centers,Machine tools,Precision machining machines,Heavy cutting machines, Punching machines,Marble cutting machines,Automatic equipments,Grinding machines,High speed transfer equipments,Injection molding machines,Measuring equipments

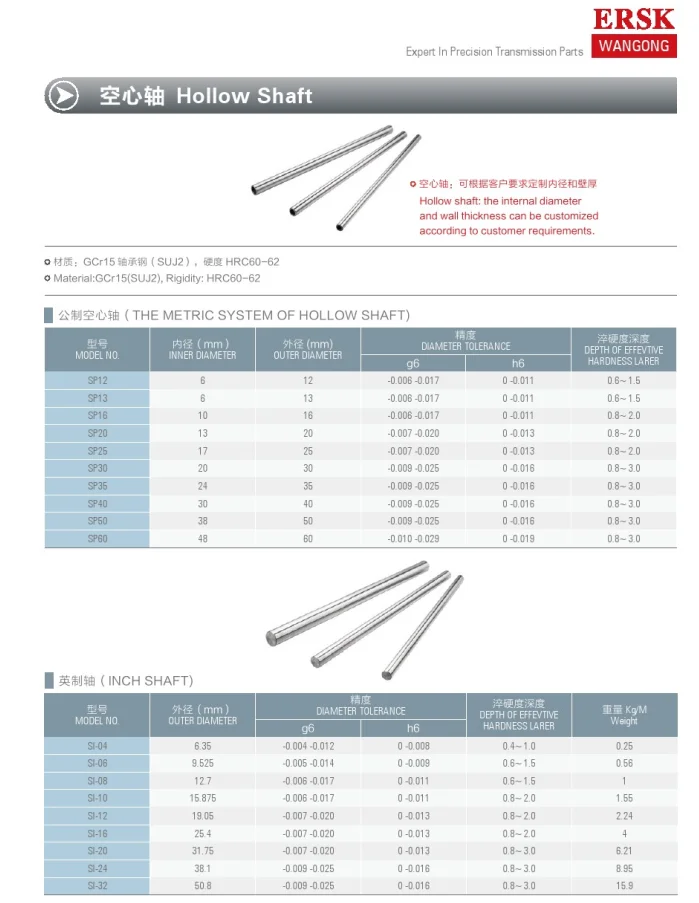

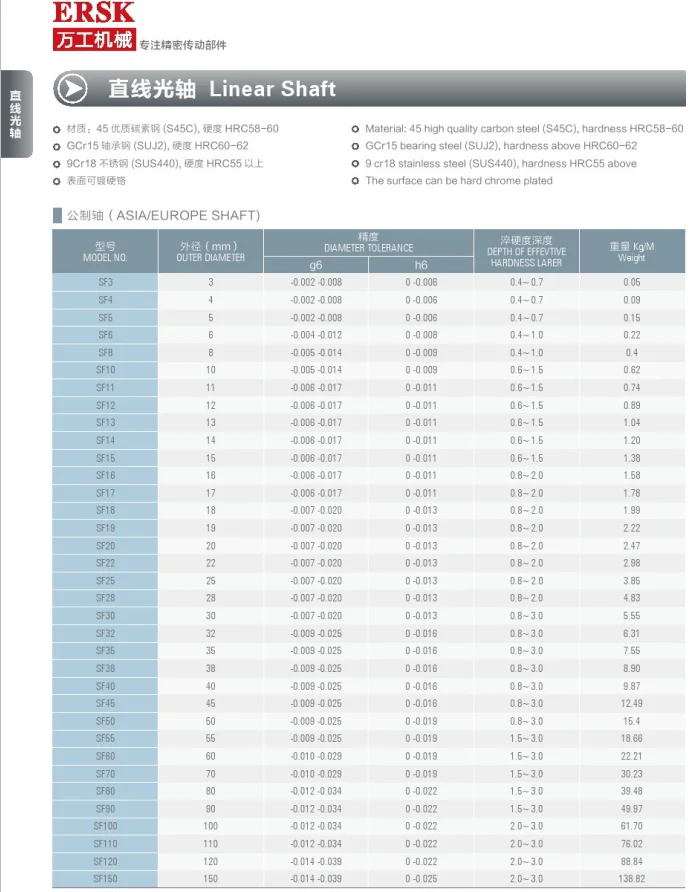

Product Data

Product Overviews

Company Information

Lishui Wangong Precision Machinery CO., LTD, founded in 2006, is a manufacturer of linear shaft, ball screw, linear guide, linear bearing and rod end bearing. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in engraving machines, window machines, CNC Equipment and other industries.

In 2012, We obtained ISO9001:2000 quality system certification. with a delicated production equipment, advanced testing equipment, capability of developing new products and prompt delivery. Our products are sold widely to the world market, such as Germany, Japan, America and Europe. With high stable and reliable of quality, and we got high evaluation from our customers.

. We also welcome OEM and ODM orders. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to satisfy you.

Our Services

1,Low MOQ: Can meet your small order request.

2,OEM accepted: Can make products as per your design.what you need to do is sending us your drawings
3,Good service: Treat every client as friend.
4,Good quality: Have strict quality inspection system. Good reputation in the market.

Mark:if you need the matched Linear motion slide units,please feel free to contact us
