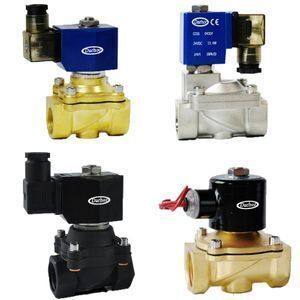

Darhor 12v 24v dc 220v 2 way 2W160-15 low pressure 1/2 inch water solenoid valve

Click here to contact

Product details

Port Thread:	BSP, G, NPT;	Power:	Solenoid;
Material:	Brass or stainless steel;	Pressure:	Medium Pressure;
HS Code:	8481804090;	Order lead time:	7~10 days;
Warranty:	One year guaranteed;	Supply Ability:	3000 Piece/Pieces per Week 50 pieces per carton solenoid valve water;
Media:	Water, air, gas, light oil, etc;	Orifice:	15,20,25,32,40,50;
Key words:	1/2 inch water solenoid valve;	Application:	General;
Place of Origin:	Zhejiang China (Mainland);	Port Size:	1/8"~2";
Port:	Shanghai;	Seal:	NBR, EPDM, VITON;
Certificate:	ISO 9001:2000, CE approved;	Model Number:	2W11;
Temperature of Media:	-10 ~80°C;	Sample lead time:	5~7 days;
Structure:	Diaphragm;	Payment Terms:	L/C,T/T,Western Union,paypal;
Packaging Detail:	12v 24v dc 220v 2 way 2W160-15 low pressure 1/2 inch water solenoid valve packed in wooden case with polyfoam inside.;	Standard or Nonstandard:	Standard;
Brand Name:	Darhor water solenoid valve;

Product Description

1.Direct lifting diaphragm construction;
2.Open from zero bar for low pressure system use;
3. High frequency of flying lead coil.

Body-Brass,Stainless steel
Seal- NBR, EPDM or VITON
Armature Tube-Stainless Steel 304
Plunger- Stainless Steel 430F

Stop- Stainless Steel 430F
Springs- Ss304
Shading Rings- Copper

Medium:	Air, Gas, Water, Light oil, etc.
Temperature:	NBR Seal:-10℃ to 80℃ EPDM Seal: - 10℃ to 120℃ VITON Seal: -10℃ to 150℃
Pressure:	0-1.0 MPa
Port Size:	1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''
Port Thread:	G, BSP, NPT, Flange
Orifice:	2.5, 6, 10, 12, 15, 20, 25, 32, 40, 50
Voltage:	DC -6V,12V,24V AC -12V,24V,120V,240V/60Hz'110V,22V/50Hz Tolerance:+/-10%
Coils:	Y32B,40VA(AC),18W(DC),IP65,100%ED Y42B,50VA(AC),20W(DC),IP65,100%ED

For For Air, Gas, Water, Light oil, etc.

Normally closed or Normally open

3/8"~2", 0~10bar,

Direct acting type

Brass, SS304, or SS316

For For Air, Gas, Water, Light oil, etc.

Normally closed or Normally open

3/8"~2" 0.3~16bar

Brass, SS304, or SS316

Specifications

2W11 Normally Closed, with Coil Y32B/Y42B
Valve Body	Port Size	Orifice	Cv	Min Pressure (MPa)	Max Pressure(MPa)		Seals Material	Body Material
Valve Body	Port Size	Orifice	Cv	Min Pressure (MPa)	AC(40VA)	DC(18W)	Seals Material	Body Material
2W11025XXX	1/8''	2.5	0.25	0.0	1.0	1.0	NBR, EPDM, or VITON	Brass,or Stainless steel
2W1106XXX	1/4''	6	0.6	0.0	1.0	1.0
2W1112XXX	3/8''	12	4.5	0.0	1.0	1.0
2W1115XXX	1/2''	15	4.5	0.0	1.0	1.0
2W1120XXX	3/4''	20	9.3	0.0	1.0	1.0
2W1125XXX	1''	25	12	0.0	1.0	1.0
					AC(50VA)	DC(20W)
2W1132XXX	1 1/4''	32	24	0.0	1.0	1.0
2W1140XXX	1 1/2''	40	29	0.0	1.0	1.0
2W1150XXX	2''	50	48	0.0	1.0	1.0
