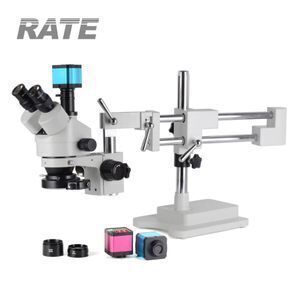

3.5X-90X Trinocular Stereo Zoom Optical Camera Microscope with 144 LED Light Price

Supplier: Srate Optical Instrument Manufactory
Region: Henan, China
Contact: Ms Steven zhao
Price: $460.00 /set
Min. Order: 1 set

Click here to contact

Product details

Name:	Dual Arm Triocular Microscope;	Place of Origin:	Henan China (Mainland);
Continuous variation ratio:	1:6.5;	two-bar universal support:	Support;
Selling Units:	Single item;	Model Number:	TB2-D10-SMZAL;
Objective lens:	0.7X-4.5X;	Single gross weight:	26.5 KG;
Single package size:	50X50X31 cm;	Drawtube:	Trinocular;
Total magnification:	7x-45x;	Package Preview:	https://sc02.alicdn.com/kf/HTB1m47bJAvoK1RjSZFNq6AxMVXaK.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HTB1JqsAJxnaK1RjSZFtq6zC2VXa8.jpg_640x640.jpg;
Lighting:	144 bead LED;	Packing:	foam + carton;
Brand Name:	RATE;	Diopter:	adjustment range of binocular vision;
Base:	200 x 245mm;	Package Type:	1. Inner box with plastic foamed + Outer carton. 2. Net Weight/Set:23.5kg. 3. Package:1sets/Carton 50X50X31cm. 4. Gross Weight/Carton: 26.5kg. 5.And other terms as customer required.;
Theory:	Stereo Microscope;	Eyepiece:	WF10 x;

3.5X-90X Trinocular Stereo Zoom Optical Camera Microscope with 144 LED Light Price

Product Description

Microscope parameter:Trinocular Stereo Microscope

1) Total magnification: 7x-45x / * 7x-90x / * 7x-180x / *3.5 x-90x / *3.5 x-45x.
2) Continuous variation ratio: 1:6.5.
3) Eyepiece: high point wide Angle WF10 x/phi 20mm, wide Angle WF20 x/phi 10mm(greater than 90X with).
4) Inspection glass tube: hinge ternary, 45 ° inclined, pupil distance between 55-75 - mm.
5) Objective lens: continuous magnification objective lens: 0.7X-4.5.
6) Diopter: adjustment range of binocular vision+-6.
7) Support: two-bar universal support (WX type).
8) Base: large base (type V), 200 x 245mm.
9) Lighting: 144 bead LED circular lamps with a set of 5500 color temperature and adjustable brightness.
16) Field of view diameter: phi 5mm-phi 30mm.
11) Focusing mechanism: XTWZ bracket.
12) Packing: foam + carton.
13) Others: equipped with ring lamp interface; Own TV interface.
14) Optional: wide-angle eyepiece 20X.
15) Working distance: when no additional objective lens is added, the working distance is 100mm, 0.5x additional objective lens is 165mm, and 2X additional objective lens is 30mm.

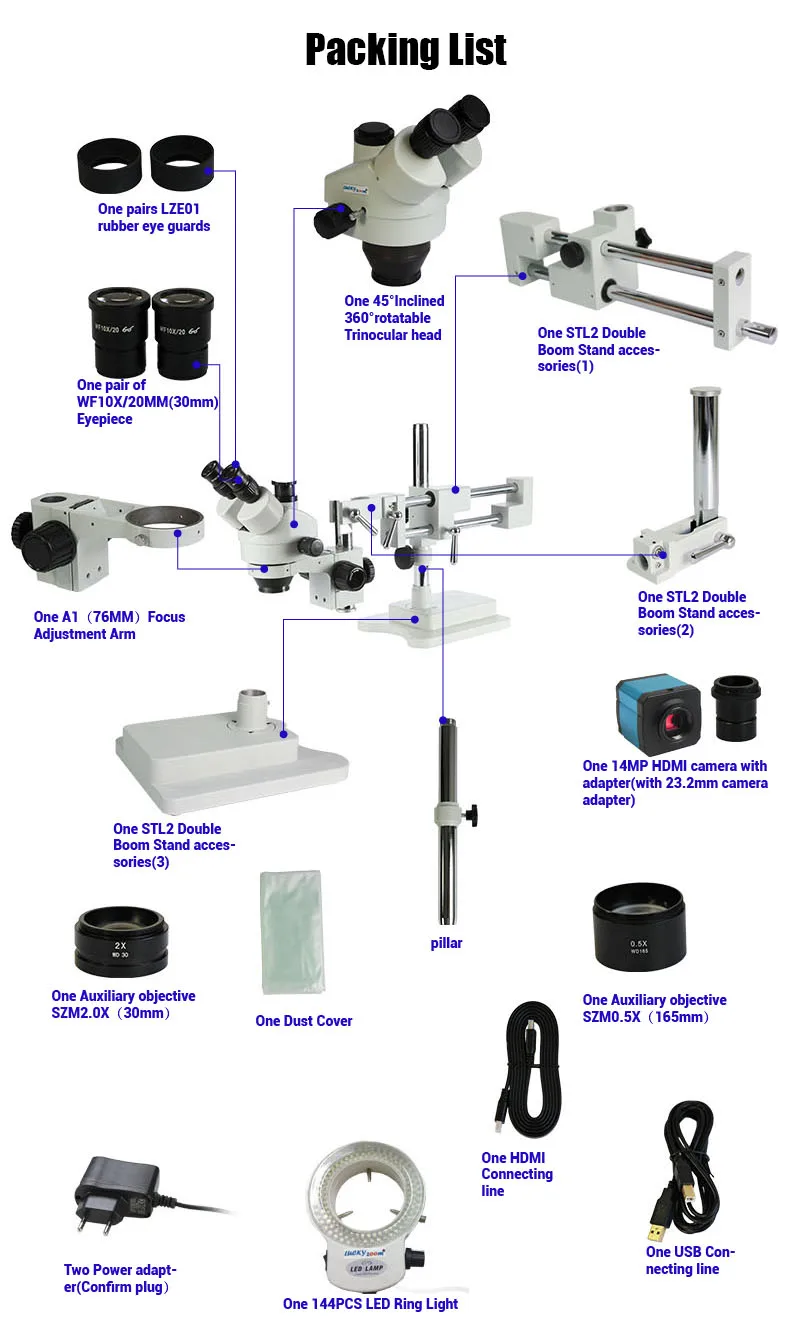

Packing list: Trinocular Stereo Microscope

1*TXB2-D10 Trinocular Stereo Microscope.

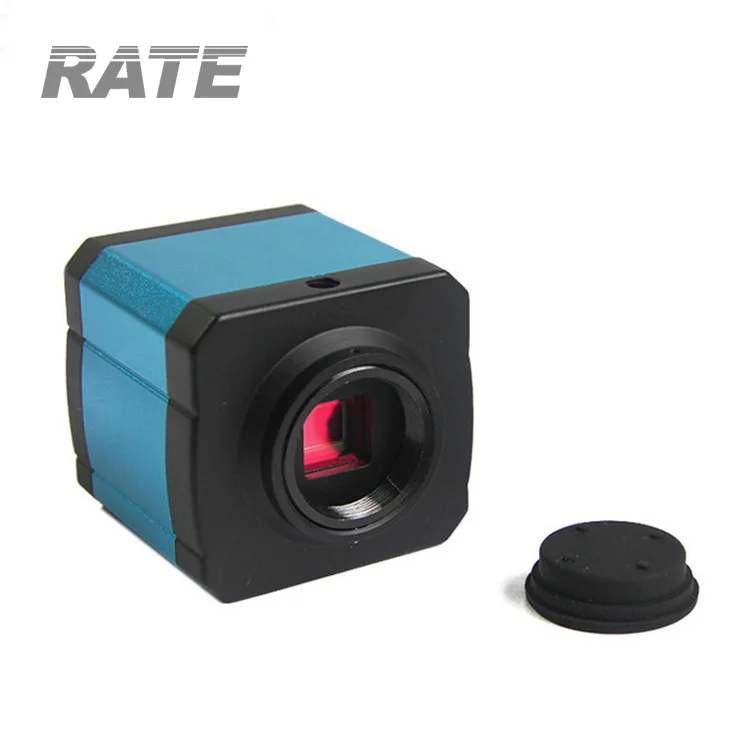

1*14MP HDMI USB Camera.

1*144 Led Ring Light.

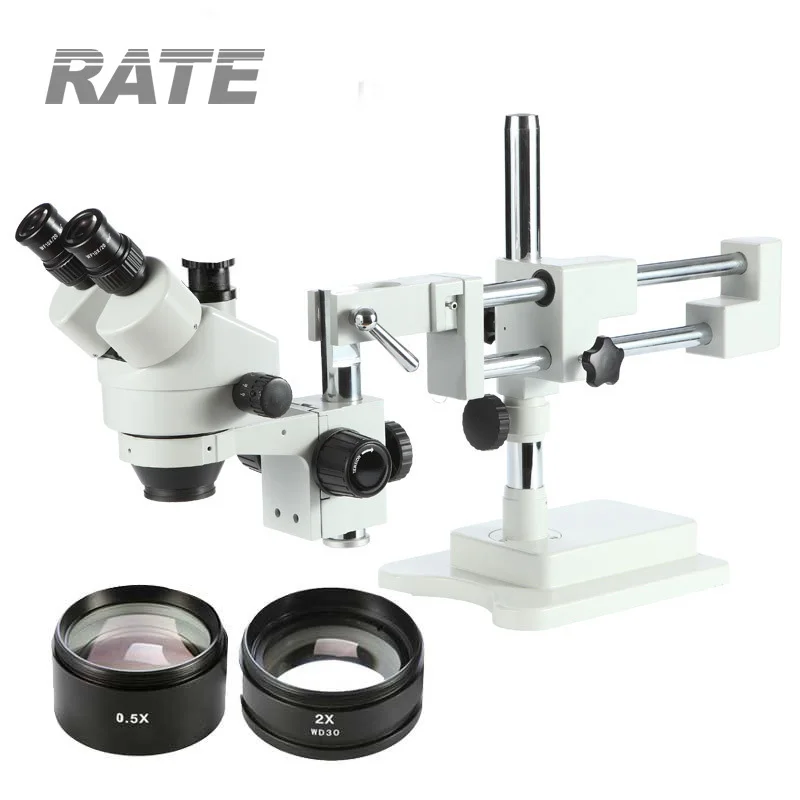

1*0.5X Auxiliary Lens.

1*2x Auxiliary Lens.

Application:Trinocular Stereo Microscope

Product application: widely used in microelectronics, mold, precision machinery, jewelry, clocks and watches, jewelry, fingerprint identification, ticket identification, printing, mobile phone maintenance, archaeology, biological anatomy, school teaching and other fields. It is especially suitable to observe the surface microstructure of large objects.

Packaging & Shipping

Packaging:	1. Inner box with plastic foamed + Outer carton. 2. Net Weight/Set:23.5kg. 3. Package:1sets/Carton 50X50X31cm. 4. Gross Weight/Carton: 26.5kg. 5.And other terms as customer required.
Shipping:	1. Shipping by EMS or international express, such as: DHL, UPS, TNT and Fedex(available for samples and small orders, it takes about 3-7days arrive, also called door to door servise.) 2. Shipping by air.(fast, but charge high, it takes about 3-7days arrive) 3. Shipping by sea.(safty and charge low, but it takes about one month to arrive)

Company Information

Established in 2004, Nanyang City Srate Optical Instrument Manufactory is a specialized manufacturer of optical and electronic products. Enjoying the position at hi-tech key enterprise for earning foreign exchanges in Henan Province and export base of mechanical and electrical products approved by China National Foreign Trade Department, we are able to supply optical lens and prisms, binoculars, microscopes,magnifiers.

Our company has taken optical instruments as the dominant business. Having established steady relations of business cooperation with well-known international corporations from Japan and the America in the optical field, our products are selling well in the American, Japanese, European and Southeast Asian markets.

Providing quality products, excellent service, competitive prices and prompt delivery, we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.

Exhibition: Trinocular Stereo Microscope

FAQ

Q: Are you a factory or trading company ?
A: We are a factory .

Q: Where is your factory located ? How can i visit there ?
A: It is located in NO.389 Han Hua road , WoLong District, NanYang, HeNan.China

Q: Are there any stock or standard products?
A: Yes, we have stock.

Q: How about the samples policy?
A: Buyers can get free samples through buyers' express account for freight collect, or transfer the delivery charge to us for prepaid at your convenience.

Q: If I place an order now ,how long would it be before i got delivery ?
A: It would largely depend on the size of the order and the items you want.

Why Choose Us !Trinocular Stereo Microscope

1. Factory with 20 years and 9 years exporting experience.
2. Located in the largest optical base of China, more professional.
3. OEM / ODM available.
4. Strict quality control department.
5. Professional sales team to provide perfect service.
6. Provide high quality products and the best price.
7. Perfect optical processing program.
