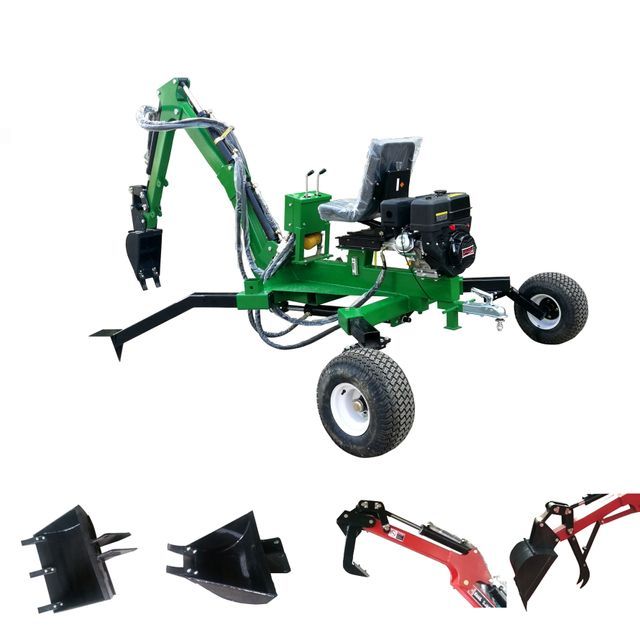

ATV Backhoe Mini Backhoe Mini Backhoe with Attachments

Supplier: Weifang Kinger Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Leslie - Kinger
Price: $1720.00 / 1 - 3 sets
$1660.00 / >=4 sets
Min. Order: 1 set

Click here to contact

Product details

Applicable industries:	Farms, Home Use, Construction Works, Others	OEM service:	Yes
Core components:	engine, pump	Health status:	new
Showroom location:	Canada	Digging depth:	2400mm
Package preview:		Origin:	Shandong Province, China
application:	digging, digging, digging	Bucket width:	220/300/400/500/600mm
Warranty:	1 year	Core component warranty:	1 year
Petrol Engine:	JD 9 hp/15 hp	port:	Qingdao Port, China
Main selling points:	multifunctional	brand:	Ginger
Video outbound inspection:	if	Model:	LW-6
Marketing Type:	normal product	product name:	backhoe
feature:	Mobile, self-powered, towed	weight:	550 kg
payment terms:	Western Union, T/T, Alibaba Trade Assurance	Optional diesel engine:	Changchai 11.5 horsepower
Stabilizer Width:	1800mm	After-sales service provided:	online support
Packaging Details:	Iron frame packaging. 1 prototype: 1800mmx1100mmx900mm iron frame packaging, with a film dust cover. For containers, 3 pieces are packed in a 2200mmx900mmx2550mm iron frame package with a film dust cover.	Mechanical test report:	if
Supply capacity:	200 sets per month	Dimensions (LWH):	1800x1100x900mm
Tire size:	18x850-8

Product Description

Applications

1) The mini traction backhoe can be matched with any vehicle;

2) It is used for ditching, digging ponds, clearing waterways, and auxiliary excavation for construction and road repair in farms and pastures;

3) Adopt hydraulic transmission. It has the characteristics of compact structure. Flexible, easy to operate, fast assembly and disassembly.

Backhoe Specifications
Model	LW-6
strength	9HP / 15HP gasoline engine
Structural weight	550 kg
maximum. digging depth	2400 mm
maximum. digging radius	2800 mm
maximum. digging height	2500mm
maximum. unloading height	1200 mm
Stabilizer width	1800 mm
Boom swing angle	140 degrees
Bucket rotation angle	160 degrees
Bucket capacity	0.036 cubic meters

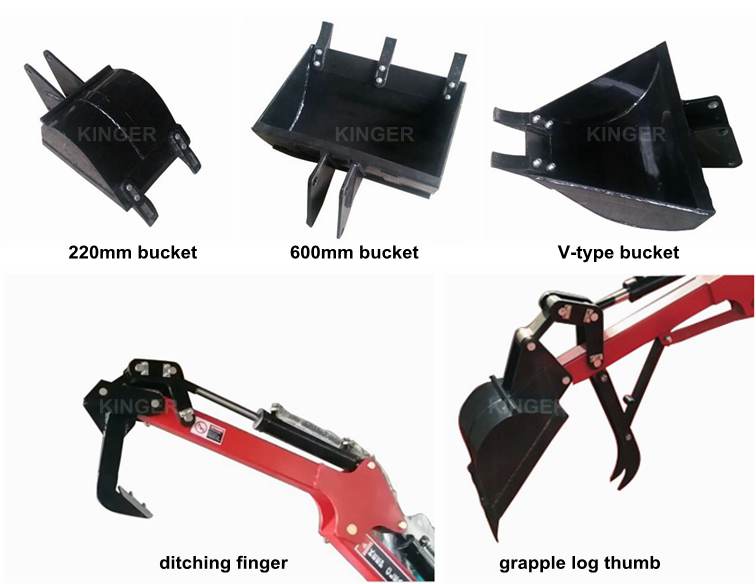

Bucket width	Optional: 220mm/300mm/400mm/500mm, 600mm
Pump	Two-speed gear pump
Coupler size	2" or 5cm ball for easy towing
Dimensions (LxWxH)	1800mm×1100mm×900mm
20'GP / 40'HQ Quantity	12/36PCS

detailed image

backhoe

Model:LW-6

brand:Ginger

The original:China

standard: CE certified

It is used for auxiliary excavation work in farms and pastures, digging ponds, clearing waterways, construction and road repair.

Mechanical Parts:

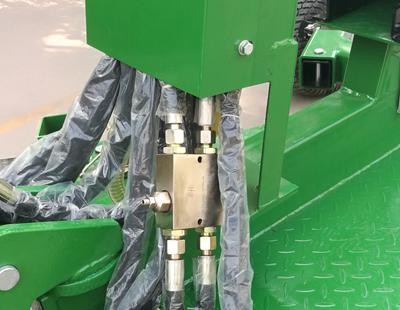

Name:Steering System Pressure Relief Valve

This is to avoid damaging the steering arm when operating the steering while digging soil.

Its pressure can be adjusted, please feel free to contact us for more details, thanks.

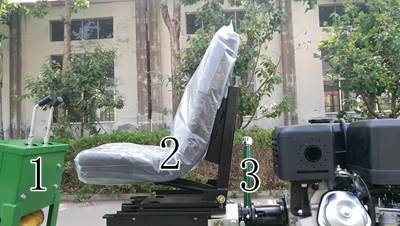

Mechanical Parts:

1)control valve group

2)comfortable seat

3)Hydraulic oil input

Please feel free to contact us for more details, thanks.

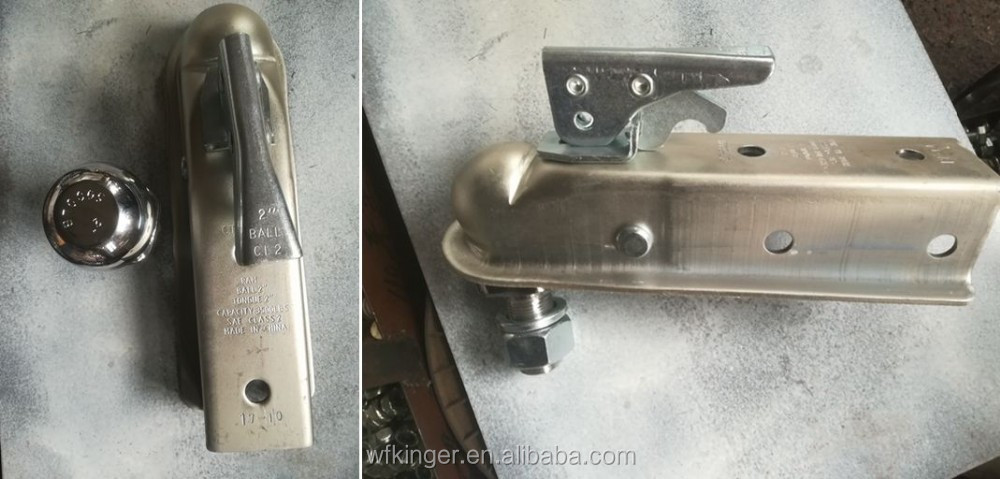

ball coupling

*2" size is suitable for the North American market.

*50mm size, suitable for European market.

Please feel free to contact us for more details, thanks.

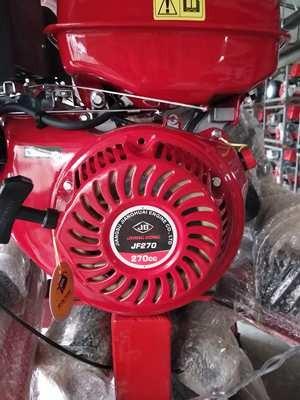

9 hpstandard gasoline engine(270CC).

EPA emissions approved for the North American market.

or EC emissions approved in Europe.

15 hpGasoline engine is optional.
(420CC)

EPA emissions approved for the North American market.
or EC emissions approved in Europe.

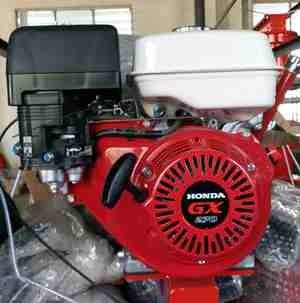

9 hp or 13 hp Honda Gasoline engine is optional. (GX270 or GX390)

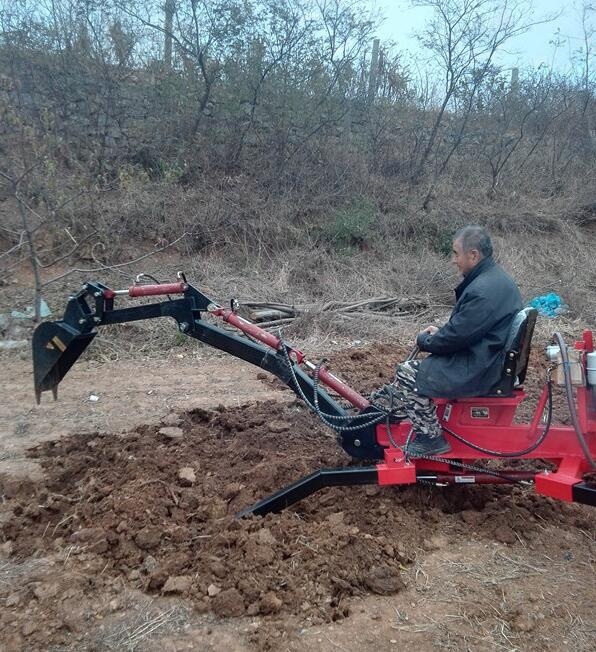

customer photo

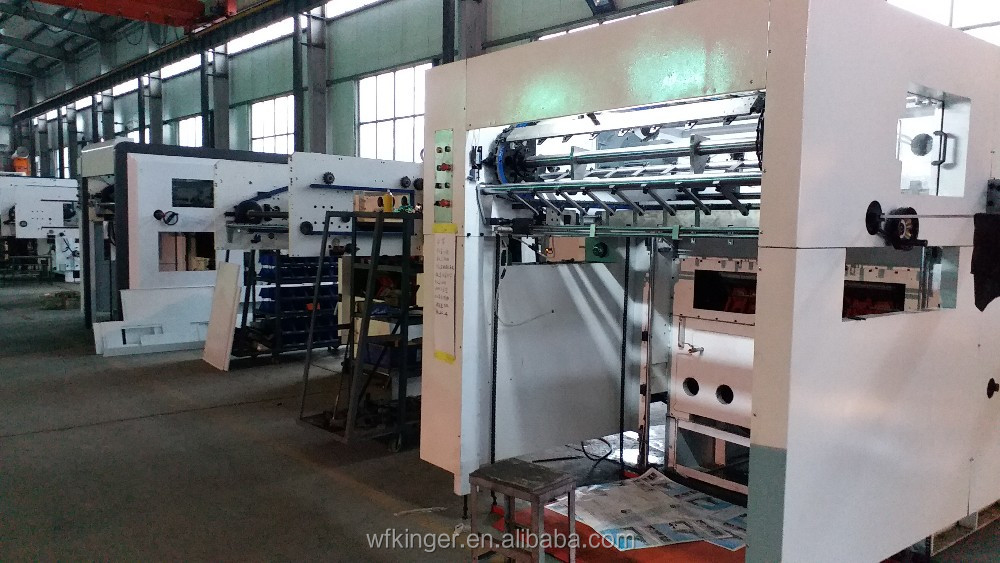

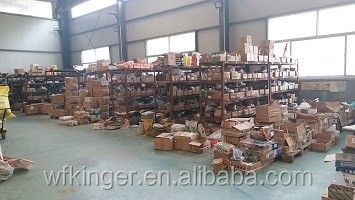

Production

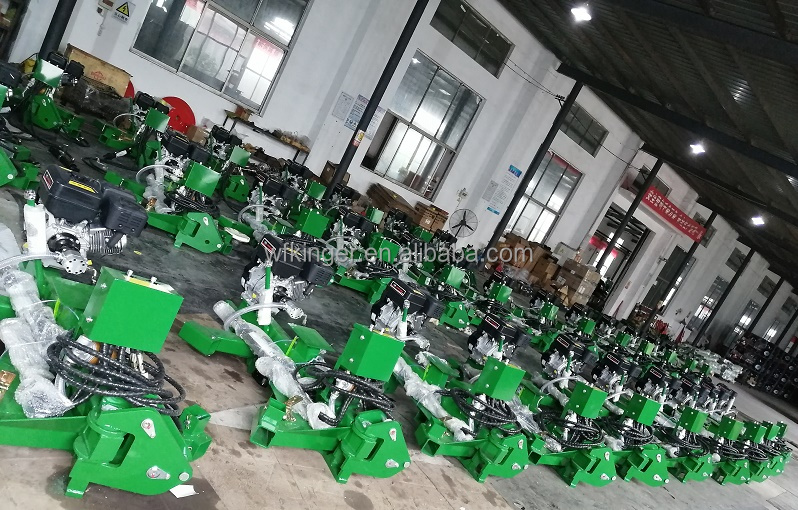

Backhoe production:

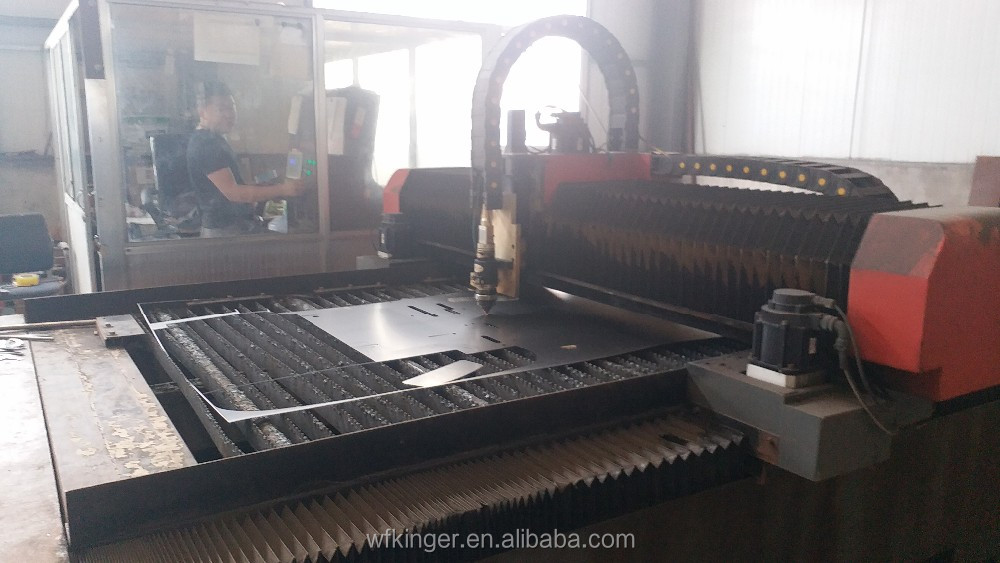

From design, material cutting, parts processing, rust removal, painting, assembly line, we maintain high-quality inspection for every step to ensure the high quality of the final finished machine.

If there are any problems caused by poor manufacture during use, we will provide free parts within 2-3 working days.
