Trailed Landslide/Compact Tractor 140 Degree Honormach 1850mm-350mm Wheels Available 1850mm-2640mm

Supplier: Jining Honor Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Jon Lee
Price: $599.00 /set
Min. Order: 1 set

Click here to contact

Product details

color:	red/green/customized	Dimensions (LWH):	18051105905 mm
Showroom location:	not any	brand:	honor mach
Bucket width:	220mm/300mm/400mm/500mm/600mm	feature:	Mobile, self-powered, towed
place of origin; place of origin:	Shandong China	Health status:	new
Digging depth:	1850mm-2640mm	Marketing Type:	Hot Products of 2021
product name:	Trailed ATV Backhoe	Main selling points:	Fuel-efficient, portable, self-powered
Maximum digging depth:	1850mm-350mm	Applicable industries:	Clothing stores, building supplies stores, manufacturing plants, machinery repair shops, food and beverage plants, farms, home use, construction, energy and mining
Core components:	engine	type:	tractor implementation
Packaging Details:	wooden box	weight:	562 kg
Core component warranty:	1 year	style:	compact tractor backhoe
Swing angle:	140 degrees	Warranty:	1 year
payment terms:	L/C, Western Union, T/T	Package preview:
Video shipment inspection:	if	application:	digging, digging, excavation
Moving type:	wheel	engine:	9hp/13hp/15hp gasoline engine
Mechanical test report:	if

Clearing Land Traction Trenchers/Backhoes

Product Description

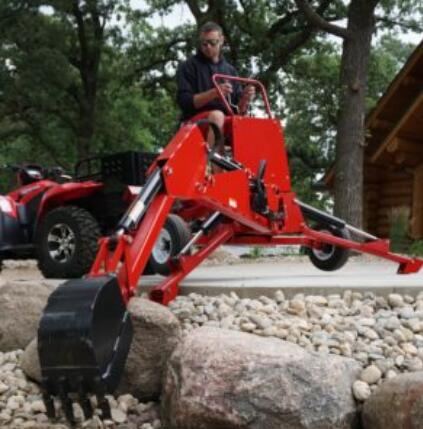

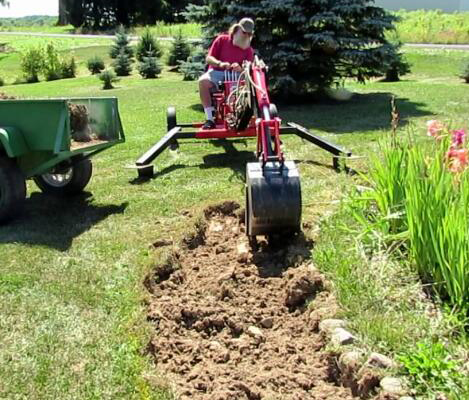

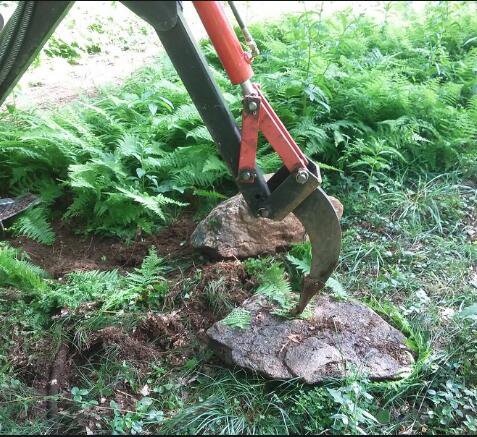

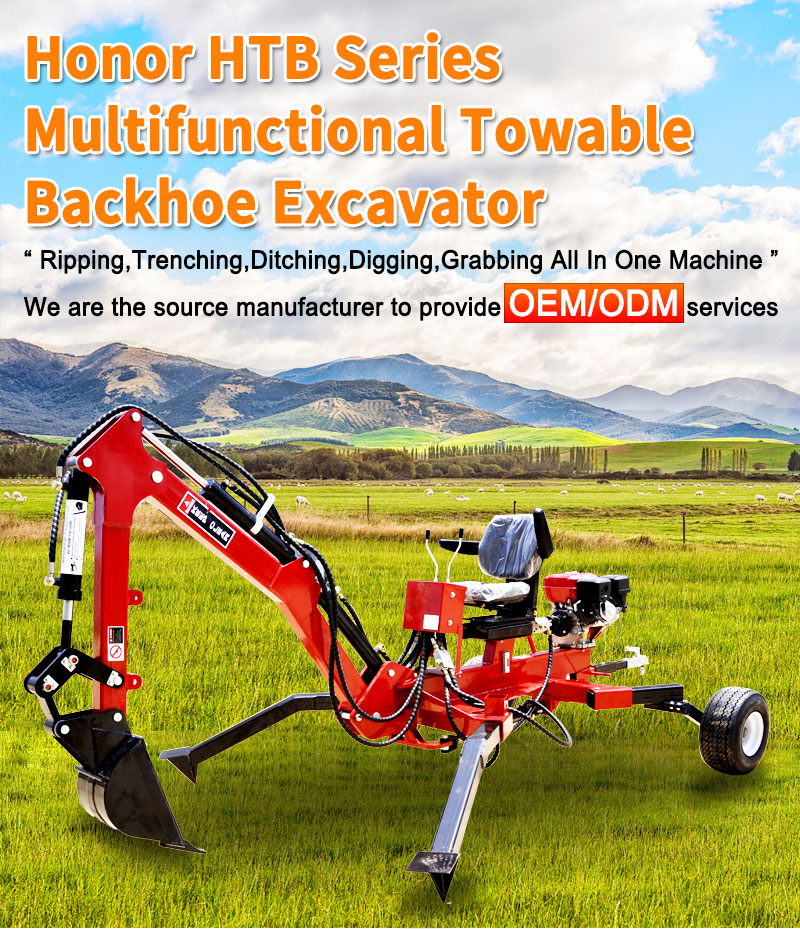

HTB series9HP/13HP/15HP Mini Tractor/Pickup Truck/ATV Pulling BackhoeIt is a new generation upgraded mini trencherhonor machAfter technical improvements, the technical team has further strengthened the strength of the excavator body and stick, ensuring continuous and stable performance output and optimizing fuel-saving performance. Excellent for digging trenches for pipes, drainage and foundations - Breaking rocky soils - Channeling rainfall runoff - Tree planting and relocation - Cleaning gutters and dams. Can be towed behind your ATV, Quad Bike, Ute, Tractor and more.

Applications

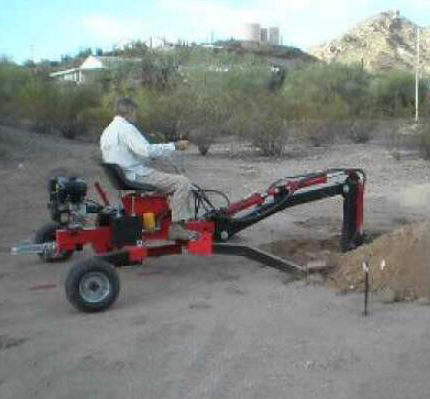

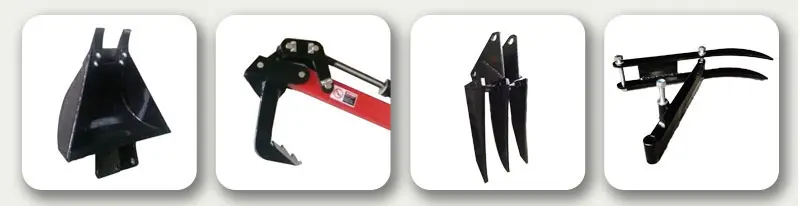

Tractor/pickup truck/ATV trailed backhoe is widely used in various sites. Add more optional new accessories to enable you to efficiently complete a variety of small projects: gardens, fields, municipal works, vegetable greenhouses, trenching.

Product parameters

1. The digging depth of the backhoe excavator is 204 cm, and the bucket width of the sawtooth excavator is 23 cm. 2. The compact and well-structured backhoe excavator has its own power source in the form of a 9hp gasoline engine with recoil starter. The operator's seat height is 90 cm and provides a good working overview. 3. Double-rod hydraulic valve, simple and flexible digging. Wheels with 50mm ball coupling for moving with ATV or other vehicles. 4. Easy to move with ATV or other vehicles with 50mm ball coupling. 5. When the machine needs to move, the wheels are installed on the back for easy transportation; when digging, the wheels are installed on the front and the stabilizer is installed on the rear, then use the first boom and outer boom to drag the machine forward or backward to move the machine

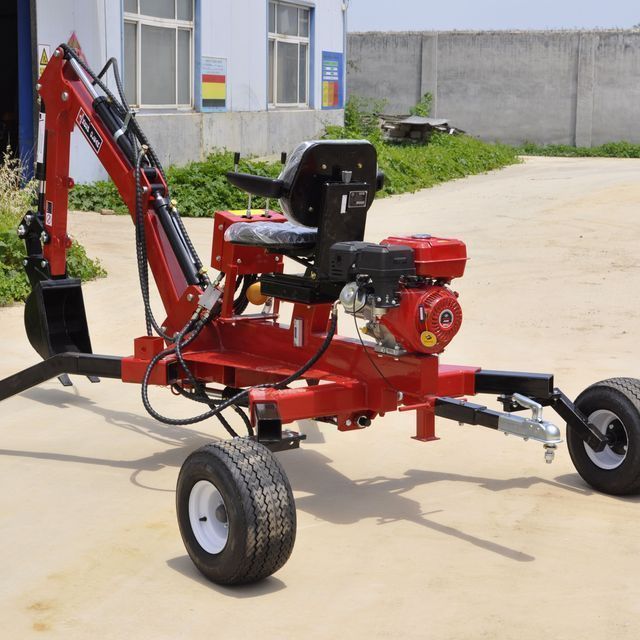

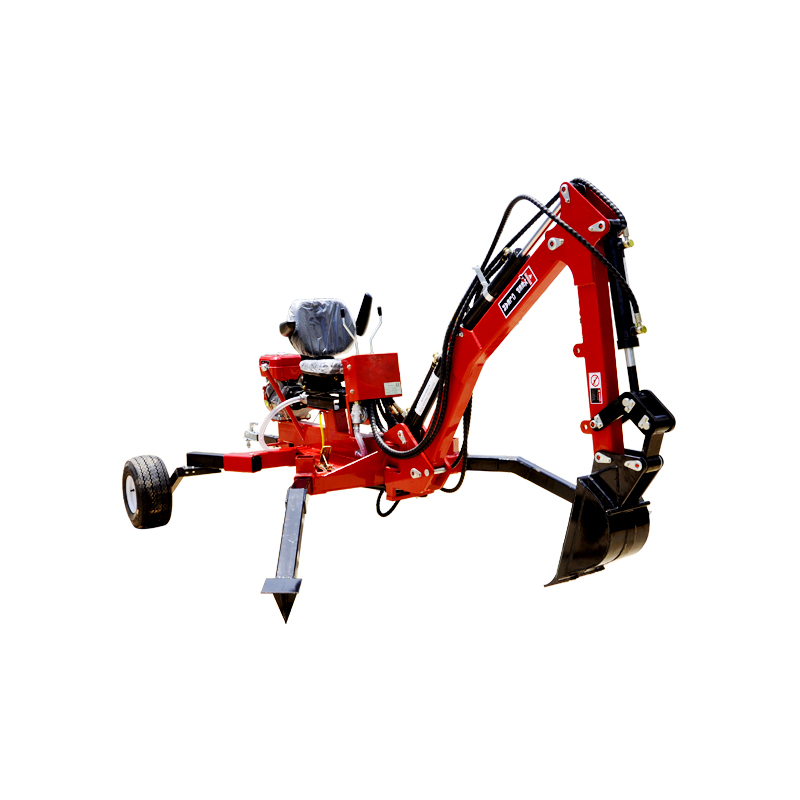

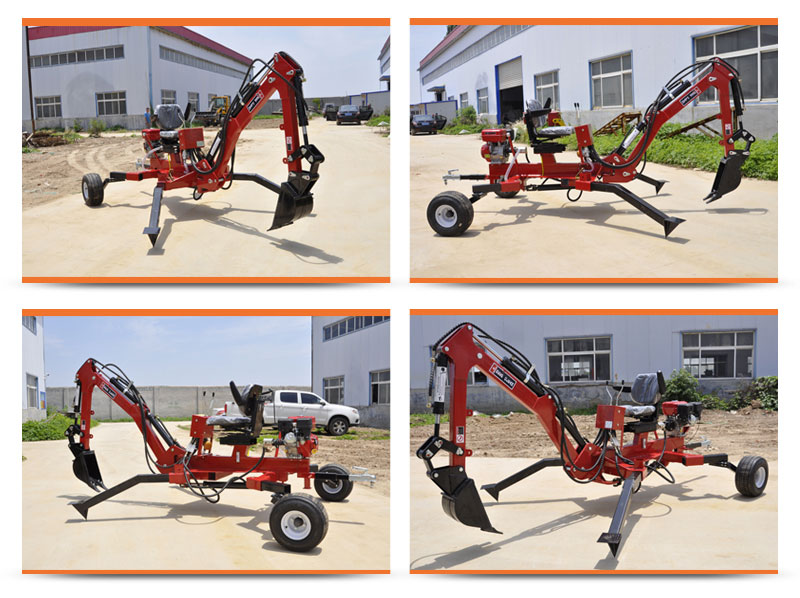

HonorMach Mini Tractor ATV Pull Backhoe

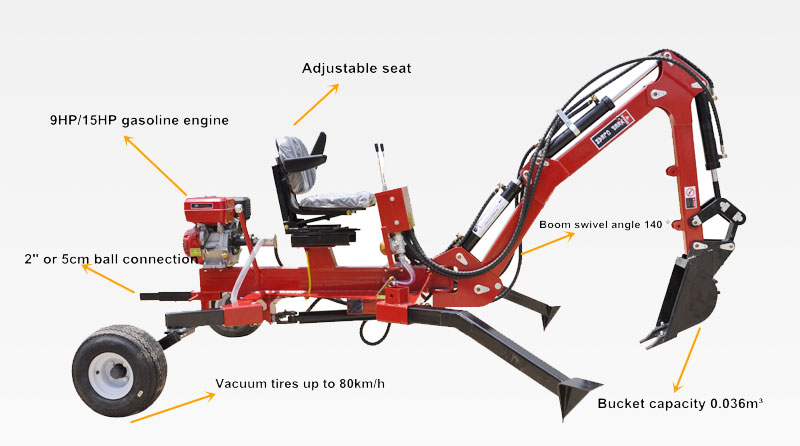

engine	9HP/13HP/15HP gasoline engine
Certificate	EU/EPA
Structural weight	562 kg

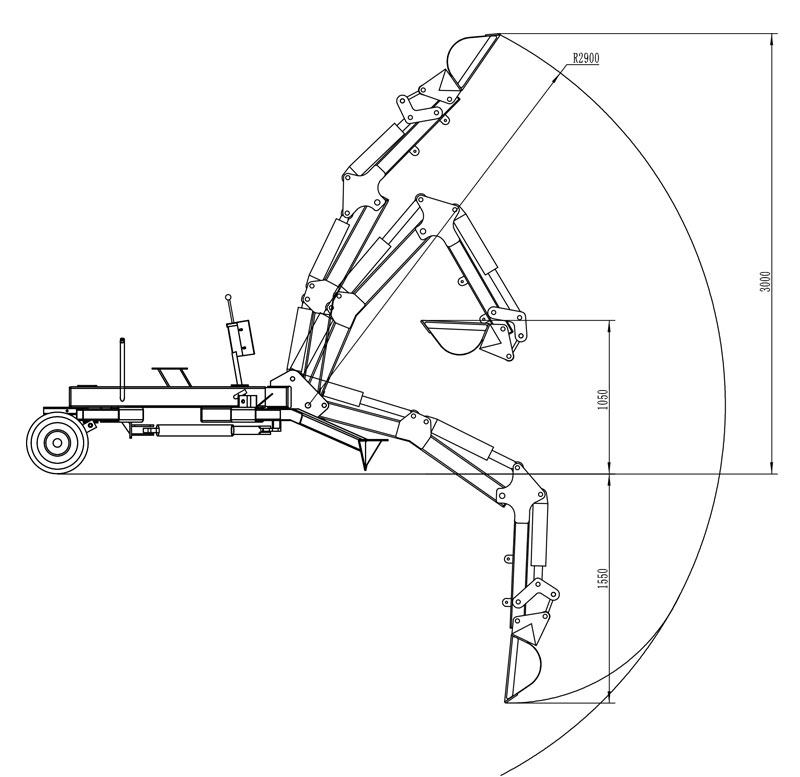

maximum. digging depth	2420mm
maximum. digging radius	2825mm
maximum. digging height	2525mm
maximum. unloading height	1230mm
Boom swing angle	140 degrees
Bucket angle	160 degrees
Bucket capacity	0.036 cubic meters
Bucket width	Optional: 220/300/400/500/550/600 mm
Coupler size	2" or 5cm ball for easy towing
Dimensions (LxWxH)	1800mmx1100mmx900mm
Quantity in 20'GP / 40'HQ	12/36PCS
Package dimensions	48.03"×40.55"×27.95"/224×99×84cm
