PE 500L 1000L 2000L Rotational plastic water tank machinery

Supplier: Shandong Jinxiu Shanhe Environmental Engineering Co., Ltd.
Region: Shandong, China
Contact: Ms Jane Wang
Price: $16800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Function:	wastewater treatment	After Warranty Service:	Video technical support, online support, spare parts, on-site maintenance and repair services
strength:	6-100kw, 5500	payment terms:	L/C, T/T, Western Union, MoneyGram
Voltage:	380V	Warranty:	1 year
MOQ:	1 set	Mechanical test report:	if
Automatic level:	fully automatic	port:	Qingdao Port Tianjin Port Shanghai Port
Local service locations:	Egypt	Marketing Type:	2020 New Products
Certification:	ISO9001:2008	Origin:	Shandong Province, China
weight:	3000 kg	Applicable industries:	Hotels, clothing stores, building supplies stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, household, retail, food stores, print shops, construction, energy and mining, food and beverage stores, advertising agencies
Core component warranty:	1 year	Packaging Details:	The product is tailor-made according to the customer. There are many options for customers to choose, such as transportation and packaging. The length, width and height of the product are for reference only, not as the actual size.
After-sales service provided:	Video technical support, free spare parts, on-site installation, commissioning and training, on-site maintenance and repair services, online support	color:	blue green red gray etc.
Showroom location:	Egypt	Dimensions (LWH):	5m2m2m
Core components:	PLC, bearings, gearboxes, motors, pressure vessels, gears, pumps	capacity:	1.0-100 cubic meters per hour
Package preview:		Main selling points:	competitive price
Applies to:	Industrial wastewater, printing and dyeing leather pharmaceutical wastewater	custom made:	Yes
Video outbound inspection:	if	Health status:	new
Supply capacity:	20 sets per month	brand:	Splendid mountains and rivers

Product Description

Mechanical production process of rotomolded plastic water tank

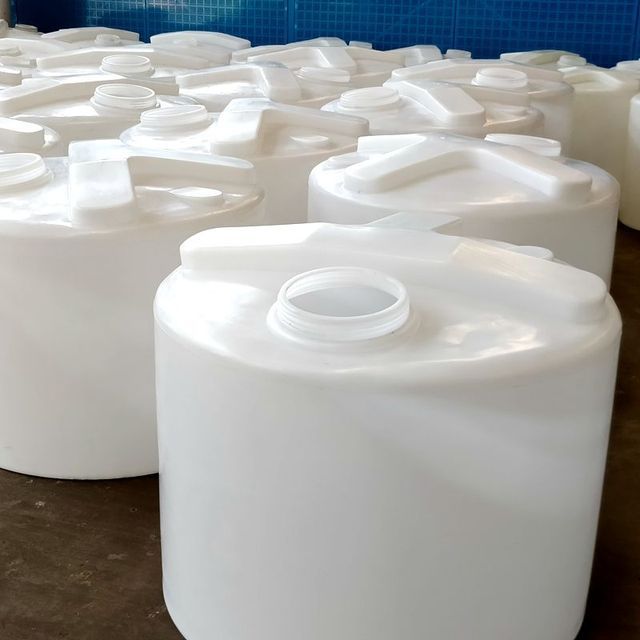

PE 500L 1000L 2000L Rotational plastic water tank machinery

Rotomolding is a high-temperature, low-pressure plastic molding process that uses heat and two-axis rotation to produce hollow, one-piece parts. During the heating phase, the mold rotates slowly in two planes (biaxial rotation). The process consists of four distinct stages: A quantity of polymer, usually in powder form, is loaded into a mold. Heat the mold in the oven while rotating until all the polymer has melted and adhered to the mold walls. The hollow part should be rotated by two or more axes at different speeds to avoid accumulation of polymer powder. Air cool the mold. The polymer must be cooled so that it solidifies and can be handled safely by the operator. The part shrinks as it cools, releasing it from the mold and allowing for easy part removal. Remove parts.

Working principle of rotational molding

The unique design of the rotomolding machine coats the plastic evenly inside each mold. The picture on the right is our stand-alone rotomolding machine. This is one of the most common machines in the industry. It has three arms. The machine is an independent model. Standalone machines can be equipped with up to three arms that can move separately from other machines. This allows for molds of different sizes, with different heating and thickness needs. It consists of oven, cooling chamber and mold spindle. The spindle is mounted on a rotating axis to provide an even coating of the plastic within each mold.

Advantages of rotational molding machine

The rotational molding process has several advantages. Large hollow parts such as our polyethylene noses are easier to manufacture by rotational molding than by any other method. Rotary molds are much less expensive than other types of molds. These products can be custom designed to meet precise market needs more economically than traditional injection or blow molding. Very little material is wasted using this process, and the excess can often be reused, making it a very economical and environmentally friendly manufacturing process. Wasted material can be recycled through scrapped or failed component testing. The process also offers fundamental design advantages such as consistent wall thickness and strong exterior corners that are essentially stress-free. Rotomolding machine materials: More than 80% of the materials used are from the polyethylene family: Linear Low Density Polyethylene (LLDPE) - Stock Crosslinked Polyethylene (PEX) Low Density Polyethylene (LDPE) High Density Polyethylene (HDPE) ) Recycled Other compounds are PVC Plastisol, Nylon and Polypropylene The order of the most commonly used materials in the industry is: Polyethylene Polypropylene Polyvinyl Chloride Nylon Polycarbonate
