Fully Automatic Narrow Metal Strip Slitting Machine Min. 4mm narrow tape roll in China

Supplier: Baoji Xintai Precision Equipment Manufacturing Co., Ltd.
Region: Shaanxi, China
Contact: Mr TIELING FAN
Price: $12000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Package preview:		Year:	2019
Warranty:	1 year, 1 year warranty	payment terms:	T/T, Western Union
product name:	Automatic sheet metal coil slitting machine	Voltage:	380V
Cutting speed (m/min):	1 - 8000 mm	Cutting width (mm):	10000 - 20000 mm
Coil weight (T):	0.8 tons	Local service locations:	not any
type:	fully automatic	After-sales service provided:	Online support, on-site installation, commissioning and training, on-site maintenance and repair services, video technical support
Supply capacity:	20 sets per month	Main selling points:	automatic
Material Thickness (mm):	0.1 - 0.8mm	Dimensions (LWH):	5m2m1.6m
application:	steel	Showroom location:	not any
Name:	sheet metal cutting machine	weight:	1.8 tons, 1800 kg
port:	Shanghai/Tianjin/Ningbo/Qingdao/Shenzhen	After Warranty Service:	Video technical support, online support
Packaging Details:	1. Wooden box 2. According to customer requirements	strength:	9.5 kW
Applicable industries:	Energy and mining, print shops, food and beverage plants, retail, farms, construction, clothing stores, restaurants, building supplies stores, food stores, advertising agencies, machinery repair shops, manufacturing plants, slitters	Health status:	new
usage:	automatic control operation	Certification:	CE/ISO9001,ISO9001
Number of slitting lines:	1 - 25	brand:	Xintai
color:	client needs	rated power:	9.5 kW
Origin:	Shaanxi, China

Why choose us

Baoji Xintai Precision Equipment Manufacturing Co., Ltd. Founded in 1995, it is mainly committed to the research, development and production of electronics, metallurgy and special grinding equipment. Production of various types of electrolysis, capacitor material cutting equipment, such as: aluminum foil, copper foil, metal foil, paper cutting, aluminum foil cutting, film cutting, metal bar cutting and other equipment.

We hope to cooperate sincerely with friends from all over the world and develop together.

Product Description

Applications

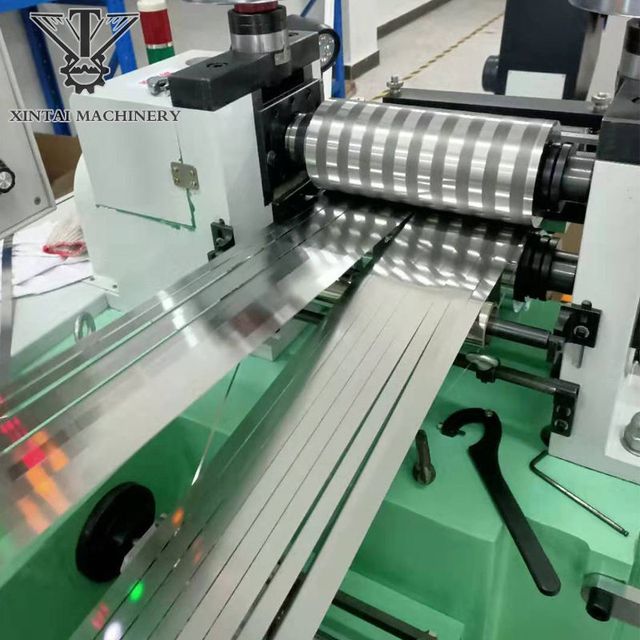

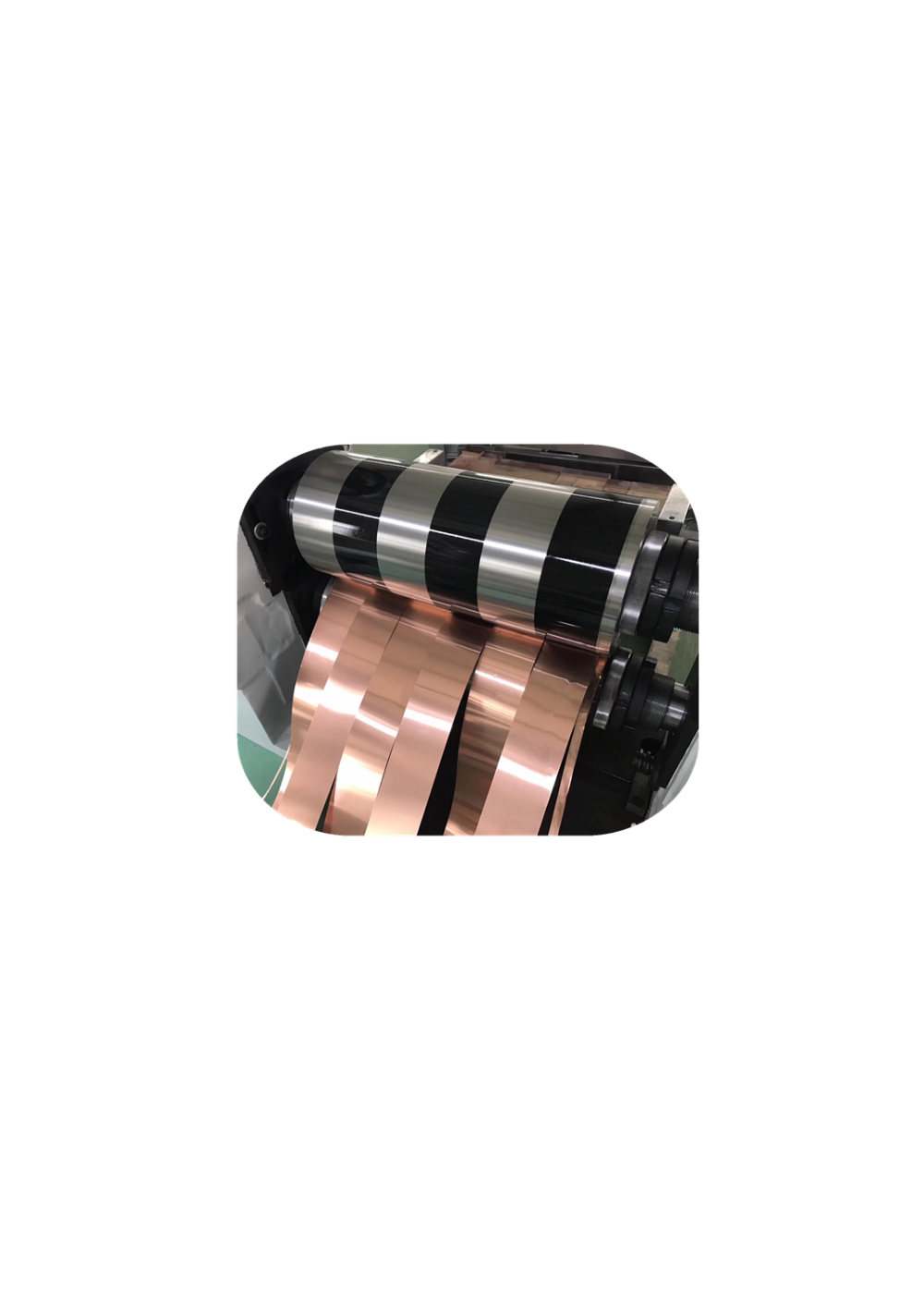

Precision cutting machine is used to cut stainless steel strip, copper strip, galvanized strip, aluminum strip, cold rolled metal. The equipment is characterized by convenient operation, high cutting quality, high material utilization rate and stepless adjustment of cutting speed.

Features

1. The tension of the equipment is constant, and the tension adjustment is convenient.

2. The console can realize the tension data, and the scroll bar and keyway can prevent the material from sliding.
3. Winding is an independent driving force for a single roll, not the tension of the cowhide.
It avoids the looseness of the reel due to insufficient cowhide tension.
4. The operation mode is changed to the knob mode, and the frequency converter controls the tension.

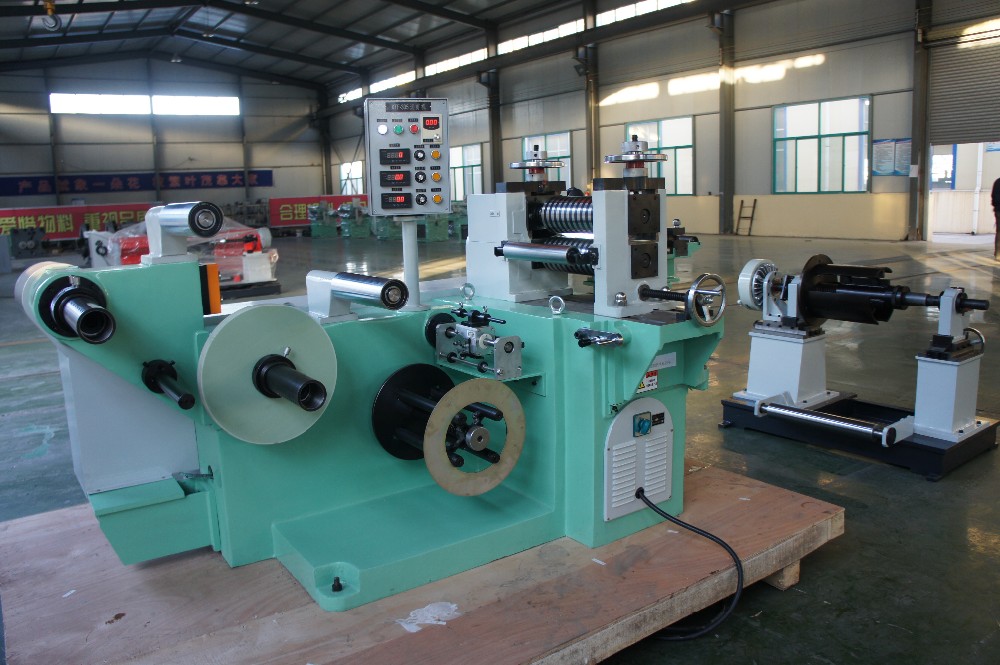

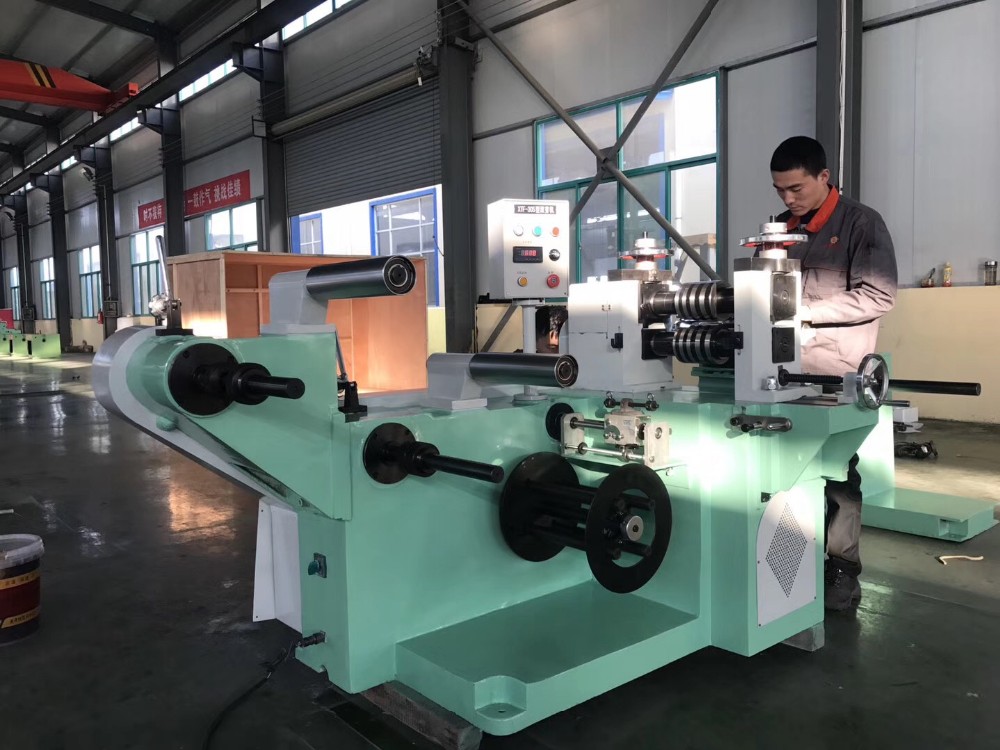

XTF-305 Slitter
type	XTF305
Raw material thickness	0.1mm-0.8mm
Raw material width less than	305mm
Raw material outer diameter	<1000mm
Raw material inner diameter	150mm (can be customized)
The raw material weight is less than	800 kg
Finished Width	4mm-305mm
Finished Coil Outer Diameter	≤1000mm
Finished coil inner diameter	250mm (can be customized)
Number of slices	25 (depending on cutting thickness)
Finished Width Tolerance	±0.02mm
device speed	1-80m/min
Equipment Coverage	Lengthwidthheight: 5m2m1.6m
equipment weight	1.8T

main feature

1. This machine is suitable for longitudinal shearing of rolled metal strips. It has the characteristics of convenient operation, high cutting quality, high material utilization rate, and stepless adjustment of cutting speed.
2. The warranty period of the product is one year, and spare parts are provided free of charge during the warranty period for non-human problems, and the supplier is responsible for the lifetime maintenance of the equipment.
3. Equipment color: black and white (customizable)
4. Production date: 20 days
5. Support overseas after-sales service.

detailed image

Raw material parameters

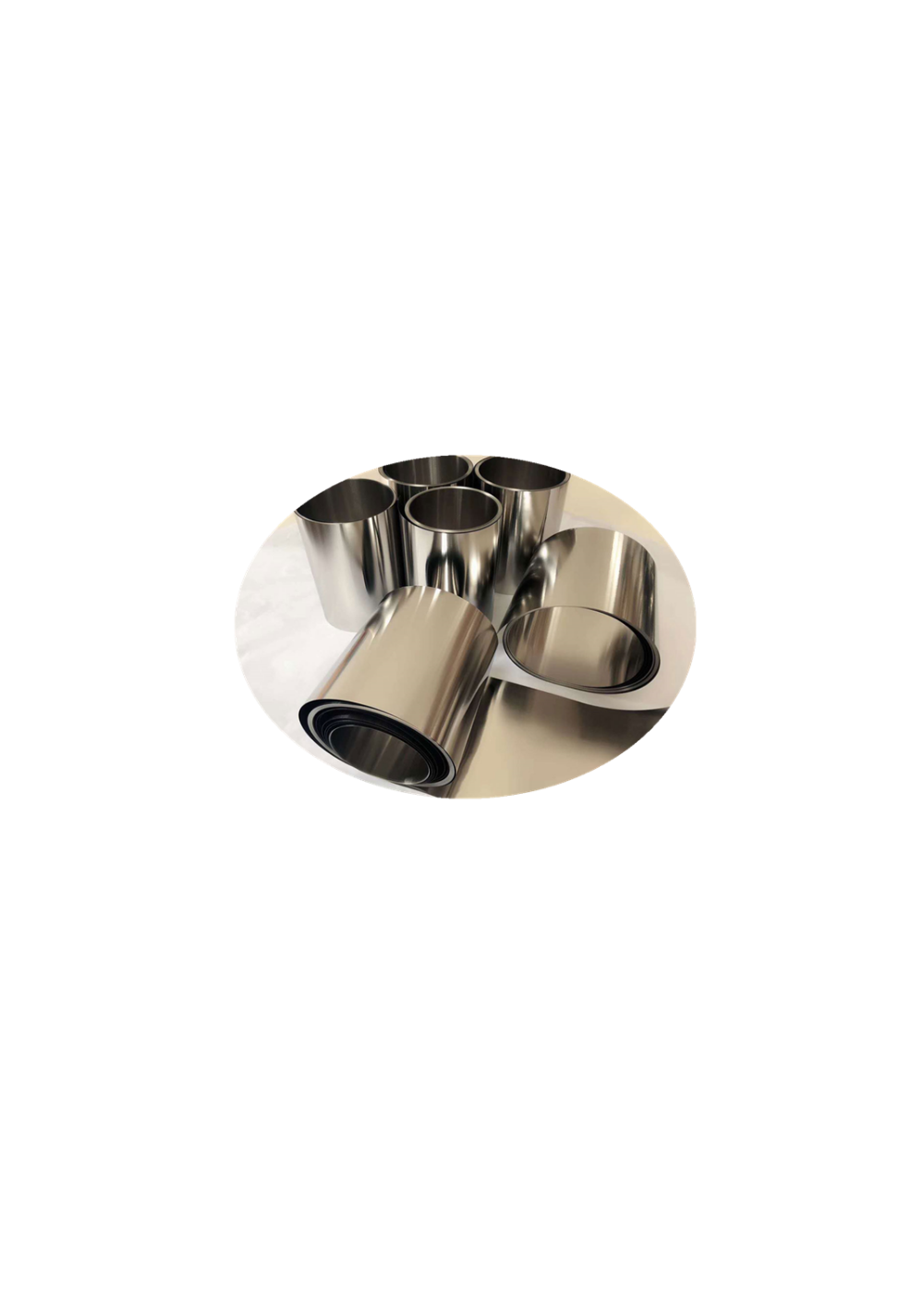

1. Raw materials: stainless steel/copper strip/galvanized strip/aluminum strip/cold rolled and various metal strips
2. Thickness of slitting area: 0.1mm-0.8mm
3. Maximum feeding width: <305 mm
4. The maximum outer diameter of raw materials: <1000mm
5. Inner diameter of raw materials: 150mm (customizable)
6. Raw material weight: <800kg

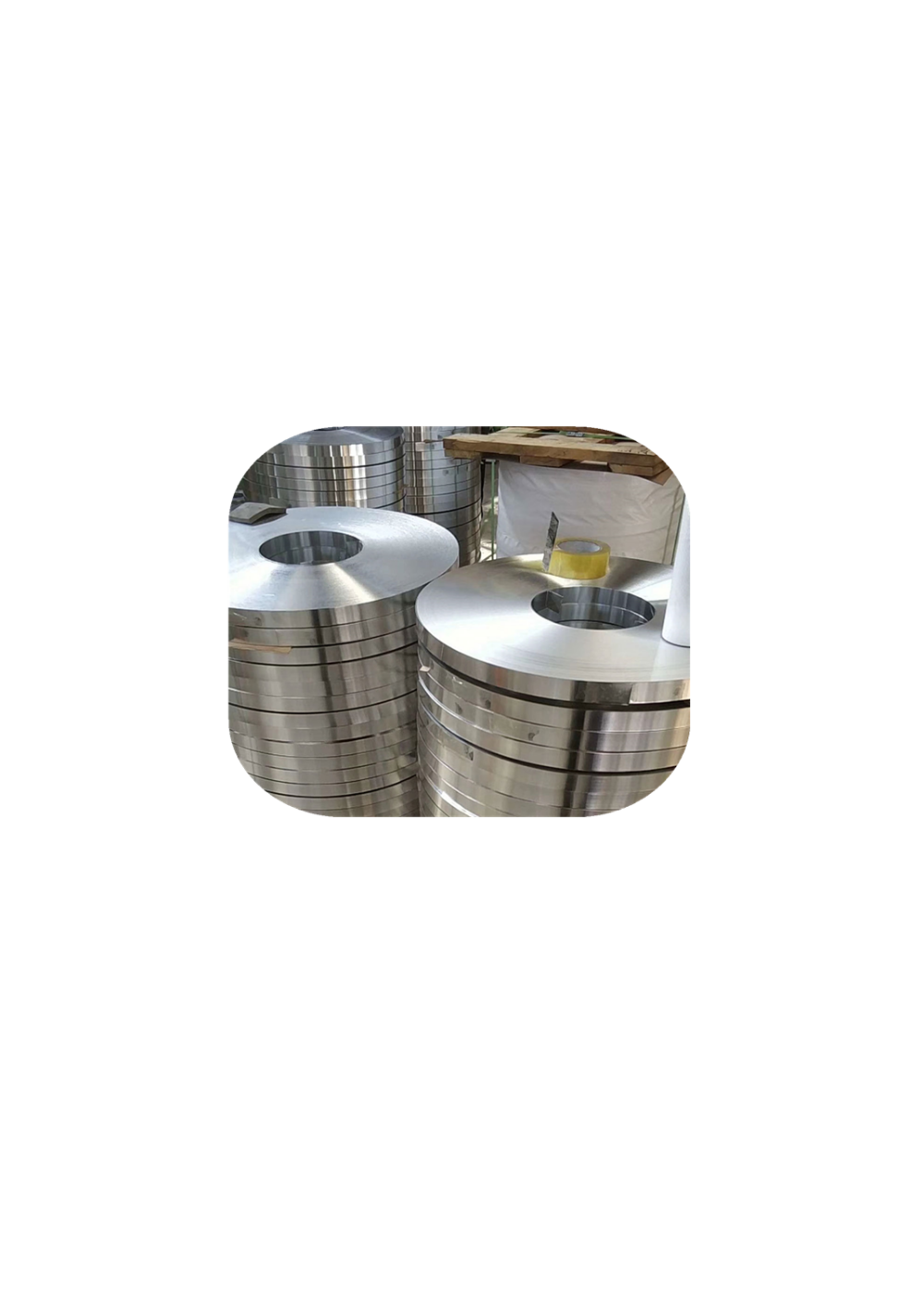

Finished product parameters

1. Finished material width: 4mm~305mm
2. Outer diameter of finished coil: <1000mm
3. Inner diameter of finished coil: 150mm (customizable)
4. Number of slices: 25 pieces (depending on the thickness of the material)
5. Finished product width tolerance: ±0.02mm

Device parameters

1. Equipment running direction: from right to left
2. Equipment speed: 1-80m/min
3. Equipment capacity: 4KW
4. Equipment coverage length*width*height: 5m*2m*1.6m
5. Equipment weight: 1.8T

Electrical parameters

1. Inverter: Audi (China)
2. Smart voltmeter: French school (China)
3. Intermediate relay: Omron (Japan)
4. Electrical switch components: Chint (China)
5. Equipment power supply: Sanhuo 101, AC380V, 50Hz
6. Motor: Wuxi, China
7. Reducer: Wuxi, China
